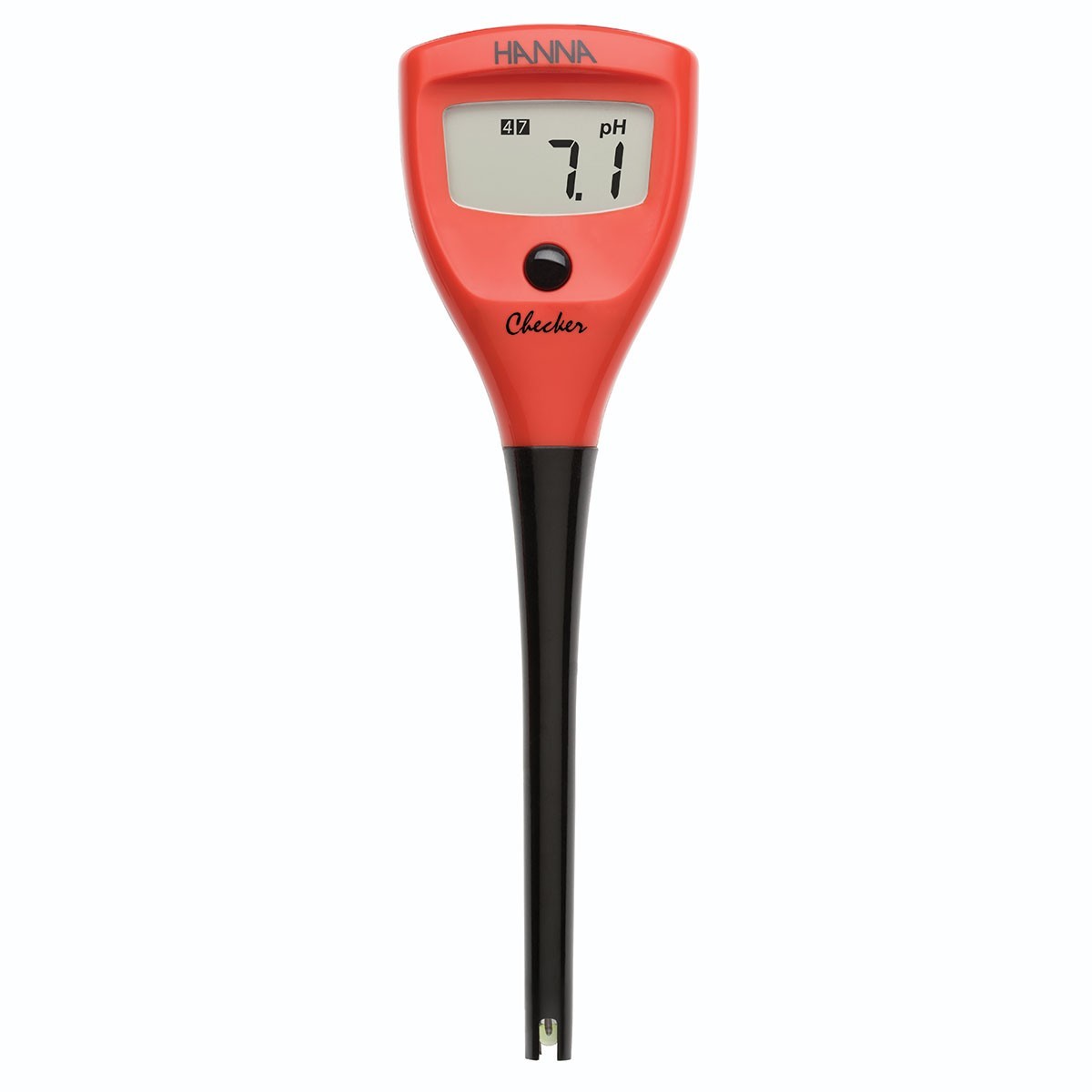

pH Pen (0.0 – 14.0) In Clean Water HI98103

Producer: HANNA Instruments

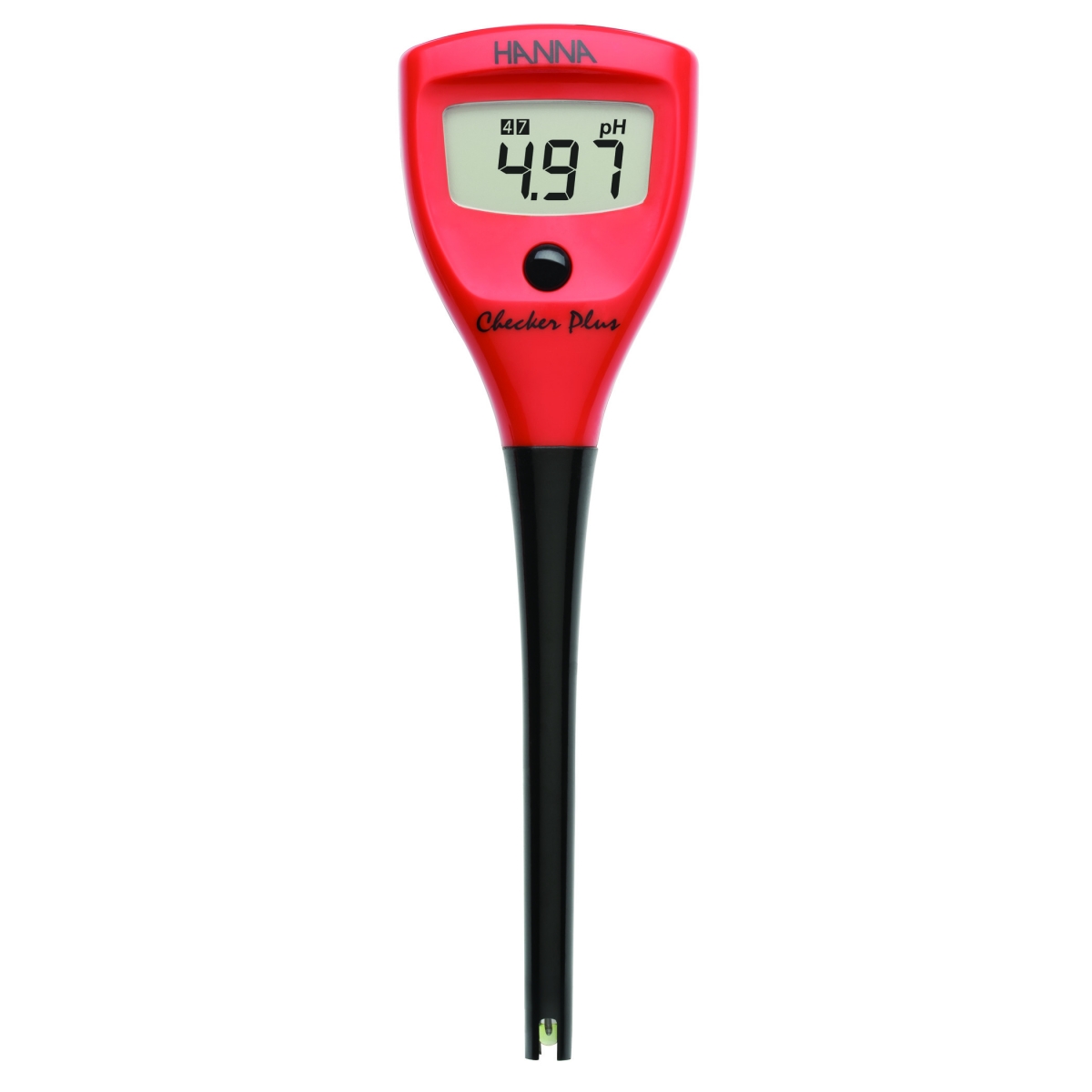

pH Meter (0.0 - 14.0) In Clean Water HI98103

– Measure pH from 0.0 to 14.0 (1 odd number)

– Hautomatic calibration

– The pH electrode can be easily replaced

– The small electrode body is suitable for measuring pH in flasks, bottles, and jars

– Operation is extremely simple with just 1 button.

– Suitable for measuring in clean water.

POCKET SIZE

Compact size ideal for field measurements.

SIMPLE OPERATION

All operations from start-up, calibration to measurement are with just one button.

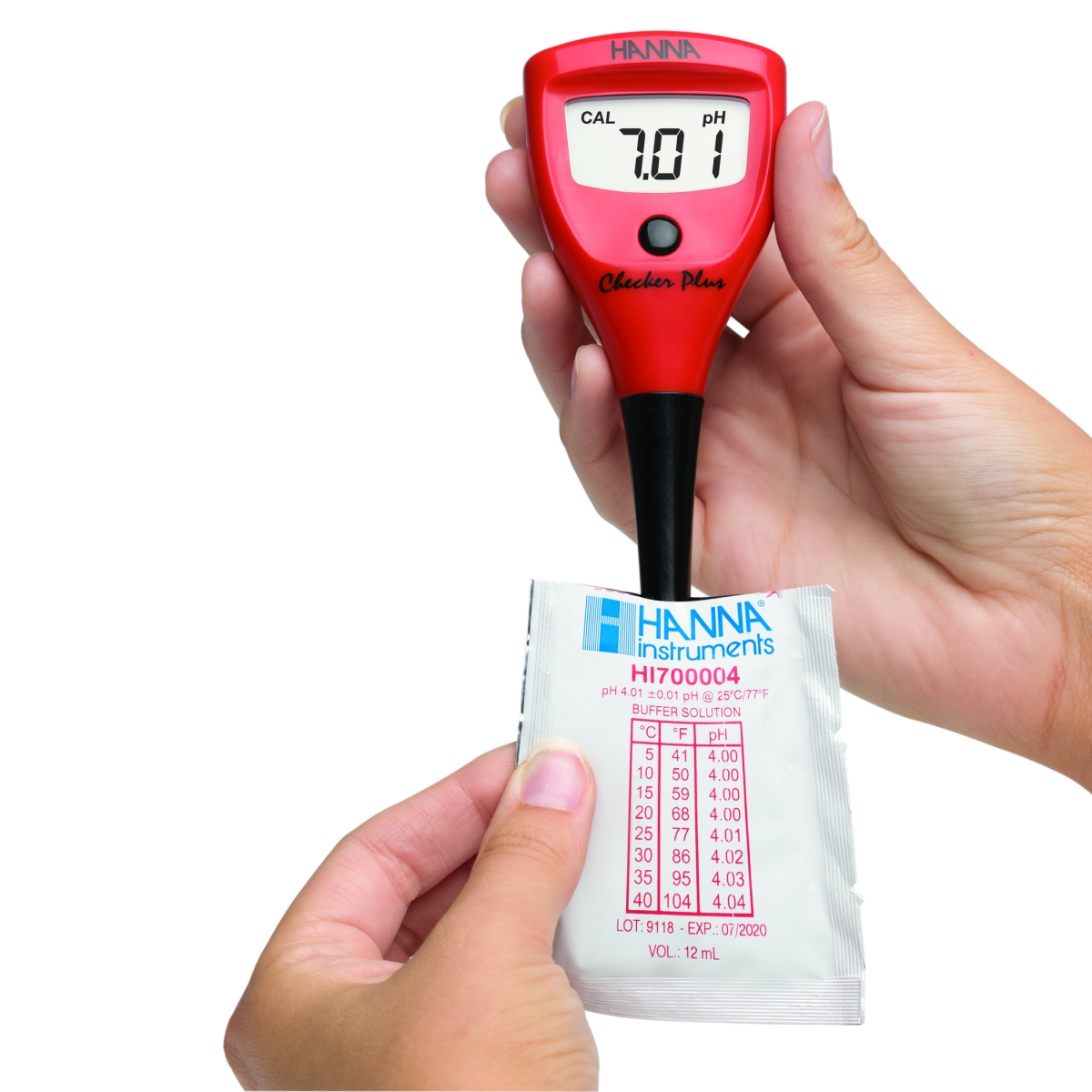

AUTOMATIC CALIBRATION

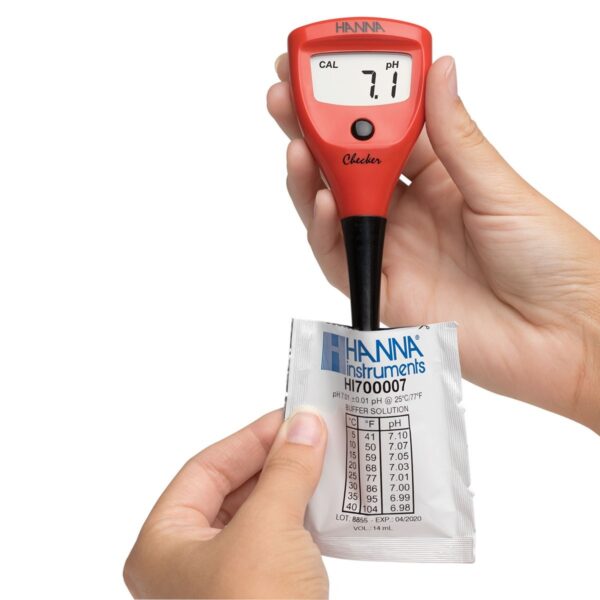

– HI98103 calibrates automatically at 1 or 2 points quickly with the supplied calibration solution packets.

– The screen will display the tag 4 7 10 if the calibration is successful.

hi9810020tip-2

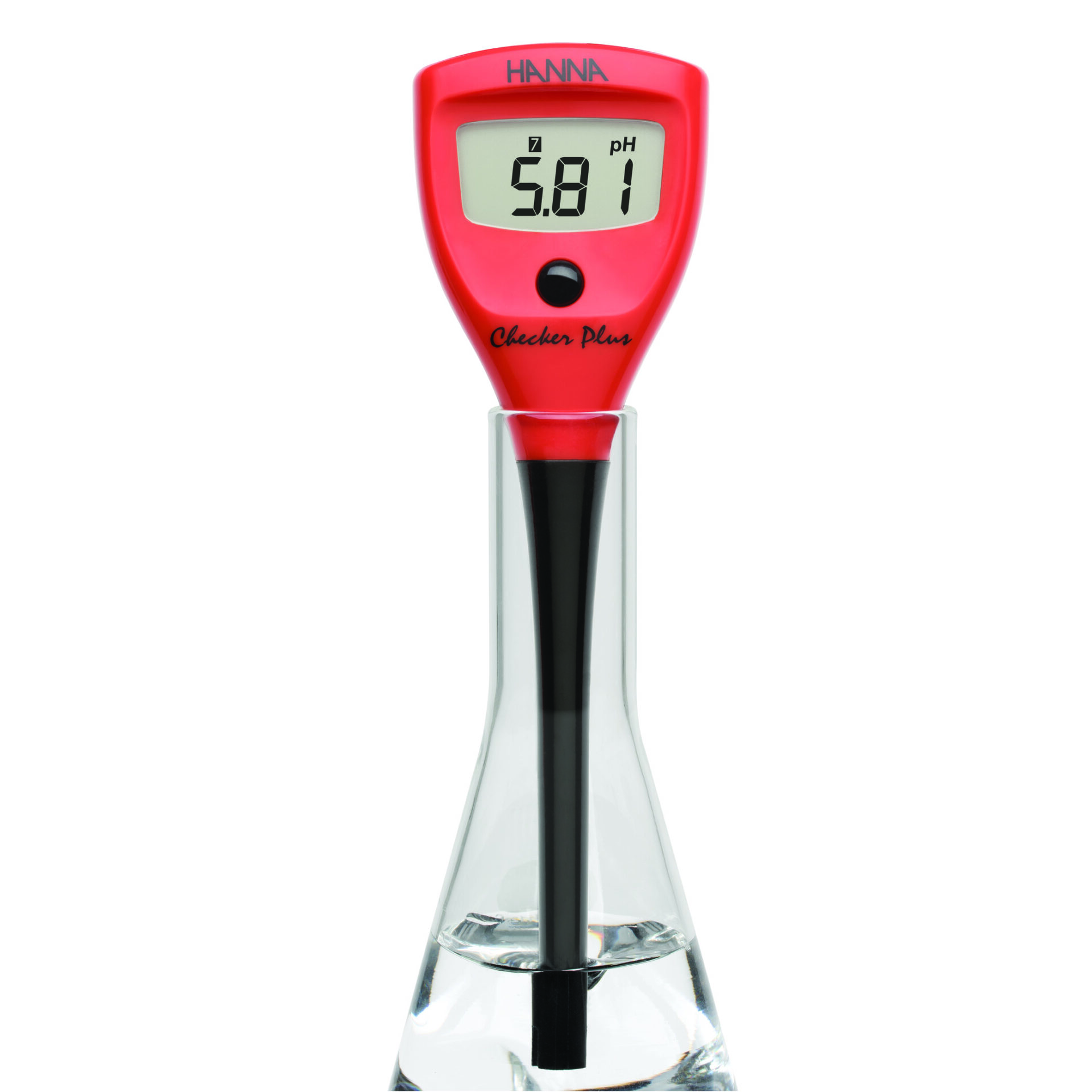

SMALL ELECTRODE HEAD

Easily insert the electrode into a test tube, bottle or container with small holes

PLASTIC ELECTRODE BODY

Protects the glass pH bulb inside and minimizes breakage upon impact

hi9810020probe-2

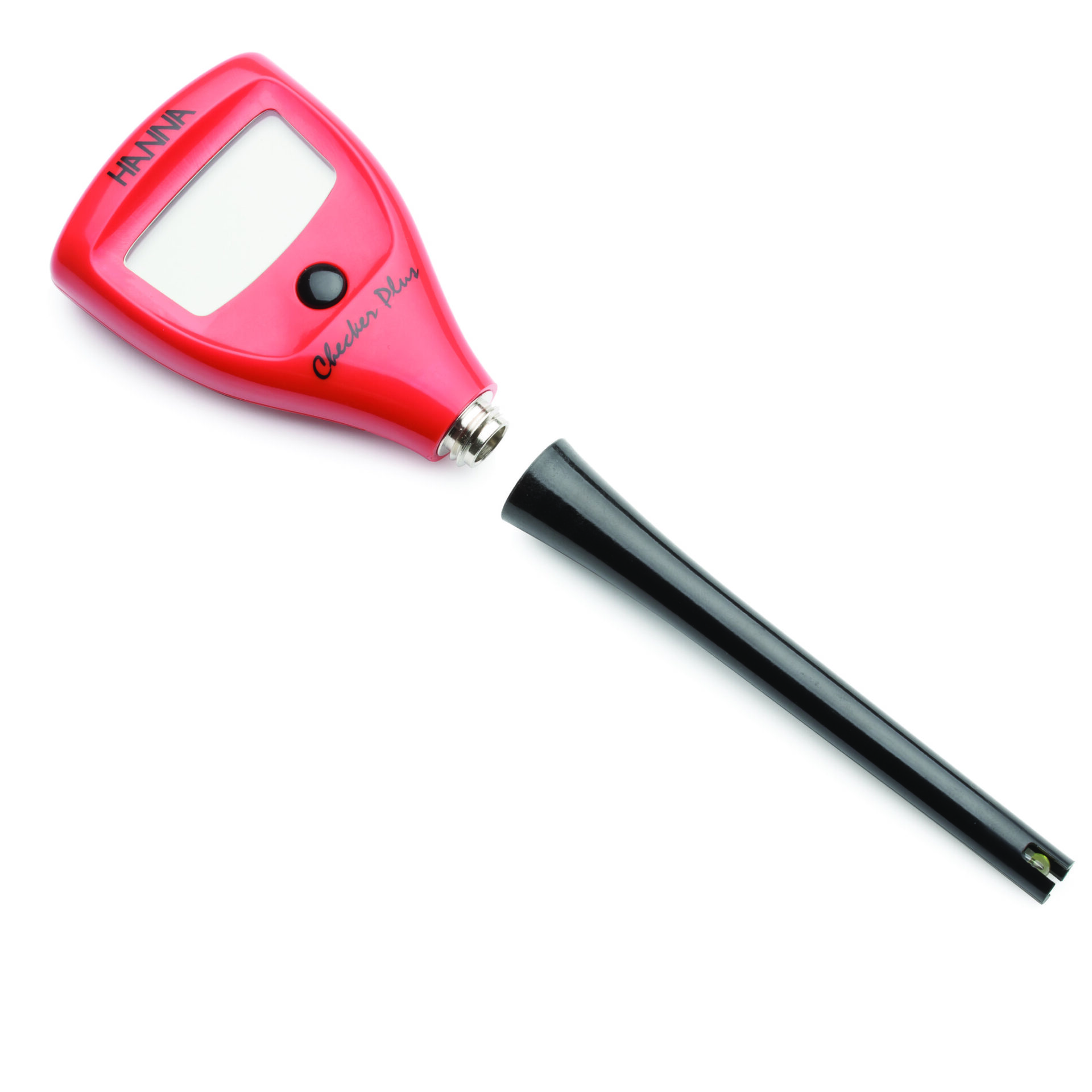

REPLACEABLE ELECTRONS

– The pH electrode can be replaced and easily removed by rotating it.

– pH electrode can be purchased separately if needed with item code HI1271

hi9810020pin-2

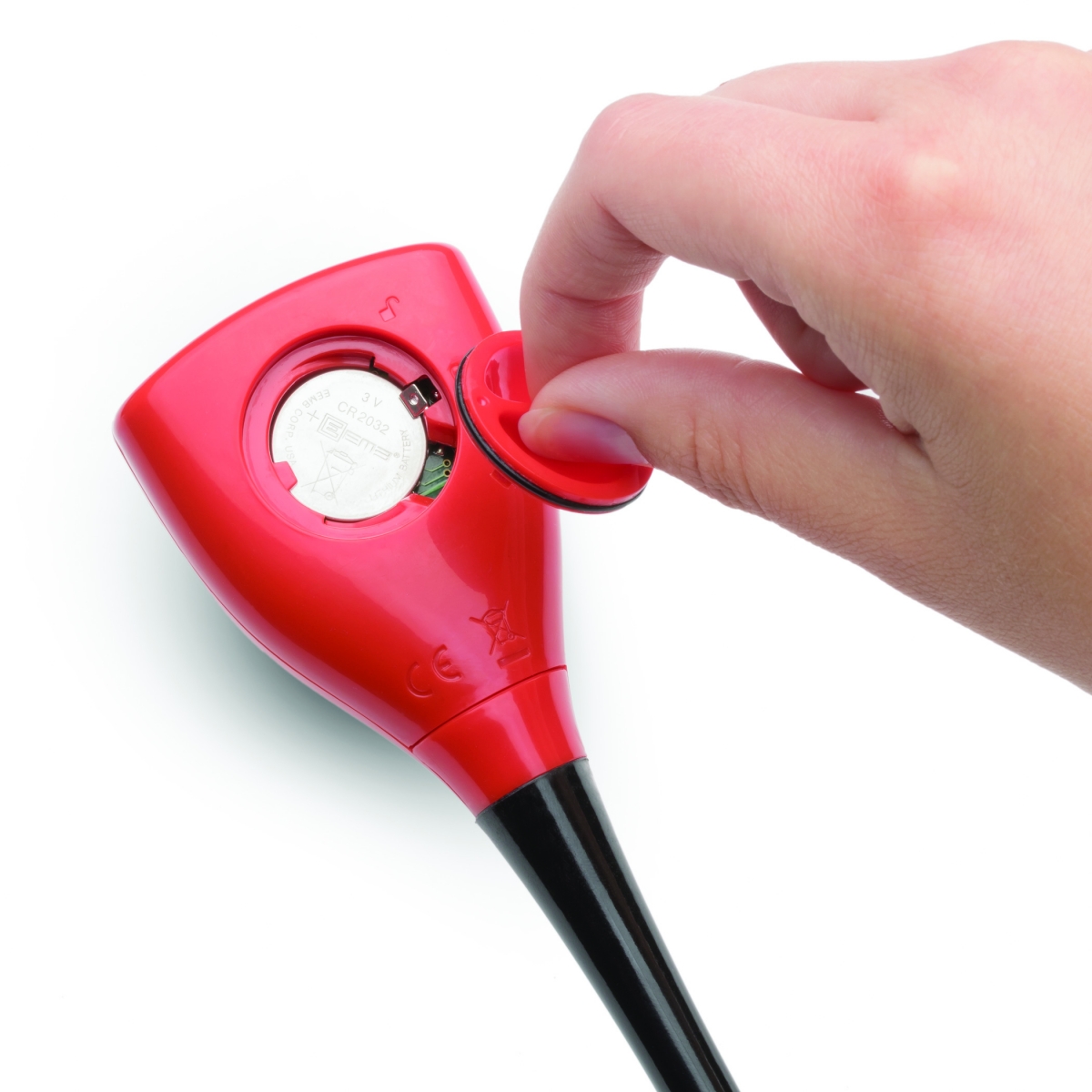

LONG BATTERY LIFE

The included CR2032 Li-ion battery provides up to 1000 hours of continuous use.

BThe battery icon will flash to let you know it's time to change the battery so you never miss a measurement.

Common CR2032 batteries can be easily purchased at supermarkets, bookstores or grocery stores outside.

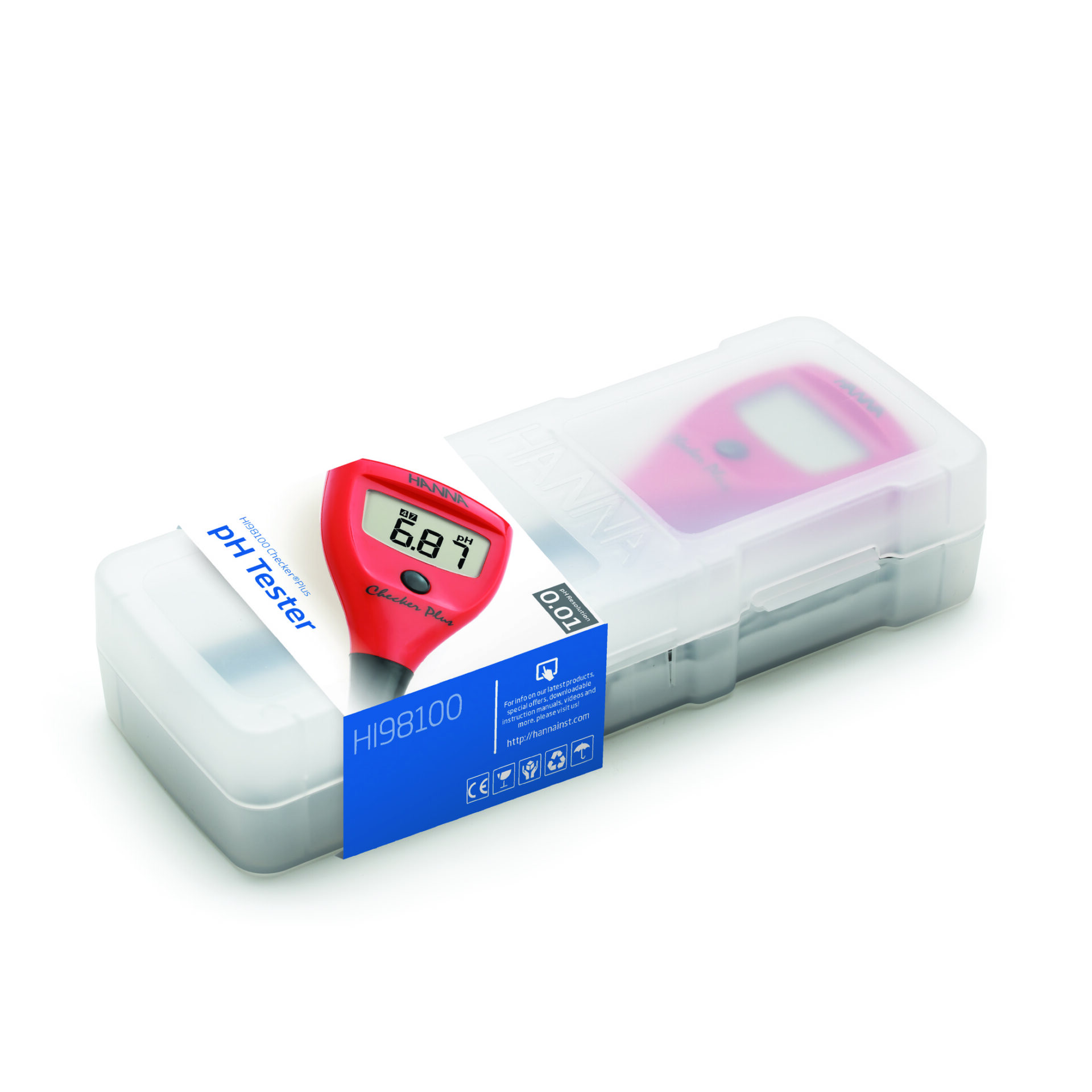

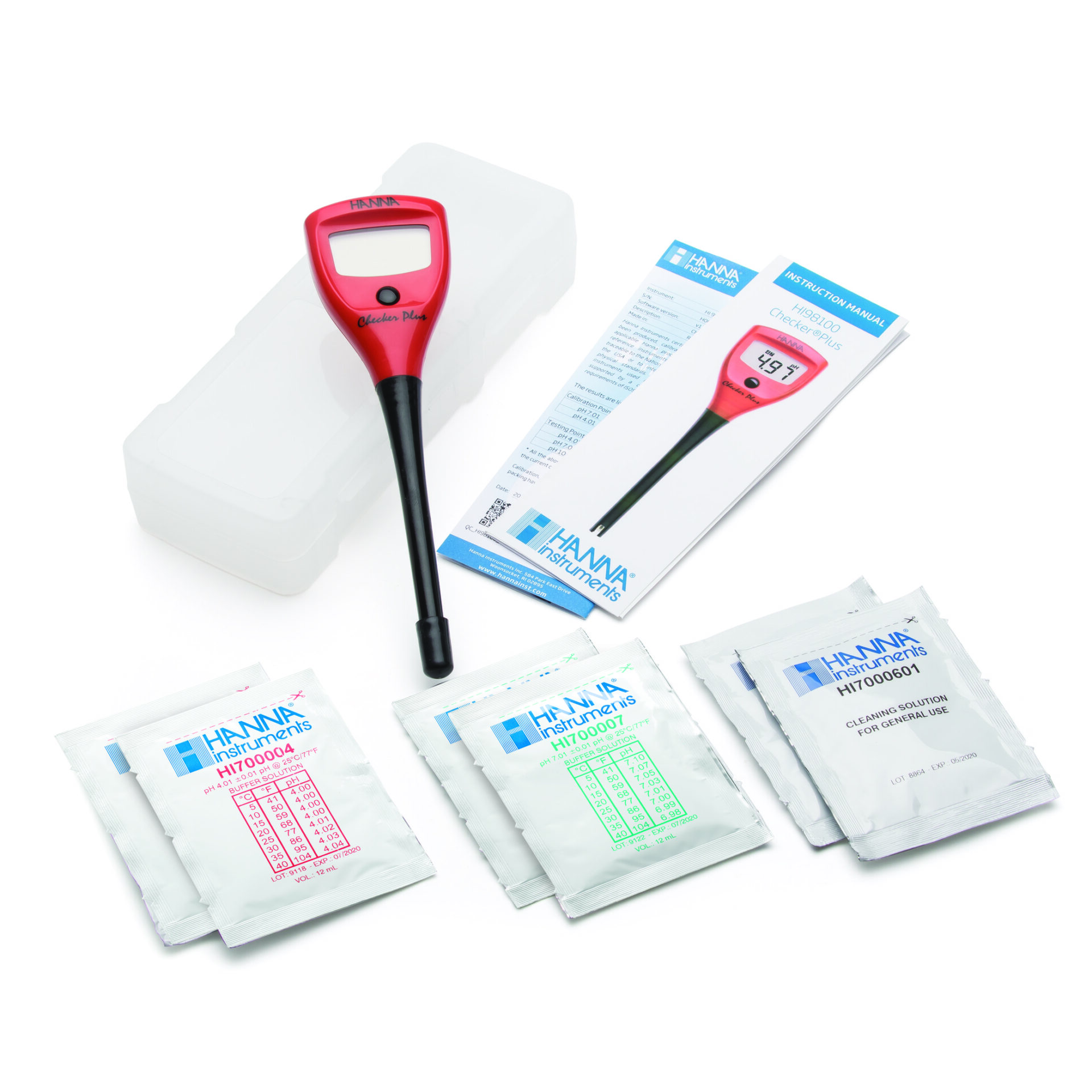

SUPPLIED COMPLETE SET

The HI98100 is supplied as a complete kit including:

– Measuring machine and Electrode

– pH4.01 and 7.01 calibration solution package

– Pack electrode cleaning solution immediately after measurement.

HOW TO MEASURE AND CALIBRATE WITH HI98103 METER

[wpcc-iframe allowfullscreen=”” frameborder=”0″ height=”360″ src=”https://www.youtube.com/embed/fcS2e2hCmCo” width=”640″]

SPECIFICATIONS

pH scale	0.0 to 14.0 pH Temperature not measured
pH resolution	0.1 pH
pH accuracy	± 0.2 pH
Calibration	automatic, 2 points (4.01 and 7.01) or (7.01 and 10.01)
The battery	1 CR2032 battery/ equivalent to 1000 hours of continuous use
Electrode	HI1271 (supplied)
Environment	0 to 50°C (32 to 122°F); RH max 95%
Size/Weight	50 x 174 x 21 mm / 50 g
Guarantee	06 months for the body and 3 months for the electrodes (for products with intact tags and warranty card)
Supply includes	– Measuring machine HI98103. – pH electrode HI1271. – Calibration solution package pH 4.01 HI70004 (2 pack). – Calibration solution package pH 7.01HI70007 (2 packs). – Solution package wash electrode HI700601 (2 packs). – Battery (in the device). – Warranty. – User manual. – Container.
