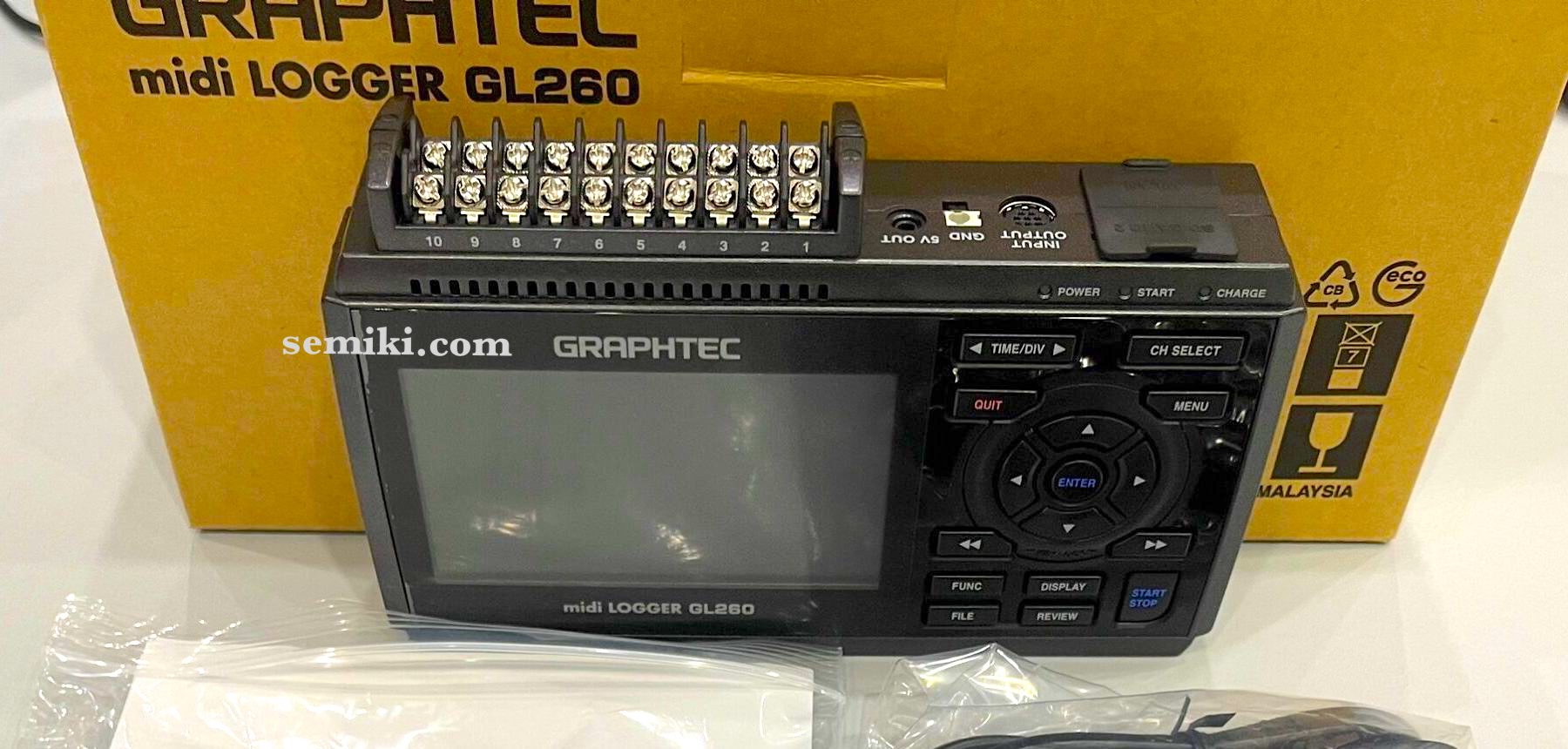

GRAPHTEC GL260 10 independent channel data logger with wireless signal transmission

Producer: GRAPHTEC

GRAPHTEC GL260 10 independent channel data logger with wireless signal transmission

GRAPHTEC GL260 Bộ ghi dữ liệu 10 kênh độc lập truyền tín hiệu không dây - Image 2

GRAPHTEC GL260 Bộ ghi dữ liệu 10 kênh độc lập truyền tín hiệu không dây - Image 3

GRAPHTEC GL260 Bộ ghi dữ liệu 10 kênh độc lập truyền tín hiệu không dây - Image 4

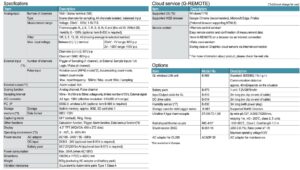

Data Logger Graphtec GL260
Number of analog input channels 10 channels
Voltage range: Up to 24V (common ground)
Signal type: Voltage, Open collector, Contact (relay)
Threshold: Approx. +2.5V (Hysteresis: Approx. 0.5V (2.5V to 3V))
Output warning (4 channels)
Output signal: Open collector (pull up to 5V with 10kΩ resistor)
Voltage: Max 30V
Current: Max 0.5A
Collector heatsink: Max 0.2W
All Channels Isolated/Common Inputs, Independent Multi-Channel
Voltage, temperature and humidity can be selected for each input channel. Use EU scale for other measurement parameters.
Voltage measurement
Supports wide operating range (from 20 mV to 100 V)
Temperature measurement
Thermocouples: K, J, E, T, R, S, B, N, C (WRe5-26)
Shunt resistor (250Ω) is available as an option.
Equipped with dedicated 1-5V range for measurement range
Shunt resistor 250Ω (B-551)
Moisture meters
Humidity sensor is available as an option.
Power to the sensor is also supplied from the main unit.
Equipped with dedicated humidity range
Humidity sensor (B-530)
Digital I/O ports available
Digital I/O can be used by connecting an optional I/O cable.
Input/Output Cable (B-513)
Logic/Pulse Input (4 channels)
Logic: Voltage-free contact (Contact A, Contact B, NO, NC), Open collector, Voltage input (HL decision)
Pulse: 3 types of selection (Rotation / Count / Instantaneous) for each channel

GRAPHTEC Japan

Multi-channel Data Logger 10 channels

Model : GL260

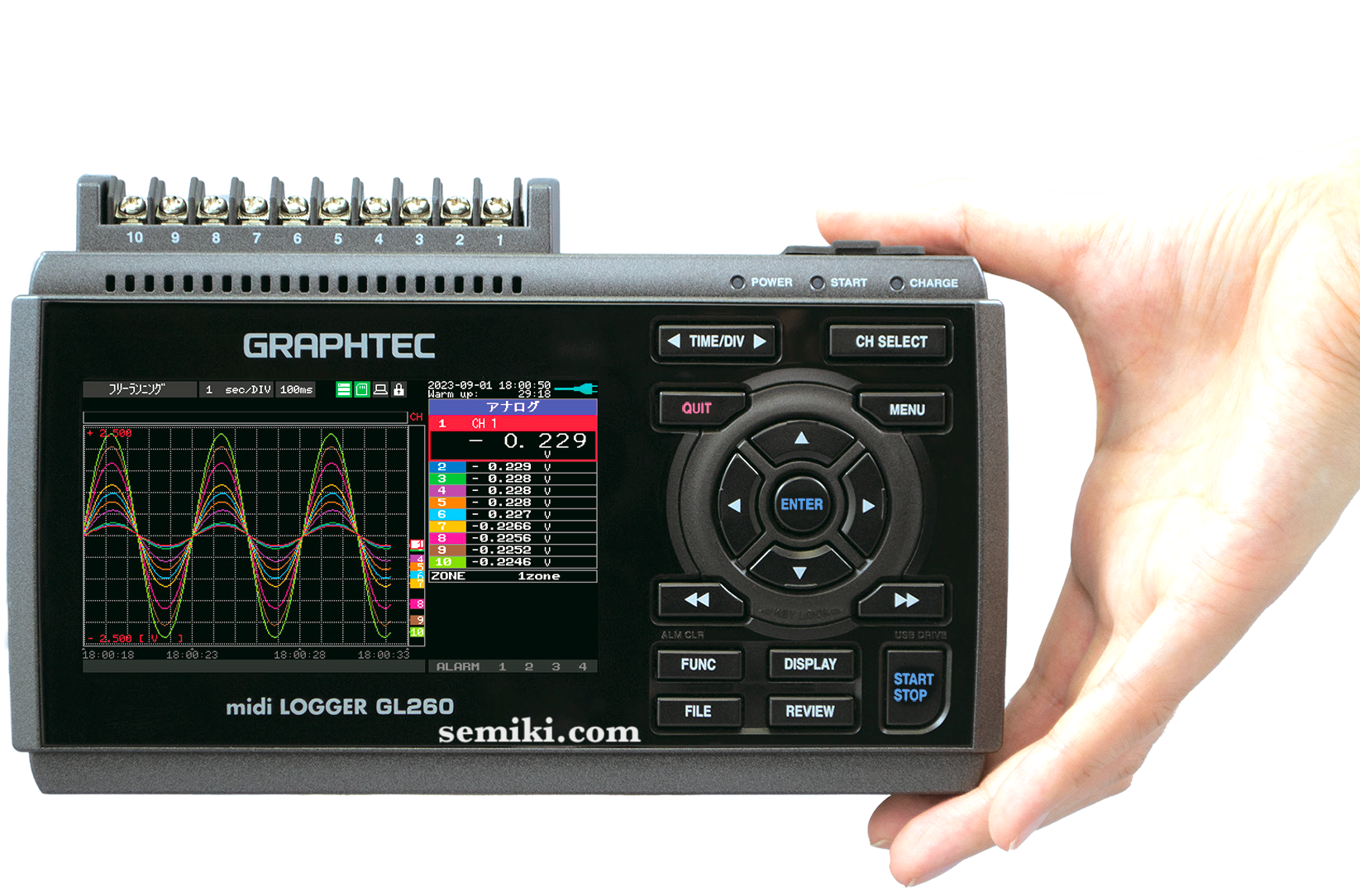

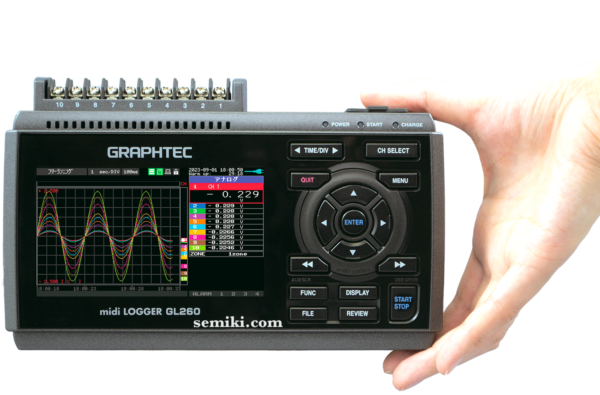

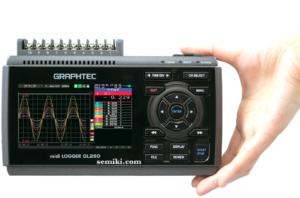

GRAPHTEC GL260 is a 10-channel type data logger that supports all channel isolated and multi-function input. It can measure various phenomena such as voltage and temperature.

It operates recording at intervals of 10ms to 1 hour.
Also an optional Wireless LAN unit enables wireless measurement and remote monitoring.

GL260 supports the new Remote control service “G-REMOTE”, which makes your measuring more efficient.

Wireless LAN & High-performance data logger GL260

New service G-REMOTE
3 new functions (Alarm history, Improved Inter-CH calculation, Memory loop function)
The usability has been greatly improved.
Supports all channel isolated and multi-function input.
By narrowing down the number of channels, data are captured at sampling interval of up to 10ms is possible.
WLAN unit (optional) enables wireless measurement with a PC and remote monitoring.

All Channel Isolated / Universal Input, Standalone Multi-Channel
Voltage, temperature, and humidity can be selected for each input channel. Use EU scaling for other measurement parameters.

Measure voltage
Supports wide operating range (from 20 mV to 100 V)
Measure temperature
Thermocouple : K, J, E, T, R, S, B, N, C (WRe5-26)
Shunt resistor (250Ω) is available as an option.
Equipped with a dedicated 1-5V range for the measurement range
Shunt resistance 250Ω (Graphtec B-551)
Measure humidity
A humidity sensor is available as an option.
Power for the sensor is also supplied from the main unit.
Equipped with a dedicated humidity range
Humidity sensor (Graphtec B-530)
Digital I/O port available
Digital I/O can be used by connecting an optional I/O cable.
Input/Output cable (Graphtec B-513)
Logic/Pulse inputs (4 channels)
Logic: No-voltage contact (A contact, B contact, NO, NC) ,Open collector, Voltage input (HL decision)
Pulse: 3 types of selections (Rotation / Quantity count / Instantaneous) per channel
