HORIBA IG-340 thiết bị đo độ bóng bề mặt (100GU /60°)

Producer: HORIBA

HORIBA IG-340 thiết bị đo độ bóng bề mặt (100GU /60°)

HORIBA IG-340 thiết bị đo độ bóng bề mặt (100GU /60°) - Image 2

HORIBA IG-340 thiết bị đo độ bóng bề mặt (100GU /60°) - Image 3

HORIBA IG-340 thiết bị đo độ bóng bề mặt (100GU /60°) - Image 4

Máy kiểm tra độ bóng cầm tay HORIBA Nhật Bản Model: IG-340
Máy kiểm tra độ bóng HORIBA IG-340 Độ chính xác cao ±0,5% Đo độ bóng 60 độ
Phạm vi đo: 0,0 đến 100,0
Phạm vi hiển thị: 　 0,0 đến 199,9 [OVER] được hiển thị cho các giá trị lớn hơn 100,0
Độ lặp lại: 　 ±0,6 (±0,5% của toàn thang đo ±1 chữ số)
Diện tích đo hình elip 6 × 12 mm
Hình học đo: 60°
Nguồn sáng: LED (880 nm)
Nguồn cung cấp pin AA × 2
Kích thước 61 (W) × 62 (D) × 176 (H) mm
Đo các vật liệu khác nhau: đá, gỗ, da, cao su, thủy tinh, kim loại, nhựa. Ứng dụng đa dạng: bảo dưỡng sàn, đánh bóng ô tô đến đá và kiểm tra ngoại quan vật liệu xây dựng. Bộ nhớ trong: 100 lần đọc và 200 dữ liệu trung bình với thời gian và ngày tháng. Xuất dữ liệu tức thời qua kết nối USB. Chống nước IP42

HORIBA Japan

Handy Gloss Checker
Model: IG-340

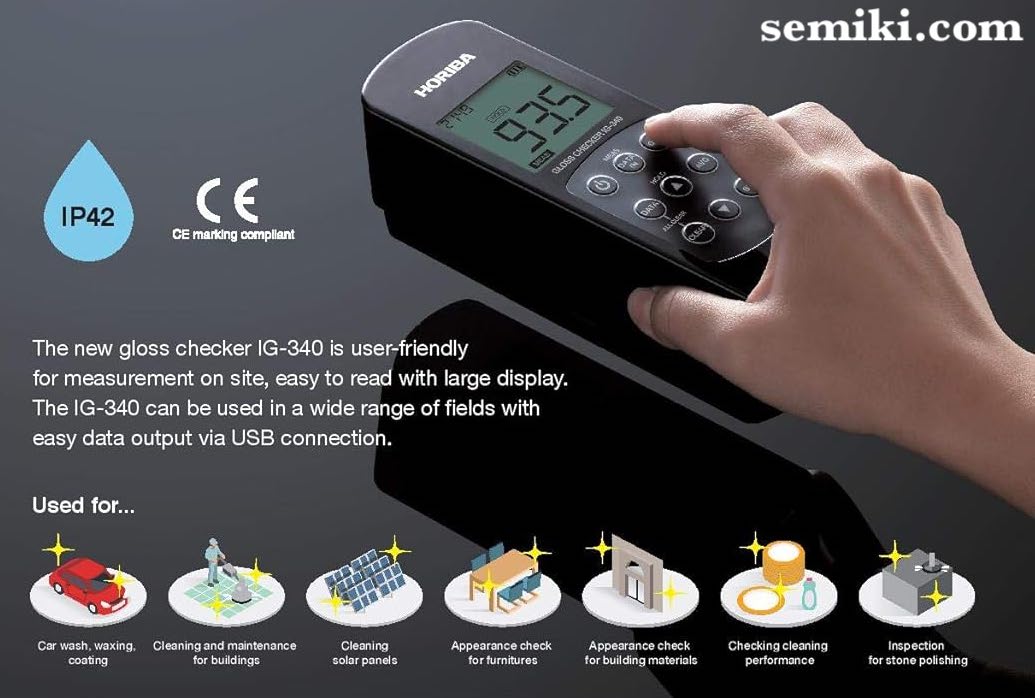

HORIBA IG-340 Gloss Checker High Precision ±0.5% 60 Degree Gloss Measurement

Measurement of different materials: stone, wood, leather, rubber, glass, metal, plastic. Various application: floor maintenance, car polishing to stone and building materials appearance inspection. Internal memory: 100 readings and 200 average data with time and date. Instant data output via USB connection. IP42 waterproof

The gloss checker IG-340’s user friendly interface allows intuitive operations for instant gloss measurement on site. Due to ergonomic and light weight design the IG-340 can be hold and operated by one hand. High accuracy, repeatability and precision proven by more than 50,000 units sold worldwide makes it indispensible in object’s appearance check and quality control.

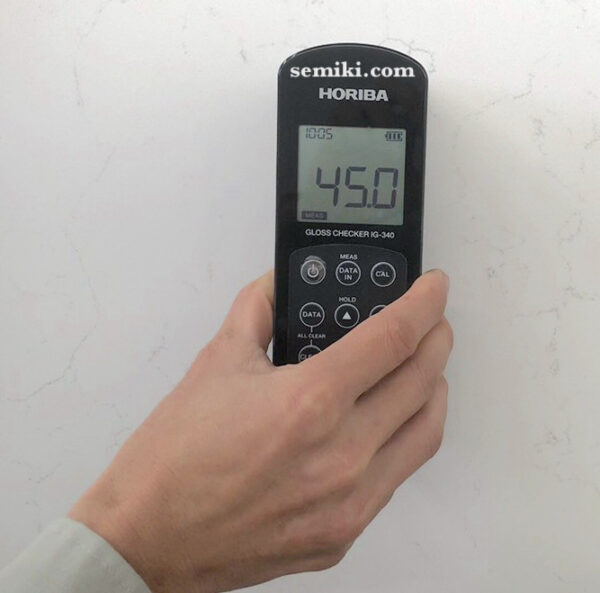

Pic.: Semiki checks the gloss of wall tile surfaces

IG-340 uses very common measurement angel 60°, which allows accurate measurement from low gloss surfaces to highly pollished textures.

This enables gloss measurement of different materials: stone, wood, leather, rubber, glass, metal, plastic, and various application fields from foor maintenance, car polishing to stone and building materials appearance inspection. Ingress Protection IP42* enables outdoor gloss measurement and use in the fields where water drops are present.

Internal memory can store 100 readings and 200 average data with time and date. Instant data output via USB connection and without any dedicated software allows QA and other professional reports to be easily generated. The IG-340 does not need any special measurement technique. It can be easiely used by everyone and become your right hand in reporting about performed works and quality inspection.

Specifications:

Measurement range: 0.0 to 100.0
Display range: 0.0 to 199.9 [OVER] is displayed for values greater than 100.0
Repeatability : ±0.6 (±0.5% of full scale ±1 digit)
Measurement area: 6 × 12 mm ellipse
Measurement geometry: 60°
Light source: LED (880 nm)
Operating temperature: 0 to 40℃
Relative humidity: 35 to 85%RH (no condensation)
Environmental rating: IP42
Power suppy : AA battery × 2
Dimensions: 61 (W) × 62 (D) × 176 (H) mm
Weight: 320 g or less (including batteries and protective cover)
Functions: Auto power off (10 minutes)
Memory: 100 readings and 200 average data with date and time
Data output to PC : via USB cable (Batch output of memory data, OS: Windows®10)
Accessories: Protective cover with integrated calibration tile Soft case , Lens cleaning cloth , scrollable

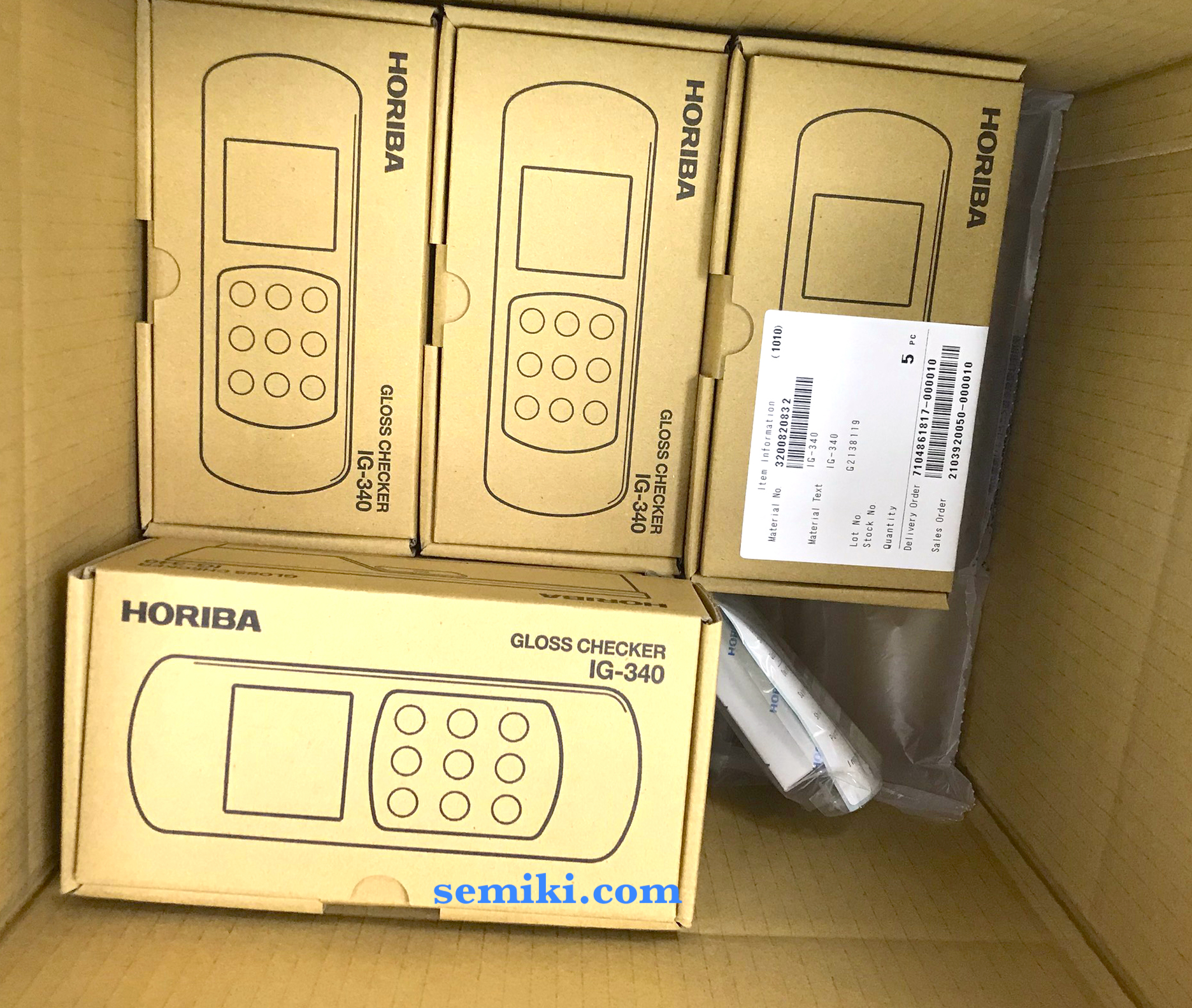

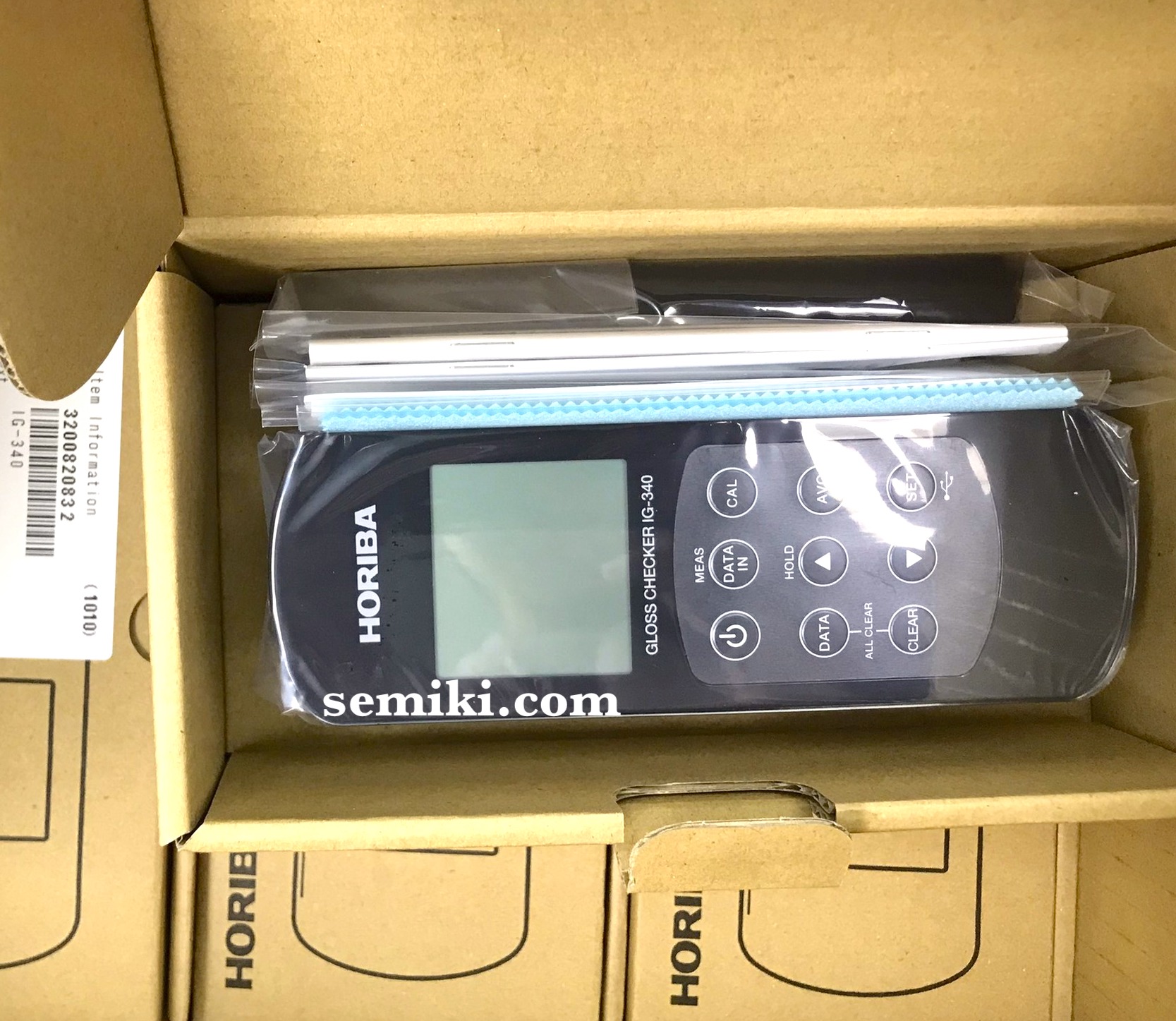

Pic.: HORIBA IG-340 Gloss Checker ( 100.0 GU/ 60°) at Semiki’s warehouse

Compact, Lightweight and Easy Operation
- 30% smaller than the previous model the IG-320
- Easy to hold and carry by one hand
- Gloss values can be easily managed on site with one button one function operation
Environmental Rating
- IP (Ingress Protection) rates at IP42*
- Can be used for outdoor gloss measurement such as construction sites, solar panels, ships, trains and buses
- Also can be used for stone polishing and other applications where water drops are present
Large Screen Display
- Indicated values can be easily confirmed when IG-340 is placed on the floor during floor cleaning and maintenance works
Internal Memory for Measured and Average Values
- Measured values can be saved with a single touch
- Easy operation with one hand using the side button is also available
- Average value can be calculated and saved as well
