KONICA CM-16D, CM-17D máy quang phổ phân tích màu (MAV:Ø8mm/ Ø11mm )

Producer: KONICA MINOLTA

KONICA CM-16D, CM-17D máy quang phổ phân tích màu (MAV:Ø8mm/ Ø11mm )

KONICA CM-16D, CM-17D máy quang phổ phân tích màu (MAV:Ø8mm/ Ø11mm ) - Image 2

KONICA CM-16D, CM-17D máy quang phổ phân tích màu (MAV:Ø8mm/ Ø11mm ) - Image 3

KONICA CM-16D, CM-17D máy quang phổ phân tích màu (MAV:Ø8mm/ Ø11mm ) - Image 4

The Spectrophotometer CM-17d Konica Minolta Japan
Máy quang phổ cầm tay Konica Minolta CM-16D, CM-17D là dòng thiết bị đo màu mới tiên tiến có đế sạc và camera kính ngắm mẫu tích hợp.
Dòng CM-17d là thế hệ kế thừa của CM-700d và CM-600d, được thiết kế để cung cấp tính liên tục dữ liệu tuyệt vời với thế hệ trước.
Thiết lập một máy đo khoảng cách di động, rất phù hợp để đo mẫu nhỏ và đo bề mặt cong. CM-17D được trang bị kính ngắm điện tử để tạo điều kiện thuận lợi. Cấu trúc CM-16D nhỏ gọn và tiết kiệm chi phí.
CM-17d đi kèm với đế sạc mới tích hợp với hộp hiệu chuẩn zero. Đế sạc dạng đứng này cho phép cất giữ và sạc thiết bị một cách thuận tiện, đảm bảo sự an tâm trong thời gian không đo. Nắp hiệu chuẩn màu trắng có thể được cất giữ an toàn ở mặt trước của đế sạc, loại bỏ nguy cơ bị mất và mang lại cảm giác an toàn.

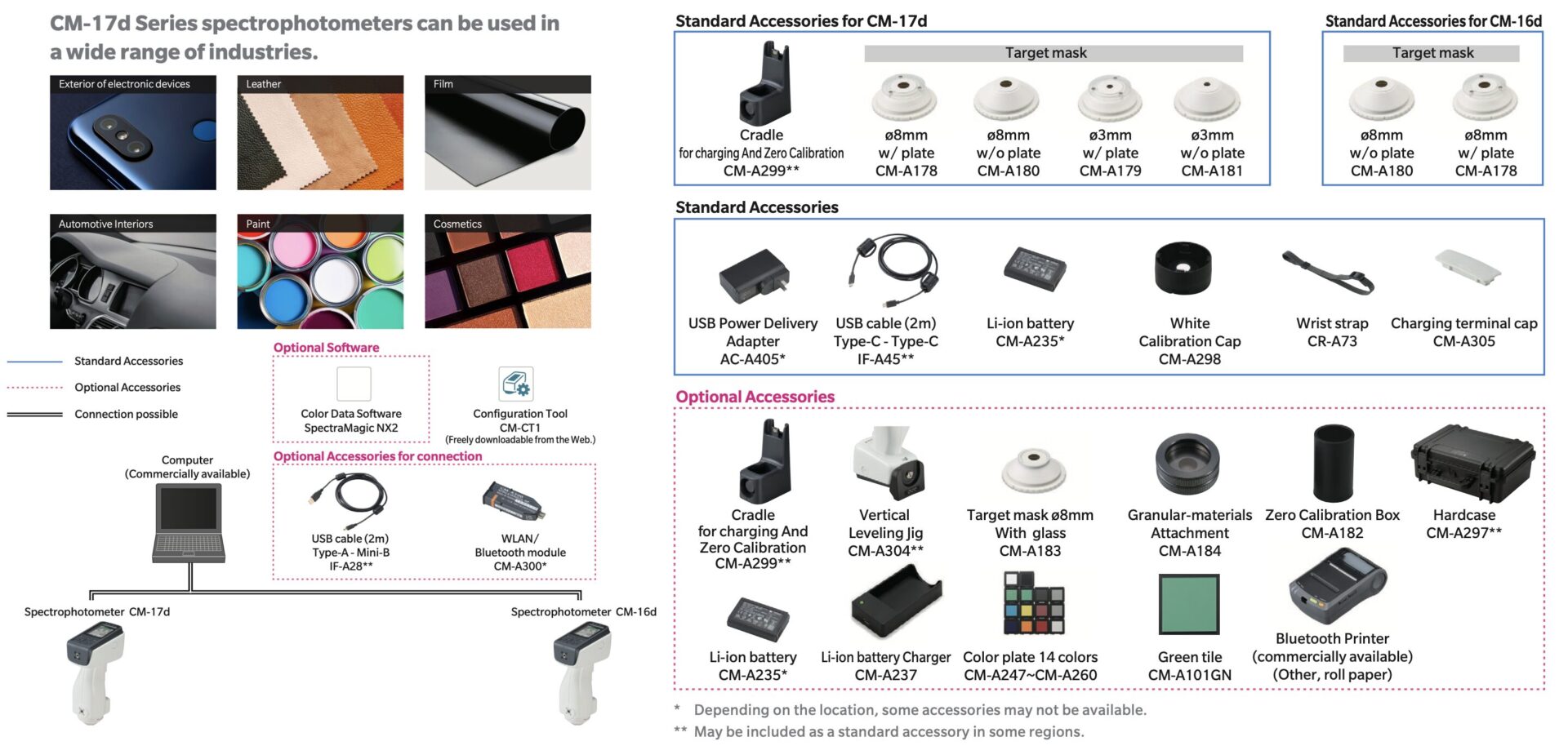

Dòng máy đo màu quang học CM-17D có thể được sử dụng rộng rãi trong mọi lĩnh vực của cuộc sống. Trong ô tô, thiết bị điện tử và điện thoại thông minh, mỹ phẩm, lớp phủ, nhựa, vật liệu xây dựng và dệt may, CM-17D giúp cải thiện hiệu quả công việc trong quá trình kiểm soát chất lượng, sản xuất và nghiên cứu phát triển, đồng thời giúp khách hàng đạt được quản lý màu tiên tiến.

Konica Minolta Japan

Spectrophotometer

Model:

CM-16D (MAV:Ø8 mm/Ø11 mm)

CM-17D (MAV:Ø8 mm/Ø11 mm / SAV:Ø3 mm/Ø6 mm )

Advanced portable spectrophotometer with charging dock and built in sample viewfinder camera*. Dual or single aperture model with modern UI and additional mounting points for cobot/system integration. The CM-17d series is the successor to the CM-700d and CM-600d, designed to provide excellent data continuity with the previous generation.

Vertical orientation for unmatched stability on small and curved surfaces
Charging dock with zero calibration function
Simple, modern user interface
Short measurement time (compared to previous generation CM-700d)
Sample viewfinder camera for effortless alignment on structured and patterned samples (CM-17d only)
Wavelength Analysis and Adjustment
Partner with SpectraMagic™ NX2 colour data software or the CM-CT1 Configuration Tool for enhanced reporting, user experience and instrument fleet management * CM-17d only

The Spectrophotometer CM-17d from Konica Minolta l intro

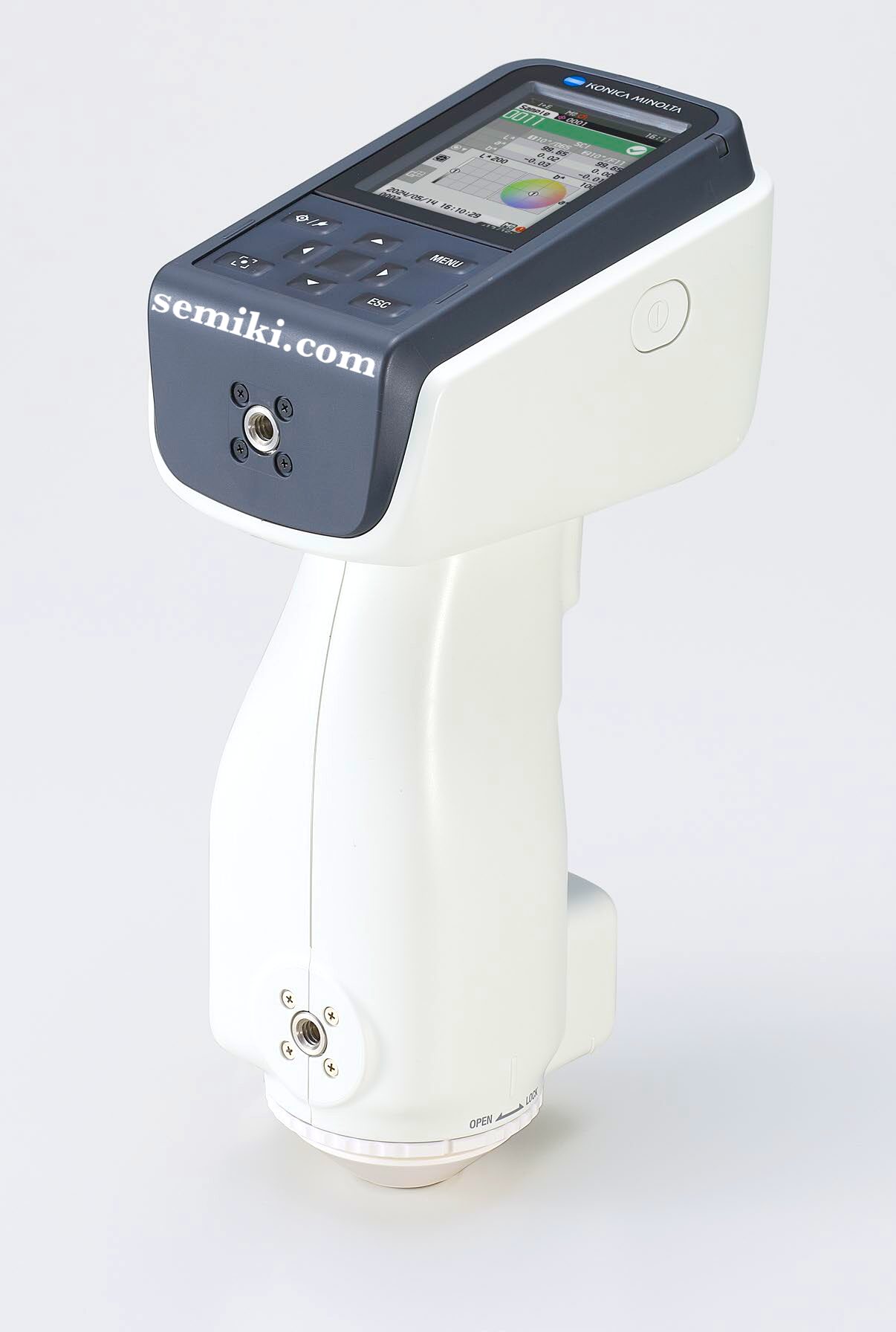

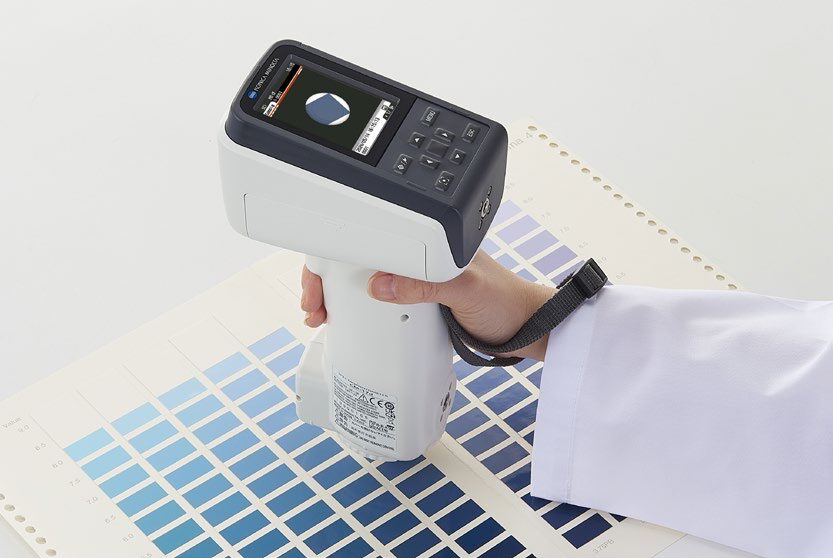

The CM-17d is a vertical portable spectrophotometer designed to be simple to configure and use. It has an electronic viewfinder for easy positioning and is excellent for measuring small samples and curved surfaces. It is ergonomically designed to be easy to grip and is designed to be used in various measurement scenarios, including one-handed work. Stress-free hardware design includes easy positioning with the electronic viewfinder, improved visibility with a slight tilt of the operation screen, and a comfortable workspace with wireless connectivity.

The CM-17d offers higher accuracy and shorter measurement time. It has a di:8°and de:8°integrating sphere compatible with the previous CM-700d series, along with the improved measurement accuracy of black color.

The CM-17d portable spectrophotometer offers unprecedented accuracy/inter-instrument agreement (IIA), usually only found for laboratory-grade instrumentation or benchtop models. This precision allows for superior color communication throughout the supply chain from supplier to final assembly. The inter-instrument agreement of the chromaticity value (average for 12 BCRA color tiles) is within ΔE 0.12 for the CM-17d spectrophotometer.

The CM-17d comes with a new charging cradle integrated with the zero-calibration box. This stand-type cradle allows for convenient storage and charging of the device, ensuring peace of mind during off-measurement time. The white calibration cap can be safely stored in the front of the cradle, eliminating the risk of losing it and providing a sense of security.

The CM-17d offers stable and reliable measurement data over time through its optional WAA (Wavelength Analysis & Adjustment), an innovative function that analyzes and adjusts for any wavelength shift during each calibration.

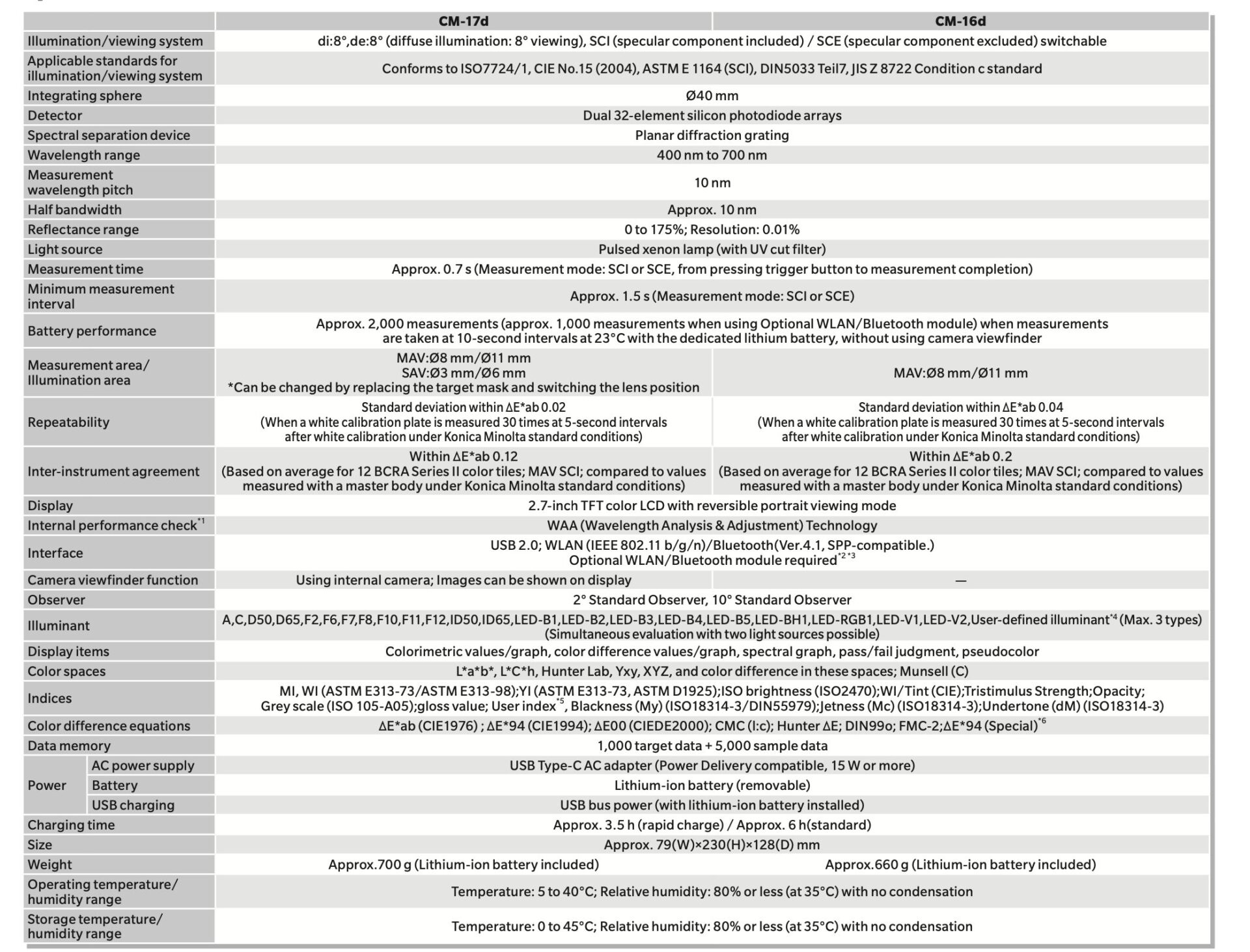

Specifications:

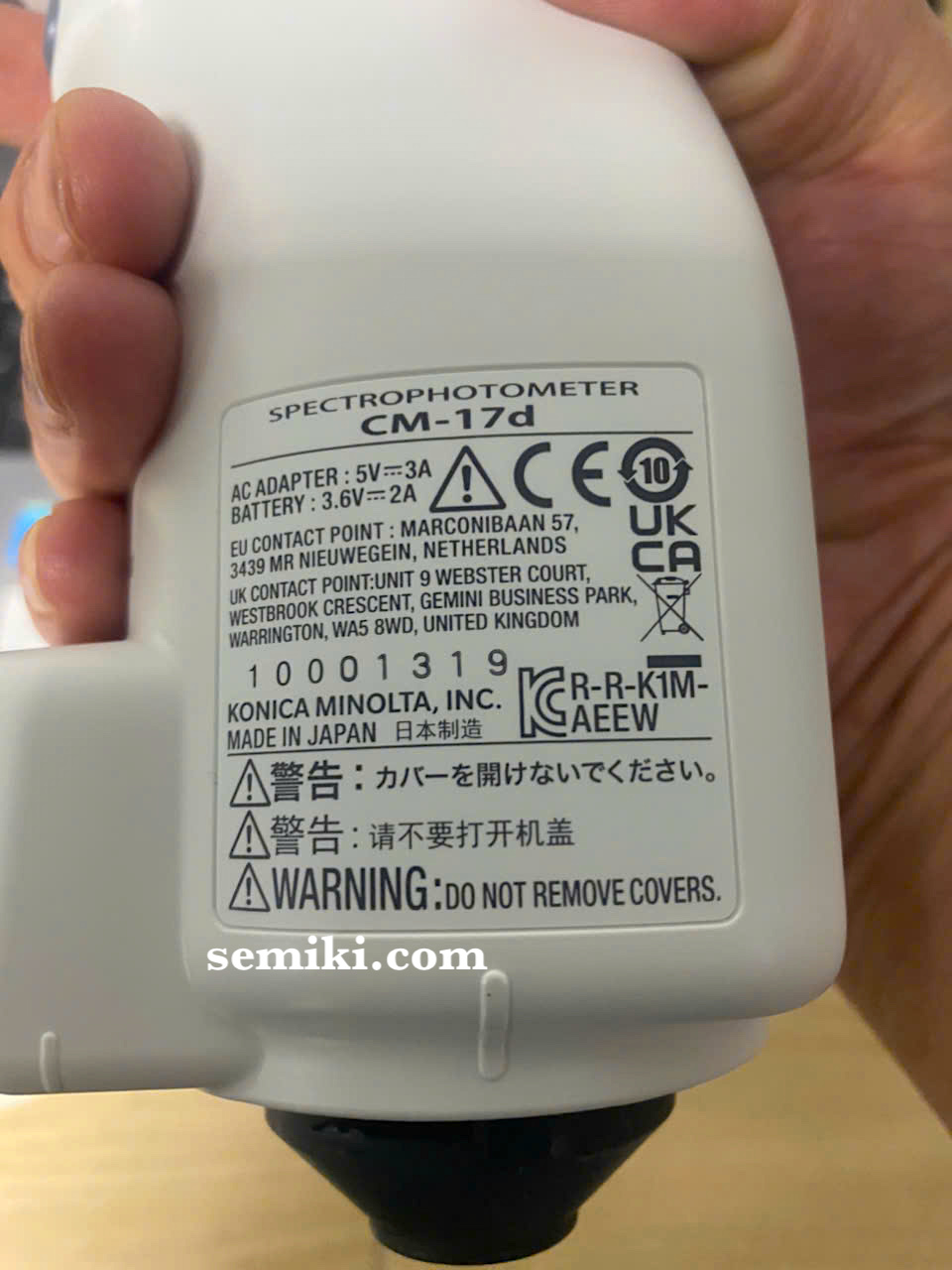

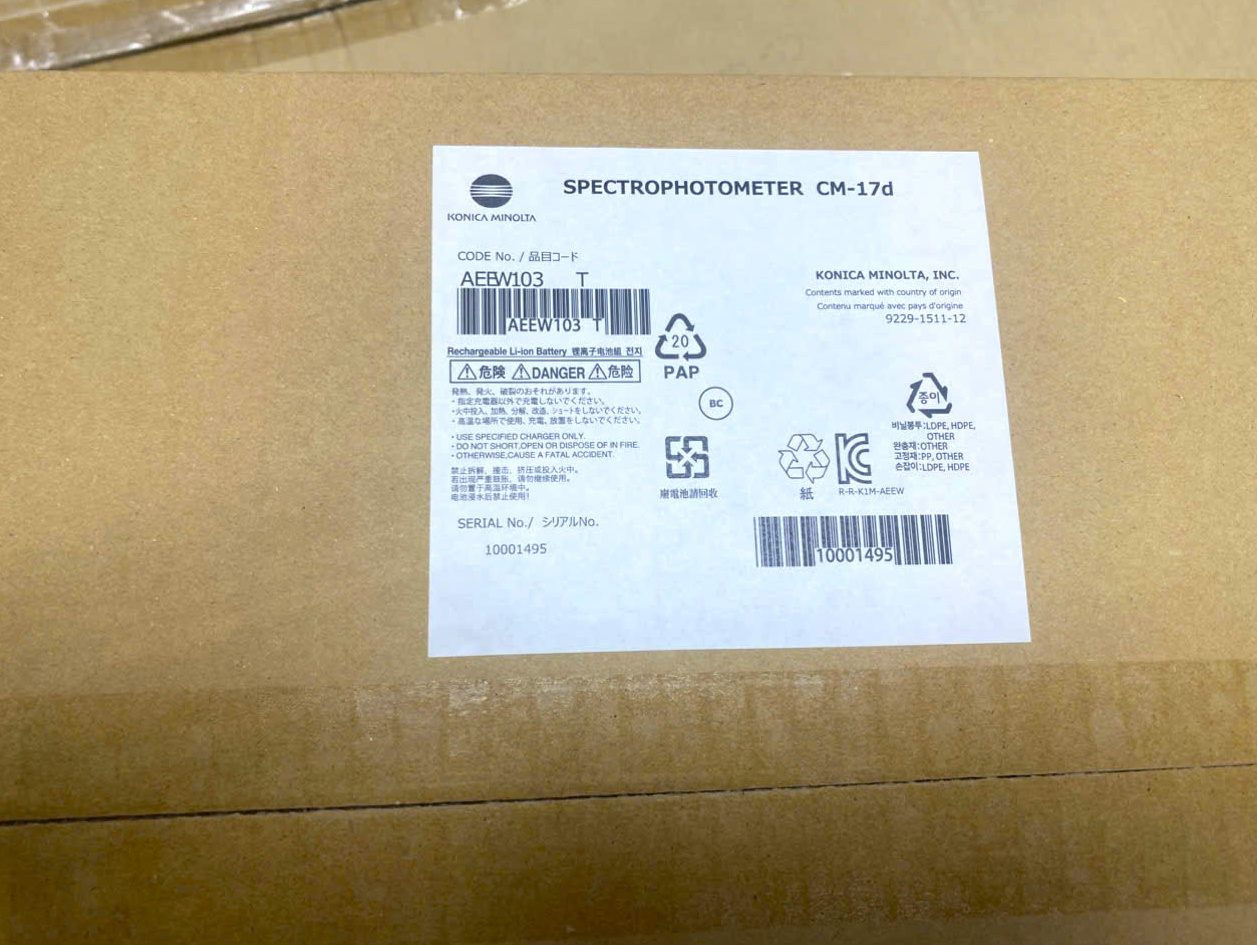

Pic.: KONICA Minolta Spectrophotometer CM-17d at Semiki's warehouse

Features

Eligible ISO 17025 Certification
Cradle for charging and zero calibration
Aperture switches between 3mm and 8mm sizes to evaluate the color of a wide variety of samples very small to large
Camera Viewfinder for easy positioning
Optional WLAN/Bluetooth module sends measurement results wirelessly
Tight inter-instrument agreement measures consistent with other instruments of the same model, allowing color values and specifications to be communications, shared, and coordinated throughout the supply chain
Easily switches between SCE and SCI measurement modes to accommodate the surface conditions of each sample
Pass/fail assessments immediately determines if the sample meets the defined standard or target color
Integrates with SpectraMagic NX2 software for color quality control, others software for color formulation and matching, and CM-SA Skin Analysis software for dermatological applications
