HORIBA GLOSS CHECKER IG-331 GLOSSY METER

Producer: HORIBA

HORIBA GLOSS CHECKER IG-331 GLOSSY METER

MÁY ĐO ĐỘ BÓNG HORIBA GLOSS CHECKER IG-331 - Image 2

MÁY ĐO ĐỘ BÓNG HORIBA GLOSS CHECKER IG-331 - Image 3

Máy kiểm tra độ bóng HORIBA Nhật Bản Model: IG-331
(0-100 / Đo độ bóng có thể chuyển đổi giữa các góc 20 độ và 60 độ)
Đo ngay lập tức từ bề mặt mờ bóng thấp đến sơn, lớp phủ hoặc sáp được đánh bóng cao. Đo từ 0 đến 100 GU (Đơn vị độ bóng) với phạm vi từ 60 đến 20 độ. Đánh giá bề mặt về độ sạch, lớp phủ bảo vệ, độ bền thời tiết và độ bóng.
Máy kiểm tra độ bóng kỹ thuật số tiện dụng cho phép đo độ bóng khách quan, định lượng
Được thiết kế để dễ vận hành hơn, duy trì bề mặt sạch sẽ và cải thiện kiểm tra kiểm soát chất lượng trong nhiều ứng dụng công nghiệp khác nhau.

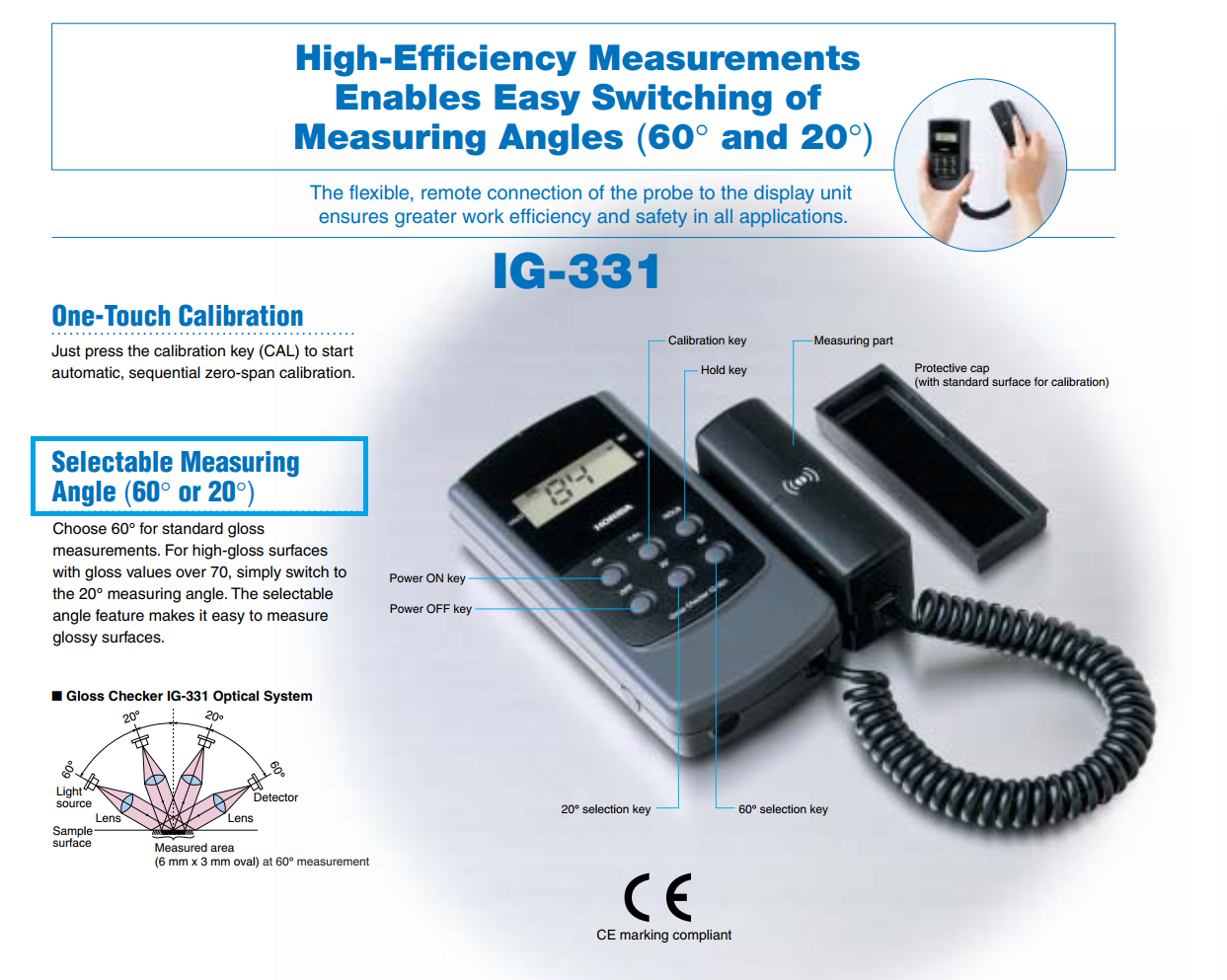

Hiệu quả và tính linh hoạt cao khi sử dụng đầu dò và nguồn sáng riêng biệt, cung cấp khả năng chuyển đổi giữa góc đo 60 độ để đo độ bóng tiêu chuẩn và góc đo 20 độ cho bề mặt có độ bóng cao với giá trị độ bóng trên 70.
Kết nối linh hoạt giữa đầu dò và bộ phận hiển thị đảm bảo hiệu quả công việc cao hơn.
Chỉ cần chạm một lần vào phím hiệu chuẩn là có thể bắt đầu hiệu chuẩn tuần tự tự động theo khoảng không.

HORIBA Gloss Checker

Model: IG-331

Handy Digital Gloss Checkers Allow Objective,
Quantified Gloss Measurements

Measure instantaneously from low gloss matte surfaces to the highly polished paints, coatings or waxes. Measures from 0 to 100 GU (Gloss Units) with a 60 to 20 degree range. Evaluate surfaces for cleanliness, protective coatings, weathering and shine.

Horiba IG-331

Precision Gloss Checker, 60 or 20° Range (0-100 GU)

Choice of measurement angle at 60° or 20°, Convenient remote sensor type

Measures from 0 to 100 GU (Gloss Units)
60 or 20 degree measurement range
One step calibration
Measure instantaneously from low gloss matte surfaces to the highly polished paints, coatings or waxes
Extremely long battery life of 50 hours with one set of batteries
Small, super lightweight at 350g.

HORIBA Gloss Checkers provide an easy-to-use and an objective way of inspecting surface luster, eliminating ambiguity of subjective observations. HORIBA Gloss Checkers give numerical value to glossiness, which can be utilized in quality control and process benchmarks. Compact, light and simple to use, HORIBA Gloss Checkers are ideal for measuring Gloss in a wide range of applications.

The high quality Horiba IG-331 Gloss Checker is made by Horiba to the highest standards and delivers a super easy to use single key operation glossmeter. View continuous measurements as you move the IG-331 sensor along a surface. Measure instantaneously from low gloss matte surfaces to the highly polished paints, coatings or waxes providing uniform production quality.

Applications:

Sheen on leaves. Measure the waxy coating of leaves as a measure of quality.
Glass. Check the optical polish and refraction of glass including cleanliness.
Vehicles and machinery. HORIBA Gloss Checkers are used as a part of regular vehicle and equipment maintenance to check for wear of protective coating.
Masonry and building exteriors. HORIBA Gloss Checkers are handy when assuring uniform finish when using stone, wood, concrete, aluminum sashes and other materials.
Wood resin coatings. Inspect quality and deterioration on furniture and wooden products.
Plastic Film. Check quality of films such as greenhouse plastics for weathering.
Rubber. Check tires on your vehicles and equipment for wear and deterioration.
Leather. Check wear on leather.
Plastic molding surface inspection. Check the lustre and weathering on plastic. This can include outside moldings and even video screens.
Paint coatings and ink. Quality control, exposure tests and gloss inspection of finishes.
Evaluation of detergents. Check the quality and effectiveness of cleaning materials with a before and after gloss inspection.
Floor maintenance. Check the shine on your mopped floors to evaluate cleanliness.
