RENISHAW RLP40 QE (A-6717-0001) lathe probe module

Producer: RENISHAW UK

RENISHAW RLP40 QE (A-6717-0001) lathe probe module

RENISHAW RLP40 QE (A-6717-0001) module đầu dò máy tiện - Image 2

RENISHAW RLP40 QE (A-6717-0001) module đầu dò máy tiện - Image 3

RENISHAW RLP40 QE (A-6717-0001) module đầu dò máy tiện - Image 4

RENISHAW UK RLP40 QE Probe (radio/radio)
Product code: A-6717-0001

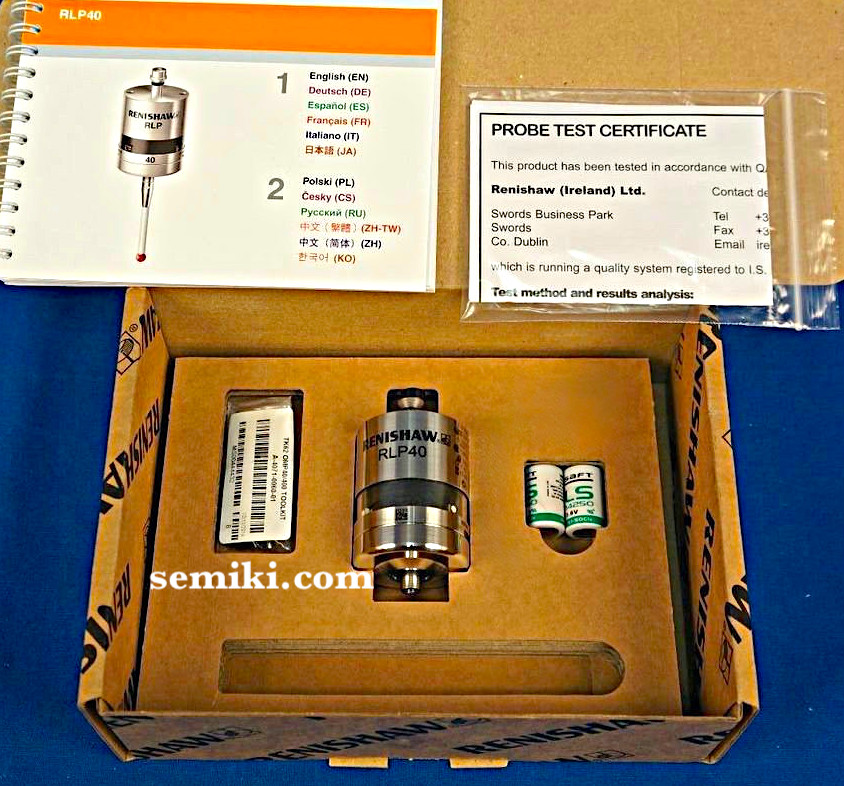

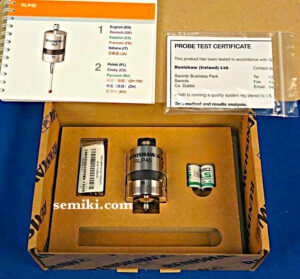

RLP40 QE probe set includes batteries and tool kit.
The small body RLP40 QE is designed for turret mounting for part installation and inspection on turning centers.
Ultra compact and specially designed for added durability with tempered glass windows for harsh environments in lathes and grinders.
RLP40 QE is compatible with RMI-QE and RMI-Q interfaces. Not compatible with RMI interface.
The user can configure the probe on/off methods. The factory default setting of radio on/radio off can be modified to radio on/timed off (timeout), rotation on/rotation off or rotation on/timed off (timeout) as required.
• Proven kinematic design. Frequency Hopping Safe Spectrum (FHSS). Globally recognized 2.4 GHz band that complies with radio regulations in all major markets. Ultra-compact design. Enhanced environmental protection. Repeatability 1.00 µm 2σ. Increased battery life up to 400% compared to previous generation probes

RENISHAW UK

RLP40 QE probe (radio/radio)

Product code: A-6717-0001

The RLP40 QE probe kit includes batteries and tool kit.
The small-bodied RLP40 QE is designed to be turret mounted for part setting and inspection on turning centers.
Ultra-compact and specifically designed to be extra robust with a toughened glass window for the harsh environment in lathes and grinding machines.

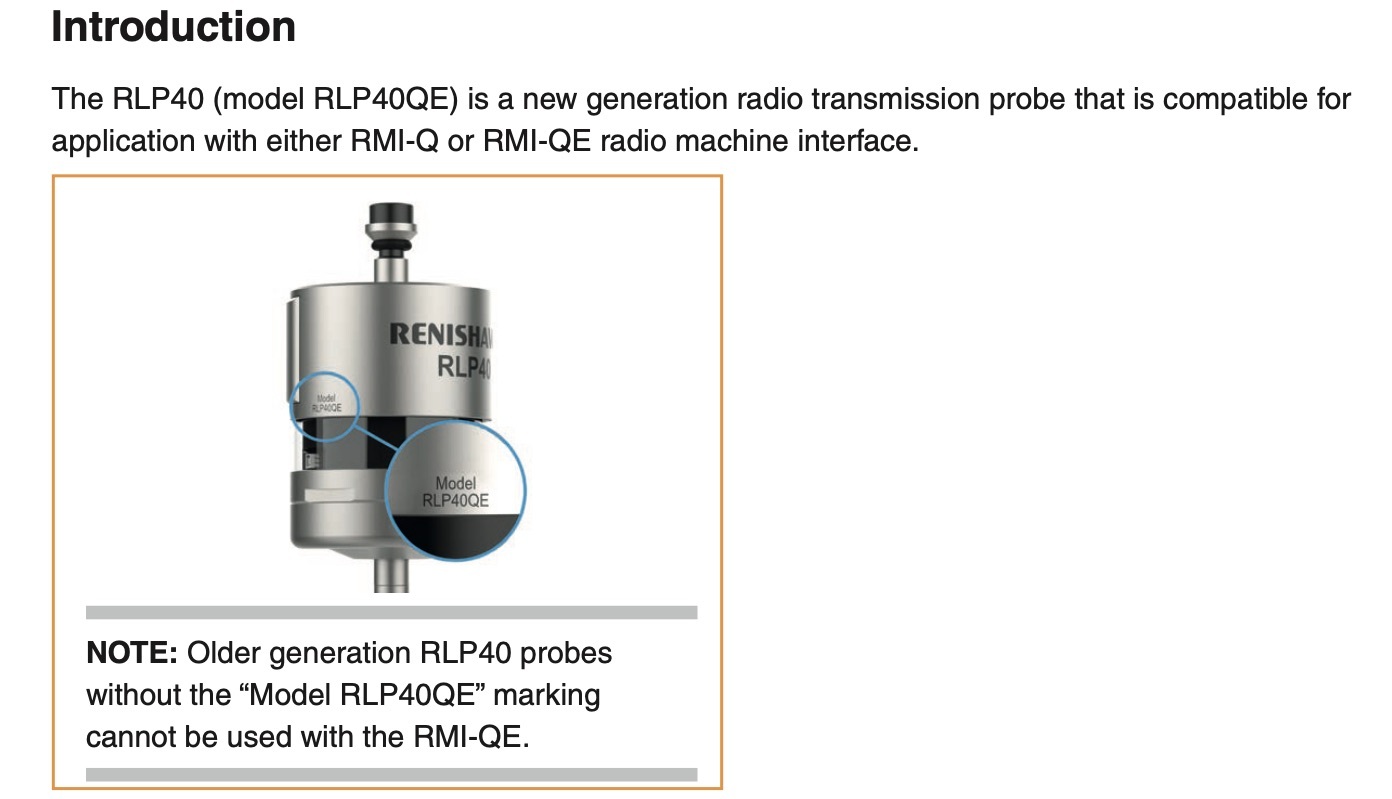

The RLP40 QE is compatible with RMI-QE and RMI-Q interfaces. It is not compatible with the RMI interface.
Probe switch-on / switch-off methods are user configurable. The factory-default setting of radio on / radio off can be modified to radio on / timer off (timeout), spin on / spin off, or spin on / timer off (timeout) if required.

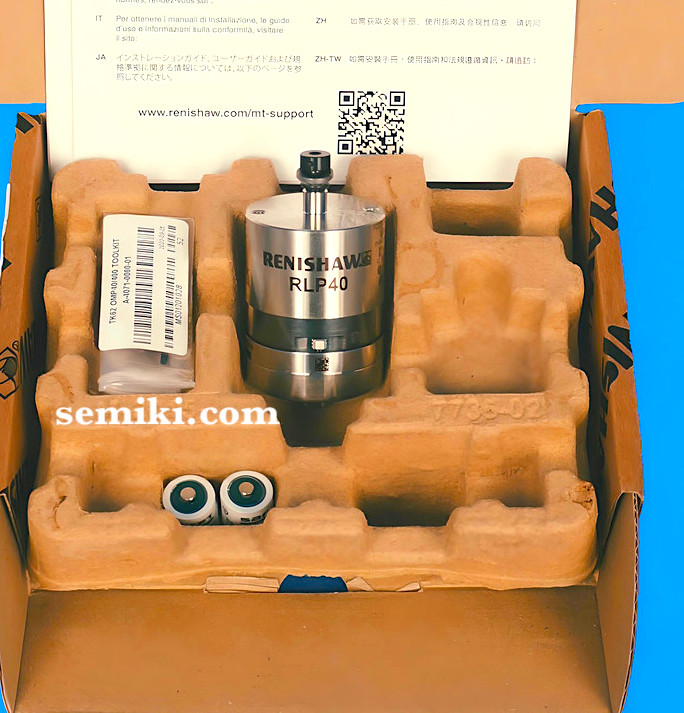

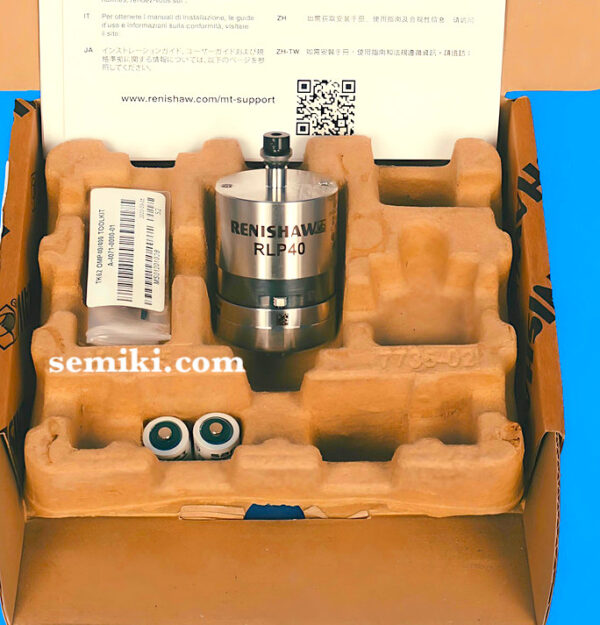

Renishaw UK RLP40 QE probe (radio/radio) Product code: A-6717-0001 at Semiki's warehouse

Key features and benefits:

• Proven kinematic design
• Secure frequency hopping spread spectrum (FHSS)
• Globally recognized 2.4 GHz waveband compliant with radio regulations in all major markets
• Ultra-compact design
• Increased environmental protection
• 1.00 µm 2σ repeatability
• Provides an increase of up to 400% in battery life compared with previous generation probes

RLP40 (QE) Dimensions

The RLP40 probe can be in one of three modes: Standby Mode – Probe is waiting for a switch-on signal. NOTE: The RLP40 will enter “hibernation mode” should the system interface be powered off or out of range for a period of 30 seconds (“hibernation mode” is only applicable to “radio on mode” when used with an RMI-Q). Operational Mode – When activated by one of the switch-on methods, the probe is switched on and ready for use. Configuration Mode – Ready to change the probe settings using Opti-Logic or Trigger Logic.

RLP40 (QE) Machine Tool Specification
