SANWA LCR701 thiết bị cầm tay đo thông số LCR linh kiện điện tử

Producer: Sanwa Electric

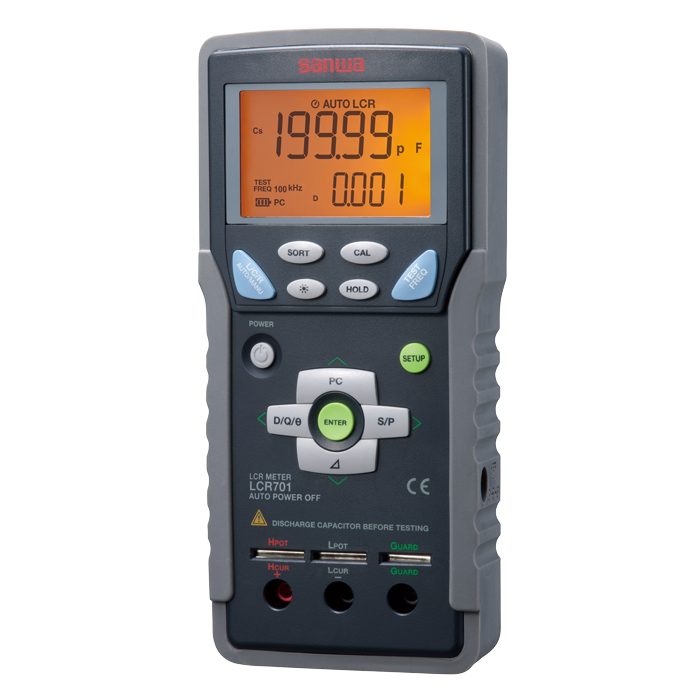

SANWA LCR701 thiết bị cầm tay đo thông số LCR linh kiện điện tử

SANWA LCR701 thiết bị cầm tay đo thông số LCR linh kiện điện tử - Image 2

SANWA LCR701 thiết bị cầm tay đo thông số LCR linh kiện điện tử - Image 3

Máy đo LCR cầm tay hiệu suất cao SANWA LCR701
Tự động lựa chọn chế độ đo L/C/R và chế độ đo Nối tiếp/Song song
Ls/Lp/Cs/Cp với các tham số phụ (D/Q/θ/ESR)
5 tần số đo khác nhau (100/120/1k/10k/100kHz)
OPEN/SHORT Chức năng hiệu chuẩn
Chức năng điện trở DC (7 dải: 200,00Ω đến 200,0MΩ)
Chế độ sắp xếp thiết bị cho phép người dùng sắp xếp nhanh các thiết bị thụ động như L, C và R
Giao diện USB liên kết quang (tùy chọn)
Giữ dữ liệu, Đèn nền, Chức năng tương đốiLs/Lp: 20.000µ/200.00µ/2000.0µ/20.000m/200.00m/200.0m
20.000/200.00/2000.0/20.000kH ±(0.3%+3)
Cs/Cp : 200.00p/2000.0p/20.00n/200.00n/2000.0n/
20.000µ/200.00µ/2000.0µ/20.00mF(50pF hoặc ít hơn: không chính xác) ±(0.3%+3)
Rs/Rp : 20.000/200.00/2.0000k/20.000k/
200,00k/2,0000M/20,000M/200,0MΩ ±(0,3%+3)
Ω（DCR): 200.00/2.0000k/20.000k/200.00k/
2,0000M/20,000M/200,0MΩ ±(0,3%+3)

Sanwa Electric Instrument

Handheld Digital LCR meter

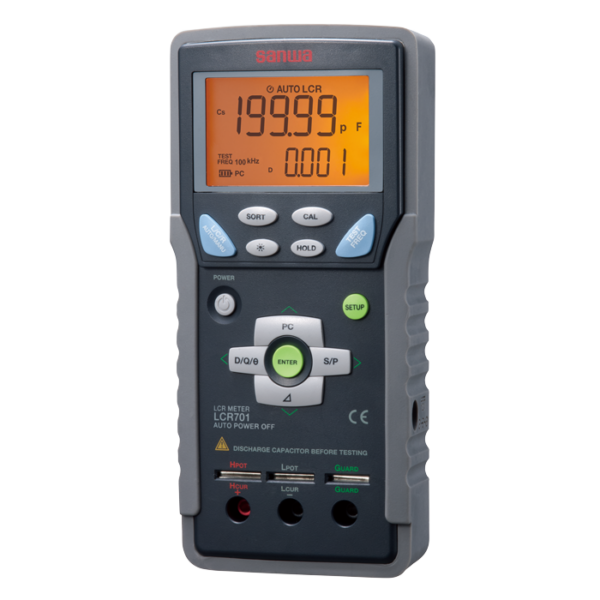

Model: LCR701

High-performance handheld LCR meter

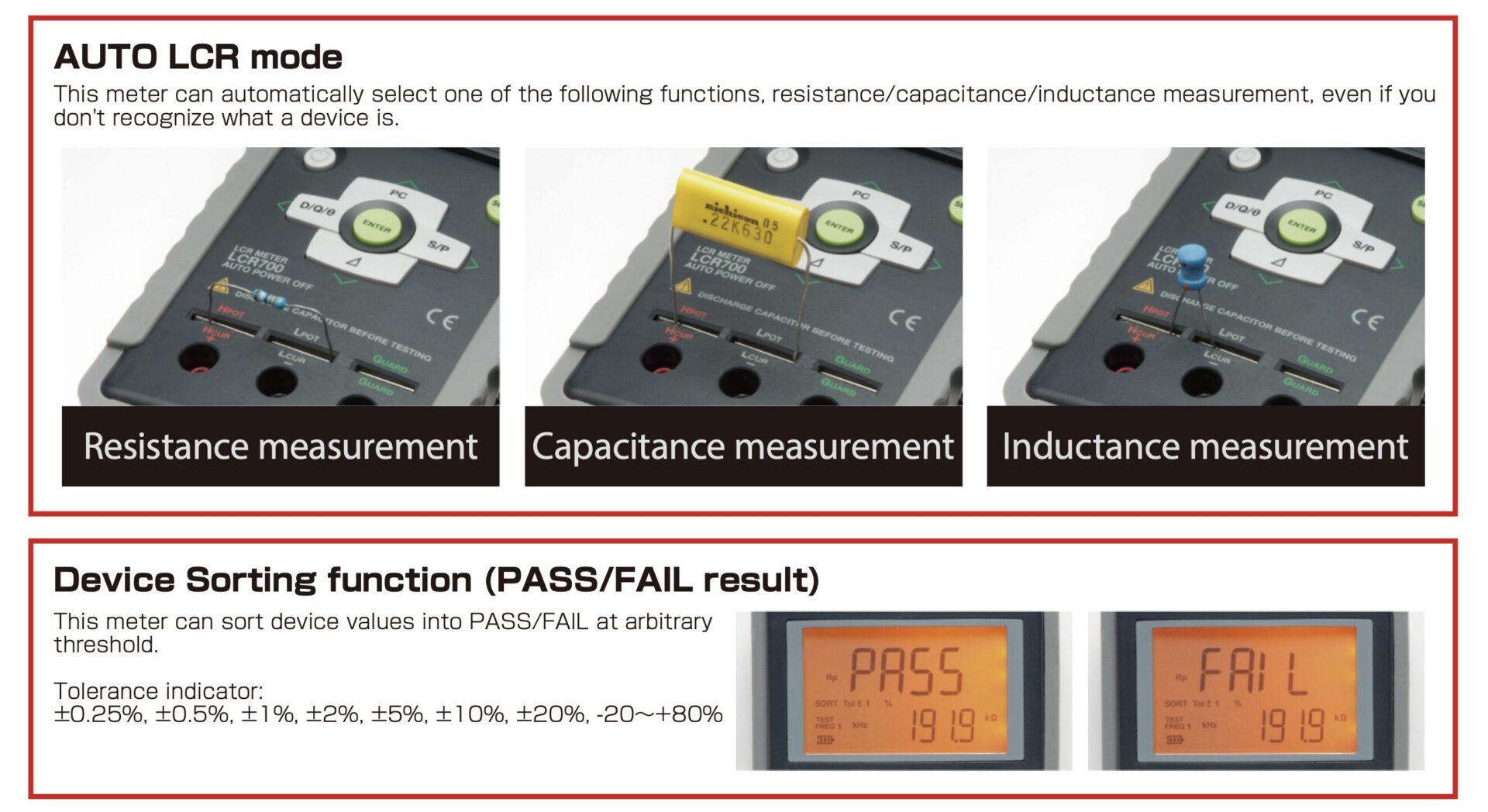

Automatically selectable L/C/R measurement and Selectable Series/Parallel mode
Ls/Lp/Cs/Cp measurement with sub parameters (D/Q/θ/ESR)
5 different measuring frequencies (100/120/1k/10k/100kHz)
OPEN/SHORT Calibration function
DC resistance function (7 ranges: 200.00Ω to 200.0MΩ)
Device Sorting mode to allow users to quickly sort passive devices such as L, C, and R
Optical link USB interface (optional)
Data hold, Backlight, Relative function

SPECIFICATIONS

Ls/Lp : 20.000µ/200.00µ/2000.0µ/20.000m/200.00m/2000.0m
20.000/200.00/2000.0/20.000kH ±(0.3%+3)
Cs/Cp : 200.00p/2000.0p/20.00n/200.00n/2000.0n/
20.000µ/200.00µ/2000.0µ/20.00mF(50pF or less: out of accuracy) ±(0.3%+3)
Rs/Rp : 20.000/200.00/2.0000k/20.000k/
200.00k/2.0000M/20.000M/200.0MΩ ±(0.3%+3)
Ω（DCR) : 200.00/2.0000k/20.000k/200.00k/
2.0000M/20.000M/200.0MΩ ±(0.3%+3)

Sampling rate: 1.2 times / second (LCR mode)
0.5 times / second (DCR mode)
Measuring frequencies: 100/120/1k/10k/100kHz
Measuring mode : Series / Parallel
Measurable parameters: Ls / Lp / Cs / Cp / Rs / Rp / DCR (including D/Q/θ/ESR/RP)
Power supply: 6LF22 (alkaline 9V)
6F22 (manganese 9V)
AC adapter : AD-30-3 (optional)
Battery life: 6LF22 (alkaline 9V): Approx. 40 hours
6F22 (manganese 9V): Approx. 18 hours
(auto LCR mode, 1 kHz)
Size / Mass: H184×W87×D45 mm / Approx. 400g
Safety standards: IEC61326-1, EN50581
