SATO SK-960A thiết bị kiểm tra kiểm tra độ ẩm nông sản ( 5 type)

Producer: SATO KEIRYOKI

SATO SK-960A thiết bị kiểm tra kiểm tra độ ẩm nông sản ( 5 type)

SATO SK-960A thiết bị kiểm tra kiểm tra độ ẩm nông sản ( 5 type) - Image 2

SATO SK-960A thiết bị kiểm tra kiểm tra độ ẩm nông sản ( 5 type) - Image 3

SATO SK-960A thiết bị kiểm tra kiểm tra độ ẩm nông sản ( 5 type) - Image 4

Máy kiểm tra độ ẩm SATO KEIRYOKI SK-960A là máy kiểm tra độ ẩm cho phép bạn dễ dàng kiểm tra mức độ ẩm giống như sử dụng máy kiểm tra điện.
Bạn có thể chọn từ nhiều hình dạng cảm biến khác nhau (5 loại) tùy thuộc vào ứng dụng của bạn.(Bộ chỉ báo và cảm biến được tích hợp, do đó không thể thay thế cảm biến.)

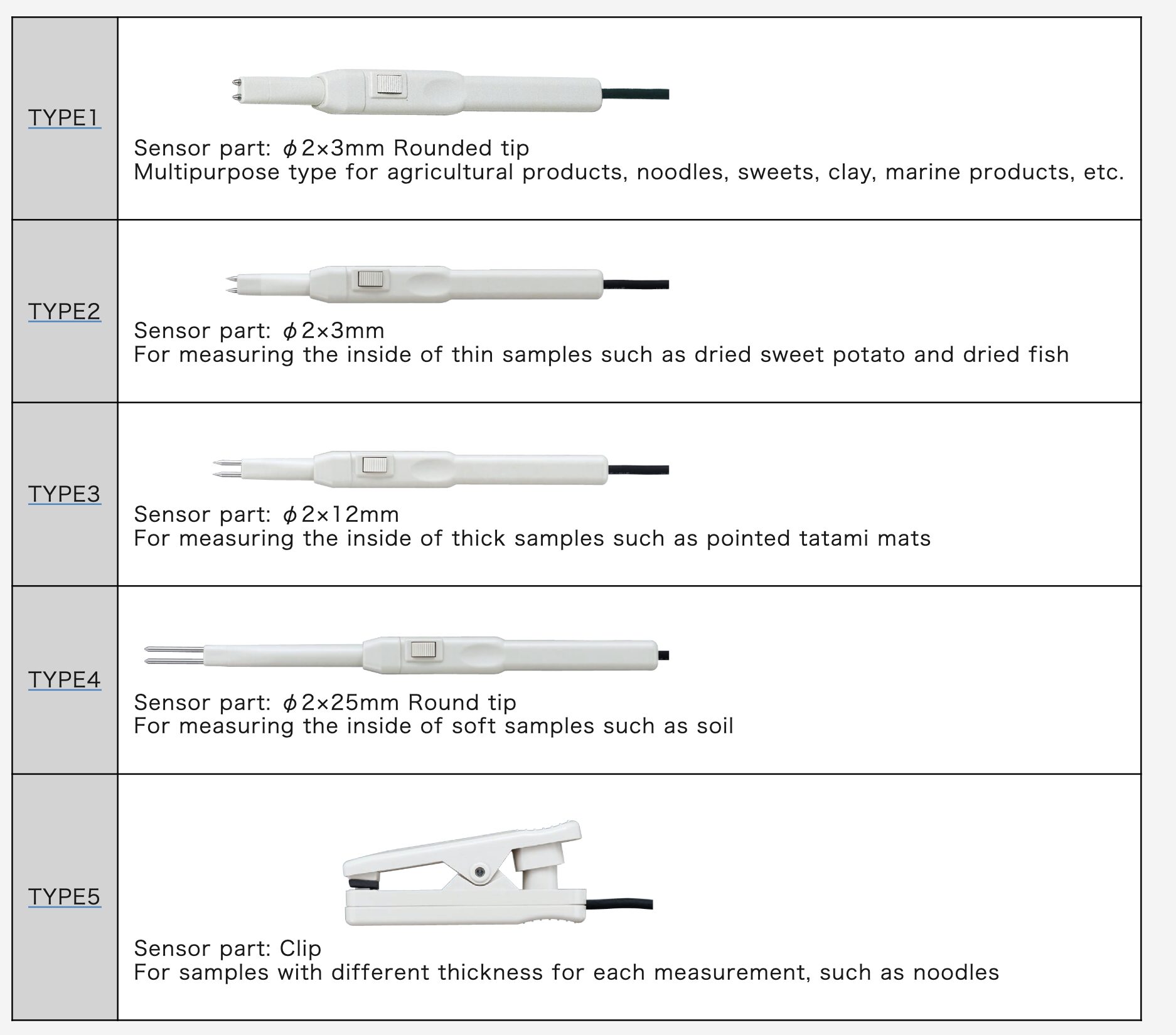

SK-960A TYPE 1 Bộ phận cảm biến φ2×3mm Đầu tròn: Loại đa năng cho các sản phẩm nông nghiệp, mì, đồ ngọt, đất sét, sản phẩm biển, v.v.
SK-960A TYPE 2 Bộ phận cảm biến: φ2×3mm: Để đo bên trong các mẫu mỏng như khoai lang khô và cá khô
SK-960A TYPE 3 Bộ phận cảm biến φ2×12mm: Để đo bên trong các mẫu dày như chiếu tatami nhọn
SK-960A TYPE 4 Bộ phận cảm biến: φ2×25mm Đầu tròn:
Để đo bên trong các mẫu mềm như đất
SK-960A TYPE 5 Bộ phận cảm biến: Kẹp: Dành cho các mẫu có độ dày khác nhau cho mỗi phép đo, chẳng hạn như mì
Feature
■　Kiểm tra độ ẩm dễ dàng bằng máy kiểm tra điện
■　Đơn giản. Chỉ cần đặt cảm biến lên mẫu.
■　Nhanh. Đo lường được hoàn tất chỉ bằng cách nhấn một công tắc.

SATO KEIRYOKI Japan

Moisture Checker

Model: SK-960A

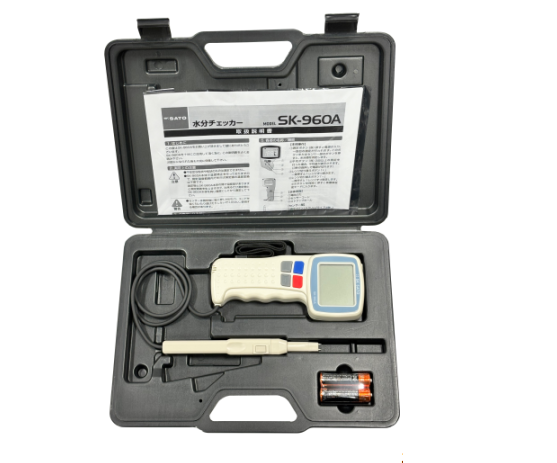

Moisture Checker SK-960A a moisture checker that allows you to easily check the moisture level just like using an electric tester.
You can choose from a variety of sensor shapes (5 types) depending on your application.
(The indicator and sensor are integrated, so the sensor cannot be replaced.)
Main applications: Internal measurement of thin samples such as dried sweet potatoes and dried fish

Features
■　Easy moisture check with an electric tester
■　Simple. Just place the sensor on the sample.
■ Fast. Measurement is completed by simply pressing a switch.
■ Accurate. In addition to the standard range, seven user range functions (※) and the average value can also be displayed.

SATO SK-960A Type 1 (Moisture 9.1-40.0%) Multipurpose type for agricultural products, noodles, sweets, clay, marine products, etc.

* User’s range function:

This product can be used as is, but a user’s range is provided that enables customers to freely set the moisture content display value to come closer to the value obtained by the absolute drying method. Each range (including the standard range) is independent of the other ranges, so the setting value for each user range can be changed according to the object to be measured.

■　We offer five types of sensors depending on the application.

　　Please select the most suitable model according to your application.

*Since the main unit and sensor are integrated, the sensor cannot be replaced.

Explanation
■ Notes on measurement
– Unstable powder or granular materials cannot be measured.
-Temperature compensation is performed on the SK-960A main unit.
If the temperature is within the measurement temperature range, there is no need to convert the measured value into temperature.
However, if there is a temperature difference between the object being measured and the SK-960A main unit, a measurement error will occur.
Please make sure that the temperature of the object being measured and the device are the same before taking measurements.
– Measurement values change depending on how much pressure is applied to the sensor, so try to keep the pressure as constant as possible for each measurement.
– Do not press the sensor too hard against the object being measured, and do not pull or bend the cord too hard. It may be damaged.

Pic.: SATO SK-960A Type 4 Internal measurement of soft samples such as soil (( Moisture 12.1-58.0%/ temp. 5 to 40°C) at Semiki’s warehouse

■ About the measurement values
This product is designed to measure the electrical resistance between the electrodes installed in the sensor section and display the relative moisture value.
Moisture readings are not absolute.
Since the electrical resistance value is displayed relative to the actual moisture value, if the sample contains conductive substances (salt, metal, etc.), there will be a difference from the actual moisture value. However, if the proportion of the substances contained in the sample is uniform and small (within a range that does not significantly affect the moisture value), the product can be used for comparative testing by adjusting the settings.

Maintenance and calibration :

► We also have calibration certificate attached ( optional )

► Please re-calibrate after use for a certain period through our purchase store.

Local Vietnam : SEMIKI CORP
