Smart Tweezers ST5S thiết bị đo thông số LCR linh kiện PCB

Producer: SEMIKI

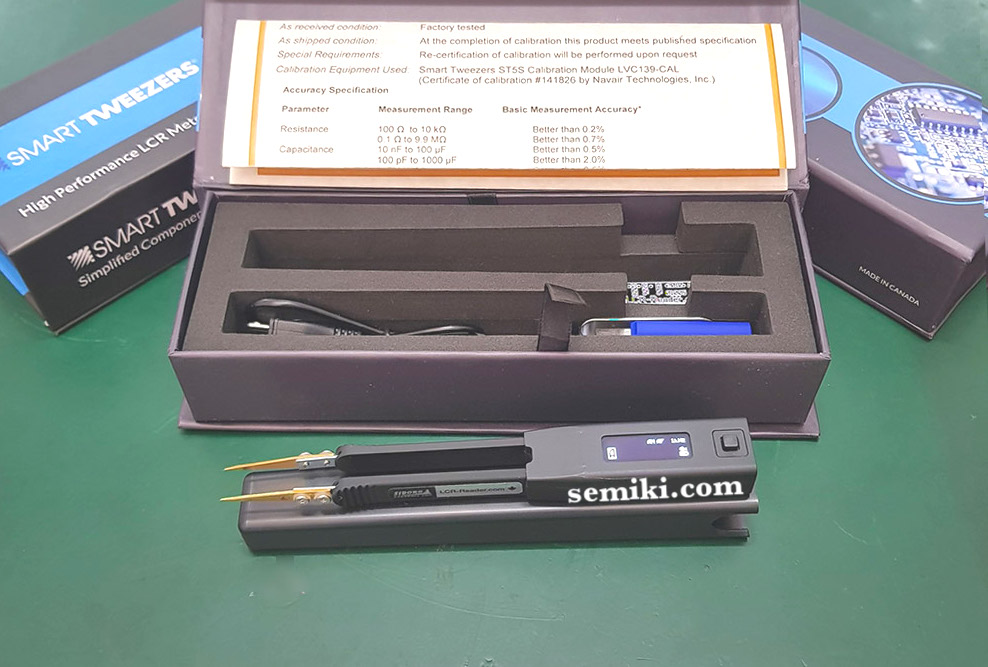

Smart Tweezers ST5S thiết bị đo thông số LCR linh kiện PCB

Smart Tweezers ST5S thiết bị đo thông số LCR linh kiện PCB - Image 2

Smart Tweezers ST5S thiết bị đo thông số LCR linh kiện PCB - Image 3

Smart Tweezers ST5S thiết bị đo thông số LCR linh kiện PCB - Image 4

Smart Tweezers™ ST5S Professional LCR Meter/ESR Meter
Cải thiện thử nghiệm trong mạch, đặc biệt là đối với các mô hình song song
Các giá trị bù trừ được cấu hình trước liên tục (null) cho C, L và R
Kiểm soát chính xác các giá trị bù trừ liên tục
Chức năng Dung sai mở rộng
Bố cục hiển thị giá trị được tối ưu hóa
Smart Tweezers™ ST5S — Có gì mới?
Độ chính xác đo lường được cải thiện tới 6 lần:
0,2% cho C, 0,2% cho R, 0,5% cho L
Mức tín hiệu thử nghiệm 0,5 và 1,0 Vrms:
1,0 Vrms cho phép đo chính xác X5R và các tụ gốm tương tự
Mức tín hiệu thấp giúp thử nghiệm trong bo mạch.
Chế độ ESR và Z chuyên dụng
Chức năng toán học null lưu trữ độ lệch đo lường
Chức năng dung sai với chỉ báo âm thanh để phân loại thành phần
Dây dẫn thử nghiệm do Thụy Sĩ sản xuất
Màn hình bảng điều khiển đa thông số
Điều khiển dẫn đường 4 hướng với bộ chọn chế độ nhanh
Pin sạc Li-Ion tích hợp
Bao gồm bộ sạc USB/Tường thông dụng

Advance Devices, Inc Canada

model: Smart Tweezers ST5S

Smart Tweezers™ is a handheld electronic tool of a new concept. Its unique design combines a pair of gold-plated SMD tweezers with ergonomic shielded handles and a precise full featured LCR impedance meter in a compact, lightweight instrument.

Smart Tweezers™ measures electronic component’s capacitance, resistance and inductance with high speed and precision by evaluating circuit impedance. Additionally it tests diodes, measures ESR and impedance Z.

Smart Tweezers™ provides a perfect solution for testing and identification of Surface Mount Devices (SMD) as well as for troubleshooting of complex electronic systems.

Ergonomic Design and Convenient Controls

Default settings can be modified by navigating a set of menus with the Navigation Control.

Meter’s display can be easily flipped from the menu for left-handed use.

Smart Tweezers™ ST5S

Up to 6 times improved measurement precision:
- 0.2% for C, 0.2% for R, 0.5% for L
Test signal levels 0.5 and 1.0 Vrms:
1.0Vrms allows precision measurements of X5R and similar ceramic capacitors
Low signal level helps in-board testings.
Dedicated ESR and Z modes
Math null function stores measurement offset
Tolerance function with audible indicator for component sorting
Swiss-made test leads
Multi-parameter dashboard display
4-directional navigation control with quick mode selector
Integrated Rechargeable Li-Ion battery
Universal USB/Wall charger is included

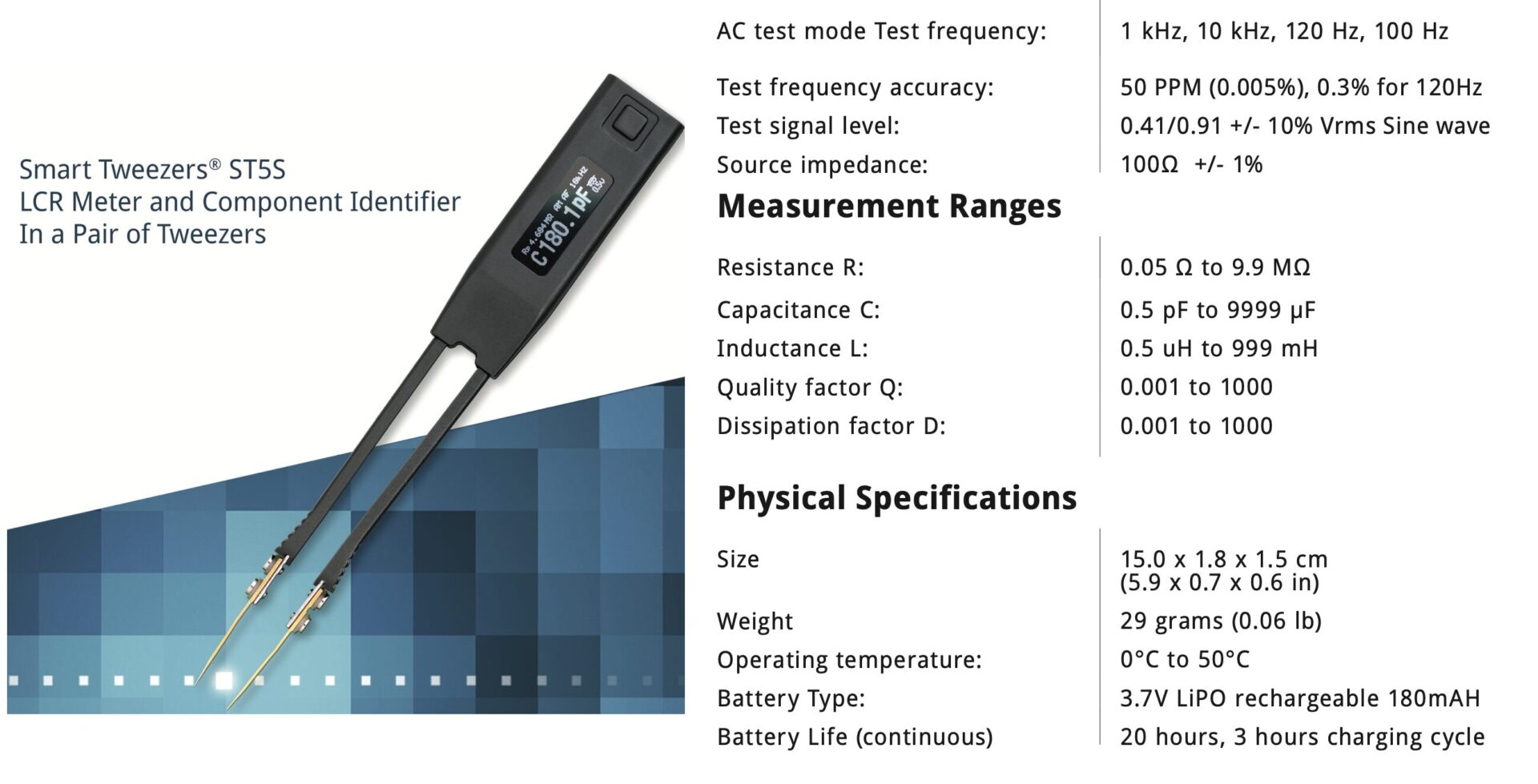

Technical Specifications

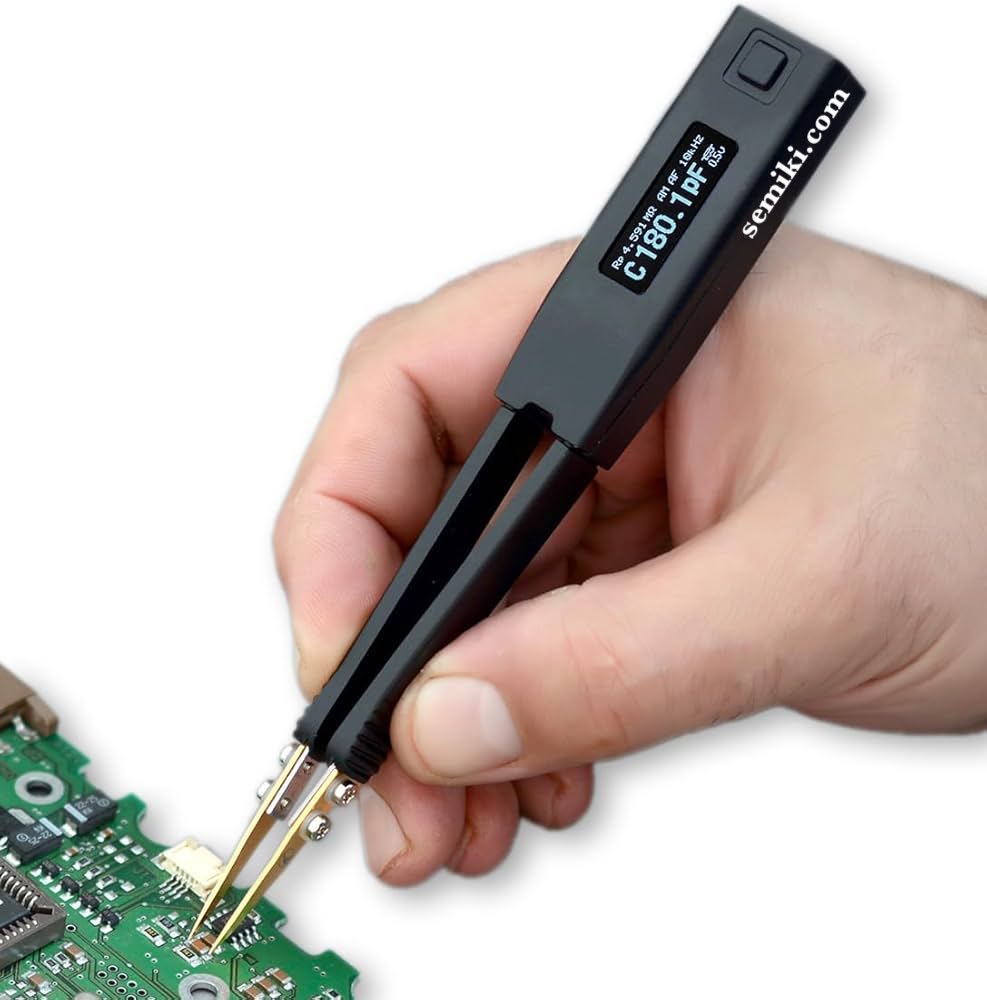

Handy Tool for Tiny SMD Components
Surface mount devices are usually tiny and without wire leads, making it more difficult to test and identify SMD than conventional components.

Smart Tweezers™ gives users an easy way to sort and evaluate loose components and to perform on-board measurements and debugging.

Precise gold-plated leads made by IDEAL-TEK S.A. of Switzerland are able to reliably contact SMD components (as small as 0201 format) or take measurements from the devices already mounted on a board.

Capacitor ESR Meter Mode
Smart Tweezers™ feature a ESR Meter/Tester mode for quality testing of high value capacitors.

Perfect for Conventional Components
Smart Tweezers™ works fine with conventional though-hole electronic components. The unit helps to verify values with high speed and precision.

Built-in Li-Ion Polymer Rechargeable battery
Smart Tweezers™ comes equipped with a built-in high-capacity Li-Ion rechargeable battery.
Battery replacements are not required.
