TOHNICHI TME1000CN3-G thiết bị đo lực đóng mở nắp chai (1-10N.m)

Producer: TOHNICHI

TOHNICHI TME1000CN3-G thiết bị đo lực đóng mở nắp chai (1-10N.m)

TOHNICHI TME1000CN3-G thiết bị đo lực đóng mở nắp chai (1-10N.m) - Image 2

TOHNICHI TME1000CN3-G thiết bị đo lực đóng mở nắp chai (1-10N.m) - Image 3

TOHNICHI TME1000CN3-G thiết bị đo lực đóng mở nắp chai (1-10N.m) - Image 4

TOHNICHI TME1000CN3-G Máy đo mô-men xoắn kỹ thuật số
3 lựa chọn đơn vị đo: cNm; Nm kgf.cm. ozfin.; lbf.in.
100-1000cNm; 1 độ phân giải; 1-10Nm; 0,01 độ phân giải; 10-100kgf.cm., độ phân giải 0,1;

TOHNICHI TME3 là dòng thiết bị đo lý tưởng để đo mô men xoắn mở nắp chai. Năm mô hình bao phủ phạm vi từ 2 đến 2000 cN m.

Có thể phát hiện mô men xoắn mở đỉnh chính (khi nắp bắt đầu quay) và đỉnh thứ cấp (khi cầu bị gãy).

Chiều rộng thả cần thiết để phát hiện đỉnh có thể được thiết lập để tránh phát hiện nhầm vùng không ổn định.

Ứng dụng Đo mô men xoắn mở nắp chai. Đo mô men xoắn của hộp đựng mỹ phẩm. Đo mô men xoắn của vít tiêu chuẩn GL dùng cho hộp đựng thuốc. Đo mô men xoắn quay của linh kiện điện tử. Đo mô men xoắn và kiểm tra độ bền.

TOHNICHI Japan

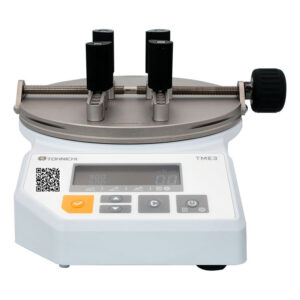

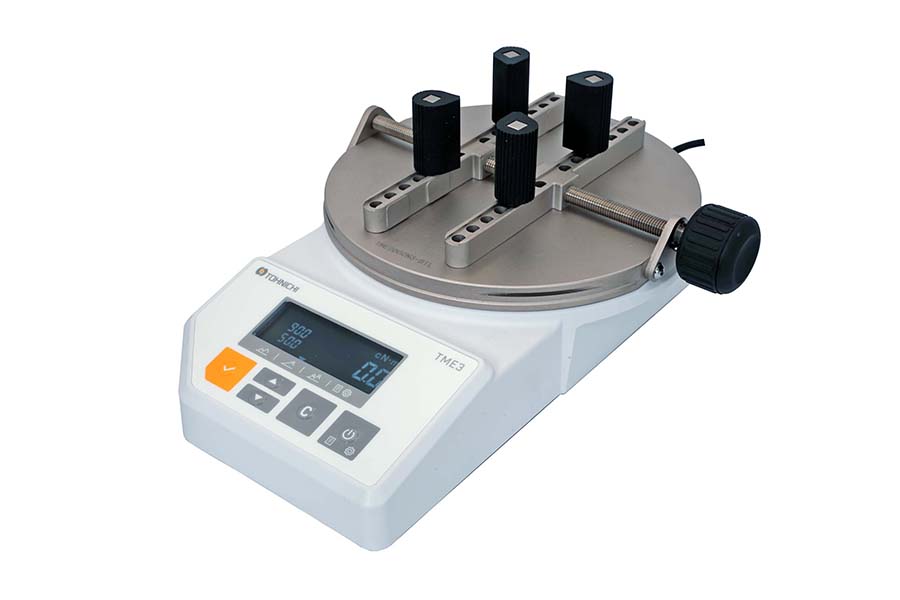

TME3-G Digital Torque Meter

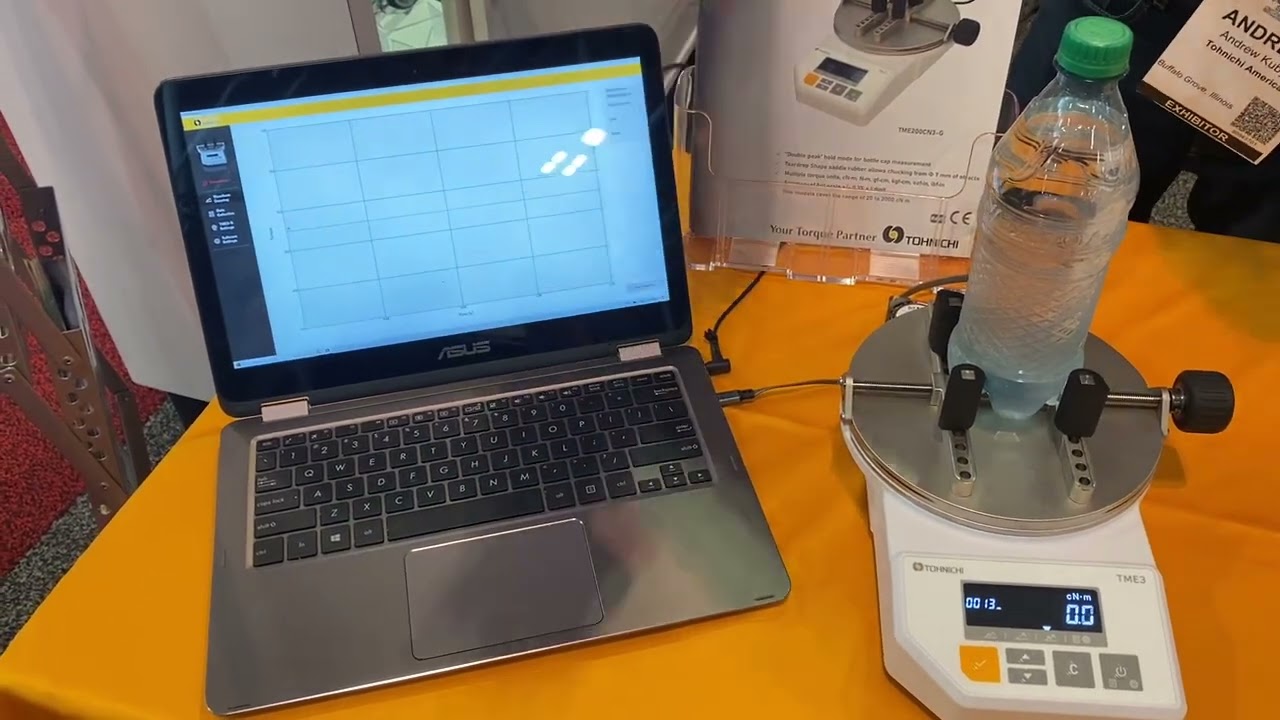

Ideal for measuring bottle cap opening torque.

Model:

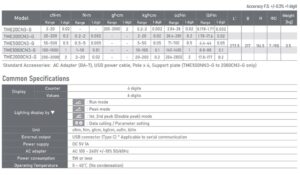

TME1000CN3-G Digital Torque Meter

3 unit of measure selection: cNm; Nm; kgf.cm.
100-1000cNm; 1 resolution; 1-10Nm; 0.01 resolution; 10-100kgfcm., 0.1 resolution;
Accuarcy: +/-0.3% FS+/-1 digit
Includes Standard Accessories: AC Adapter (BA-7), USB Power Cable, Holder Pegs X4

Features

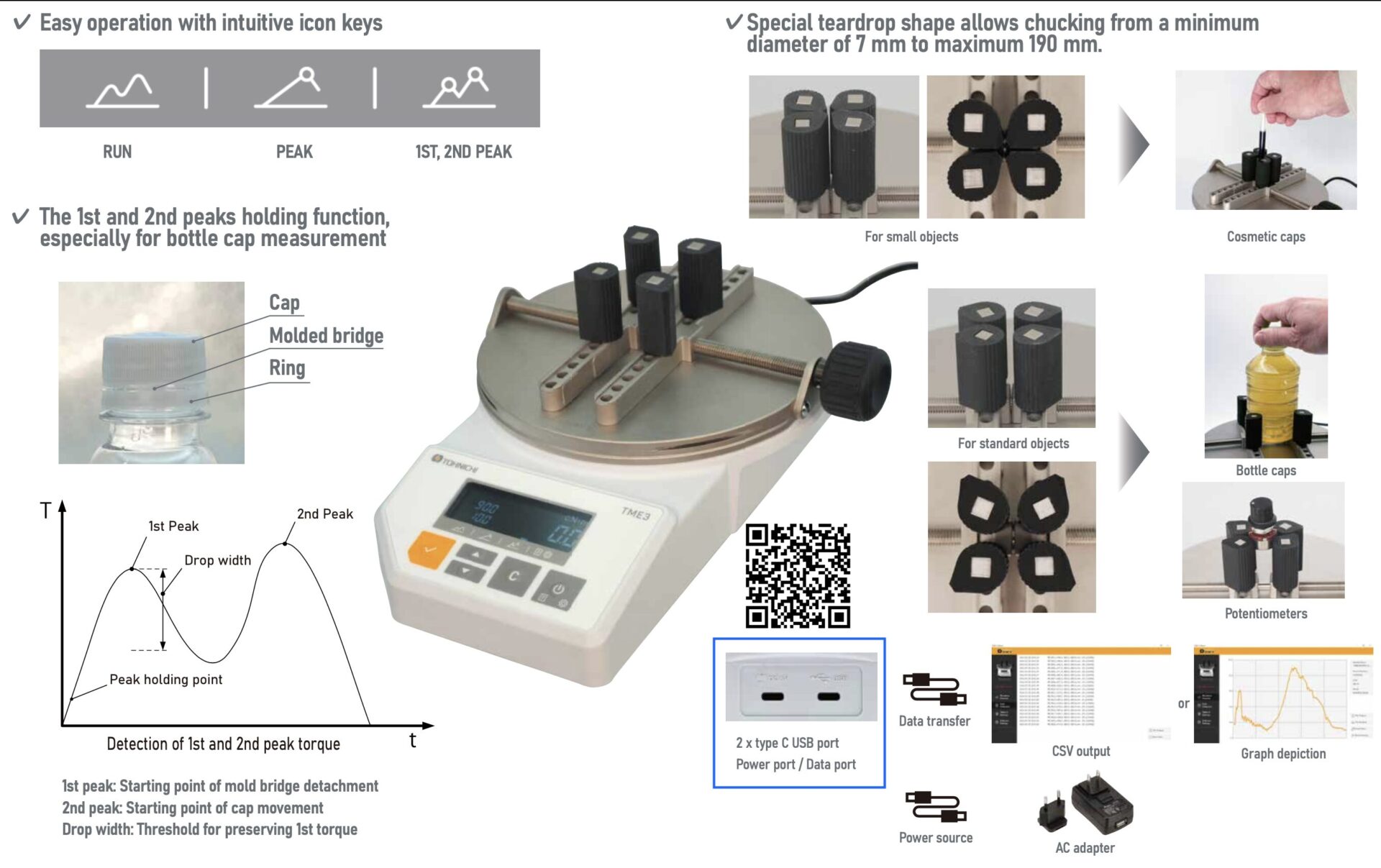

- TME-G can detect primary peak opening cap torque and secondary peak torque.

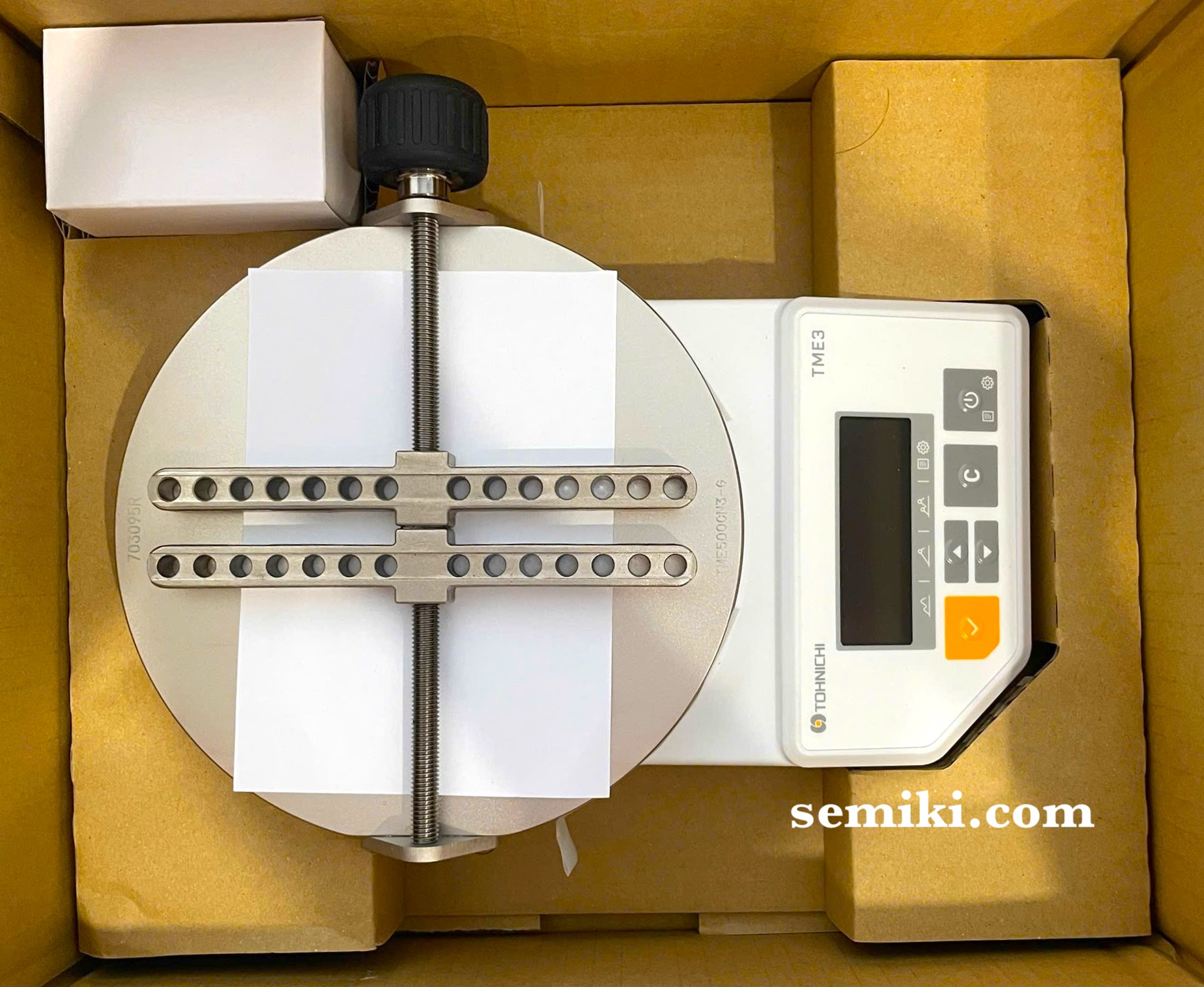

- The clamp moves the four poles, sliding them to hold your work firmly.
- Pole shape has been refined to allow a minimum chuck diameter of 7 mm. Pole anchors use a corotation prevention mechanism to grasp your work firmly.
- Icons for module operation and situation display make operation intuitive.

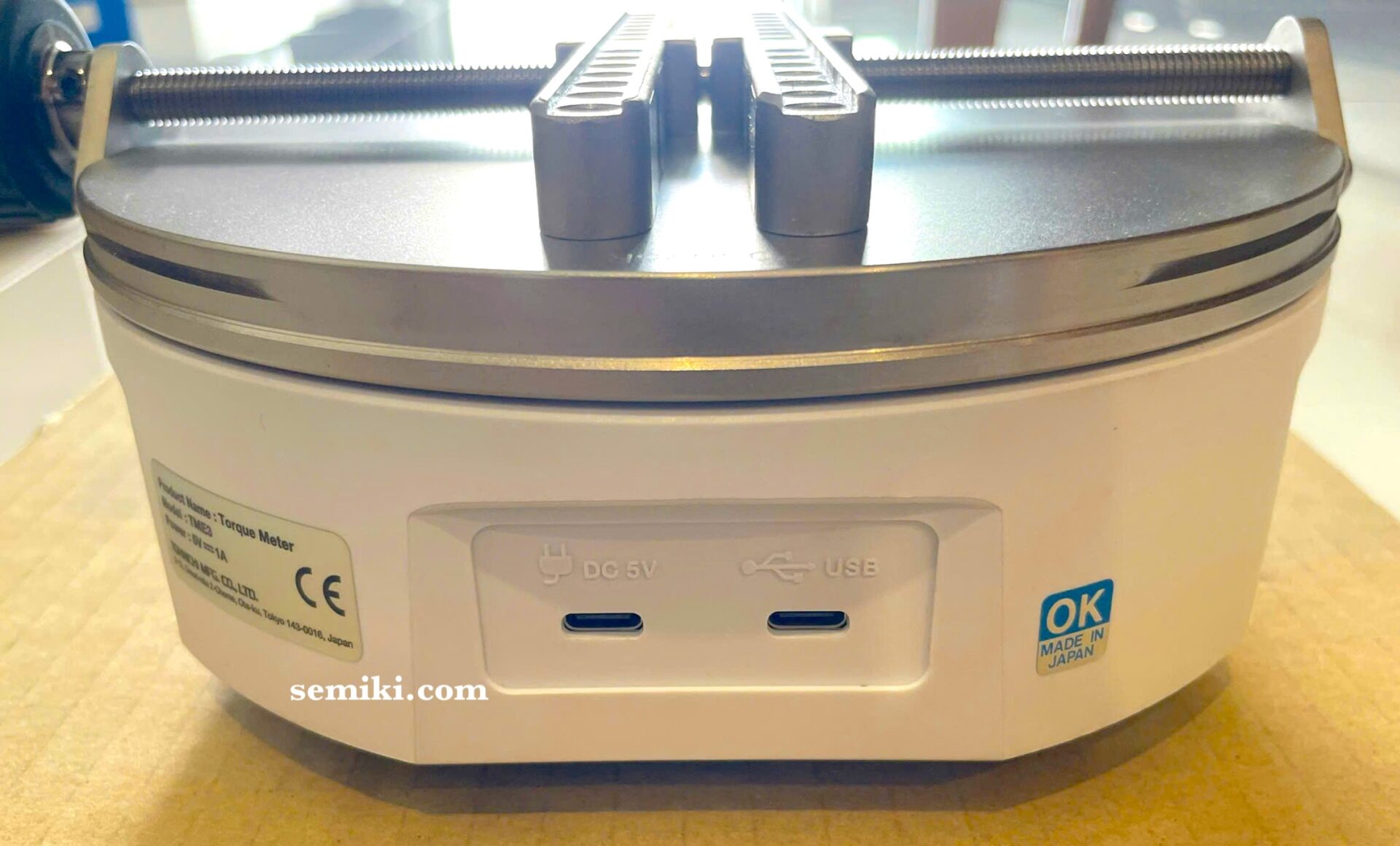

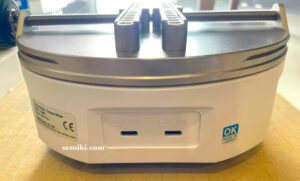

- For wired handling of measurement data, download (no charge) Data Receiver DtRcv, which can save to Excel® and CSV files, or application software for TME3 (APS for TME3), which can measure torque waveforms and be used for changing various settings. (Cannot be used for wireless operations.) *Cable No. 586 or No. 587 (sold separately) is required to connect TME3 to your computer.
- Accuracy ± 0.3% FS + 1 digit
- With CE marking

Complimentary TME3-G Software: DOWNLOAD

For wired handling of measurement data, download (no charge) Data Receiver DtRcv, which can save to Excel® and CSV files, or application software for TME3 (APS for TME3), which can measure torque waveforms and be used for changing various settings. (Cannot be used for wireless operations.)

⋅ “’Double peak” holds mode for bottle cap measurement

⋅Teardrop Shape saddle rubber allows chucking from $ 7 mm of objects

⋅Multiple torque units, cN-m, Nm, gf-cm, kgf-cm, ozfin, Ibfin Accuracy of full scale +/- 0.3% + 1 digit

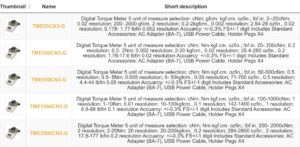

⋅Five models cover the range of 20 to 2000 cN m

Application

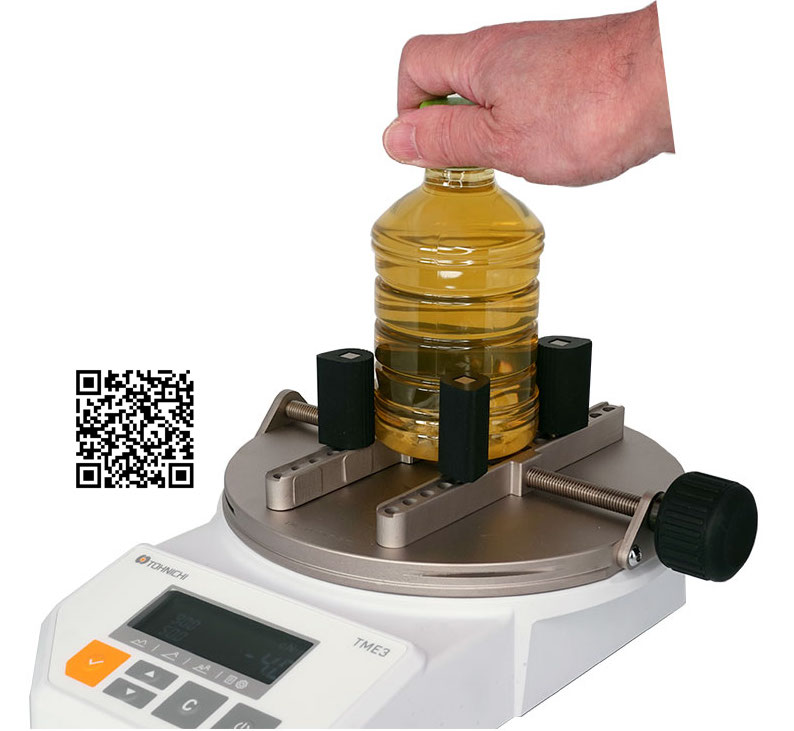

Bottle cap opening torque measurement.
Cosmetic container torque measurement.
Torque measurement of GL standard screws used for medicine containers.
Electronic component rotary torque measurement.
Working torque testing.
Torsional torque measurement and strength testing.

Can detect primary peak opening torque (when cap begins turning) and secondary peak (when bridges break). The drop width required for peak detection can be set to prevent mistaken detection of the unstable region.
