IMADA eZT Sensor Interchangeable Amplifier with Waterproof and Dust-proof Load Cell SW series.Load cell SW series is waterproof and dust-proof type for both tension and compression testings with 100N to 20kN capacity. It is approved by IP67 (International Protection 67) which enables measurement applications in dusty or wet environment.
IMADA Force gauge
Load cell SW series
100N to 20kN capacity.
Easily to mount into equipment with the 2 female threads on the sides. The waterproof body enables measurement applications in wet environments.

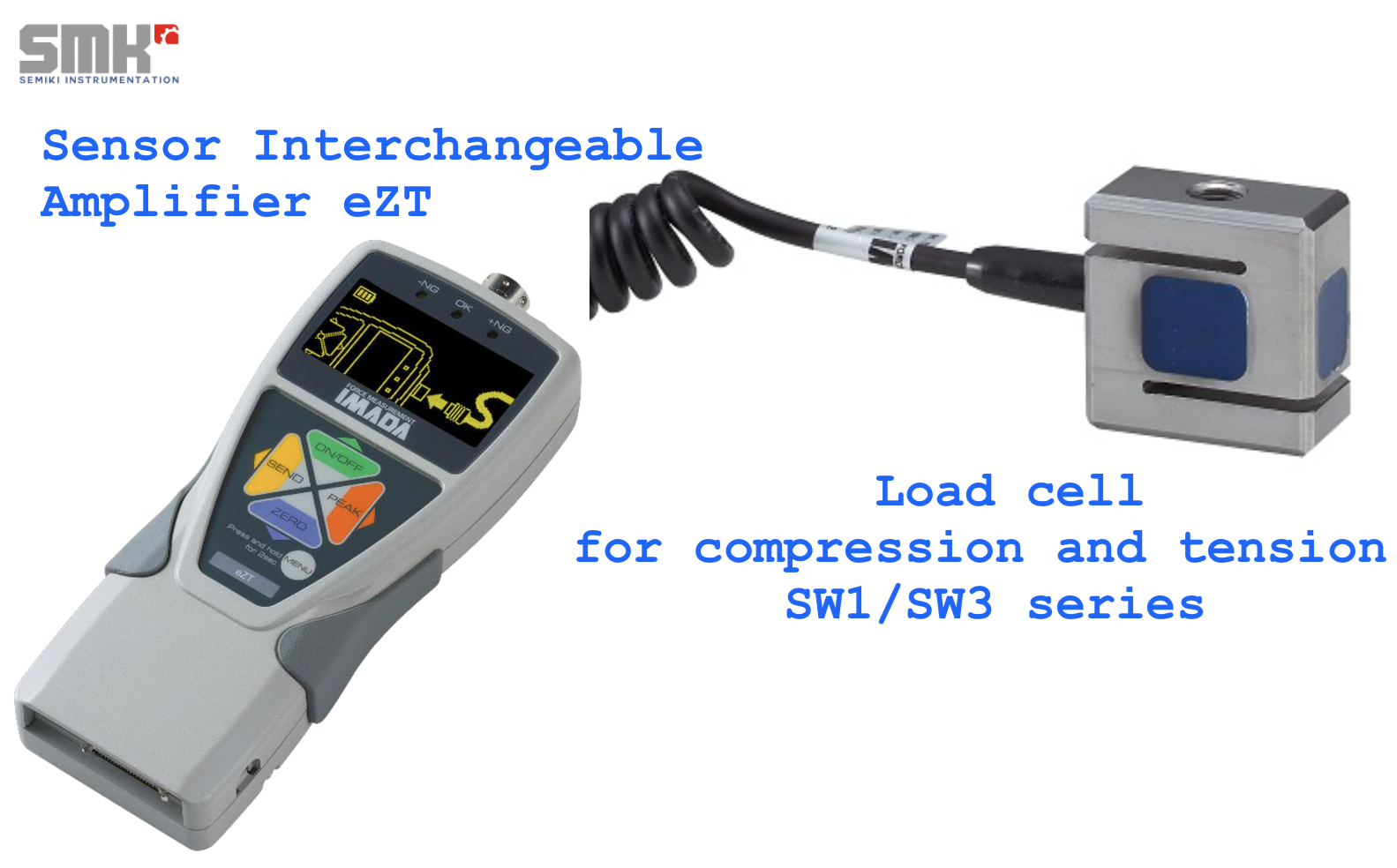

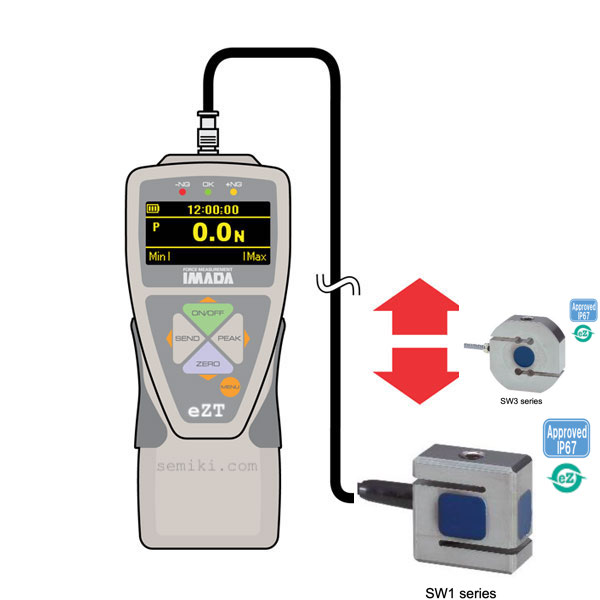

► Sensor Interchangeable Amplifier eZT with Load cell SW series

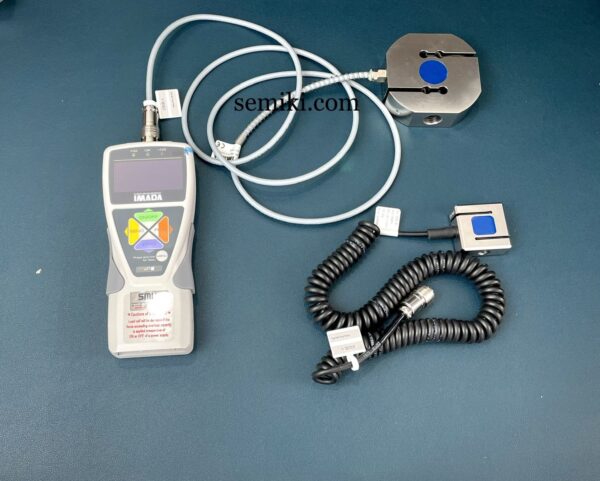

Pic.: IMADA Sensor Interchangeable Amplifier eZT at Semiki’s warehouse
• Waterproof and dust-proof type for both tension and compression testings with 100N to 20kN capacity.
• It is approved by IP67 (International Protection 67) which enables measurement applications in dusty or wet environment.
Feature
• Allows easy integration into facilities due to threaded holes on both sides
• Enables measurement applications in dusty or wet environment due to IP67 approval
• Separated sensor model force gauges with a dedicated sensor available for a certain measurement purpose
• eZ-Connect series (interchangeable sensors for using with one amplifier eZT) available for a wide range of testings

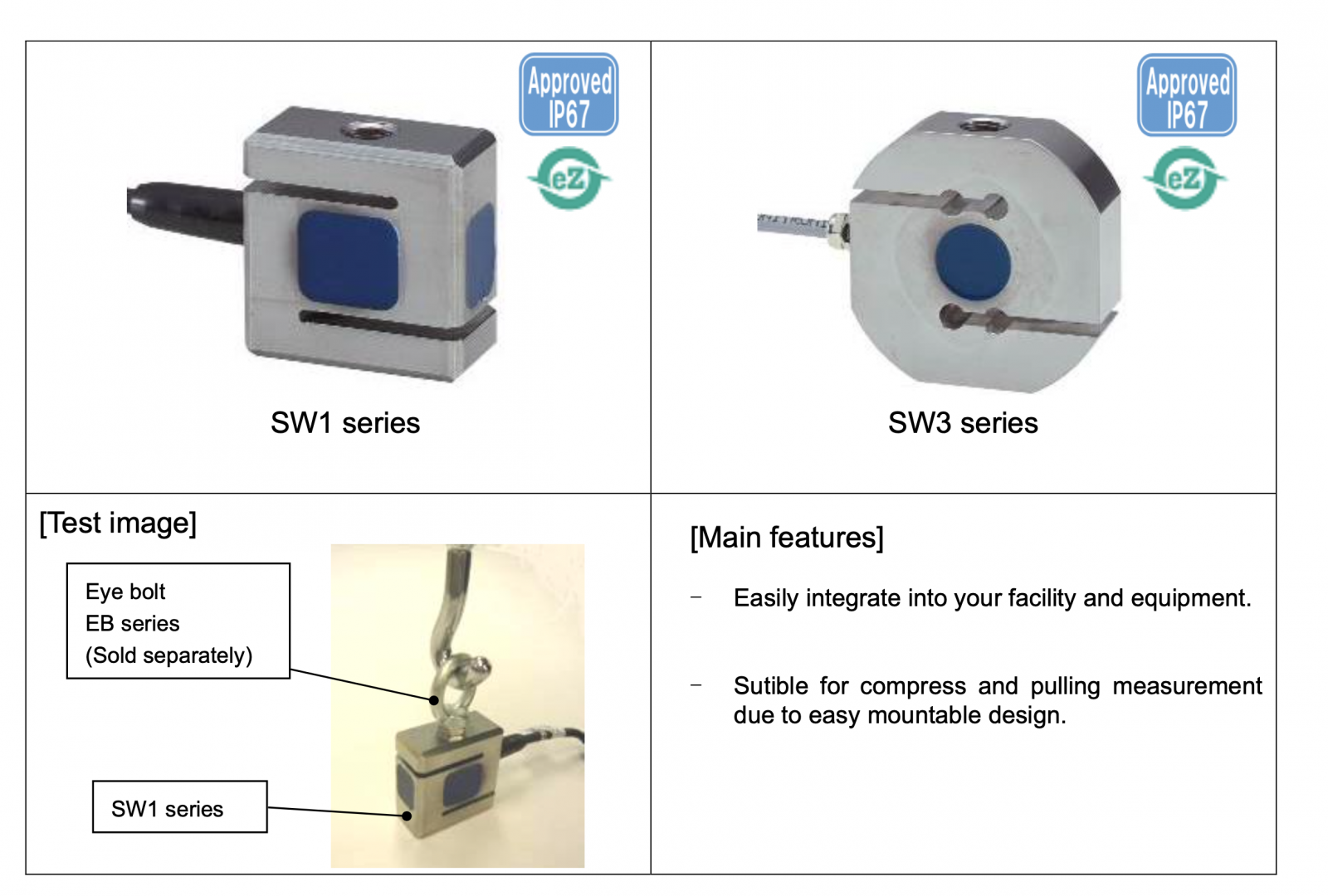

Pic.: IMADA eSW1-5000N loadcell at Semiki’s warehouse

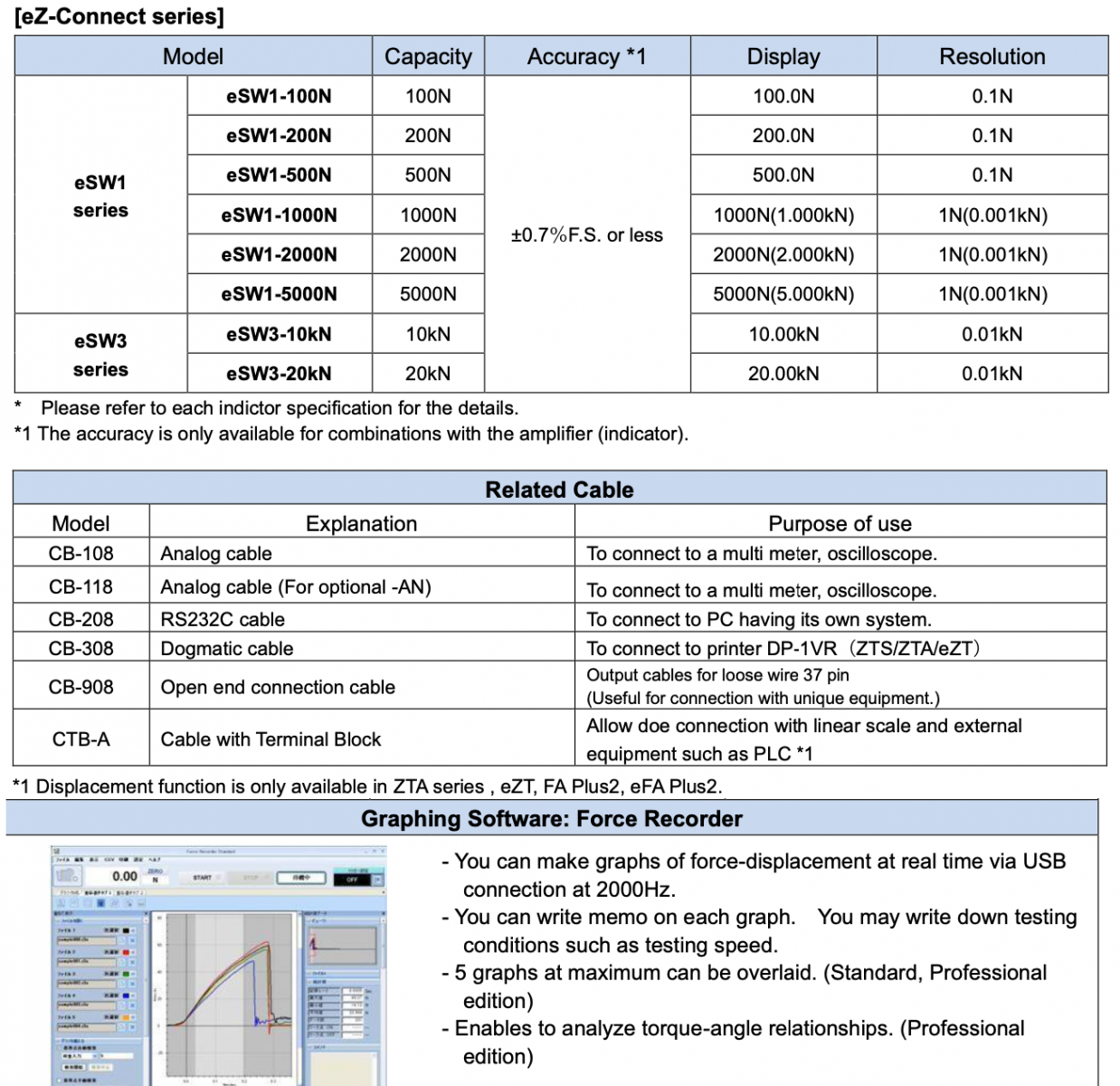

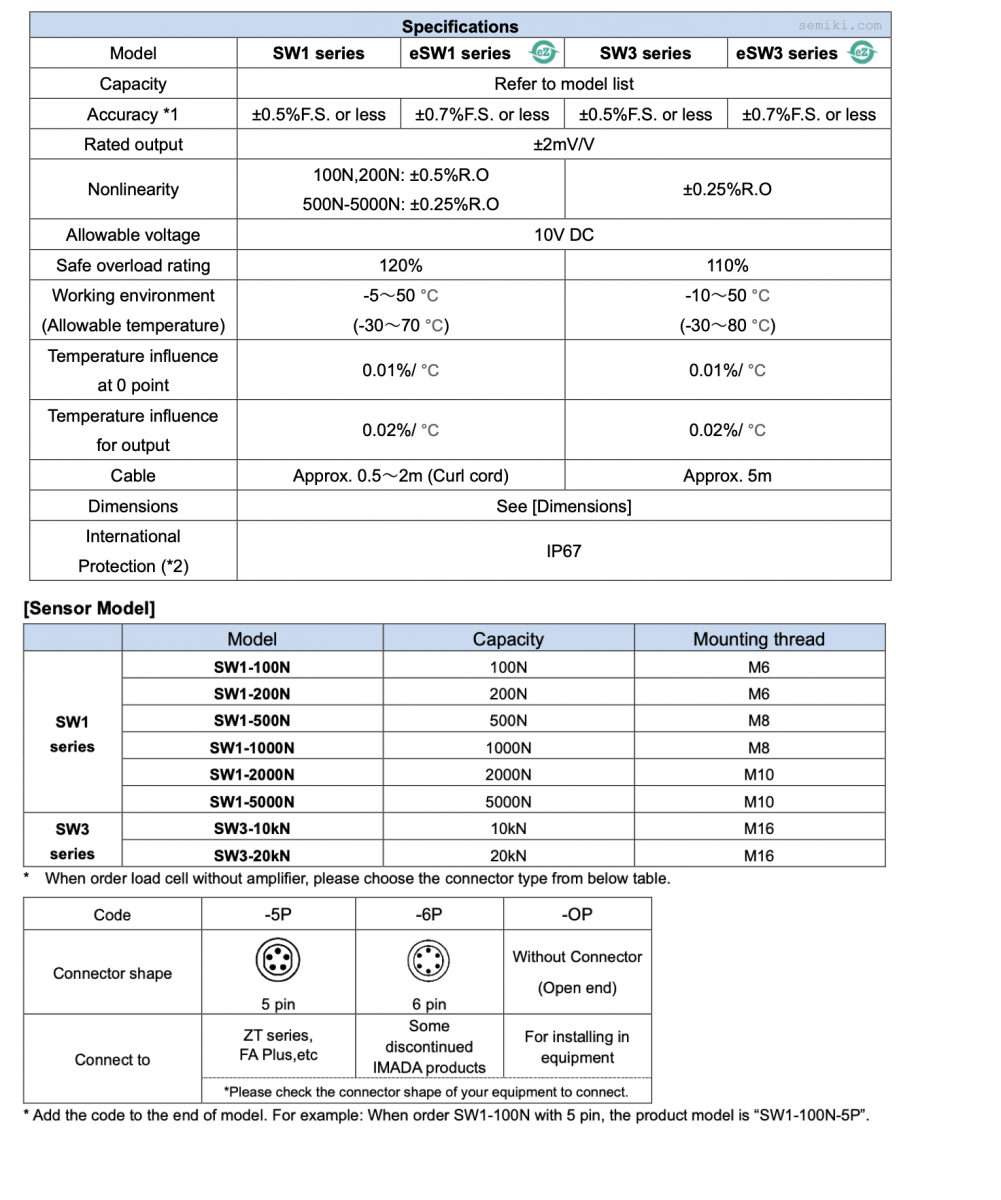

Specifications
Pic.: IMADA eZT connect loadcell eSW3-20kN ( Capacity 20.000N ) at Semiki’s warehouse
[Cautions]
– The contents may be changed without previous notice.
– All of products are designed for measurement purpose only.
– Do not copy and use this content without authority.
– Please note that the capacity is dependent on the displayed unit. Please contact us for details
Video: Pic.: IMADA Sensor Interchangeable Amplifier eZT with loadcell eSW | intro ( Vietnamese )
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store. Local Vietnam : SEMIKI CORP
