BỘ GHI DỮ LIỆU 30 KÊNH HiLOGGER LR8400

Nhà sản xuất: GRAPHTEC

Danh mục: Bộ ghi dữ liệu logic đa kênh

Bộ ghi Hioki HiLoggers LR8400 là bộ ghi dữ liệu tốc độ cao để ghi nhiều tín hiệu điện áp, nhiệt độ, điện trở, độ ẩm và tín hiệu xung, cung cấp sự cách ly hoàn toàn giữa các kênh và khả năng chống nhiễu mạnh. Dòng LR8400 ghi lại dữ liệu ở tốc độ 10ms trên 30 kênh cùng một lúc, có thể mở rộng lên tới 60 kênh và có màn hình LCD màu sáng cho màn hình dạng sóng tinh thể rõ ràng.

MEMORY HiLOGGER

LR8400 Series

Portable Handheld 30- to 60- channel Data Loggers with 10ms Simultaneous Sampling

Multi-channel Handheld Data Logger | Memory HiLOGGER LR8400 Series

Key Features

• Compact size despite 30-channel standard capabilities

• Expand up to 30 additional channels

• Protected against unexpected power outages

• Write data to USB memory stick or CF card in real-time

• Built in with USB 2.0 or 100 BASE-TX LAN interfaces

• 5.7” TFT color display

Model No. (Order Code):

LR8400-20	Built-in the Voltage/temp unit LR8500 ×2, 30 ch, English
LR8401-20	Built-in the Universal unit LR8501 ×2, 30 ch, English
LR8402-20	Built-in the Universal unit ×1, Voltage/temp unit ×1, 30 ch, English

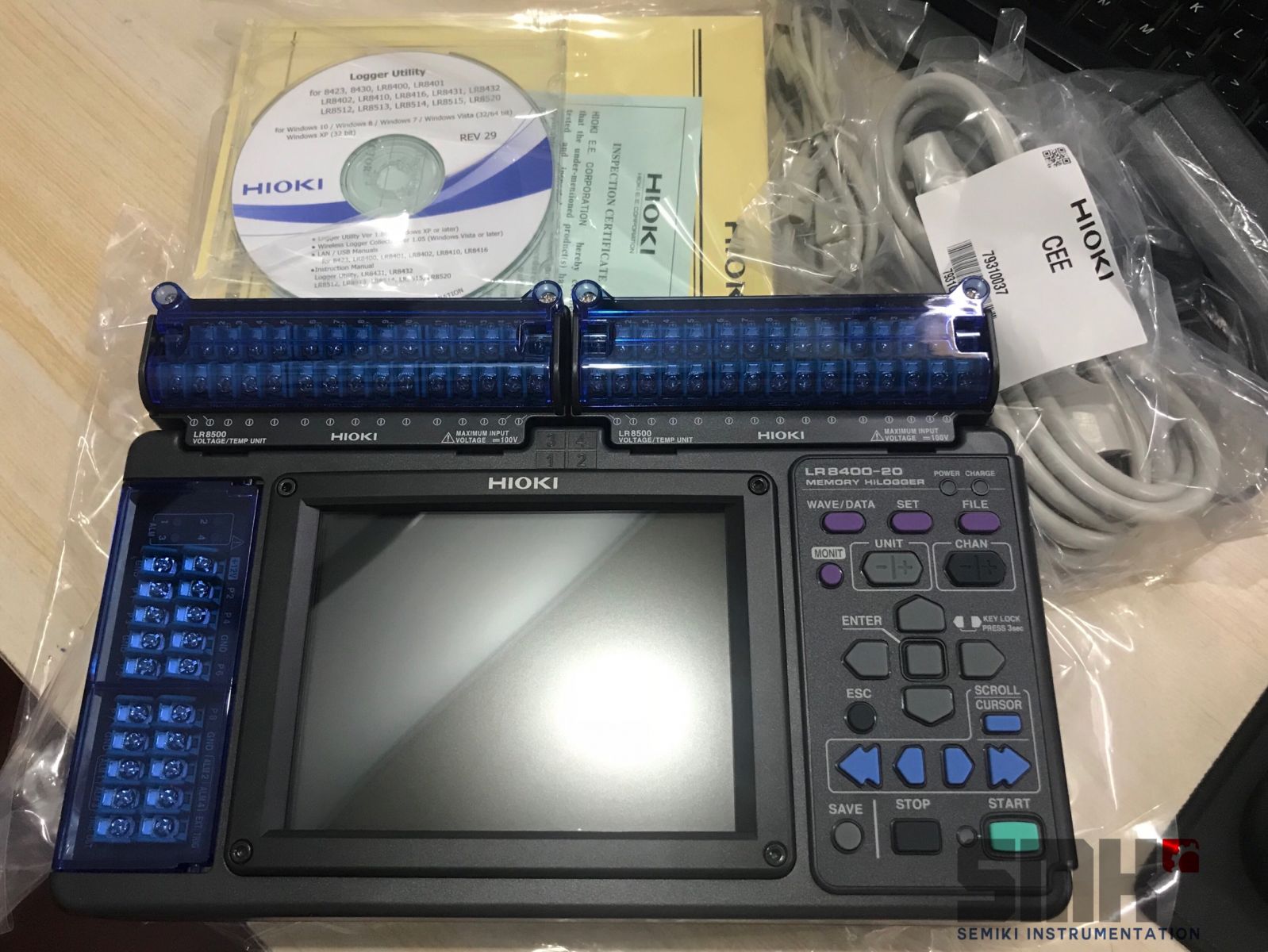

picture: MEMORY HiLOGGER LR8400-20 in stock SEMIKI

Accessories	Instruction manual ×1, Measurement guide ×1, CD-R (data collection software “Logger Utility”) ×1, USB cable ×1, AC adapter 9418-15 ×1

SPECTATION :

Analog input Universal unit LR8501 Actual functionality will depend on combination of units installed Note: Isolated from each channel to chassis	[No. of channels] 15 analog channels; isolated scanning method input (4 terminals: push-button type) [Voltage] ±10 mV to ±100 V, 1-5 V f.s. Max. resolution: 500 nV, (Isolated between channels and from each channel to chassis) [Temperature: Thermocouples] -200 ˚C to 2000 ˚C (depends on sensor), Thermocouples (K, J, E, T, N, R, S, B, W,) Max. resolution 0.01 ˚C, (Isolated between channels and from each channel to chassis) [Temperature: Pt 100, JPt 100 sensor] -200 ˚C to 800 ˚C, Max. resolution 0.01 ˚C, (Not isolated between channels) [Resistance] 0 Ω to 200 Ω f.s. Max. resolution 0.5 mΩ, (Not isolated between channels) [Humidity] 5.0 to 95.0 % rh (use with optional sensor), resolution 0.1 % rh, (Not isolated between channels nor from each channel to chassis) [Max. rated voltage between isolated input channels] 300 V DC [Max. allowable input] ±100 V DC [Max. rated voltage from isolated terminals to ground] 300 V AC, DC
Analog input Votage/temp unit LR8500 Actual functionality will depend on combination of units installed Note: Isolated from each channel to chassis	[No. of channels] 15 analog channels; isolated scanning method input (2 terminals: M3 screw type) [Voltage] ±10 mV to ±100 V, 1-5 V f.s. Max. resolution: 500 nV, (Isolated between channels and from each channel to chassies) [Temperature: Thermocouples] -200 ˚C to 2000 ˚C (depends on sensor), Thermocouples (K, J, E, T, N, R, S, B, W), Max. resolution 0.01 ˚C, (Isolated between channels and from each channel to chassies) [Pt 100, JPt 100 sensor] [Resistance] Not available [Humidity] 5.0 to 95.0 % rh (use with optional sensor), resolution 0.1 % rh, (Not isolated between channels nor from each channel to chassies) [Max. rated voltage between isolated input channels] 250 V DC [Max. allowable input] ±100 V DC [Max. rated voltage from isolated terminals to ground] 300 V AC, DC Caution: Max. voltage from terminals to ground without damage

Analog input Universal unit LR8501 Actual functionality will depend on combination of units installed Note: Isolated from each channel to chassis

[No. of channels] 15 analog channels; isolated scanning method input (4 terminals: push-button type)
[Voltage] ±10 mV to ±100 V, 1-5 V f.s. Max. resolution: 500 nV, (Isolated between channels and from each channel to chassis)
[Temperature: Thermocouples] -200 ˚C to 2000 ˚C (depends on sensor), Thermocouples (K, J, E, T, N, R, S, B, W,) Max. resolution 0.01 ˚C, (Isolated between channels and from each channel to chassis)
[Temperature: Pt 100, JPt 100 sensor] -200 ˚C to 800 ˚C, Max. resolution 0.01 ˚C, (Not isolated between channels)
[Resistance] 0 Ω to 200 Ω f.s. Max. resolution 0.5 mΩ, (Not isolated between channels)
[Humidity] 5.0 to 95.0 % rh (use with optional sensor), resolution 0.1 % rh, (Not isolated between channels nor from each channel to chassis)
[Max. rated voltage between isolated input channels] 300 V DC
[Max. allowable input] ±100 V DC
[Max. rated voltage from isolated terminals to ground] 300 V AC, DC

Analog input Votage/temp unit LR8500 Actual functionality will depend on combination of units installed Note: Isolated from each channel to chassis

[No. of channels] 15 analog channels; isolated scanning method input (2 terminals: M3 screw type)
[Voltage] ±10 mV to ±100 V, 1-5 V f.s. Max. resolution: 500 nV, (Isolated between channels and from each channel to chassies)
[Temperature: Thermocouples] -200 ˚C to 2000 ˚C (depends on sensor), Thermocouples (K, J, E, T, N, R, S, B, W), Max. resolution 0.01 ˚C, (Isolated between channels and from each channel to chassies)
[Pt 100, JPt 100 sensor] [Resistance] Not available
[Humidity] 5.0 to 95.0 % rh (use with optional sensor), resolution 0.1 % rh, (Not isolated between channels nor from each channel to chassies)
[Max. rated voltage between isolated input channels] 250 V DC
[Max. allowable input] ±100 V DC
[Max. rated voltage from isolated terminals to ground] 300 V AC, DC
Caution: Max. voltage from terminals to ground without damage

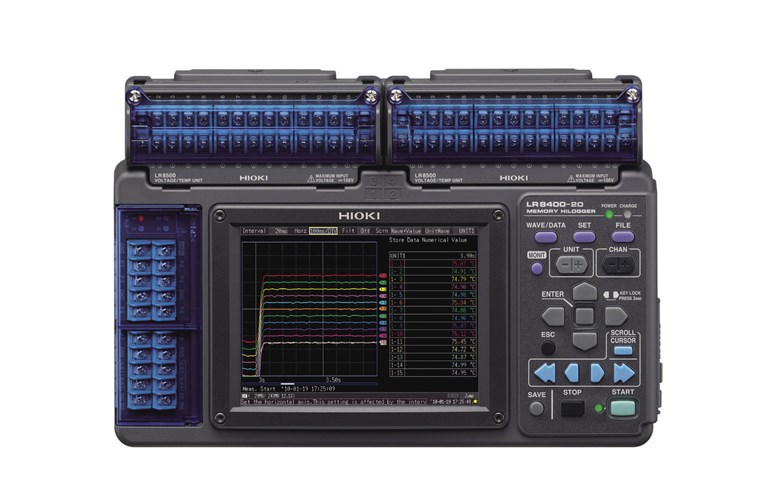

Picture: LR8400-20 and card reader

Maintenance and calibration :

► We also have calibration certificate attached ( optional )

► Please re-calibrate after use for a certain period through our purchase store. Local Vietnam : SEMIKI CORP
