Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance. The LR8450 offers 1 ms sampling across up to 120 channels, and can be paired with 5 different types of plug-in input units. New input modules measure strain and distortion, ideal for automotive applications involving the evaluation of vehicle components as well as robotic equipment.
HIOKI JAPAN.
MEMORY HiLOGGER

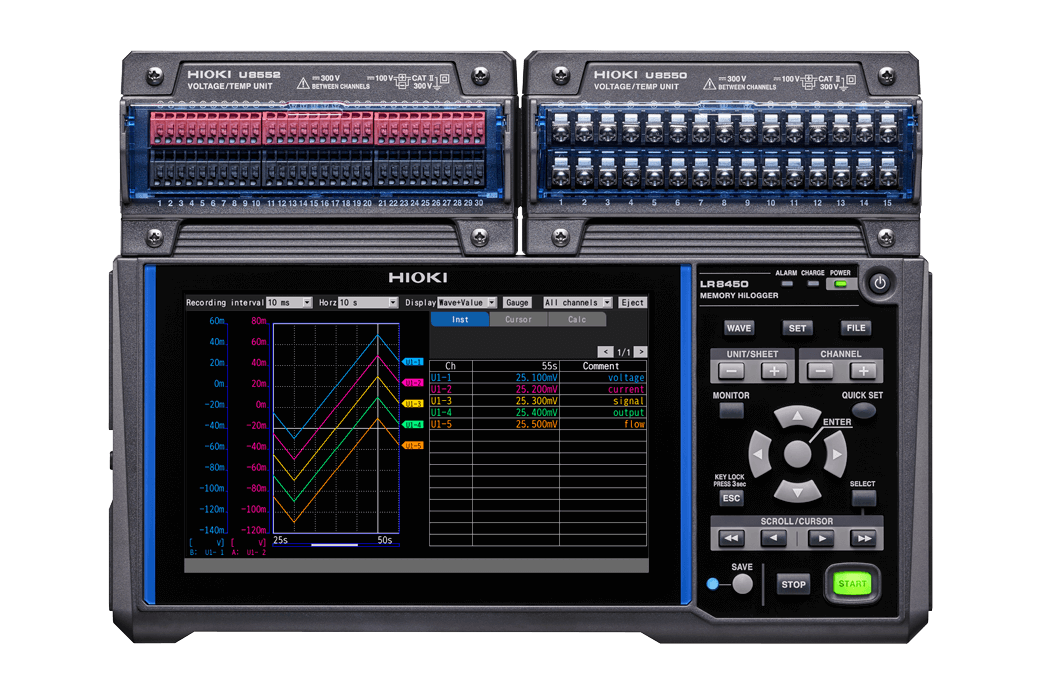

Model : LR8450

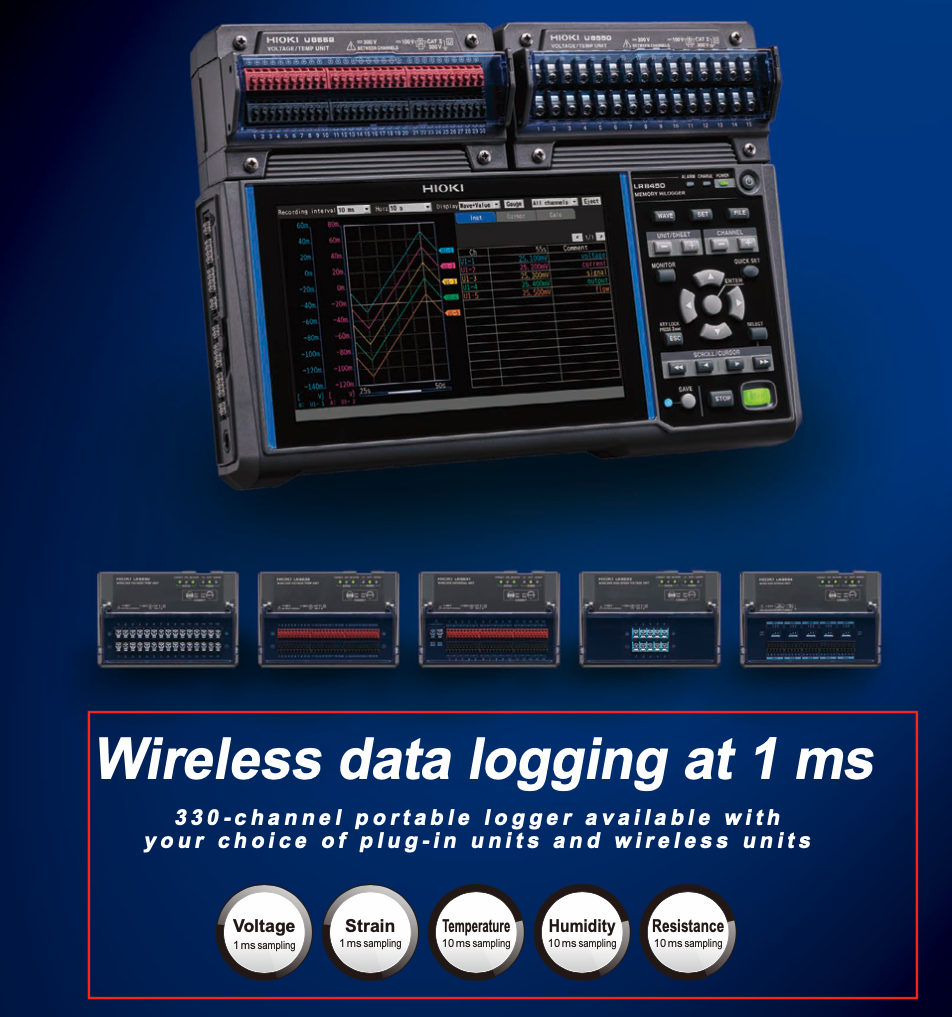

1 ms Sampling Portable Logger Expandable to 120 Channels with Your Choice of Plug-in Input Modules
Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance.
The LR8450 offers 1 ms sampling across up to 120 channels, and can be paired with 5 different types of plug-in input units.
New input modules measure strain and distortion, ideal for automotive applications involving the evaluation of vehicle components as well as robotic equipment.
Features
• Expandable to 120 ch with wired/plug-in units
• Record voltage output from pressure and other sensors with 1ms sampling speed
• Directly connect strain gauge and measure signals in as fast as 1ms intervals
• Significantly reduced effects from noise let you safely measure in high voltage and high frequency areas such as around inverter motors
Video: Hioki Memory HiLogger LR8450 | Reduce the Effects of Noise | intro

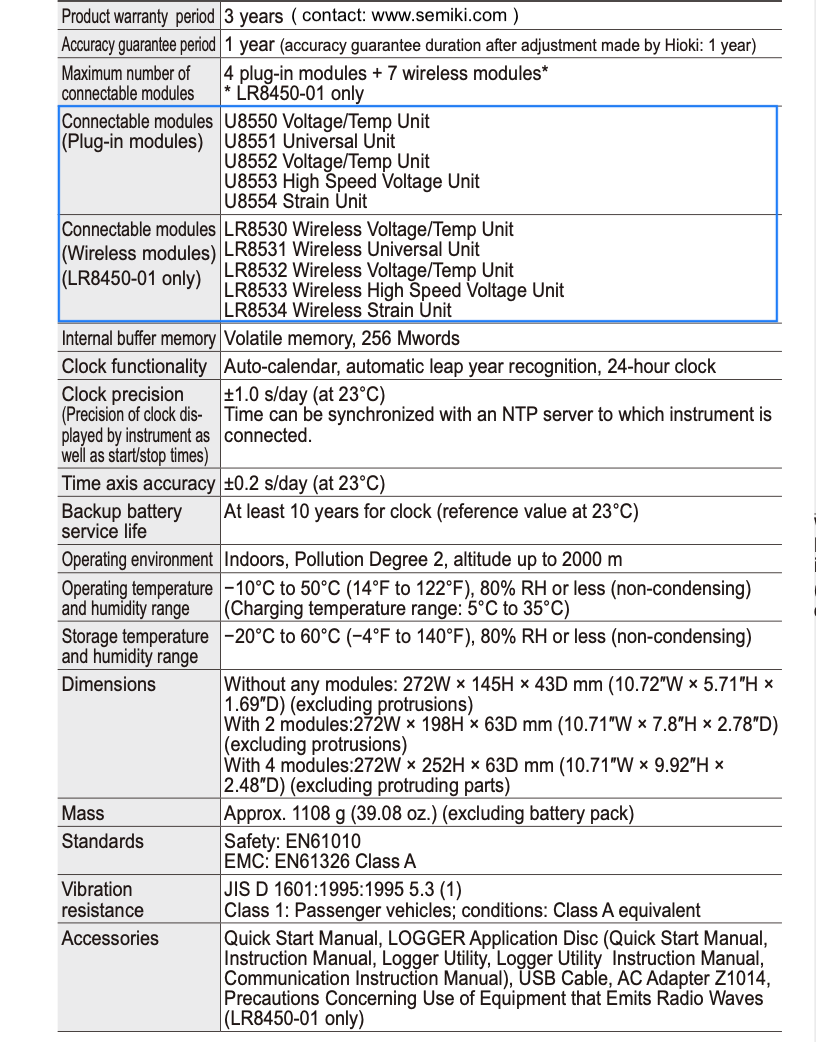

Basic specifications

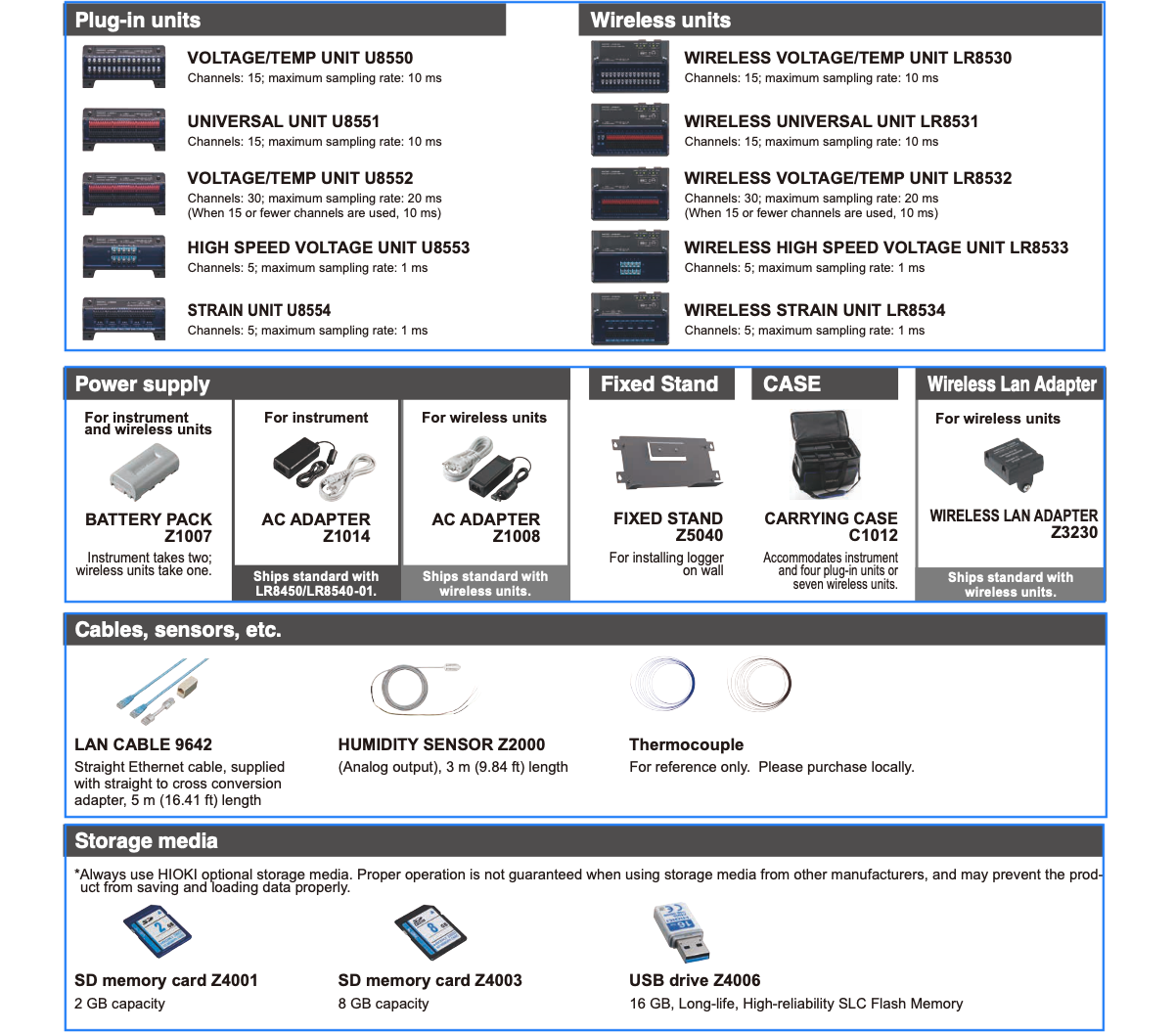

Optional Acessories:
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store. Local Vietnam : SEMIKI CORP
