BỘ LẬP TRÌNH CHIP PANA EX2 Series

Nhà sản xuất:

Danh mục: Máy nạp chip

PANAX Series KIT DEBUG/PROGRAMMING. The Programming system is the standalone programming environment to the microcomputer with non-volatile memory. This system is used in combination with the programmer socket board, programmer board, and the PanaX EX series or the PanaX SP.
Can be setting standalone operation of the PanaX EX2 series / the PanaX SP.

PANAX Series

KIT DEBUG/PROGRAMMING SYSTEM

Model:

PANAX EX2 Series

► Feature of PanaX EX/SP programming system

The Programming system is the standalone programming environment to the microcomputer with non-volatile memory. This system is used in combination with the programmer socket board, programmer board, and the PanaX EX series or the PanaX SP.

► Product summary

• This system consists of the programmer board, the programmer socket board, and the PanaX EX series or the PanaX SP. The programmer board is constructed by the common circuit for each microcomputer. The programmer socket board is constructed by the specific circuit for each microcomputer.
• This system performs the programming of the microcomputer with non-volatile memory by the serial communication between the PanaX EX series or the PanaX SP and the microcomputer.
• The PanaX EX series or the PanaX SP and the host computer is connected by USB cable. The programmer board and the programmer socket board do not require a power supply.
• In addition, this system can be programmed to the build-in non-volatile memory without a connection to the host computer. At that time, it is necessary that the program data to the memory is registered to the PanaX EX2 or PanaX SP beforehand.
• When the PanaX EX2 or the PanaX SP is not connected to the host computer, power is supplied from the AC adapter.
• The PanaX EX Series or the PanaX SP supports the gang programming by USB connection to multiple units.
• The gang programming can be controlled from another equipment that is not a host computer.
• This programming can not be used in a mix of the PanaX EX Series and the PanaX SP.

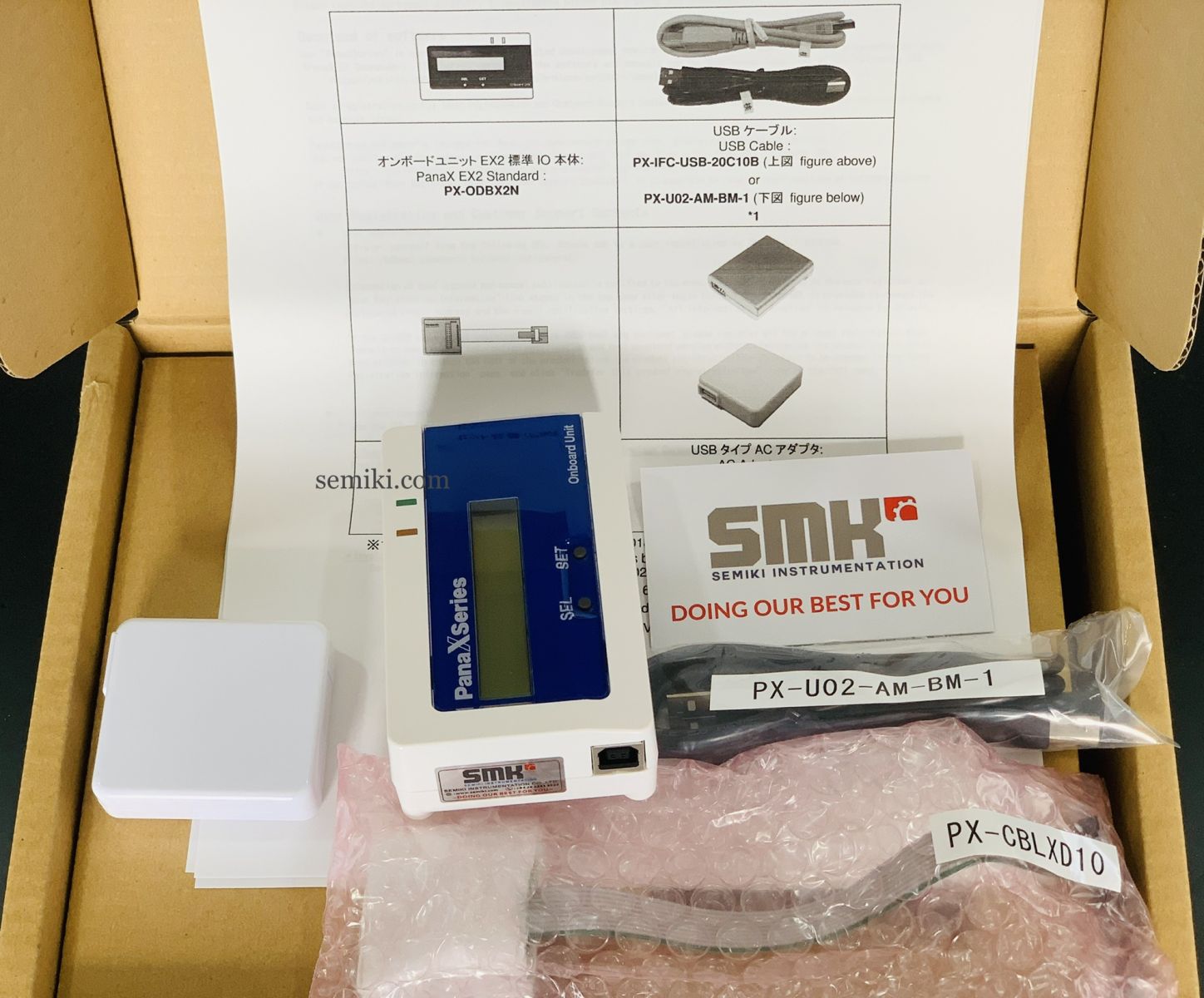

Package contents of PanaX EX

PX-PAC-X1NU-0N5
PX-PAC-X1NU4-0N5
PX-PAC-X1IU-0N5
PX-PAC-X1IU4-0N5

PX-PAC-X2NU-0N5
PX-PAC-X2NU4-0N5
PX-PAC-X2IU-0N5
PX-PAC-X2IU4-0N5

PX-PAC-X2NUA-0N5a
PX-PAC-X2NUA4-0N5a
PX-PAC-X2IUA-0N5a
PX-PAC-X2IUA4-0N5a

PanaX EX On-board debugger package has Standard IO models and Isolated IO models.
PanaX EX2 is preparing for a package containing AC adapter.
Before, we sale only DWire 10 pin cable set, but we sale DWire 14 pin cable set. All packages include a USB cable.
