bộ lập trình vi điều khiển ST-LINK/V2, ST-LINK/V2-ISOL

Nhà sản xuất:

Danh mục: Giải pháp đo SEMIKI

The ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontrollers. The single-wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board. In addition to providing the same functionalities as the ST-LINK/V2, the ST-LINK/V2-ISOL features digital isolation between the PC and the target application board. It also withstands voltages of up to 1000 Vrms.

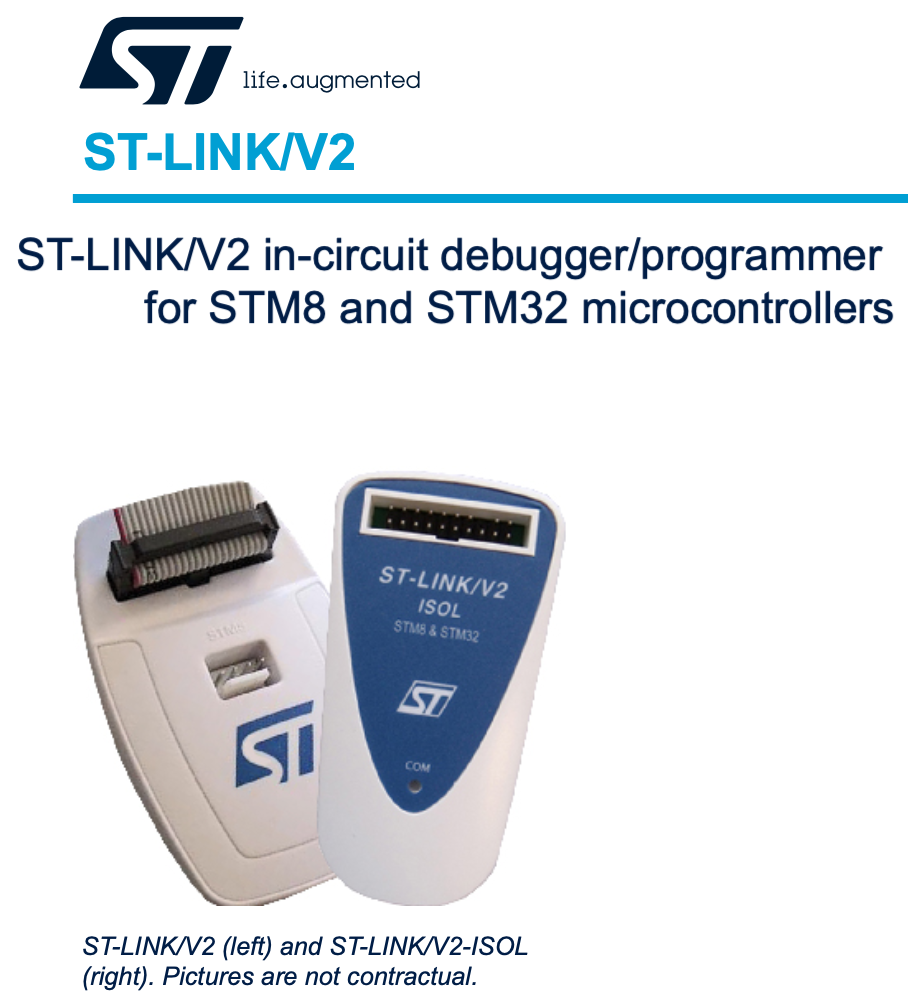

The ST-LINK/V2 – ST-LINK/V2-ISOL

is an in-circuit debugger and programmer

for the STM8 and STM32 microcontrollers.

The ST-LINK/V2 – ST-LINK/V2-ISOL is an in-circuit debugger and programmer for the STM8 and STM32 microcontrollers. The single-wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board. In addition to providing the same functionalities as the ST-LINK/V2, the ST-LINK/V2-ISOL features digital isolation between the PC and the target application board. It also withstands voltages of up to 1000 Vrms.

Features

• 5 V power supplied by a USB connector
• USB 2.0 full-speed compatible interface
• USB Type-A to Mini-B cable provided
• SWIM specific features: 1.65 V to 5.5 V application voltage support on the SWIM interface
• SWIM low-speed and high-speed modes support
• SWIM programming speed rates: 9.7 kbyte/s in low-speed, 12.8 kbyte/s in high-speed
• SWIM cable for connection to an application with an ERNI standard connectorVertical connector reference: 284697 or 214017Horizontal connector reference: 214012
• SWIM cable for connection to an application with pin headers or 2.54 mm pitch connector
• JTAG/serial wire debug (SWD) specific features: 1.65 V to 3.6 V application voltage support on the JTAG/SWD interface and 5 V tolerant inputs
• JTAG cable for connection to a standard JTAG 20-pin 2.54 mm pitch connector
• JTAG support
• SWD and serial wire viewer (SWV) communication support
• Direct firmware update support (DFU)
• Status LED blinking during the communication with the PC
• Operating temperature from 0 °C to 50 °C
• 1000 Vrms high isolation voltage (ST-LINK/V2-ISOL only)

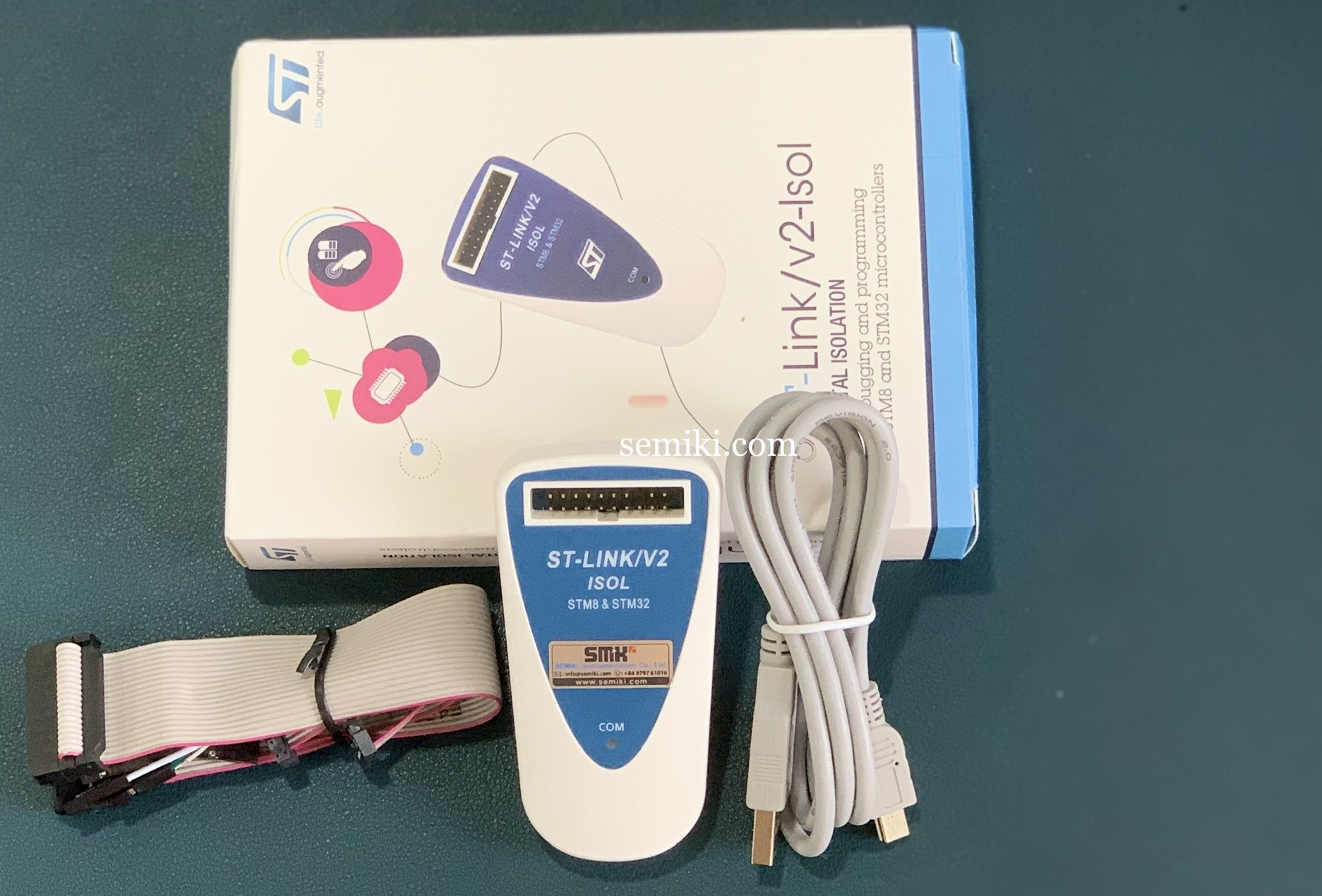

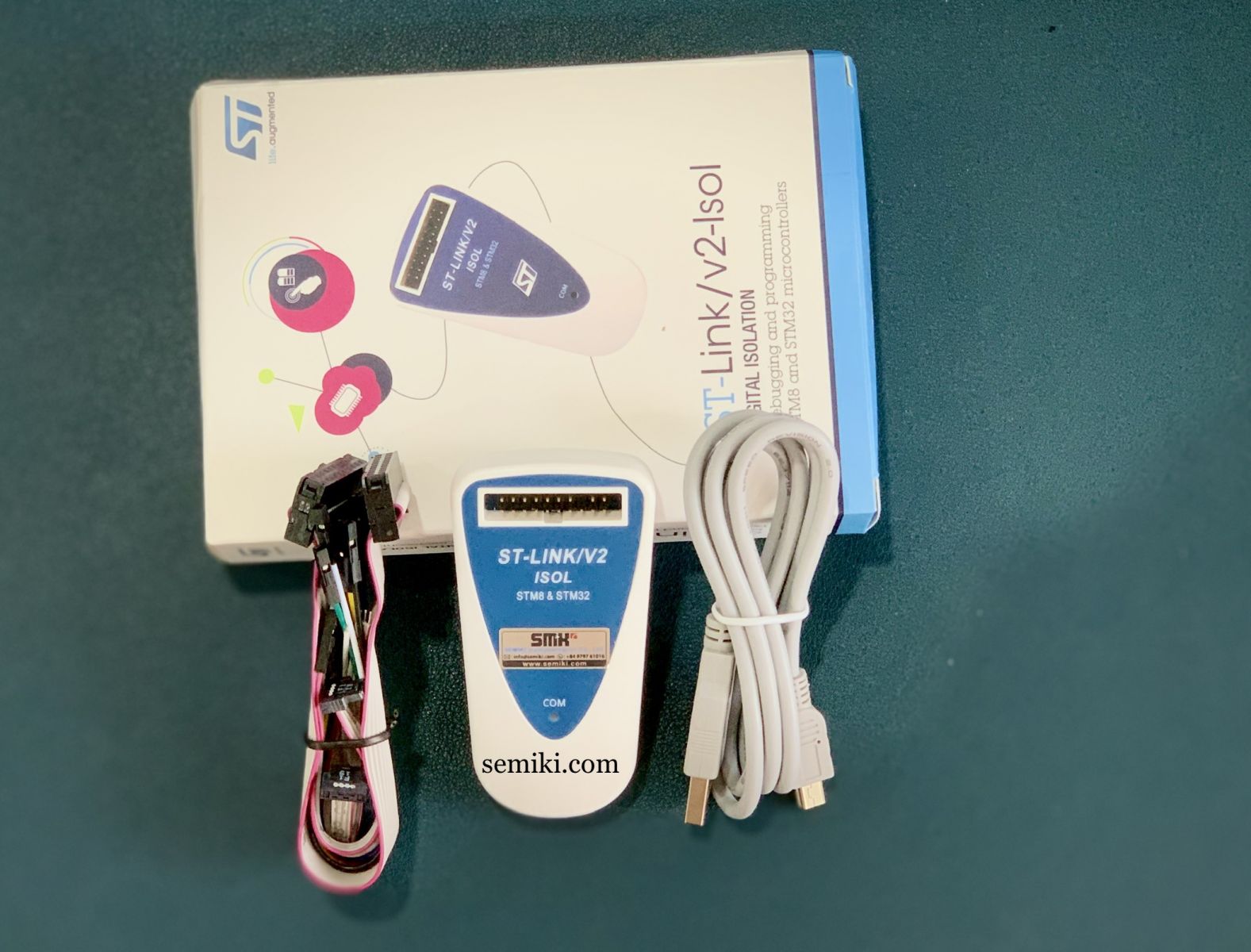

Pic.: In-circuit debugger/programmer with 1000 Vrms digital isolation ST-LINK/V2-ISOL at Semiki’s warehouse

Development toolchains

STM8 microcontrollers

• IAR Systems – IAR-EWSTM8(1)
• Cosmic – Free IDEA(1)
• Raisonance – RIDE-STM8(1)
• iSYSTEM – winIDEA-STM8(1)
• STMicroelectronics – STVD-STM8(1) (using Cosmic toolchain)
• STMicroelectronics – STVP-STM8(1)

STM32 microcontrollers

• IAR Systems – EWARM(1)
• Keil® – MDK-ARM(1)
• STMicroelectronics – STM32CubeIDE
• STMicroelectronics – STM32CubeProgrammer (STM32CubeProg)
• STMicroelectronics – STM32CubeMonitor

(1) On Windows® only.
