iFORCOM KYOEI Co.,Ltd. designs and develops measurement control systems and Flash memory programming systems. iFORCOM KYOEI Co.,Ltd. offers an on-board Flash programmer called I.S.P-310, which supports various Flash microcontrollers such as the Toshiba TX03 Arm Core-based microcontroller series. The I.S.P-310 is small and lightweight and powered by two AA batteries. It is a standalone system and easily portable. You can use it in production lines and in the field.
iFORCOM KYOEI Co.,Ltd.
iFORCOM KYOEI Co.,Ltd. designs and develops measurement control systems and Flash memory programming systems.
iFORCOM KYOEI Co.,Ltd. offers an on-board Flash programmer called I.S.P-310, which supports various Flash microcontrollers such as the Toshiba TX03 Arm Core-based microcontroller series.
ON-BOARD PROGRAMMING TOOL
Model:
ISP-310A ( A type: No SD card )
ISP-310B (B type: SD card interface available )
■ Product overview
– Easy operation microcomputer writer (on-board programmer/flash writer)
– High-speed writing support (up to 400% in our company’s comparison) *1 PC interface USB transfer
– Offline/online writing supported
– Data file (8 MB), a maximum of 20 files can be saved in flash memory
– Built-in remote interface for remote writing, support of writing communication port (SCI) interface 232 and TTL level
Displays CPU name, file name, and interface status

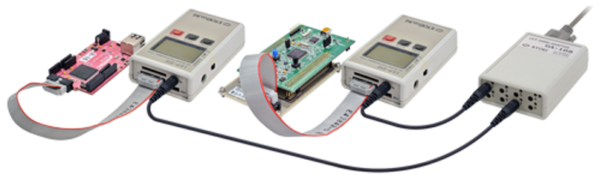

– Ganging is possible with the dedicated adapter GA-108 series. Supports simultaneous writing to multiple targets and individual writing to multiple types of targets
Models supported:
– Devices manufactured by Renesas Electronics Corporation
• RX, RL78, RH850, V850, SH, R8C, and many other families
Devices manufactured by Cypress Semiconductor
• FM0 +, FM3, FM4, New8FX, F2MC-16 family, SSCG
* Including devices manufactured by Spansion and devices manufactured by FUJITSU SEMICONDUCTOR LIMITED.
– Devices manufactured by TOSHIBA CORPORATION
• TX00, TX03, TX04 series, TXZ family
– Devices manufactured by Panasonic Corporation
• AM family
– Devices manufactured by Lapis Semiconductor Co., Ltd.
• ML610Q, ML620Q, ML62Q1000, ML7146 series
– Devices manufactured by STMicroelectronics
• STM8, STM32 family
– Devices manufactured by Nuvoton
• Mini51 base series Mini57
– Devices manufactured by Active-semi
• Power Application Controller (PAC)
– SPI-Flash, IIC-Flash manufactured by various companies
Write mode | Boot mode support |
---|---|
Write port | E1, E20, E8a, SYNC, ASYN, 232, SWD |
Writing method | Online writing (writing from a personal computer via this machine) Offline writing (after transferring data, writing only with this machine) |
Other functions | Verify, checksum function selectable |
Number of data files | 8MB capacity (up to 20 files can be saved) |
Supported formats | Motorola S format (SREC, S-record, S19), Intel HEX format |
Memory element | Flash memory, EEPROM |
Number of data writes | 100,000 times (minimum) |
PC interface |
USB2.0 / Dedicated software attached (Windows Japanese version) |
Remote interface |
Writable by RS232C / dedicated command Writable by remote SW |
LCD monitor display digit | 100 x 64 dot (36 x 23 mm) |
LCD monitor display contents | Display target CPU type name, data file name, write interface, error code, etc. |
others | Power supply: AA batteries x 2 / AC adapter / USB * (can be used together) External shape: 67 x 112 x 28 mm Weight: Approximately 200 g (including batteries) Accessories: Dedicated software, AC adapter, writing cable, battery, document |
Type | A Type : No SD card interface B type: With SD card interface (write log save function, write via SD) |
Corresponding varieties | Devices manufactured by Renesas Electronics Corporation → RX, RL78, RH850, V850, SH, R8C, and many other families Cypress Semiconductor Devices Toshiba Corporation Devices Panasonic Corporation Devices LAPIS Semiconductor Co., Ltd. device Devices manufactured by STMicroelectronics Co., Ltd. Nuvoton device Active-semi device SPI-Flash and IIC-Flash made by each company |

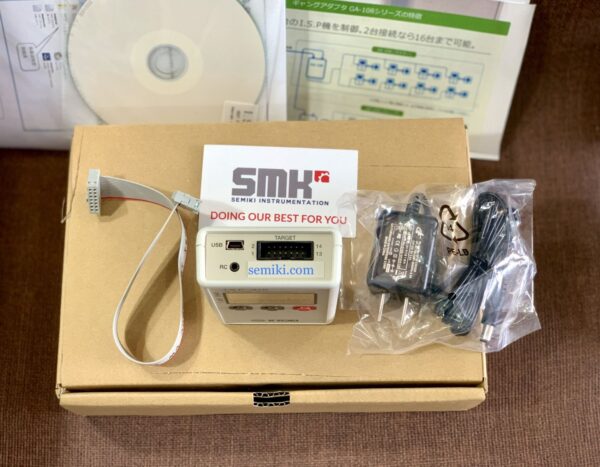

Fig.: KYOEI microcomputer writer (onboard programmer / flash writer) ISP-310 ( Type A) at Semiki’s warehouse
Maintenance and calibration :
► Please re-maintenace after use for a certain period through our purchase store. Local Vietnam : SEMIKI CORP
