BỘ NGUỒN LẬP TRÌNH 300V BK PRECISION 9801, 9803, 9805

Nhà sản xuất:

Danh mục: Bộ nguồn chuẩn lập trình AC/DC

The 9800/B Series is both a programmable AC source and measurement tool. These fully programmable linear AC sources deliver a maximum of 1500 VA through the universal line output terminals on the front and the output connector on the rear. The output can be varied from 0 to 300 V with 0.1 V programming resolution. The output frequency can also be adjusted from 45 Hz to 500 Hz with start and stop phase angle from 0 to 360 degrees. The bright VFD display shows Vrms, Irms, Ipeak,frequency, power factor (PF), apparent power, true power, and elapsed output time.

The AC source provides a power line disturbance (PLD) simulator, list mode, and sweep mode for simulation of common power grid faults and disturbances. A built-in dimmer function is also available for testing motors and LEDs.

BK PRECISION

Programmable AC Power Sources

Model:

9801 ( 300 V/3 A/300 VA)

9803/ 9803B ( 300 V/6 A/750 VA)

9805/9805B (300 V/12 A/1500 VA)

The 9800/B Series is both a programmable AC source and measurement tool.

These fully programmable linear AC sources deliver a maximum of 1500 VA through the universal line output terminals on the front and the output connector on the rear.

The output can be varied from 0 to 300 V with 0.1 V programming resolution.

The output frequency can also be adjusted from 45 Hz to 500 Hz with start and stop phase angle from 0 to 360 degrees. The bright VFD display shows Vrms, Irms, Ipeak,frequency, power factor (PF), apparent power, true power, and elapsed output time.

• 0 to 300 V, low distortion AC power source with models delivering a maximum of 1500 VA, 12 Arms / 48 Apeak
• Output frequency adjustable from 45 Hz – 500 Hz
• Select 150 V / 300 V autoranging or 300 V range operation for continuous sweep from 0 – 300 V
• Displays Vrms, Irms, Ipeak, frequency, PF, apparent power, true power, and elapsed output time
• Adjustable phase angle control
• Built-in PLD and dimmer simulation
• Voltage and frequency sweep mode
• Downloadable LabVIEW driver and soft panel software for remote control
• Standard USB (USBTMC-compliant), RS232, and LAN interfaces
• GPIB optional on select models
• Pre-compliance testing for voltage dips and frequency simulation according to IEC61000-4-11 / 4-14 / 4-28

Video: BK Model 9801 – Programmable AC Power Source| intro

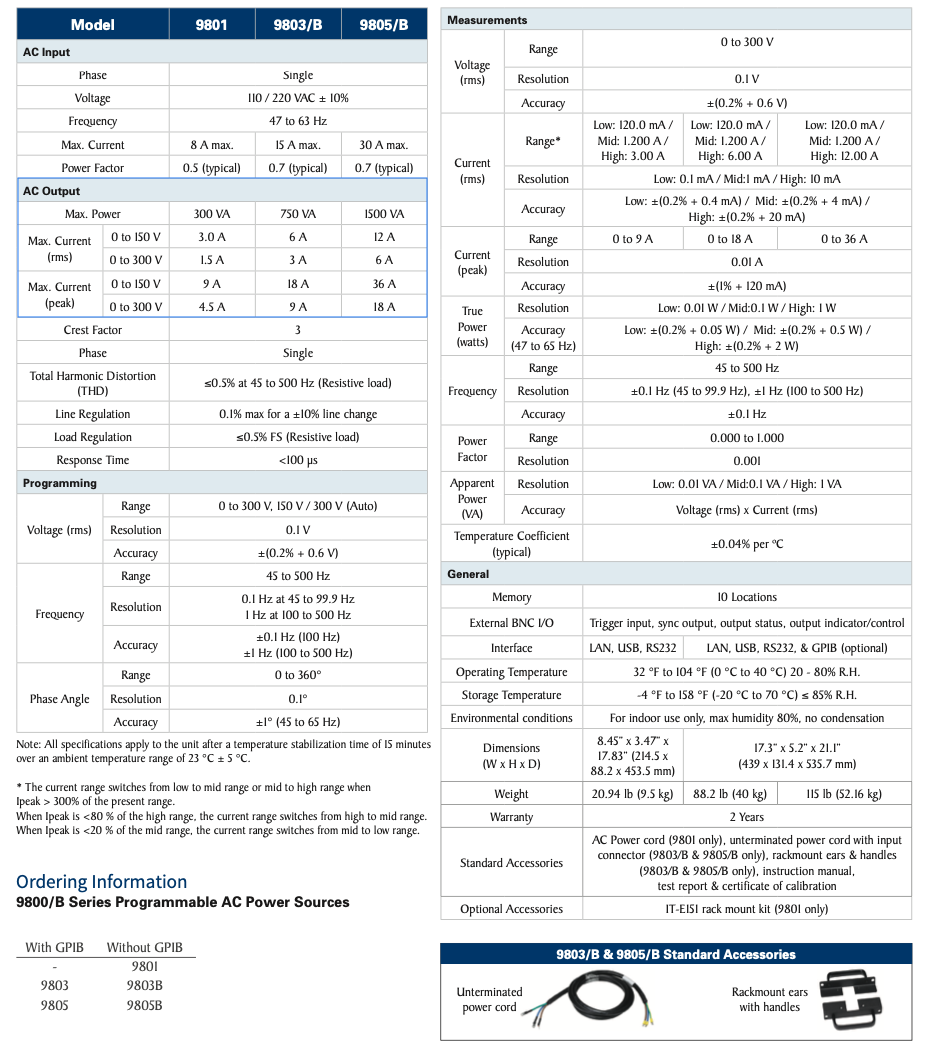

Specifications

Pic.: BK Precision 9801 AC Programmable Power Sources ( Output 300 V/3 A/300 VA) at Semiki’s warehouse

Maintenance and calibration :

► We also have calibration certificate attached ( optional )

► Please re-calibrate after use for a certain period through our purchase store. Local Vietnam : SEMIKI CORP
