EMIC 6001-AHD, 6002-A Slim & High-Performance Charge Amplifier
Measuring a wide variety of vibration: automotive, rail transportation equipment vibration, motor/pump vibration, vibration response during vibration test. Also available for a vibration test device for calibration of equipment.
Compatible with input of piezoelectric accelerometers and accelerometers with built-in pre-amplifier.
Various options are available: PC communication port,
EMIC Corp
Charge Amplifier Vibration Measuring Instrument
Model:
6001-AHD
6002-A

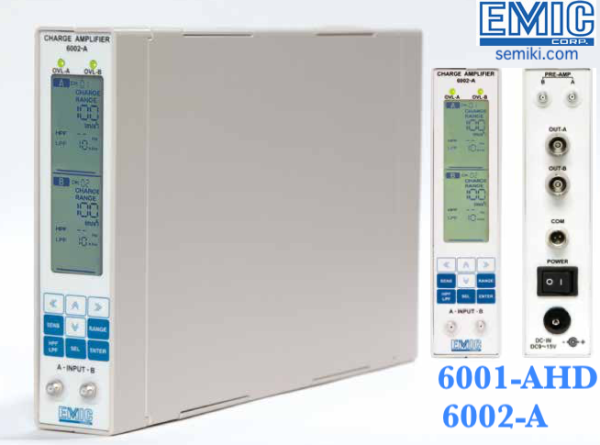

Slim & High-Performance Charge Amplifier 6001-AHD, 6002-A
Measuring a wide variety of vibration: automotive, rail transportation equipment vibration, motor/pump vibration, vibration response during vibration test. Also available for a vibration test device for calibration of equipment.
Compatible with input of piezoelectric accelerometers and accelerometers with built-in pre-amplifier.
Various options are available: PC communication port…
Features:
● Matched to both piezoelectric accelerometer and accelerometer with built-in electronics.
● Enhanced filter according to JIS B 0907, 6 steps for both L.P.F and H.P.F.
● 36 mm width of slim body facilitates to configure multi-channel measurement system
● Optional AC power supply unit (USB communication feature) allows the PC to load measured data

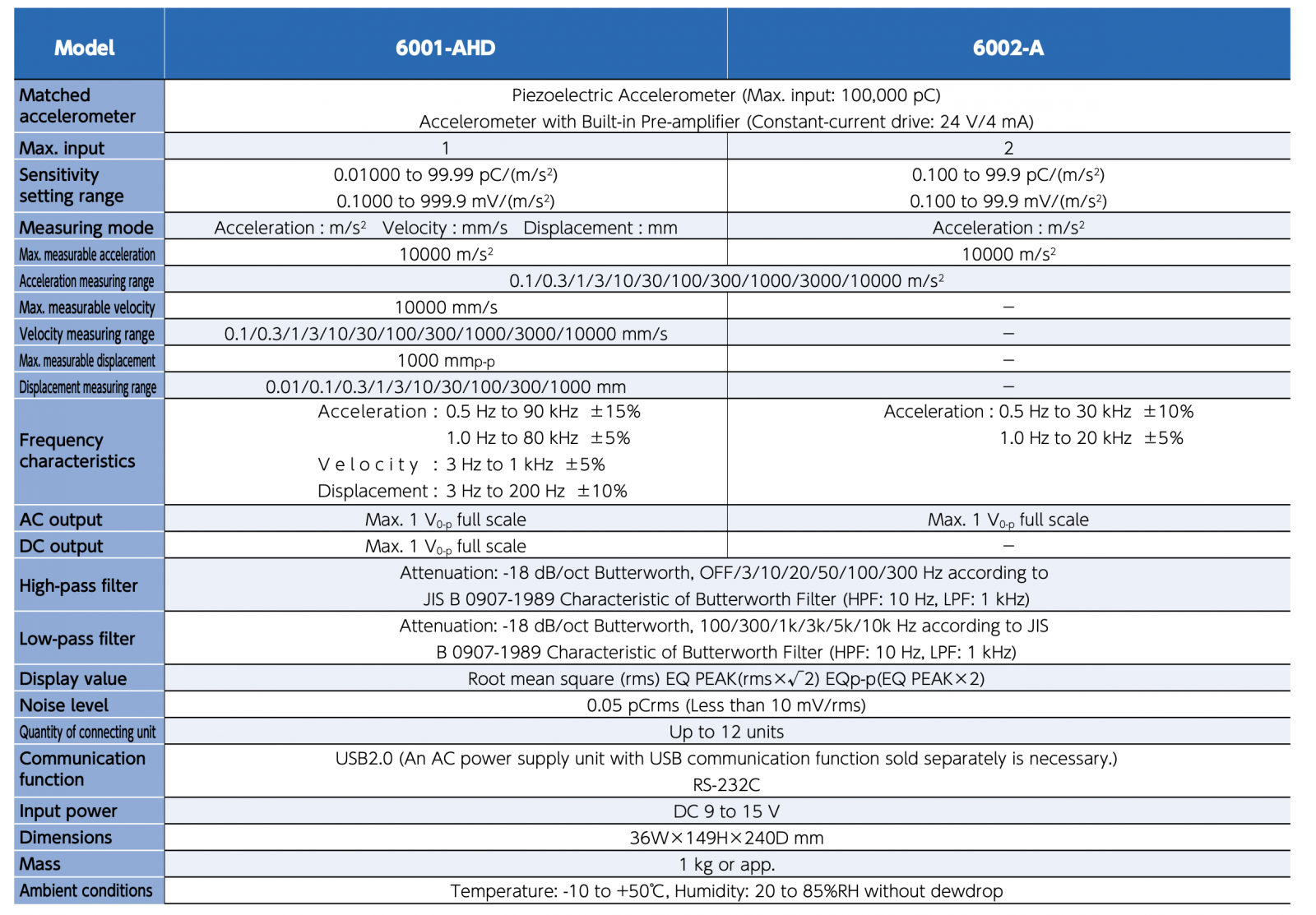

Specifications:
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store. Local Vietnam : SEMIKI CORP
