BỘ THU THẬP DỮ LIỆU 24 KÊNH BMCM USB-PIO

Nhà sản xuất:

Danh mục: Máy nạp chip

BMCM Germany USB-PIO USB TTL-Digital-I/O
The USB-PIO features three 8-bit bidirectional ports. The port lines are connected to a 25-pin D-sub female connector. The unique idea of the USB-PIO: The data acquisition system is accomodated in the D-sub connector housing.

BMCM Germany

USB TTL-Digital-I/O

Model: USB-PIO

The USB-PIO features three 8-bit bidirectional ports.

The port lines are connected to a 25-pin D-sub female connector.

The unique idea of the USB-PIO: The data acquisition system is accomodated in the D-sub connector housing.

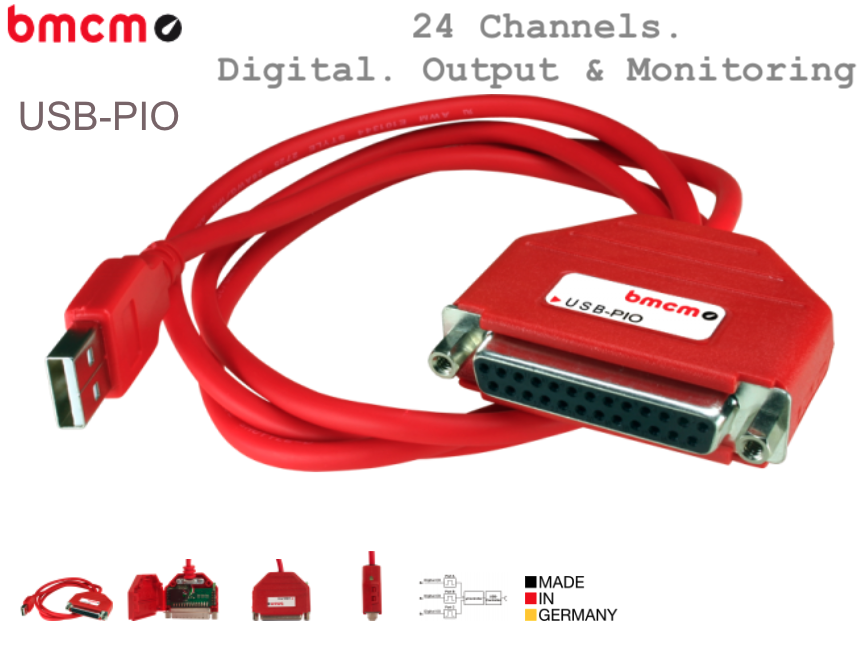

24 Channels. Digital. Output & Monitoring.

Record and output digital TTL signals. The USB-PIO features three 8-bit bidirectional ports. The port lines are led out to a 25-pin D-Sub female connector.
Extra Small. Extra Red. Extra Low-Priced.
The unique idea of the USB-PIO: The data acquisition system is accomodated in the D-Sub connector housing. Not only the size is extra small but also the price.

Plug & Play.

The connection to the PC is realized via USB. The USB-PIO provides all typical USB features (e.g. Plug&Play, Hot-Plug). Up to 127 devices can be connected and installed during operation.
Ideal for Windows
The data acquisition system can be used under Windows 8.1 and 10 in 64bit. The complete software for installation and programming is provided for free.

Get Connected.

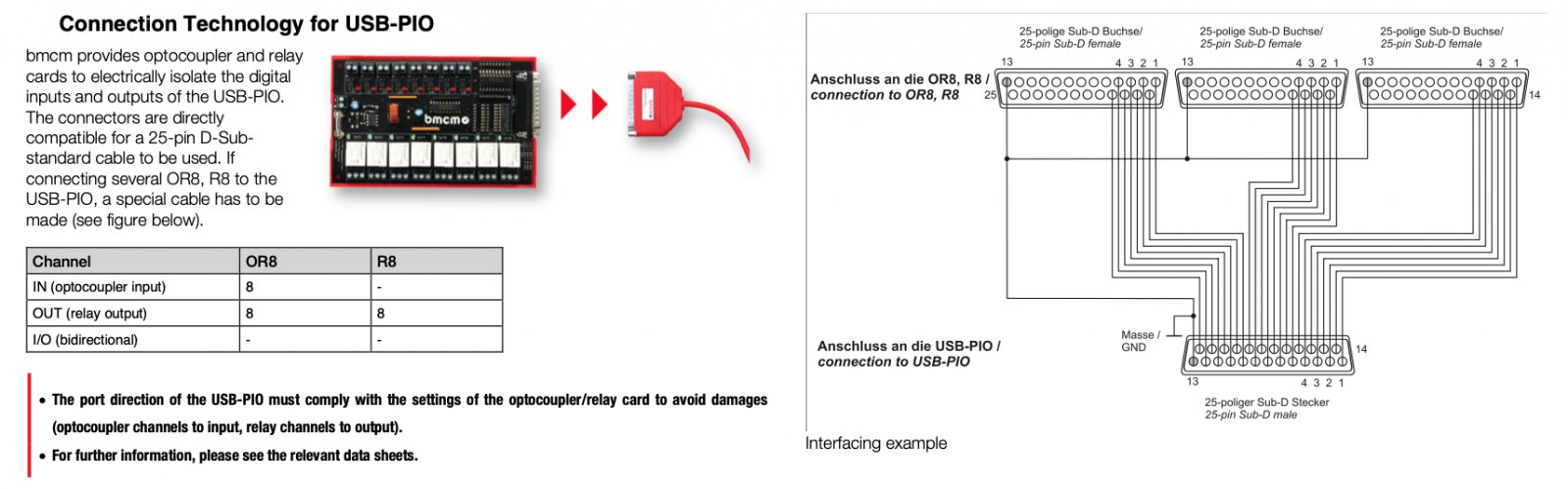

Various optocoupler and relay cards are available at bmcm to electrically isolate the digital lines. Particularly easy for the USB-PIO, as only a 25-pin D-Sub extension cable is needed for connecting.

Powered by USB.

The device is supplied with power via the USB interface. This reduces cabling efforts to a minimum and makes mobile measurements a lot easier.

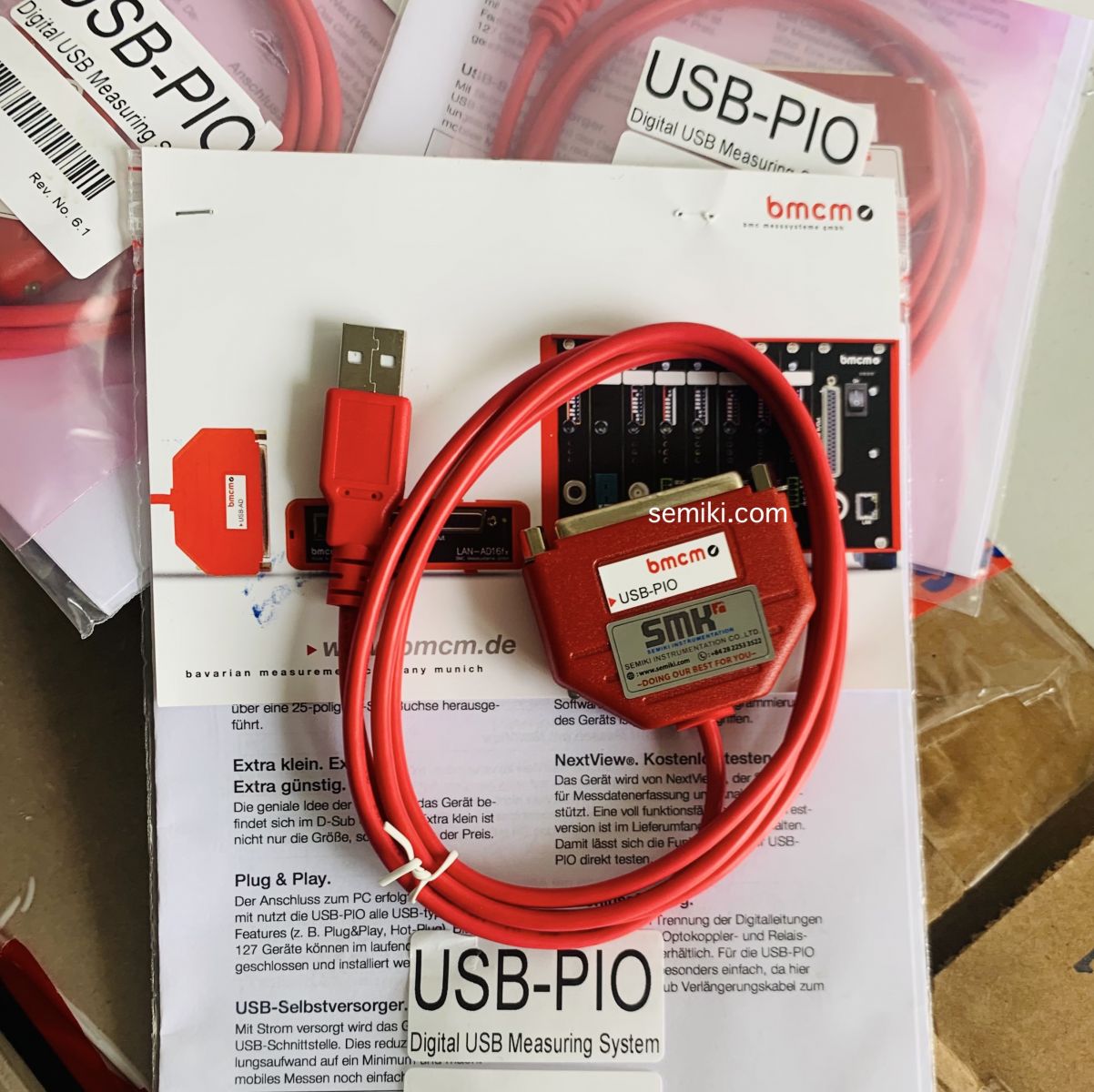

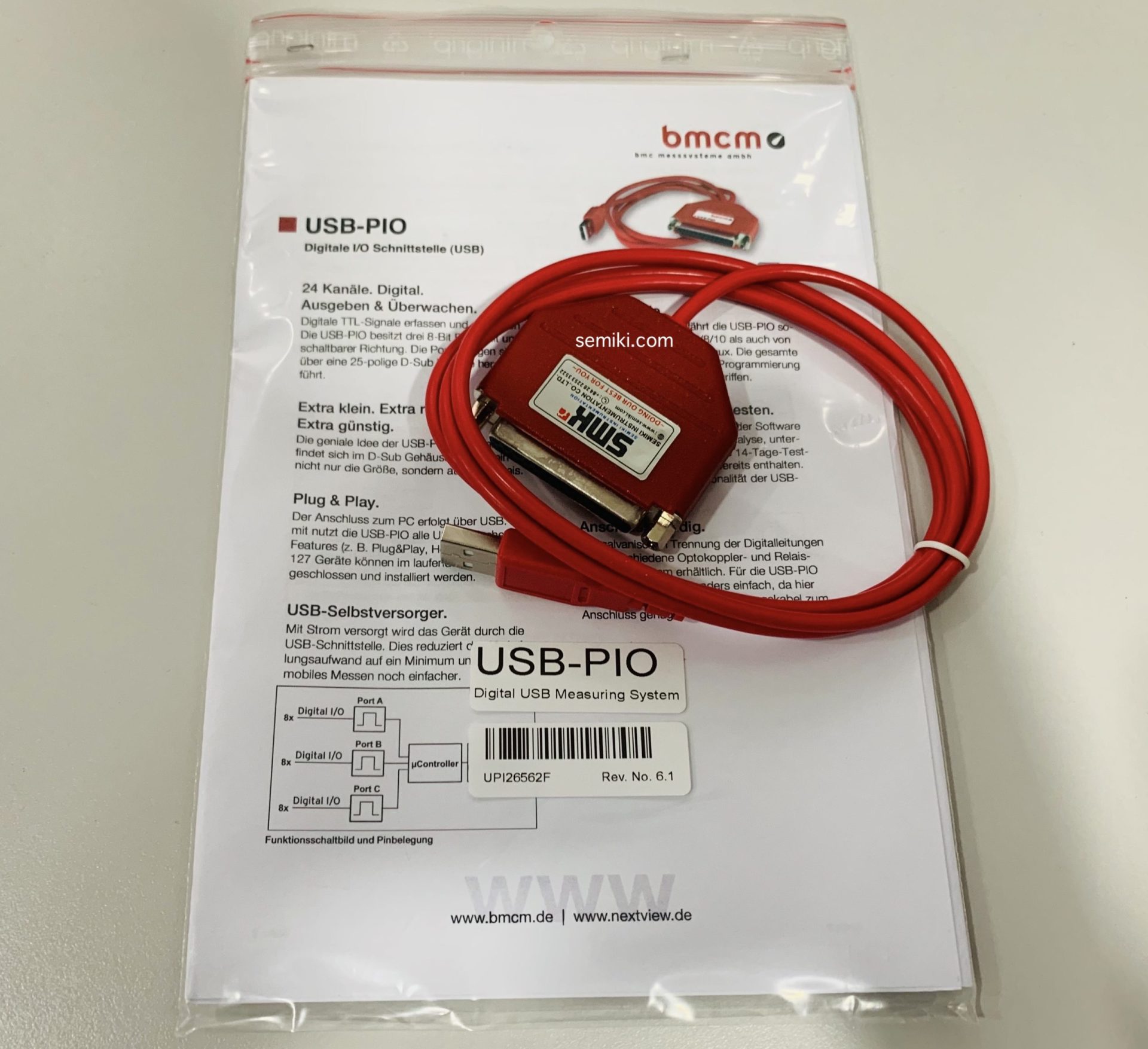

Pic.: bmcm USB-PIO ( Digital I/O Interface USB) at Semiki’s warehouse

Important Notes for Using the USB-PIO

• The device is only suitable for extra-low voltages – please observe the relevant regulations! Only use the device with housing closed. ESD voltages at open lines may cause malfunction.
• Only use non-solvent detergents for cleaning. The product is designed to be maintenance-free.
• Signal cables are connected at the 25-pin D-Sub female connector – preferably use shielded cables. For
best possible interference suppression, connect shield at one end only. Close open inputs if necessary.
• The device ground and the chassis are electrically connected to the chassis of the PC, which is usually also
connected to ground. Be sure to avoid ground loops since they will cause measuring errors!
• PCs (notebooks) which are not grounded often produce high potentials to earth at the USB socket so that
safe operation cannot be guaranteed. In this case, connect the measuring system to earth.
• The device must not be used for safety-relevant tasks. With the use of the product, the customer becomes manufacturer by law and is therefore fully responsible for the proper installation and use of the product. In the case of improper use and/or unauthorized interference, our warranty ceases and any warranty claim is excluded.
