BỘ THU THẬP DỮ LIỆU I/O DEVICE NI USB-6008

Nhà sản xuất: NI

Danh mục: Thiết bị thu thập dữ liệu NI

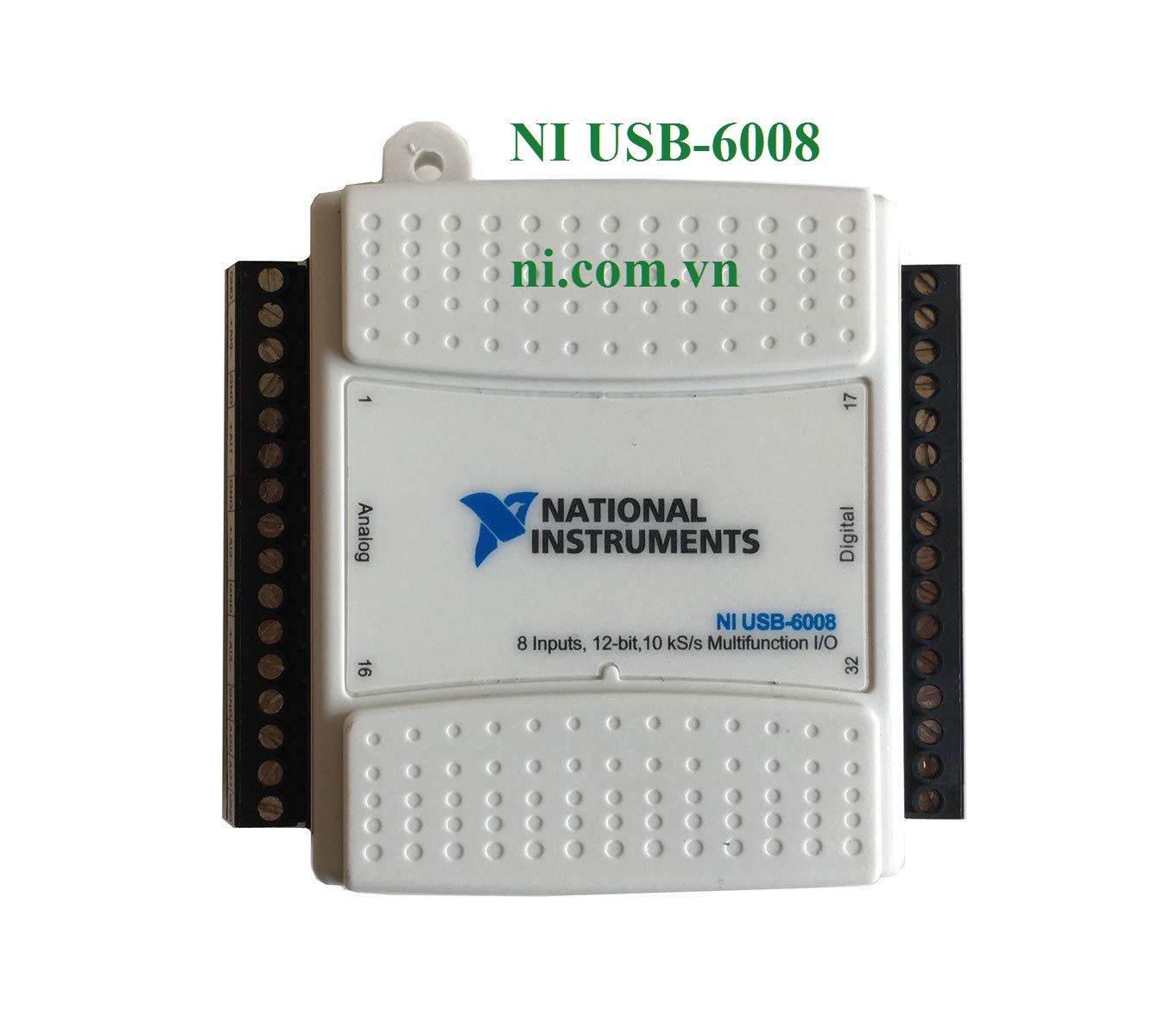

ni USB-6008 Multifunction I/O Device:
8 AI (12-Bit, 10 kS/s), 2 AO (150 Hz), 12 DIO USB Multifunction I/O Device

8 AI (12-Bit, 10 kS/s), 2 AO (150 Hz), 12 DIO USB Multifunction I/O Device

• The USB‑6008 is a low-cost, multifunction DAQ device. It offers analog I/O, digital I/O, and a 32‑bit counter.

• The USB‑6008 provides basic functionality for applications such as simple data logging, portable measurements, and academic lab experiments.

• The device features a lightweight mechanical enclosure and is bus powered for easy portability. You can easily connect sensors and signals to the USB‑6008 with screw-terminal connectivity.

• The included NI‑DAQmx driver and configuration utility simplify configuration and measurements.

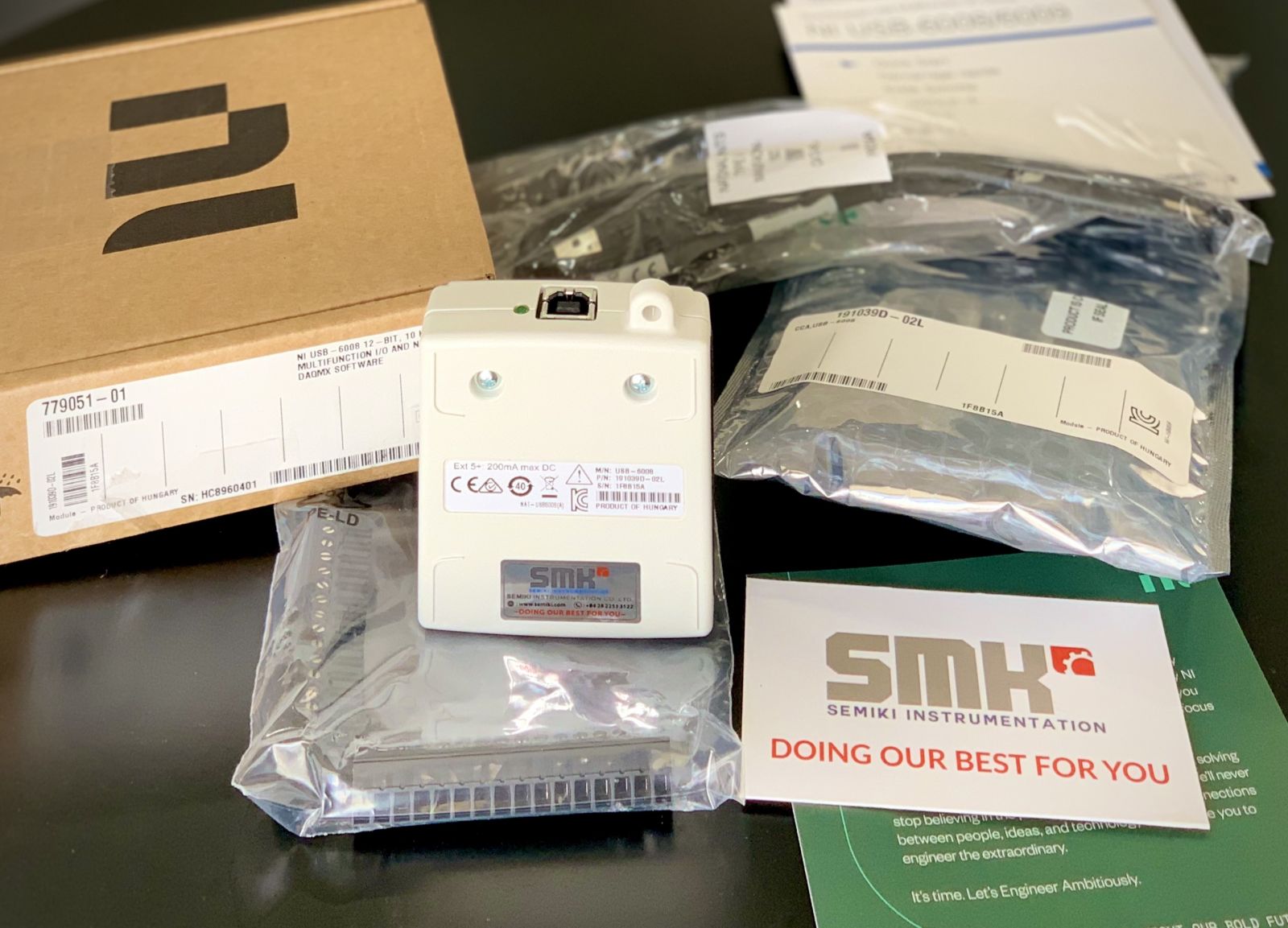

Picture: ni USB-6008 ( 779051-01) Multifunction I/O Device at Semiki’s warehouse

► The NI USB-6008 (Part Number: 779051-01) is a Bus-Powered Multifunction I/O Device.

There are eight single-ended or four differential USB 6008 analog input channels, two USB 6008 analog output channels, and 12 digital input/output channels.

The analog output channels can generate software timed outputs from 0 Volts to 5 Volts.

Moreover, it also has a 32-bit integrated counter with a full-speed USB (universal serial bus) interface.

► NI USB-6008 Multifunction I/O Device offers 10 kS/s sample rate while operating with a single channel or multiple channels.

The USB-6008 Multifunction I/O Device features a USB connector, an LED, and two screw terminal connector plugs.

The screw terminal connector plugs are provided for I/O, while the USB connector is provided for a full-speed USB interface.

The green LED indicates device status. The eight analog inputs can be utilized for eight single-ended (SE) or four differential analog input measurements.

For the conversion of analog signals to digital signals, the NI USB-6008 Multifunction I/O Device comes equipped with one analog-to-digital converter.

► A PGA (programmable gain amplifier) is also incorporated in the NI USB 6008 that provides appropriate input gains while the unit is configured to operate for differential measurements.

The PGA gain is calculated automatically by the selected voltage range.

► The USB 6008 National Instruments can perform both multiple and single analog-to-digital conversions of an infinite or fixed number of samples.

A FIFO buffer keeps the data held during acquisitions through analog inputs to ensure that no samples are lost.

► USB-6008 Obsolete Status has been declared by National Instruments, but the Multifunction I/O Device will still be available for purchase and repairs by Apex Waves.

Technical Specifications
