Máy kiểm tra nhiệt độ hàn HAKKO FG-102 là loaij nhiệt kế đo nhiệt độ que hàn.
Một đề xuất mới để cải thiện và tiết kiệm nhân công trong việc kiểm soát nhiệt độ đầu hàn, từ đo lường đến quản lý hồ sơ, nhằm nâng cao chất lượng sản xuất.
Hỗ trợ đạt được mục tiêu không có sai sót trong đo nhiệt độ bằng cách chuẩn hóa phép đo nhiệt độ

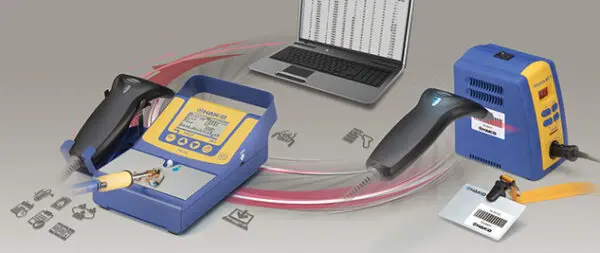

A new proposal for improvement and labor-saving in tip temperature control, from measurement to records management, for enhancement of manufacturing quality.
Support to achieve labor-saving in tip temperature control by elimination of a manual process of posting measured temperature and inputting records into computer.
Pass/Fail judgment on measured temperature can be automatically made if an acceptable temperature range is registered in advance. (The display shows “OK” or “Fail”.)

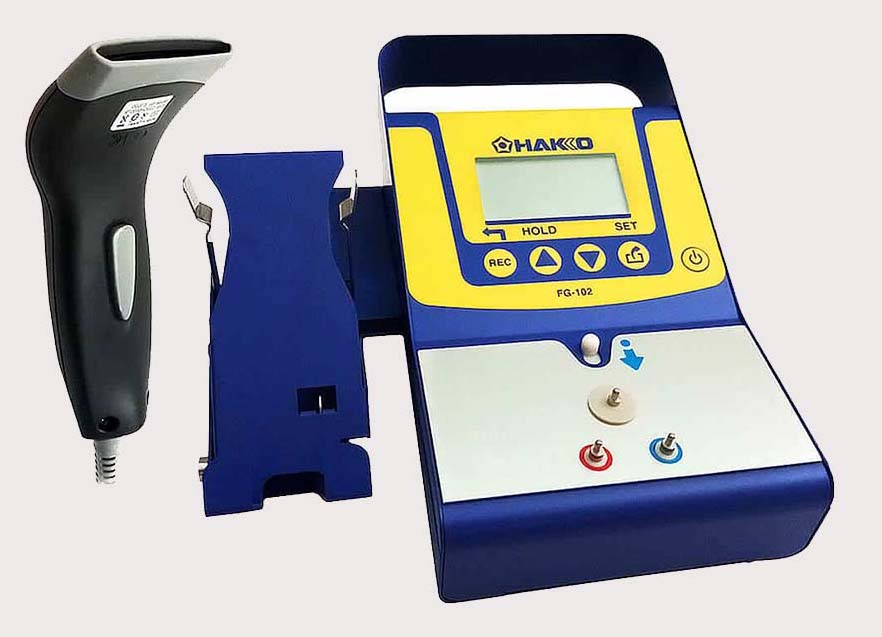

HAKKO FG-102 an innovation in tip temperature control
Model No. | FG-102 |
---|---|
Power supply | AA sized (LR6) battery × 6 (alkaline cell recommended) |
Temperature resolution | 1℃ |
Temperature measurement range | 0 to 700℃ |
Temperature accuracy | ±3℃ (300 to 600℃) ±5℃ (other than above) |
Temperature sensor | K (CA) type thermocouple |
Display | LCD |
Operating environment | Ambient temperature / Humidity range : 0 to 40℃, max.80% RH (without condensation) |
Environmental conditions | Applicable rated pollution degree 2 (according to IEC/UL 61010-1) |
Dimensions | 193 (W) × 90 (H) × 219 (D) mm |
Weight | 0.93 kg |

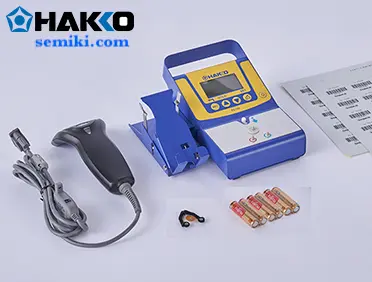

Accessories : Unit, Battery (qty 6, for trial), Barcode reader, USB cable, Software (CD-ROM) , Sensor AS5000, Barcode sticker for soldering iron ID (qty 30), Barcode sticker for operator ID(qty 30), Instruction manual
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store. Local Vietnam : SEMIKI ins
