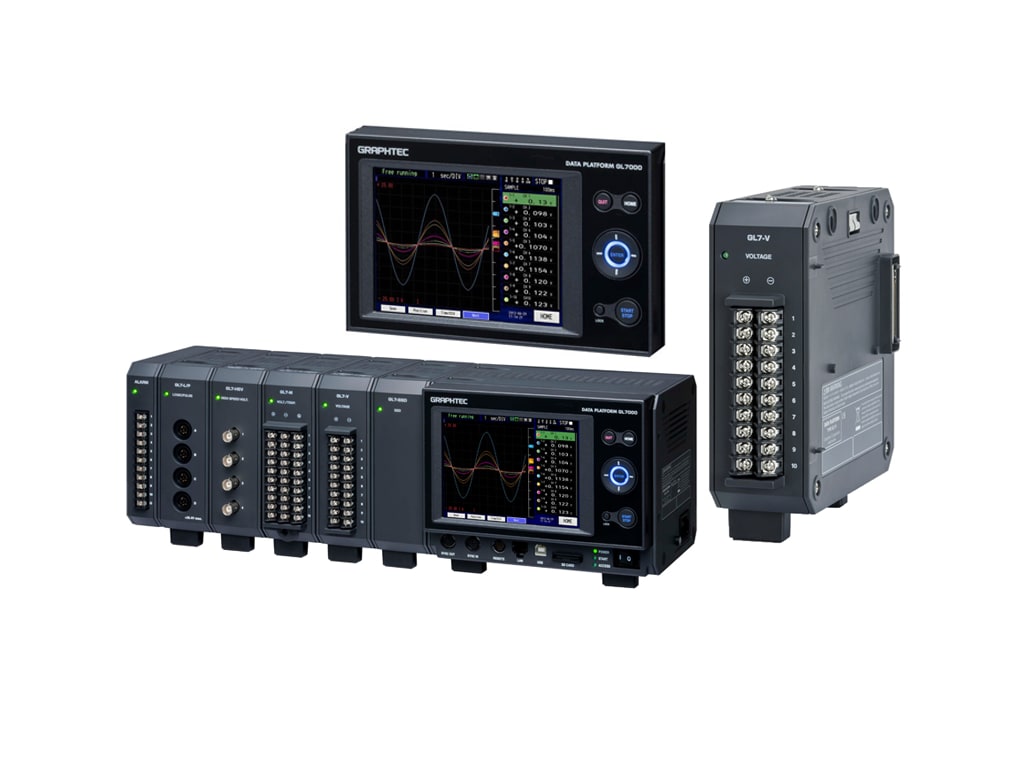

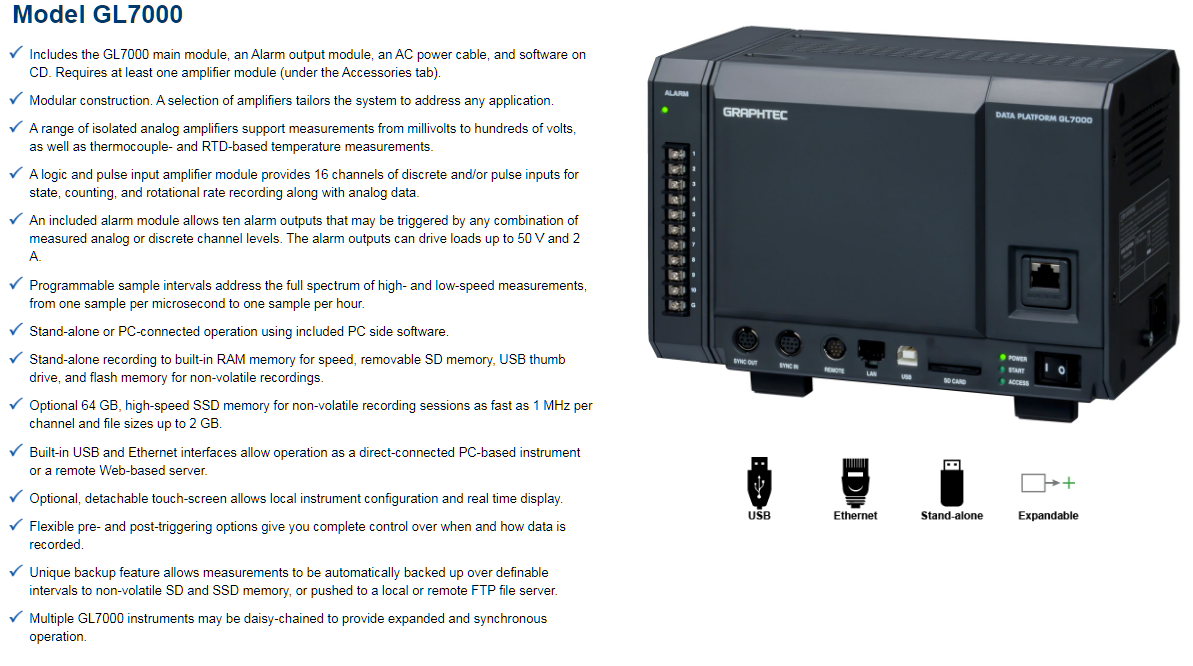

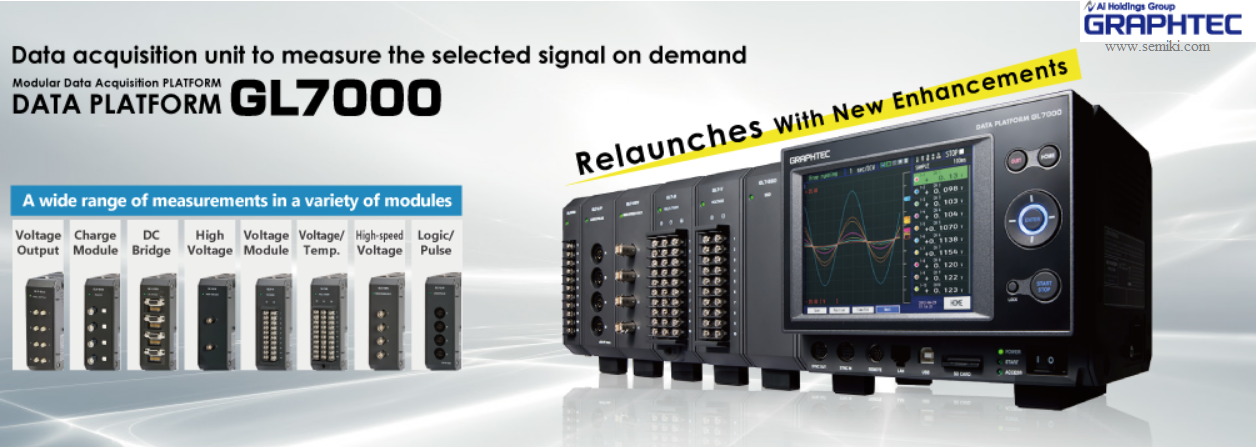

The GL7000 is a high speed modular data acquisition unit that can be built up to fit a variety of different applications with a selection of different modules available to provide voltage, temperature or digital inputs along with voltage and alarm outputs. A total of 10 modules can be added to provide up to 112 channels on each GL7000. The main module of the GL7000 has a built-in 2GB flash memory and an SD memory card slot (supports SDHC, up to 32GB), plus each amplifier module has a built in RAM to hold up to 2 million samples. An SSD module can be fitted to provide an additional 64GB of memory. The GL7000 has an optional 5.7 HD colour LCD touchscreen panel. The display panel is detachable and can be remotely connected via a LAN cable. The integral USB or Ethernet ports allow for connection to your network or for direct computer connection of up to 10 GL7000 to a single PC.
• GL7000 Data Platform is a module-based data acquisition platform with standalone mechanism that provides complex testing for voltage, temp, high speed voltage, high voltages, accelerometers, and strain gauges.
• The standalone system gets the data up and running quickly and accurately. By providing a true standalone test systems with touch panel display or PC-based software opens you to a quick launch cycle for a scaled test system, measurements from different sensors can be added on with signal specific modules.
• The 1MS/s maximum sampling capability provides dynamic signal recording capacity for applications involving fast changing signals.
• Our focus is to eliminate the process necessary to configure your data acquisition and get the data to you as quickly as possible so that you can focus on your analysis and solving the important matters involving your test analysis.

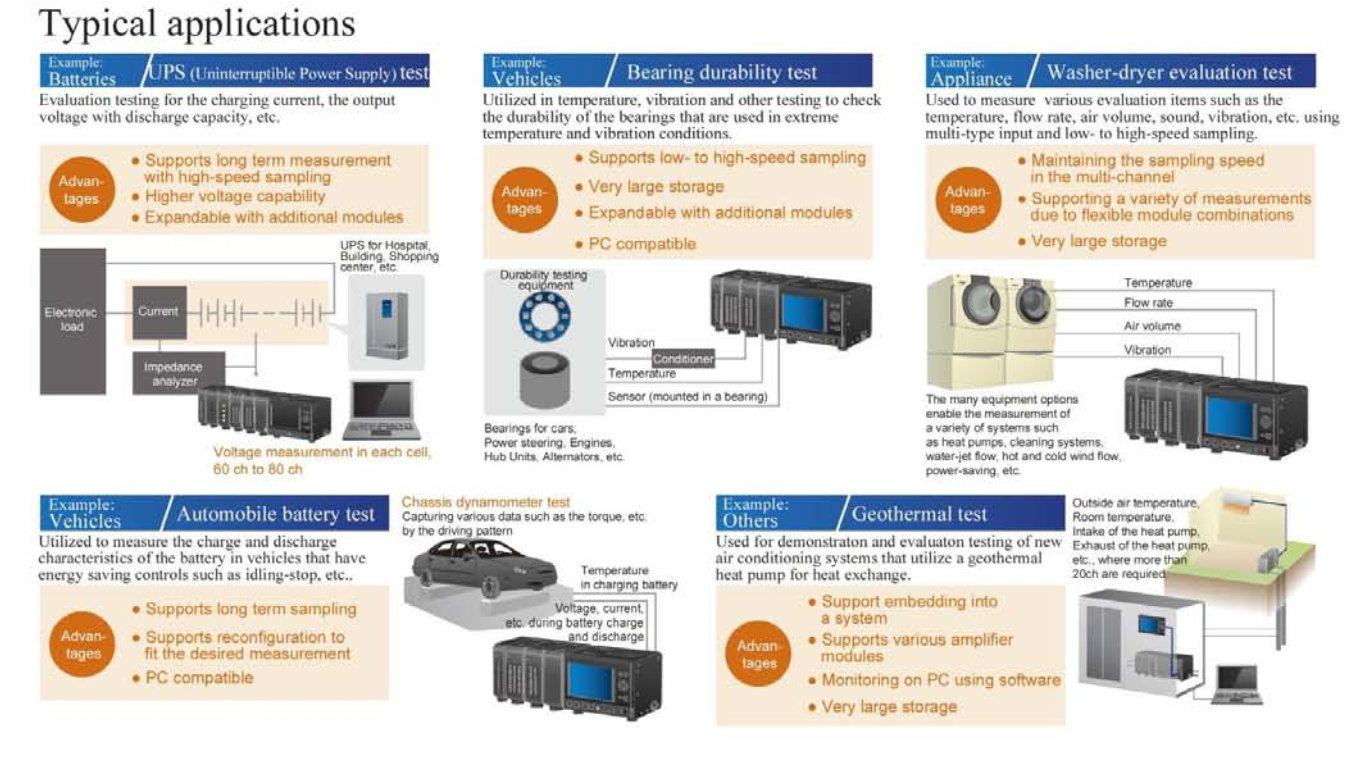

Applicable Markets;
► Aerospace and Automotive Components Manufacturing
► Manufacturing and R&D
► Construction & Building Maintenance
► Machinery and industrial Process Measurement
► Electrical equipment industry
► Transportation equipment industry (Rails)
► Energy (Electricity, Gas) and Utility Businesses
► High Precision/Semiconductor Equipment Development
► Academic and Research Communities
Features

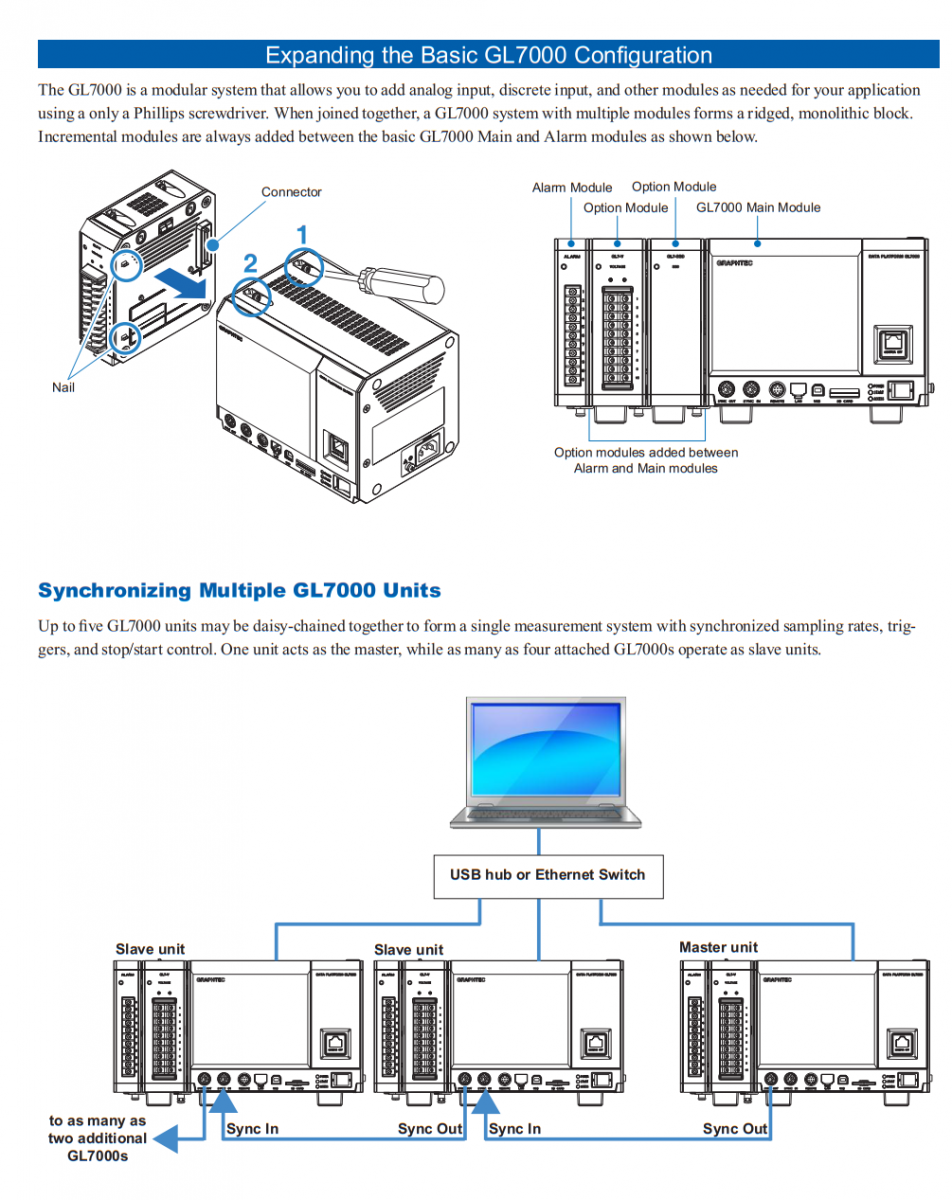

• Modular system allows expansion of measurements, channels and internal memory

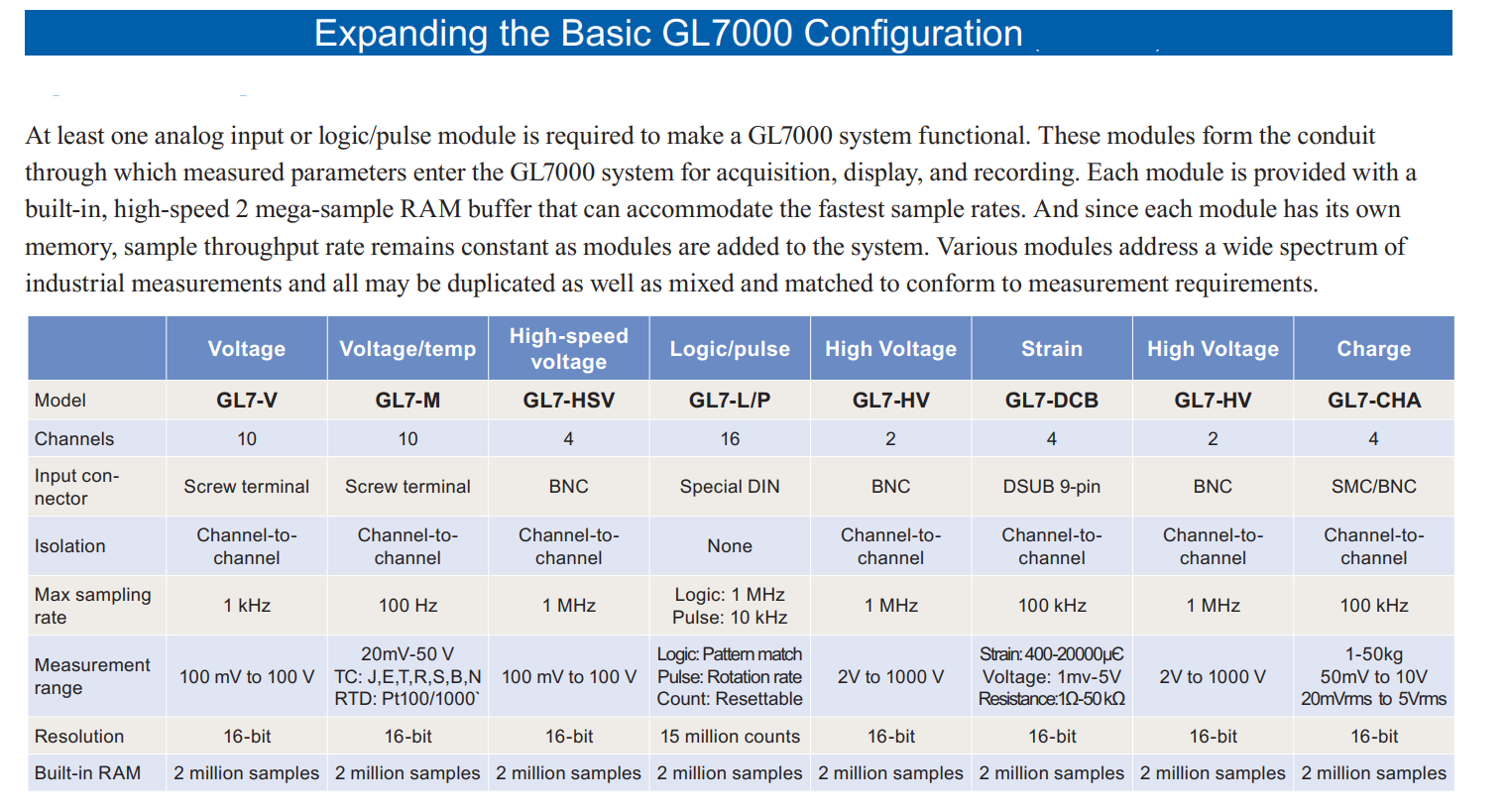

• Up to 10 amplifier modules can be attached for multi-channel measurements, with up to 112 channels on one GL7000.
• Suitable for a variety of measurements by different type of amplifier
• Multiple storage options for reliable long term measurement
• Easy operation via optional 5.7″ HD touchscreen display

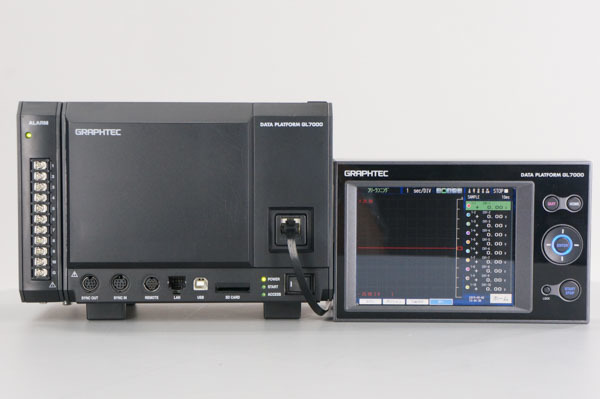

• Display is detachable and can be remotely mounted via LAN cable (max 5m direct connection)
• Supports stand-alone operation and embedding into a system
• High performance GL-Connection software included with each GL7000
Our experienced engineers can work with you from the start of your project, right to the end by supplying you a pre-wired, out of the box and ready to use system.

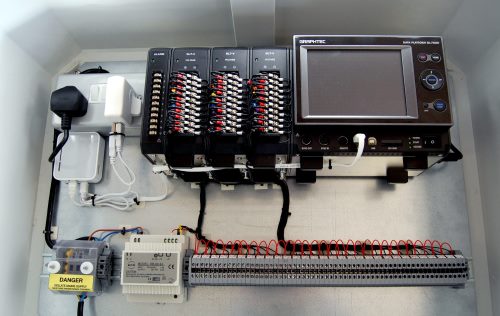

We have extensive experience in supplying Graphtec data loggers in small to large enclosures, fixed or portable, with pre-wired connectors, terminals and labelling.
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store. Local Vietnam : SEMIKI CORP
