KYOWA Strain Gauge KFGS-1-120-D16-11 cảm biến lực 2 trục

Nhà sản xuất: KYOWA

Category: Cảm biến lực Tags: strain gages, strain gauge

KYOWA ELECTRONIC INSTRUMENTS

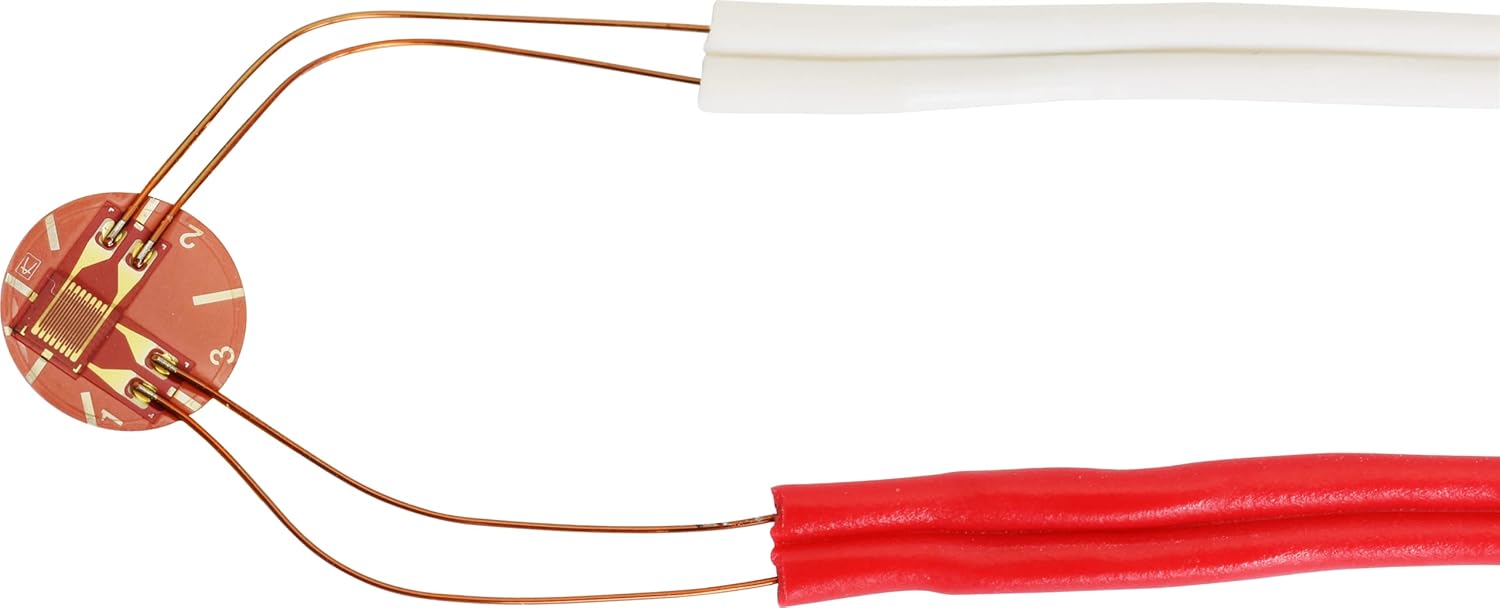

Model: Strain Gauge KFGS-1-120-D16-11
(L1M2S), (L1M3S), (L1M5S)
Đây là thước đo thẳng 2 trục. Dùng để đo ứng suất hai trục và ứng suất cắt
Dùng cho thép thường và thép không gỉ (SUS631, SUS630)
Dây dẫn: 3,3 ft (1 m) (dây vinyl song song 2 dây)
Mô tả sản phẩm
Đây là thước đo thẳng 2 trục.
Thích hợp để đo ứng suất 2 trục, đo ứng suất cắt, v.v.
Có thể sử dụng với thép thường, thép không gỉ (SUS631, SUS630), v.v.
Hệ số giãn nở đường dây tương thích 11
Kích thước đế Đường kính 5mm
Kích thước đồng hồ đo 1mm Chiều dài 1,1mm Chiều rộng 1,1mm
Điện trở: 120Ω
Dây dẫn: 3,3 ft (1 m) (dây vinyl song song 2 dây)
*10 cái cho mỗi gói

KYOWA ELECTRONIC INSTRUMENTS

2-axis straight gauge. For measuring two axis stress and shear stress
Model: Strain Gauge KFGS-1-120-D16-11
(L1M2S), (L1M3S), (L1M5S)

It is a 2-axis straight gauge.

For measuring two axis stress and shear stress
For use with ordinary steel and stainless steel (SUS631, SUS630)
Lead wire: 3.3 ft (1 m) (2 wire parallel vinyl wire)

It is a 2-axis straight gauge.
Suitable for measuring 2-axis stress, measuring shear stress, etc.
Can be used with regular steel, stainless steel (SUS631, SUS630), etc.
Compatible Line Expansion Coefficient 11
Base Dimensions 5mm Diameter
Gauge Dimensions 1mm Length 1.1mm Width 1.1mm
Resistance: 120Ω
Lead wire: 3.3 ft (1 m) (2 wire parallel vinyl wire)
*10 per package
* The adhesive necessary for installation is not included. Please purchase separately.

How to bond KYOWA KFRS miniature strain gauges on a PCB

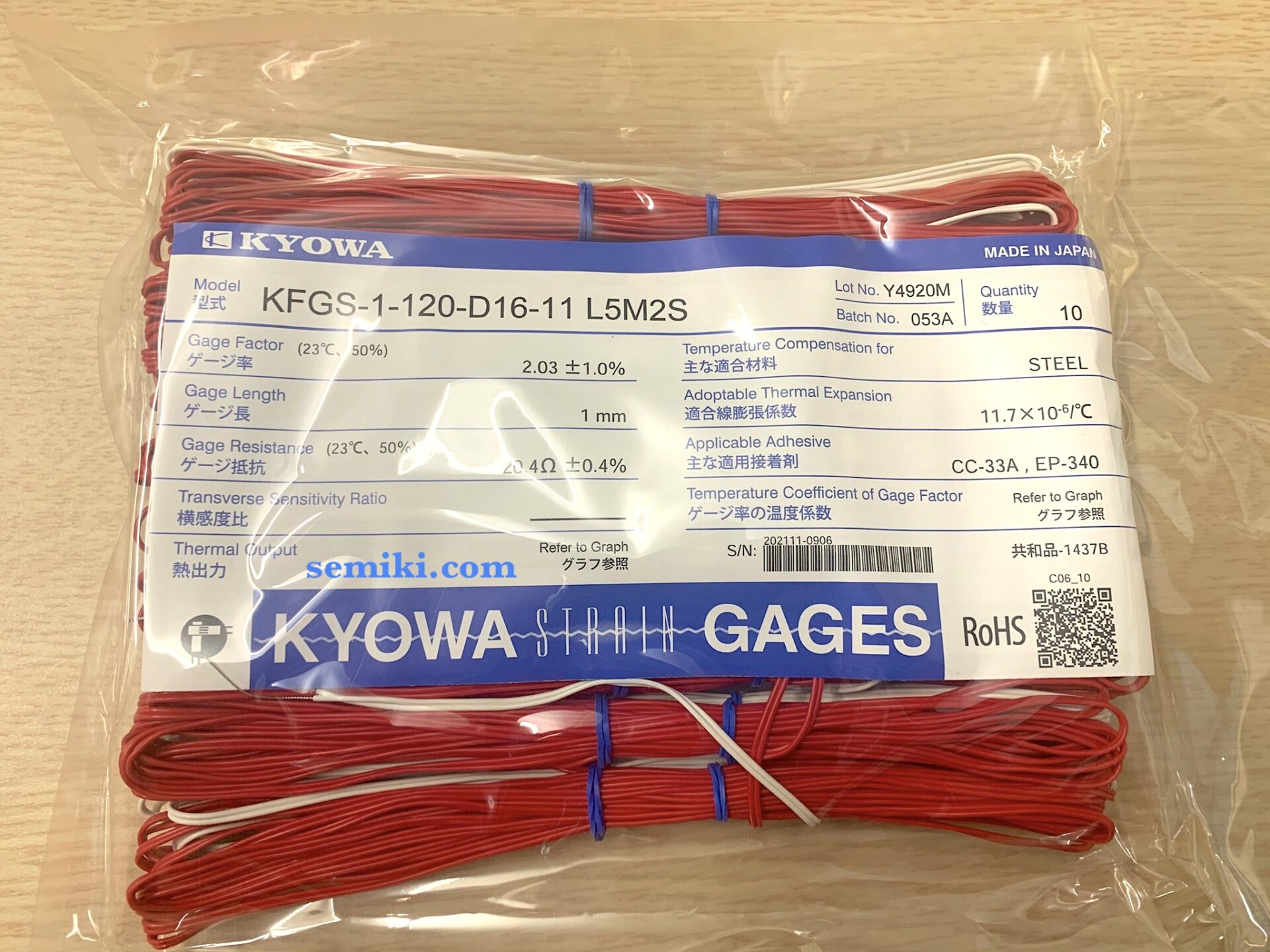

KFGS-1-120-D16-11 (L5M2S)2-axis straight gauge at Semiki’s warehouse

The KFGS gages maintain the features of the conventional KFG series of general-purpose foil strain gages, but are RoHS compliant, have improved quality, improved installation work, and new packaging to pursue improved quality and ease of use and performance.

Kyowa offers various types of strain gages so that customers can use the optimum strain gages according to the measurement conditions.
Strain gauges have different effects on the measured value due to temperature changes during measurement depending on the lead wire connection method.
Let’s compare the effect on the measured value when hot air is blown with a dryer.

General purpose foil strain gauge for measuring stress.
Can be used with regular steel, stainless steel (SUS631, SUS630), etc.

Maintenance and calibration :

► We also have calibration certificate attached ( optional )

► Please re-calibrate after use for a certain period through our purchase store.
