KYOWA Strain Gauge KFGS-2-120-C1-11 cảm biến lực ứng suất

Nhà sản xuất: KYOWA

Danh mục: Cảm biến lực Thẻ: strain gages, strain gauge

KYOWA ELECTRONIC INSTRUMENTS
Máy đo ứng suất lá kim loại thông dụng để đo ứng suất.
Model: Máy đo ứng suất KFGS-1-120-D16-11 L1M3R
(L1M2R), (L1M3R), (L1M5R)
Máy đo ứng suất lá kim loại thông dụng để đo ứng suất.
Có thể sử dụng với thép thường, thép không gỉ (SUS631, SUS630), v.v.
Hệ số giãn nở đường dây tương thích 11
Kích thước đế dài 6,3mm và rộng 2,8mm
Kích thước đồng hồ đo Chiều dài 2mm Chiều rộng 1,2mm
Điện trở: 120Ω
Dây dẫn: 3,3 ft (1 m) (dây vinyl song song 2 dây)

KYOWA ELECTRONIC INSTRUMENTS

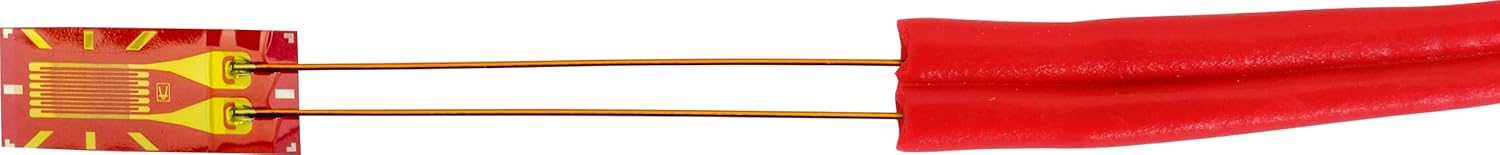

General purpose foil strain gauge for measuring stress.
Model: Strain Gauge KFGS-1-120-D16-11
(L1M2R), (L1M3R), (L1M5R)

Universal foil strain gauge for general stress measurement
For use with ordinary steel and stainless steel (SUS631, SUS630)
Lead wire: 3.3 ft (1 m) (2 wire parallel vinyl wire)

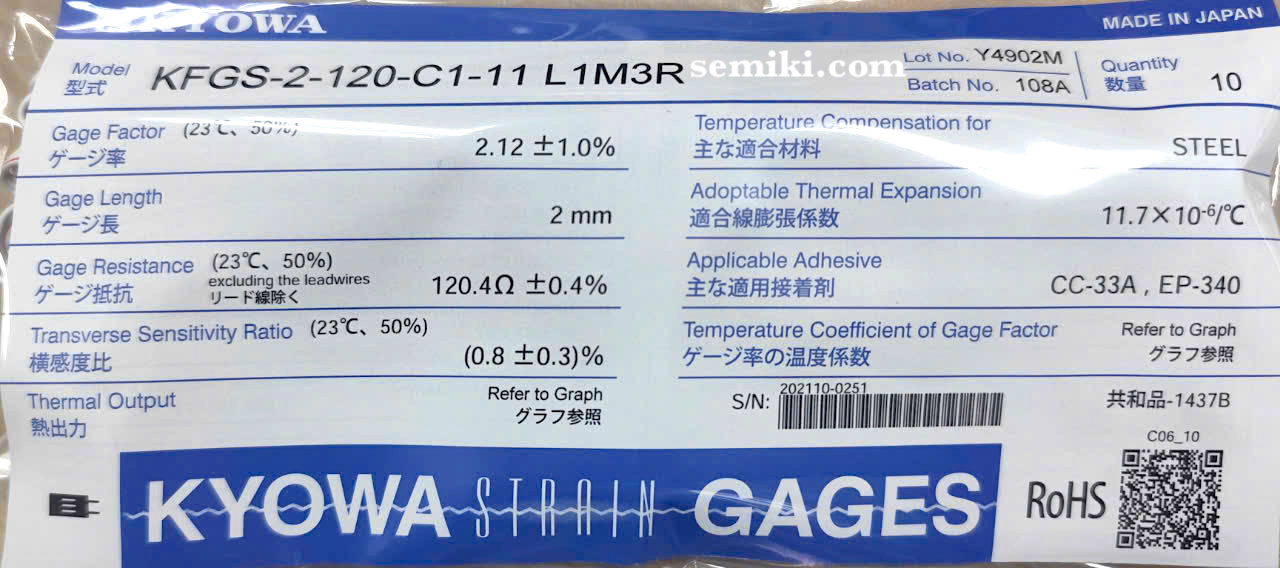

KFGS-2-120-C1-11 (L1M3R)
KYOWA Strain Gauges for Regular Steel with 3.3 ft (1 m)

Lead Wire Gauge Length 0.08 inch (2 mm)

General purpose foil strain gauge for measuring stress.
Can be used with regular steel, stainless steel (SUS631, SUS630), etc.
Compatible Line Expansion Coefficient 11
Base dimensions 6.3mm long and 2.8mm wide
Gauge Dimensions 2mm Length 1.2mm Width
Resistance: 120Ω
Lead wire: 3.3 ft (1 m) (2 wire parallel vinyl wire)

Strain Gauge KFGS-1-120-D16-11 L1M3R at Semiki’s warehouse

The KFGS gages maintain the features of the conventional KFG series of general-purpose foil strain gages, but are RoHS compliant, have improved quality, improved installation work, and new packaging to pursue improved quality and ease of use and performance.

Kyowa offers various types of strain gages so that customers can use the optimum strain gages according to the measurement conditions.
Strain gauges have different effects on the measured value due to temperature changes during measurement depending on the lead wire connection method.
Let’s compare the effect on the measured value when hot air is blown with a dryer.

General purpose foil strain gauge for measuring stress.
Can be used with regular steel, stainless steel (SUS631, SUS630), etc.
