máy cân bằng trục quay SIGMA SB-8002R,SB-8002RB

Nhà sản xuất: SIGMA Electronics

Danh mục: Thiết bị phân tích cân bằng trục

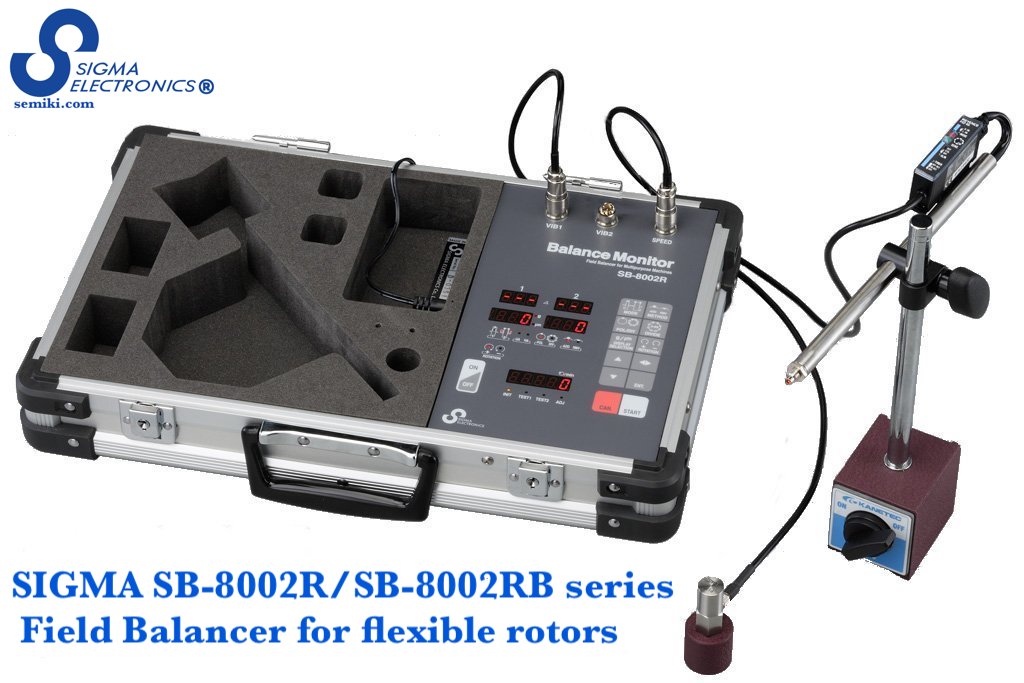

SIGMA SB-8002R/SB-8002RB series Field Balancer for flexible rotors, high-precision rotating machinery. SIGMA’S field balancer boasts high performance in principle especially at high rotational speed. Suitable for balancing of high-speed slicers, spindles of machine tool, high-speed spindle motors, centrifuges, blowers etc.

SIGMA Balance Monitor

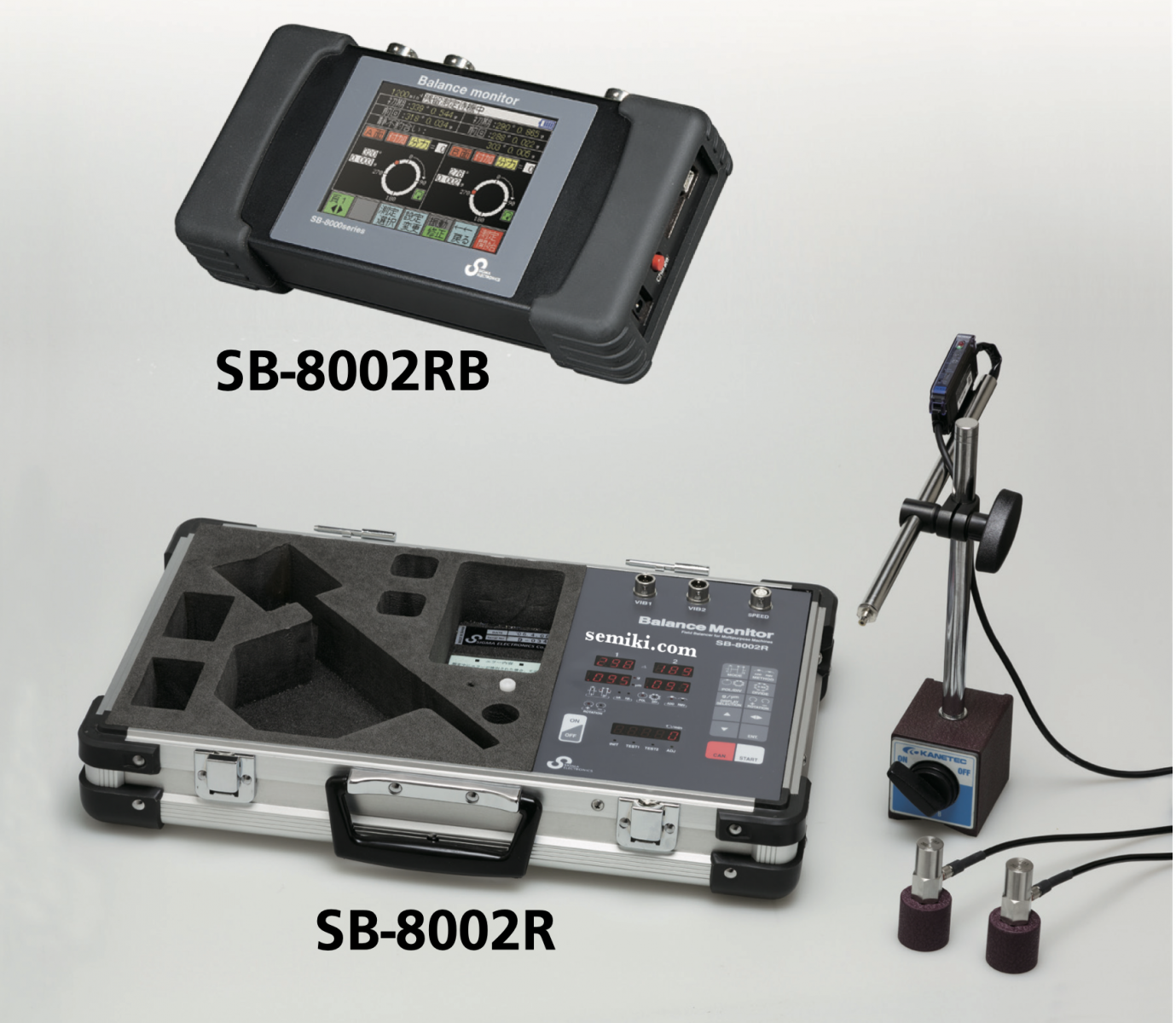

Model:

SB-8002R (AC powered)

SB-8002RB (Battery and AC powered )

The Field Balancer suitable for General Rotating Machinery

SIGMA Balance Monitor-The Field Balancer suitable for General Rotating Machinery.

Easy-to-use and affordable than ever! Definitive field balancer for general rotary bodies.

► SIGMA’S field balancer boasts high performance in principle especially at high rotational speed.

Suitable for balancing of high-speed slicers, spindles of machine tool, high-speed spindle motors, centrifuges, blowers etc.

Very high accuracy
– High accuracy constant speed balancing in 0.001μm resolution can be performed at rotational speed of up to 61,000min-1 by Sigma’s unique multivariable analysis algorithm.

Indicating phase and amplitude of 2 planes.

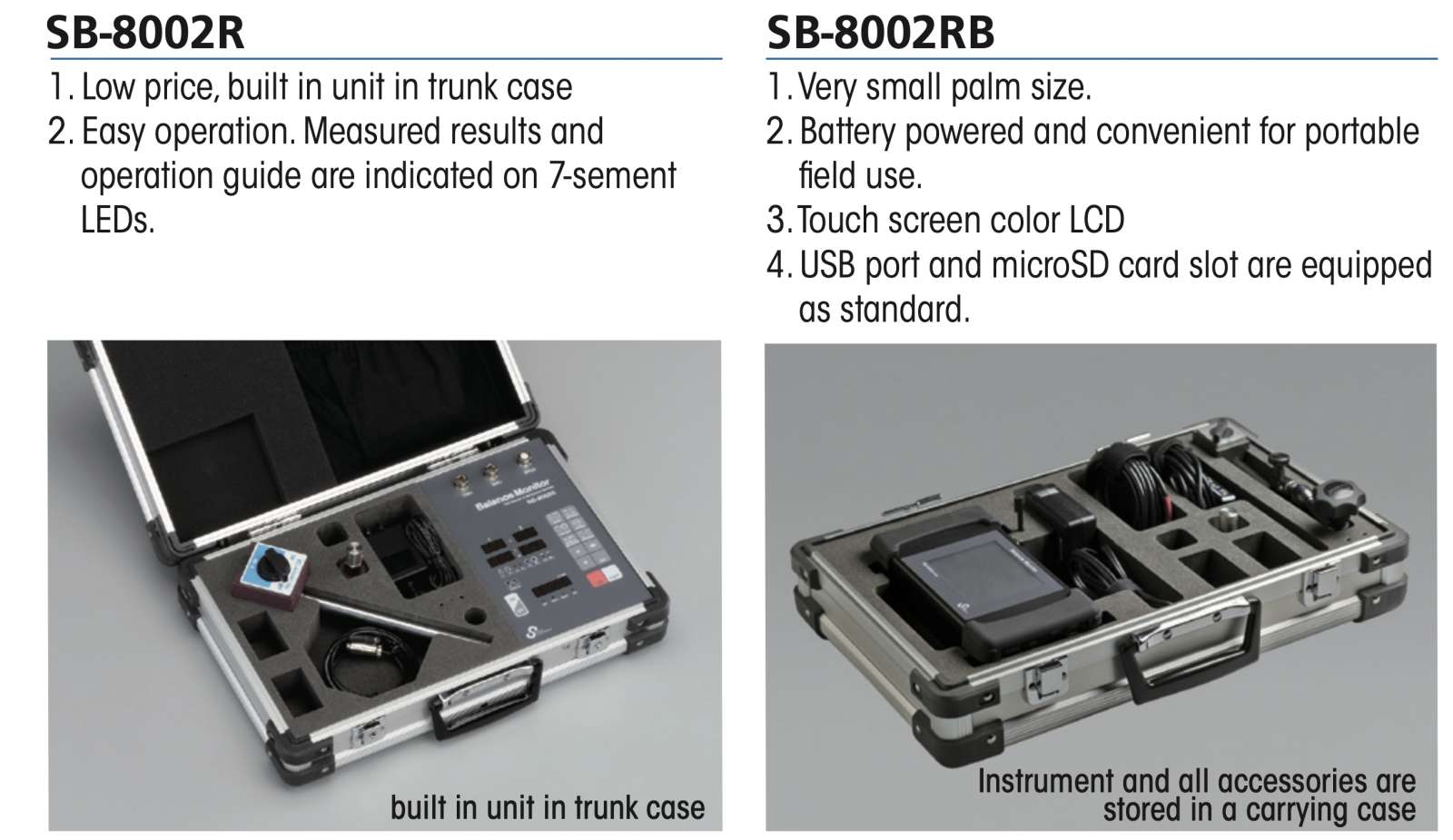

– Operating procedure and measured results are indicated on 7 segment LED (SB-8002R/8003R)
– Displayed in color LCD touch screen (SB-8002RB)
– Sensitivity is automatically selected, easy operation can be implemented.

Certain and speedy operation
– Explicit dedicated touch key operation (SB-8002R/8003R)
– Easy setting of unbalance correcting mode (Polar coordinates /Components).Very rapid measuring time

Suitable for balancing of high-speed rotating machinery
– Very high accuracy can be obtained at rotational speed of more than 1,000min-1, by multivariable analyzing method.

USB port is installed as standard
– Measured data can be transferred to PC, report can be easily created on Excel table. (8002RB/8003R)

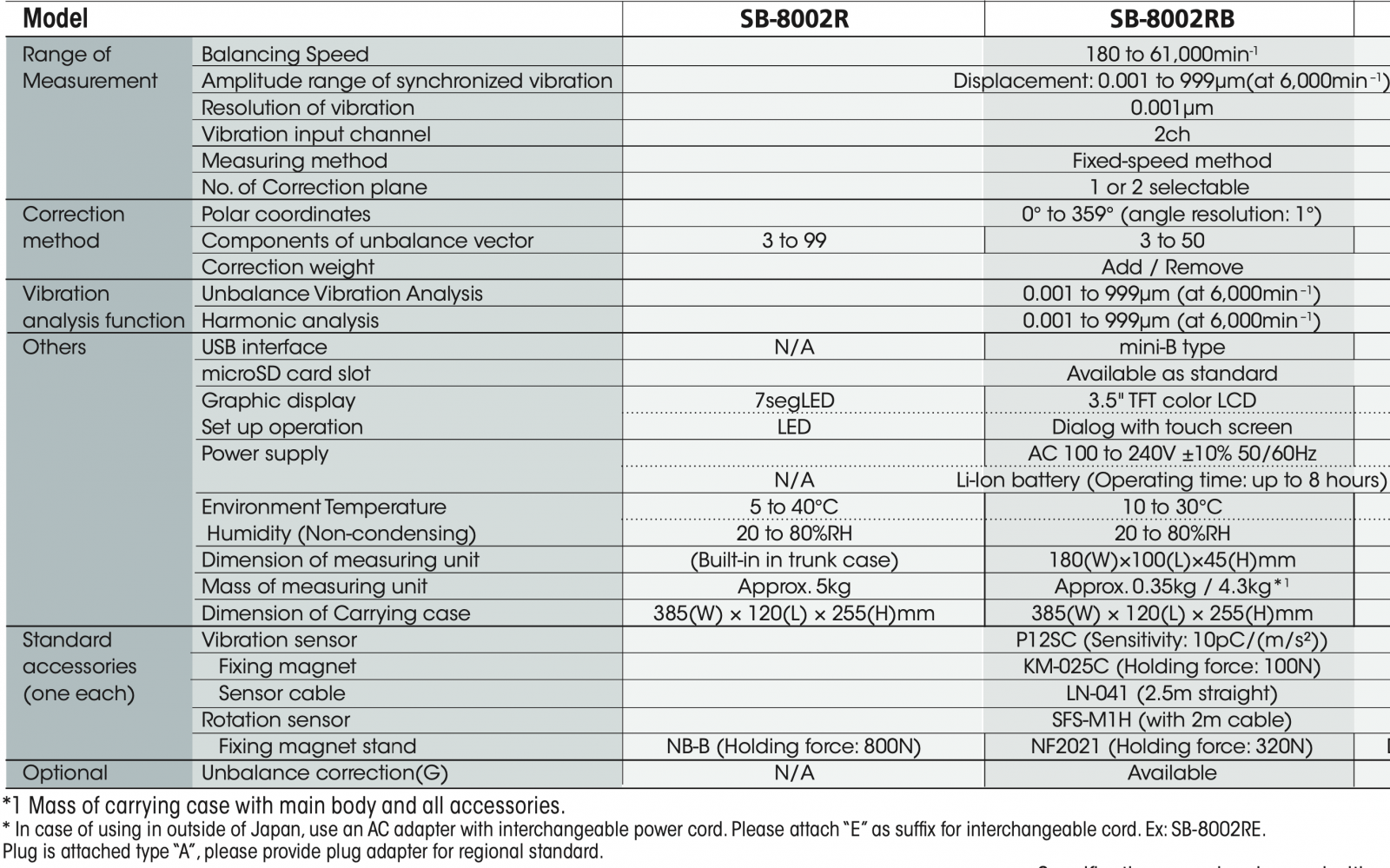

Specifications

Applications:

• NC Lathe, High-speed Die Machinery, High-speed Slicer, Dicing Saw, Internal Grinder, Woodworking Machinery, Crusher, Blower, Pump, Compressor, etc.

• Most of precision grinder as Surface grinder, Forming grinder, Centerless grinder, Cylindrical grinder (SB-8002RGB).

Maintenance and calibration :

► We also have calibration certificate attached ( optional )

► Please re-calibrate after use for a certain period through our purchase store. Local Vietnam : SEMIKI CORP
