Lets you easily measure static charge in a human body, making it suited for static management on workers that handle electronic devices.
KASUGA DENKI

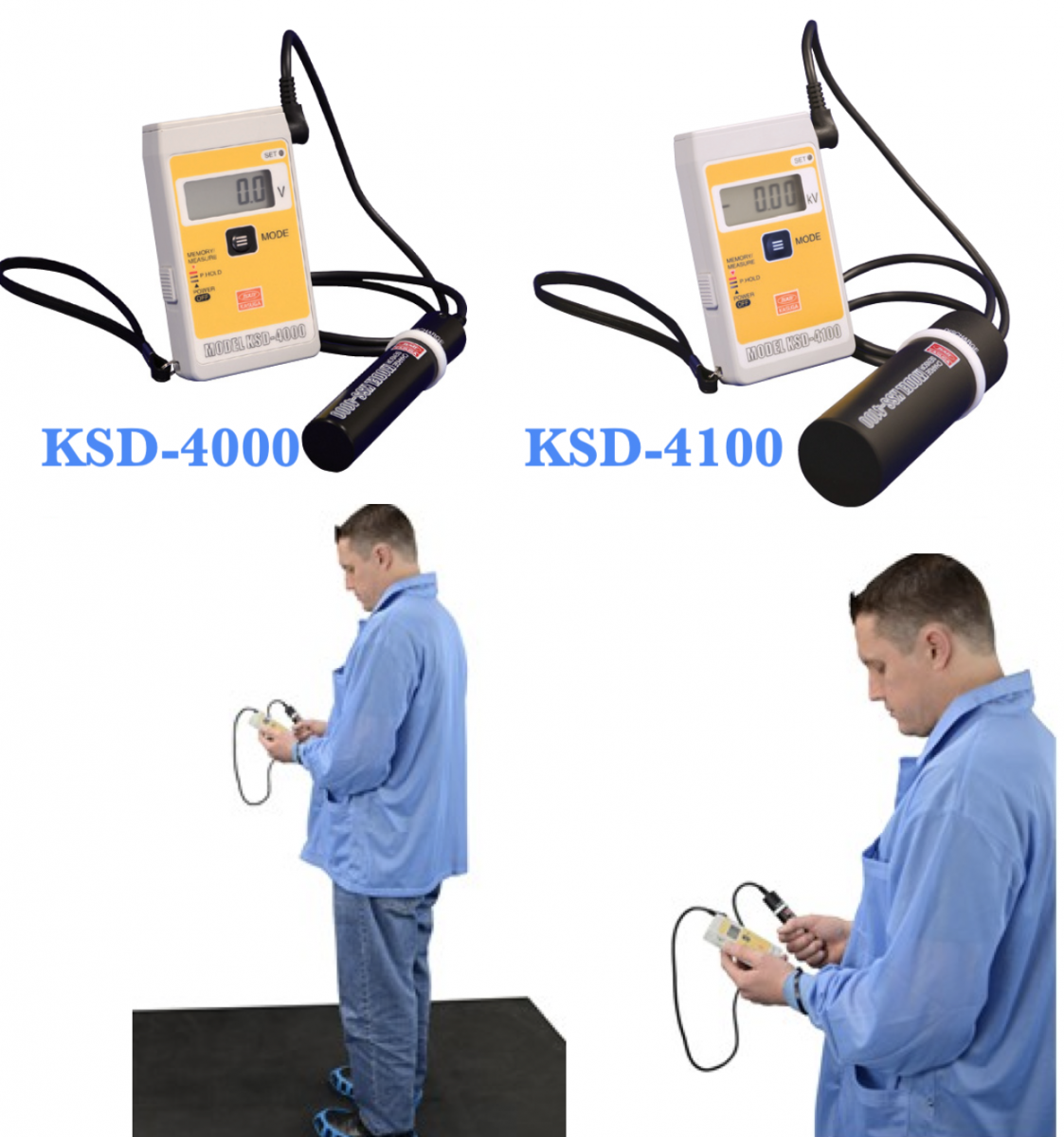

Human body Potential Meter
Model:

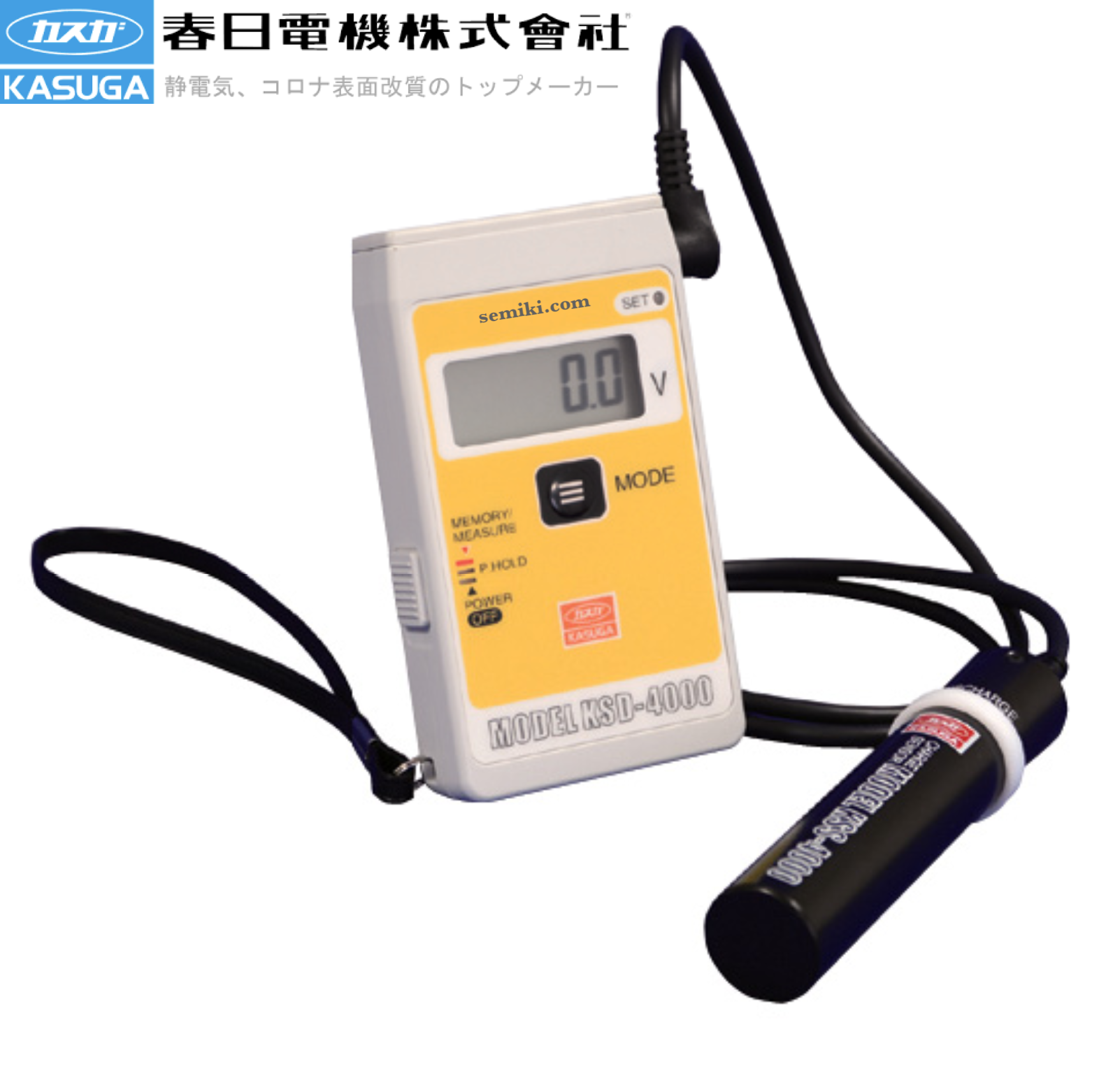

KSD-4000 (±0.1 to ±999.9V)
KSD-4100 (±0.01 to ±10kV)
Lets you easily measure static charge in a human body, making it suited for static management on workers that handle electronic devices.
Electronic devices and metal tools held by workers have individual ground capacitance and are charged with human body potential.
When the charged electronic device touches ground or a metal tool touches the electronic device, a fast, high peak current transient will flow and cause a fault.
By using a human body potential tester, it is possible to accurately measure the potential of the human body, and immediately determine whether the potential will damage electronic devices.

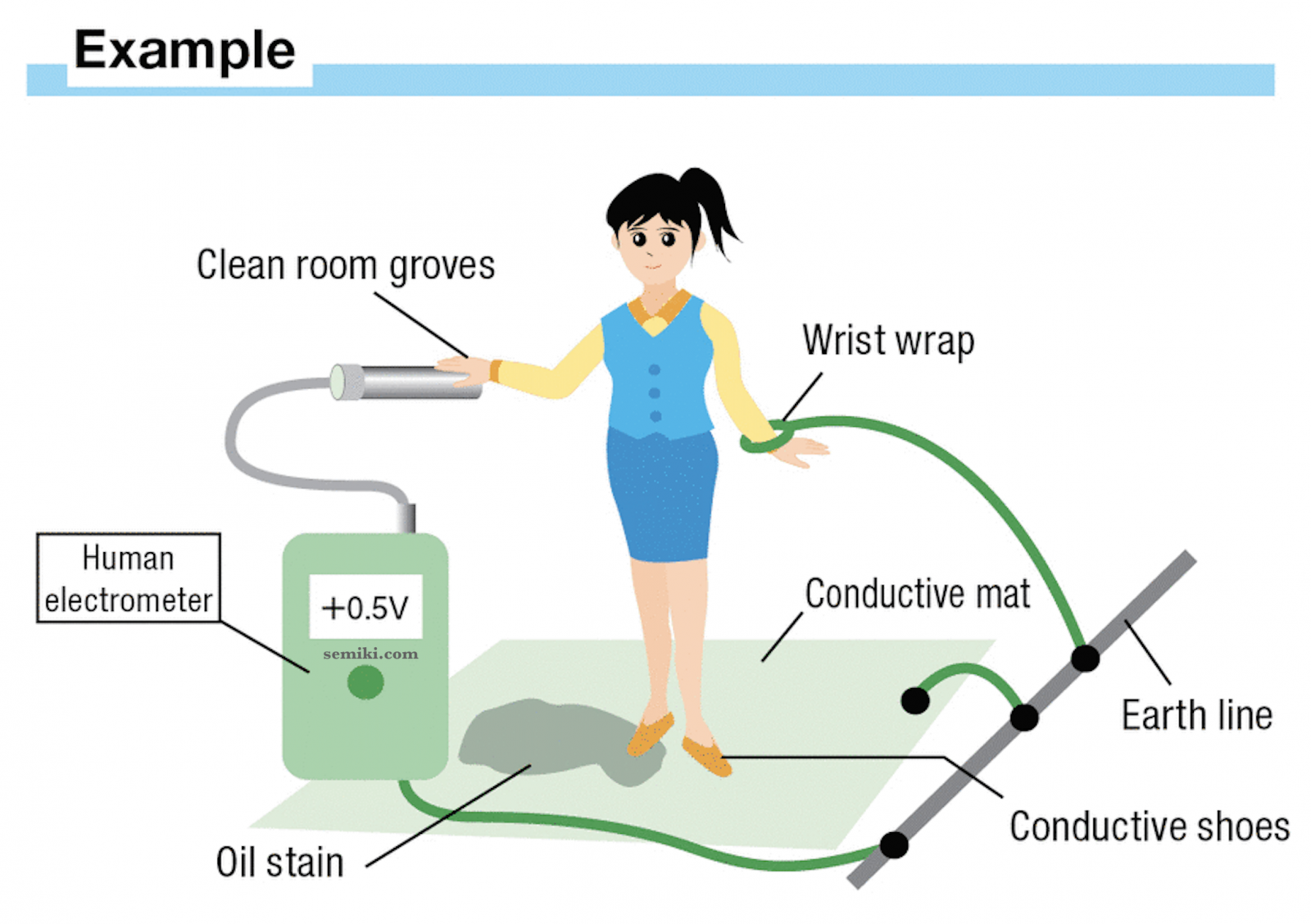

In addition, it is possible to know how much static countermeasures such as conductive floors, antistatic mats, antistatic shoes, and wrist straps reduce the human body potential.

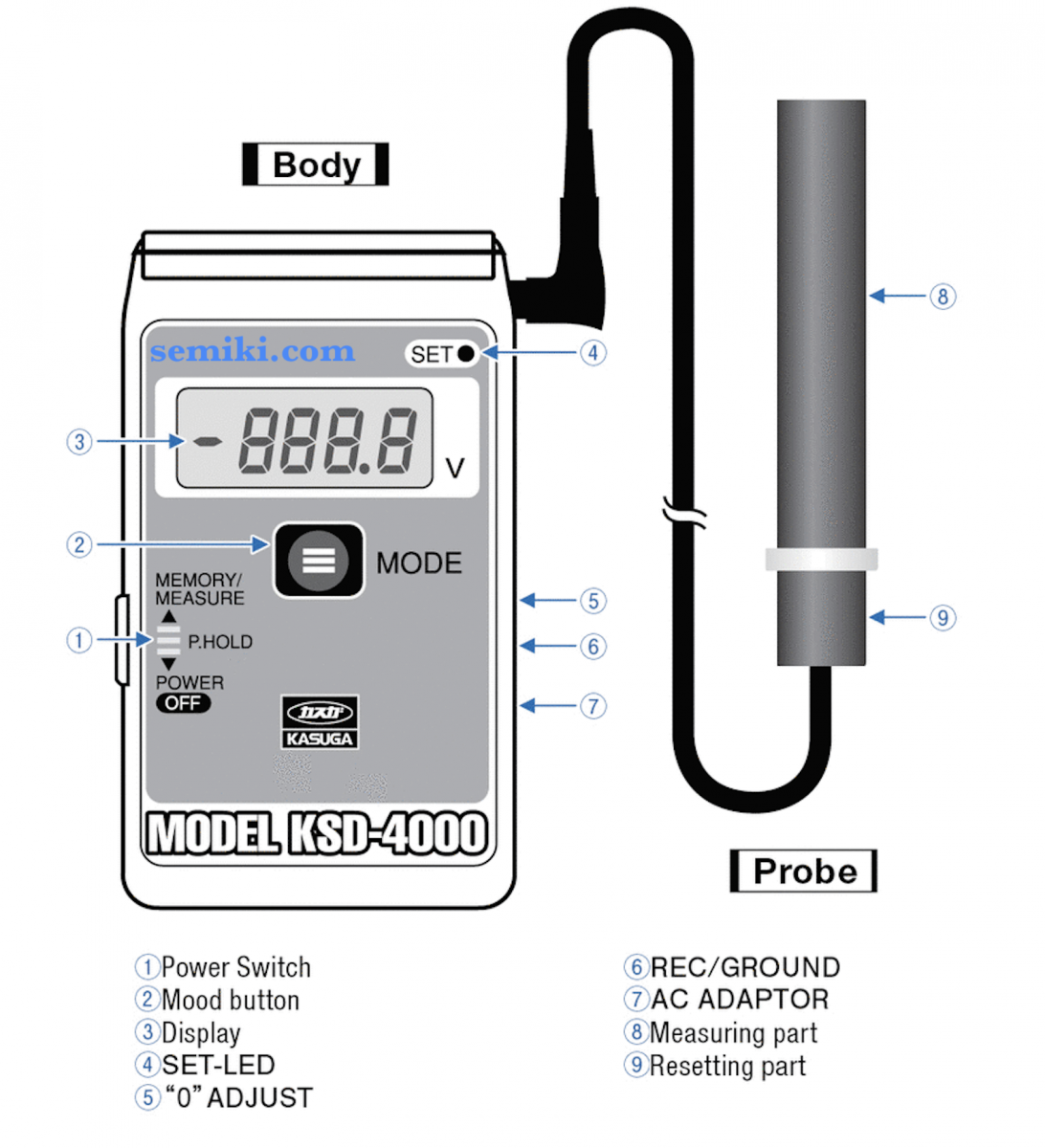

Features
· Grasp the probe in your hand to easily measure body potential.
· Provides high resolution in ±0.1 V steps (KSD-4000).
· Provides wide-range measurement.
· Switch between peak-hold and continual-measurement modes.
· Use with a recording measure to continually measure and store changing potentials as the worker being measured executes each motion.
· Lets you easily evaluate static electricity and provide education on handling it to workers.
· Includes a detection sensor error diagnosis circuit that provides a display if the device is faulty (patented) (KSD-4000).
· Includes sleep mode to prevent battery draining due to forgetting to turn the device off (KSD-4000)

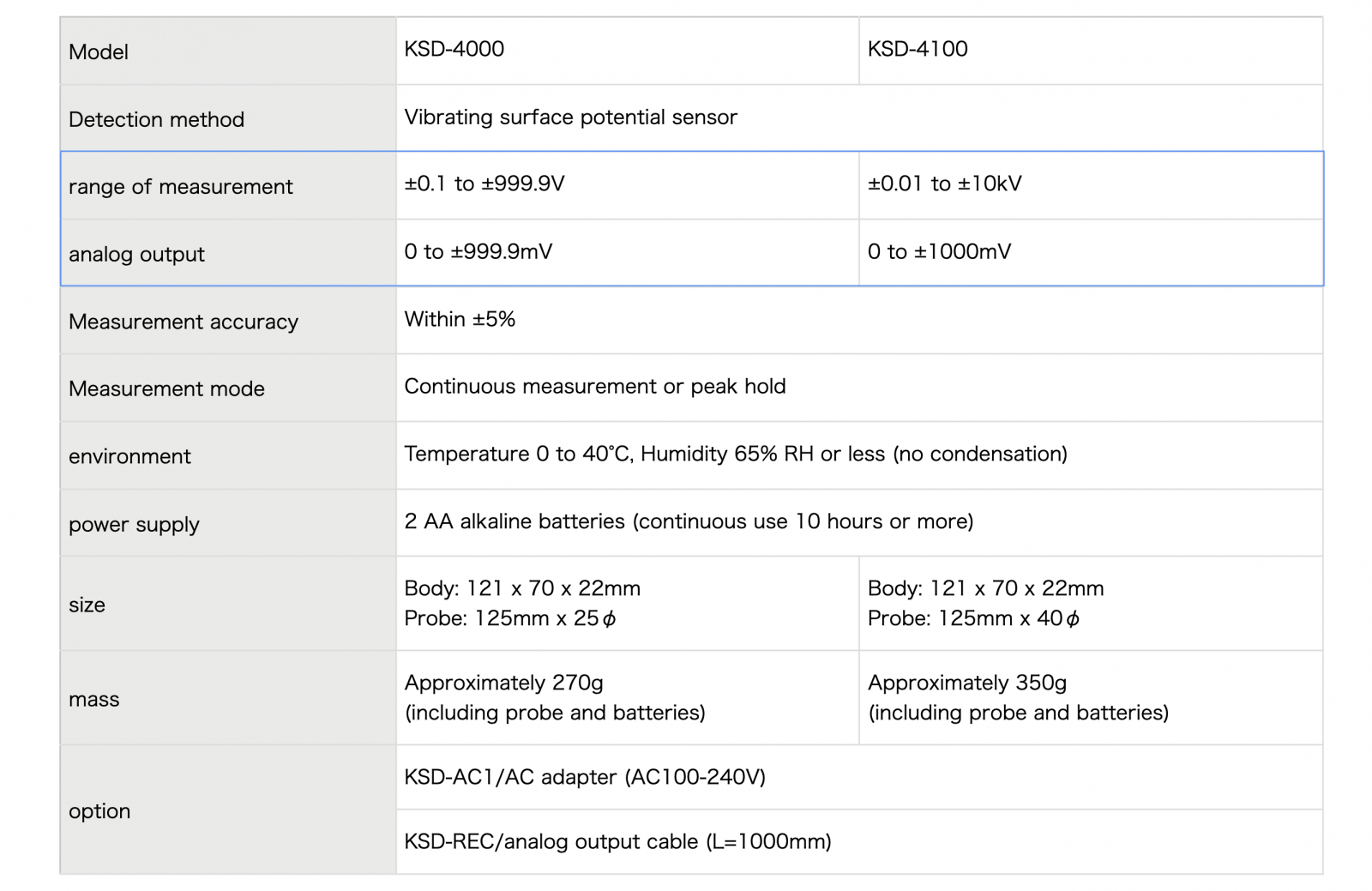

Specification
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store. Local Vietnam : SEMIKI CORP
