KASUGA DENKI KSD-3000 low potential measuring device.
Electronic devices are becoming less and less tolerant of static electricity, and the static control voltage is also decreasing. It is possible to measure charges of 100V or less with high accuracy, which was difficult with conventional models, and to measure from 0.1V. In addition, by narrowing down the measurement area, it is now possible to measure narrow areas such as the surface of an LSI package.
KASUGA DENKI
Static meter
Digital Measuring Instrument For Low Voltage
Model: KSD-3000
You can measure low-potential static electricity that causes static electricity damage.
Electronic devices are becoming less and less tolerant of static electricity, and the static control voltage is also decreasing.
It is possible to measure charges of 100V or less with high accuracy, which was difficult with conventional models, and to measure from 0.1V.
In addition, by narrowing down the measurement area, it is now possible to measure narrow areas such as the surface of an LSI package.
Usage – Application:
Surface potential measurement of various electronic devices.
Measurement of potential distribution on printed circuit boards, flat panels, etc.
Measurement of objects with relatively small amount of charge.
Specification

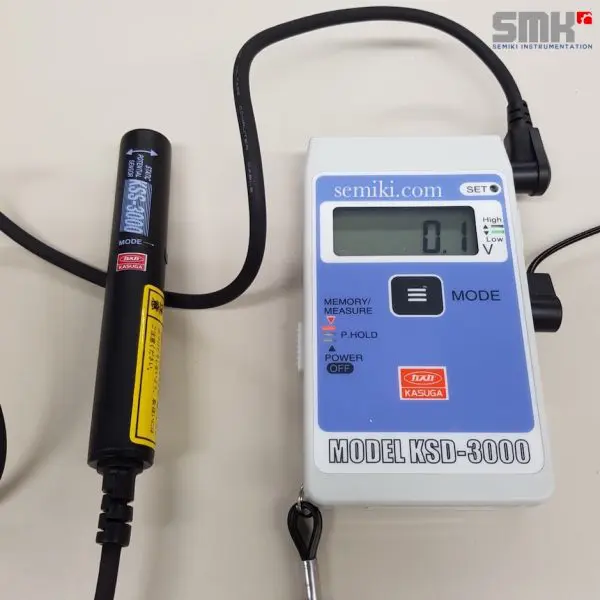

Pic.: KASUGA Static meter KSD-3000 ( ±1V to ±5000V ) at Semiki’s warehouse
Pic.: KASUGA Static meter KSD-3000 ( ±1V to ±5000V / measurement 20x20mm) test.
► Digital Measuring Instrument For Low Voltage KSD-3000
• It permits high-precision Measuring of 100V or lower voltages.
• Switching measuring ranges allows Measuring of miniature potential, low of 0.1V.
• Possible to measured from small electronic components and surface potential distribution on wide objects.
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store. Local Vietnam : SEMIKI CORP
