SEW DIGITAL 5KV
HIGH VOLTAGE INSULATION TESTER.Conventional insulation testers are highly susceptible to damage when testing insulation resistance while voltage is present on the measured object (whether ACV or DCV). To safely prevent damage, this new line of testers has the unique ability to sense voltage on a measured object. If any voltage is sensed, the tester will automatically switch to voltage detection mode and display the voltage finding on the LCD screen. This allows the user to prevent damage caused by attempting to measure insulation resistance while voltage is present
SEW DIGITAL 5KV HIGH VOLTAGE
INSULATION TESTER
Model: 6305A IN
FEATURES
• 2 Lines × 16 Characters LCD
• Microprocessor-controlled
• Tests insulation resistance up to 10 TΩ • 4 Insulation test voltages: 500V, 1000V, 2500V, 5000V
• AC / DC Voltmeter (30~600V)
• Short-circuit current up to 5mA
• PI (Polarization Index) indication
• DAR (Dielectric Absorption Ratio) indication • Auto-ranging on all insulation ranges
• Optical USB to RS-232 data transmission
• Well isolated from contact
• Well protected from surges
• 2 built-in optical LEDs for data transfer
• Visual and audio warning of external voltage presence (≥30Vac or ≥30Vdc) • Auto-hold function to freeze reading
• Overload protection
• Adjustable testing duration: 1~30 minutes
• Internal memory for data storage
• Displays testing duration for insulation measurement
• Auto-off function
• 200 measurement results can be saved in memory and recalled on display
SEW Voltmeter
► Conventional insulation testers are highly susceptible to damage when testing insulation resistance while voltage is present on the measured object (whether ACV or DCV). To safely prevent damage, this new line of testers has the unique ability to sense voltage on a measured object.
If any voltage is sensed, the tester will automatically switch to voltage detection mode and display the voltage finding on the LCD screen. This allows the user to prevent damage caused by attempting to measure insulation resistance while voltage is present.
SPECIFICATIONS

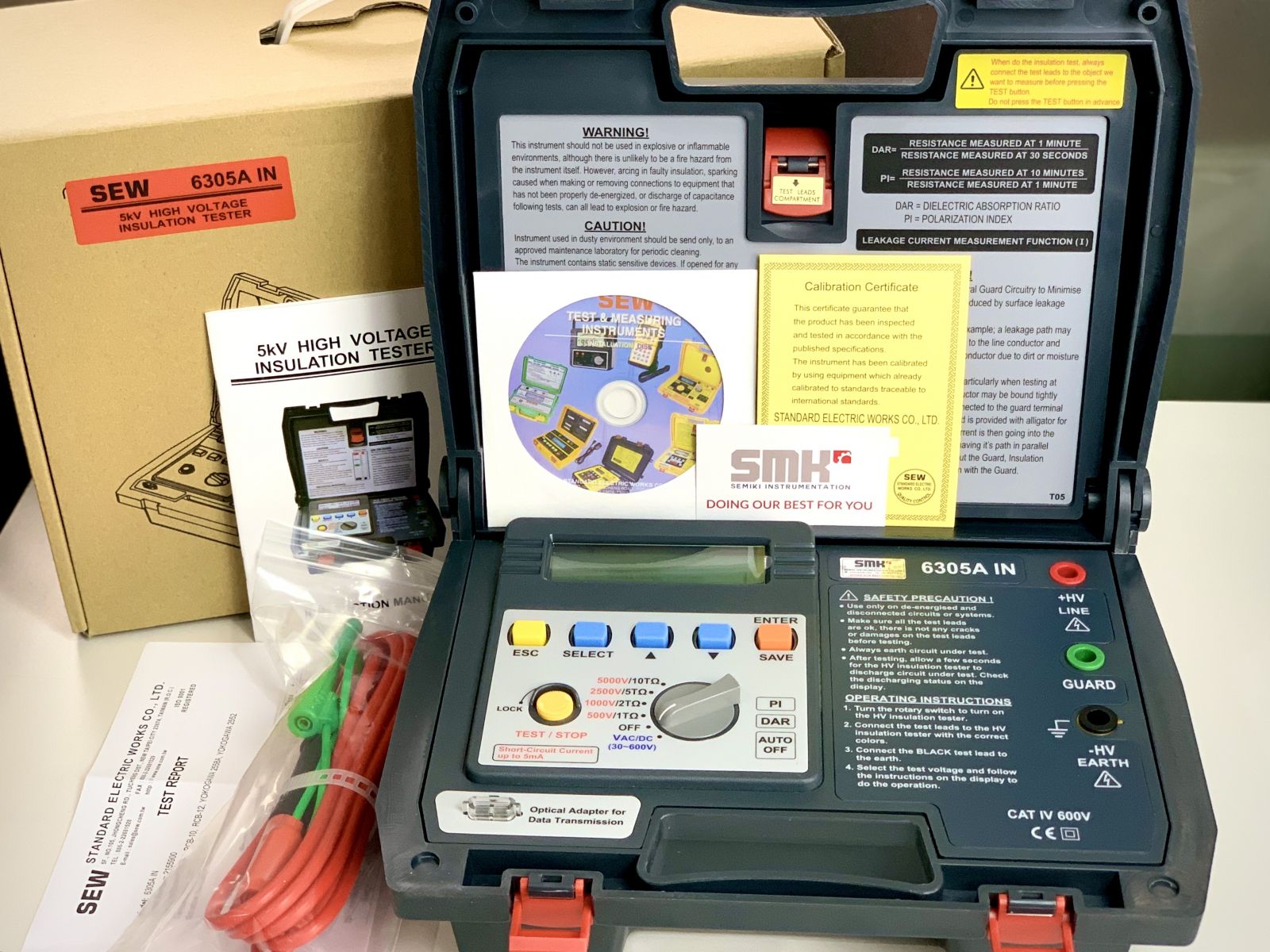

Fig.: SEW 6305A IN Digital H.V. Insulation Tester (5kV) at Semiki’s warehouse
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store. Local Vietnam : SEMIKI CORP
