ElektroPhysik MiniTest 70 Coating Thickness Gauge.
The MiniTest 70 is a pocket sized, versatile and accurate thickness gauge with built-in sensor. Especially designed for easy operation, this gauge is the ideal tool to measure any non-magnetic coatings on steel and/or any insulating layers on non-ferrous metals.
ElektroPhysik
Coating Thickness Gauge.

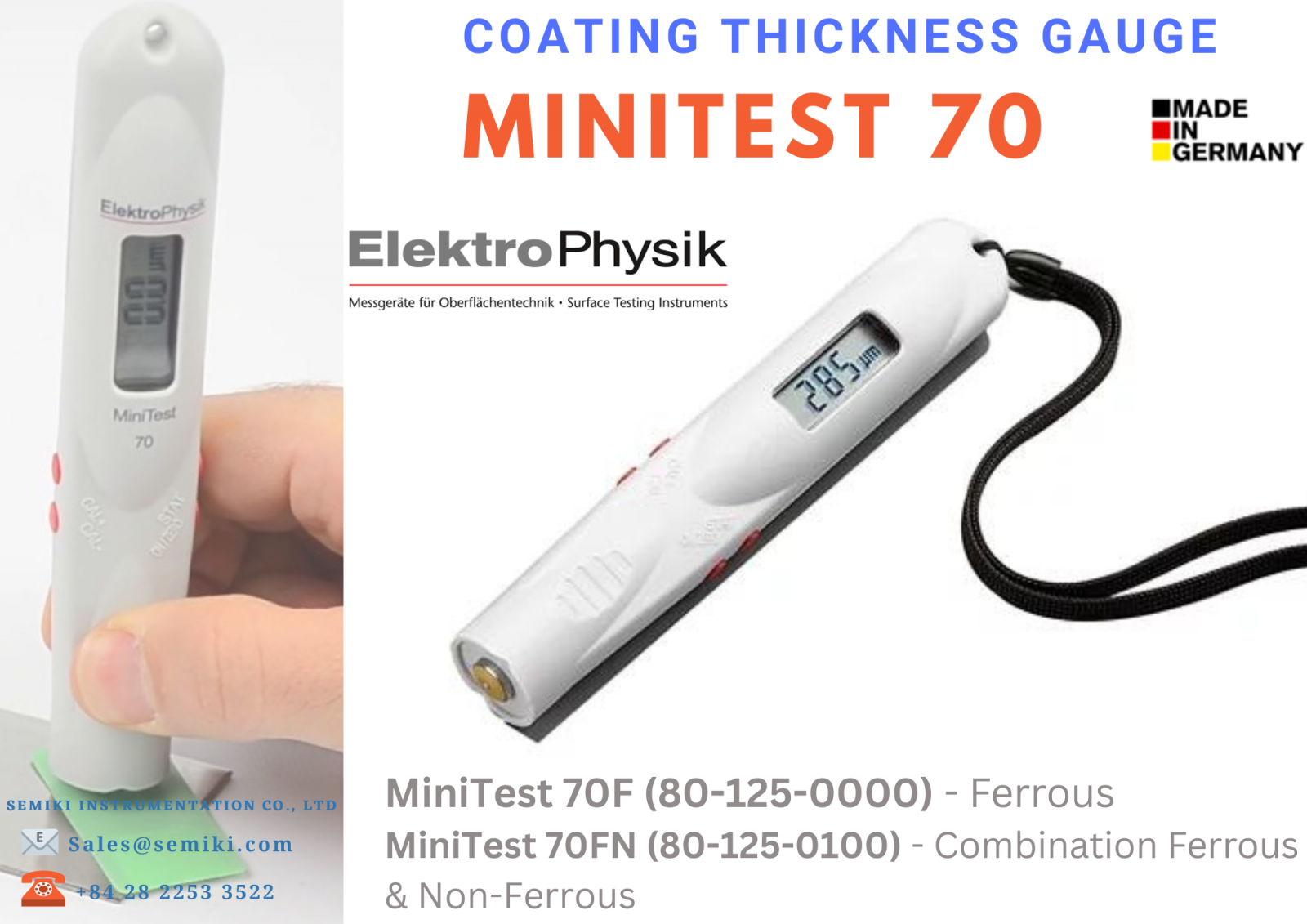

Model:
MiniTest 70F (80-125-0000)
Ferrous Only Model
MiniTest 70FN ( 80-125-0100 )
Combination Ferrous & Non-Ferrous Model
Coating thickness gauge MiniTest 70
The MiniTest 70 enables non-destructive measurement of non-magnetic coatings (paint, synthetic material, chrome, etc.) on a ferromagnetic substrate (steel) and insulating coatings (lacquer, enamel, synthetic material, etc.) on conductive substrates (aluminium, copper, austenitic stainless steel).
The spring-mounted sensors are equipped with wear-resistant sensor poles to give especially high durability also when measuring abrasive substrates.
Video: MiniTest 70 Coating Thickness Gauge| intro
Features
• Pocket sized, compact coating thickness gauge
• Proven measuring methods
• Statistics function
• High repeatability
• For fast and precise measurements of non-magnetic coatings on steel and insulating coatings on non-ferrous metals
• Enables 1-point and 2-point calibrations
• Automatic identification of the substrate material
• Built-in sensor

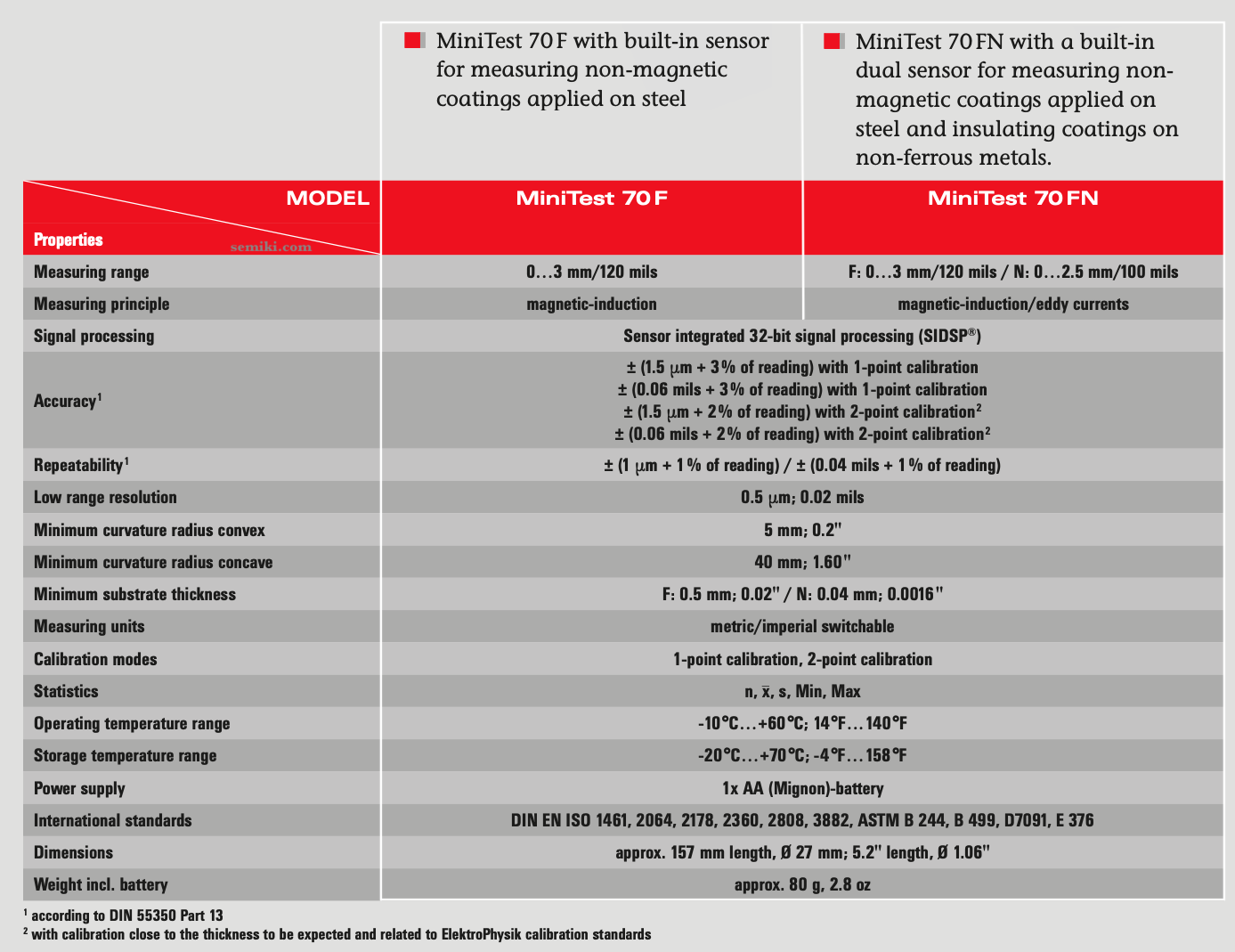

Specifications

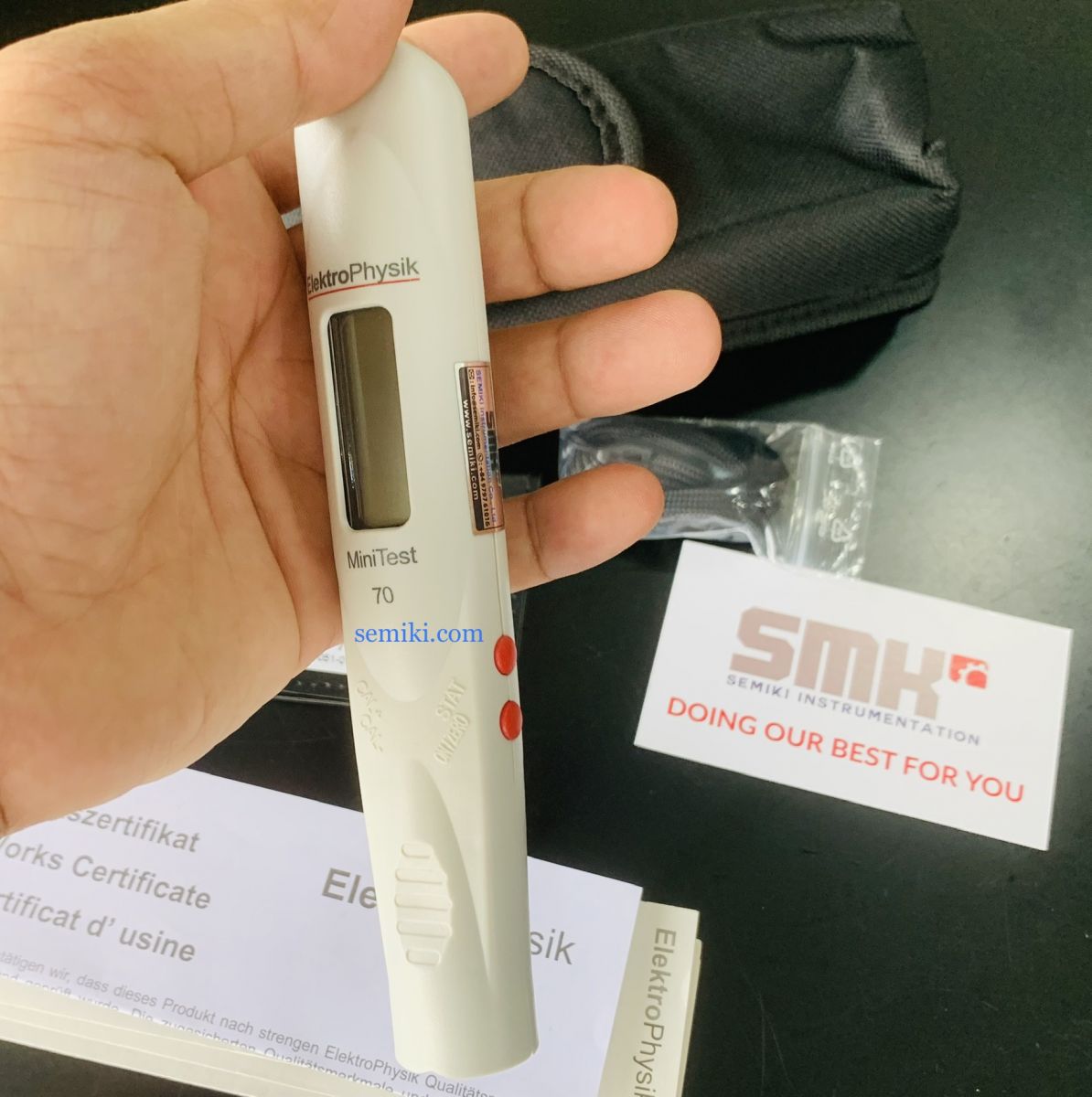

Pic.: Elektro Physik MiniTest 70F ( 80-125-0000) range magnetic induction 0-3000µm Coating Thickness Gauge at Semiki’s warehouse
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store. Local Vietnam : SEMIKI CORP
