Máy kiểm tra độ dày lớp phủ Kett 373 Series
Máy kiểm tra độ dày lớp phủ điện từ LE-373
Máy kiểm tra độ dày lớp phủ dòng điện xoáy LH-373
Máy kiểm tra độ dày lớp phủ loại kép LZ-373
Tính năng
Máy kiểm tra độ dày lớp phủ loại kép LZ-373
Mẫu máy kiểm tra độ dày lớp phủ loại kép tầm trung
Cung cấp đầu dò dòng điện xoáy và điện từ
Phạm vi đo Loại điện từ: 0 – 2500 µm, Loại dòng điện xoáy: 0 – 1200 µm
Ghi lại 39000 bộ dữ liệu, chức năng tính toán thống kê
Kett Coating Thickness Testers
Model:
LE-373 ( Non-magnetic coatings on magnetic metal)
LH-373 ( Insulating coatings on non-magnetic metal )
LZ-373 ( Dual-Type Coating)
Features

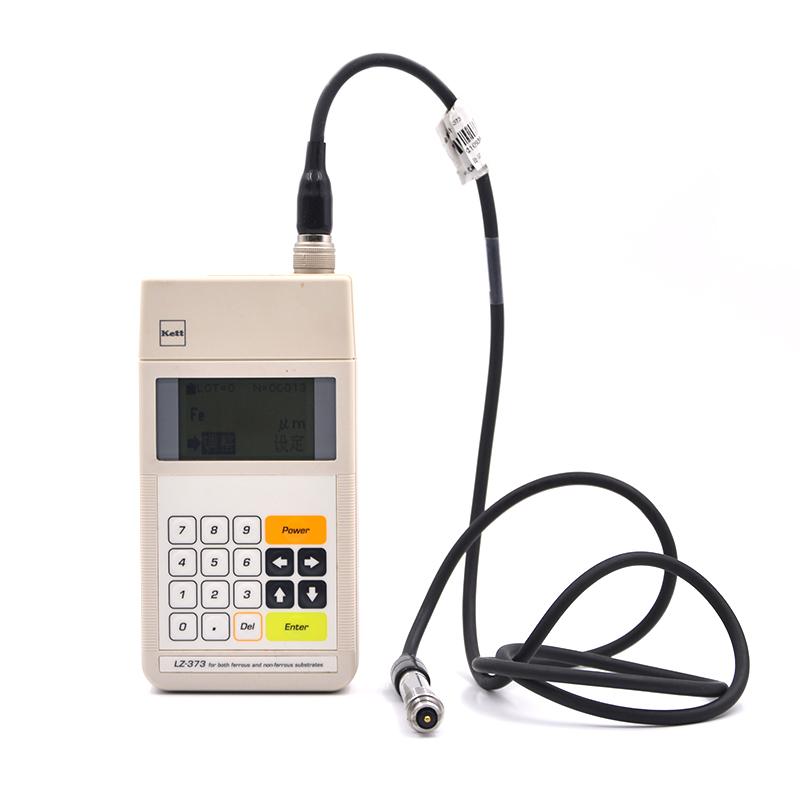

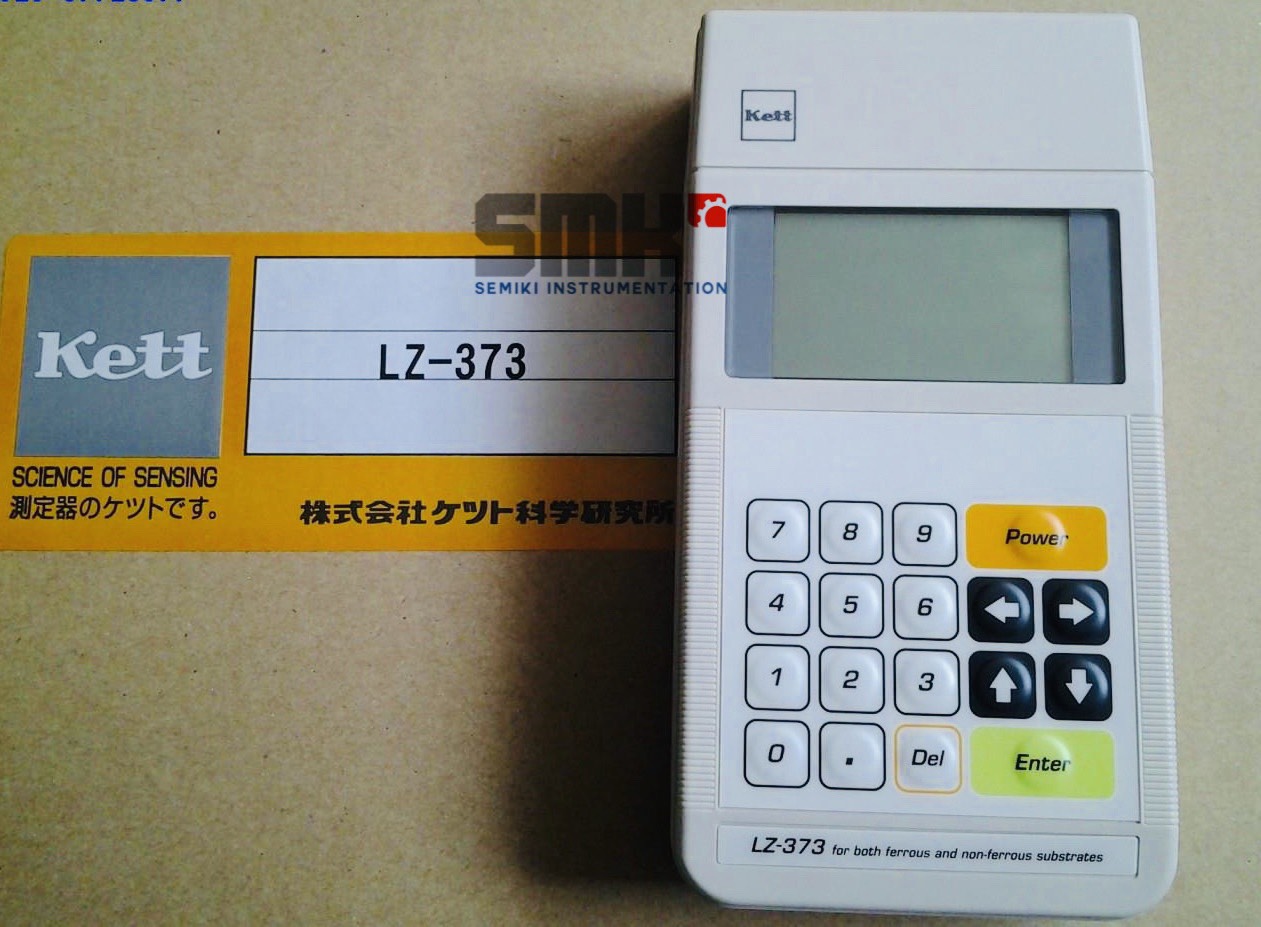

Dual-Type Coating Thickness Tester LZ-373
Mid-class model of dual coating thickness tester
Electromagnetic and eddy current probes provided
Measurement range Electromagnetic type: 0 – 2500 µm, Eddy current type: 0 – 1200 µm
Records 39000 data sets, statistical calculation function

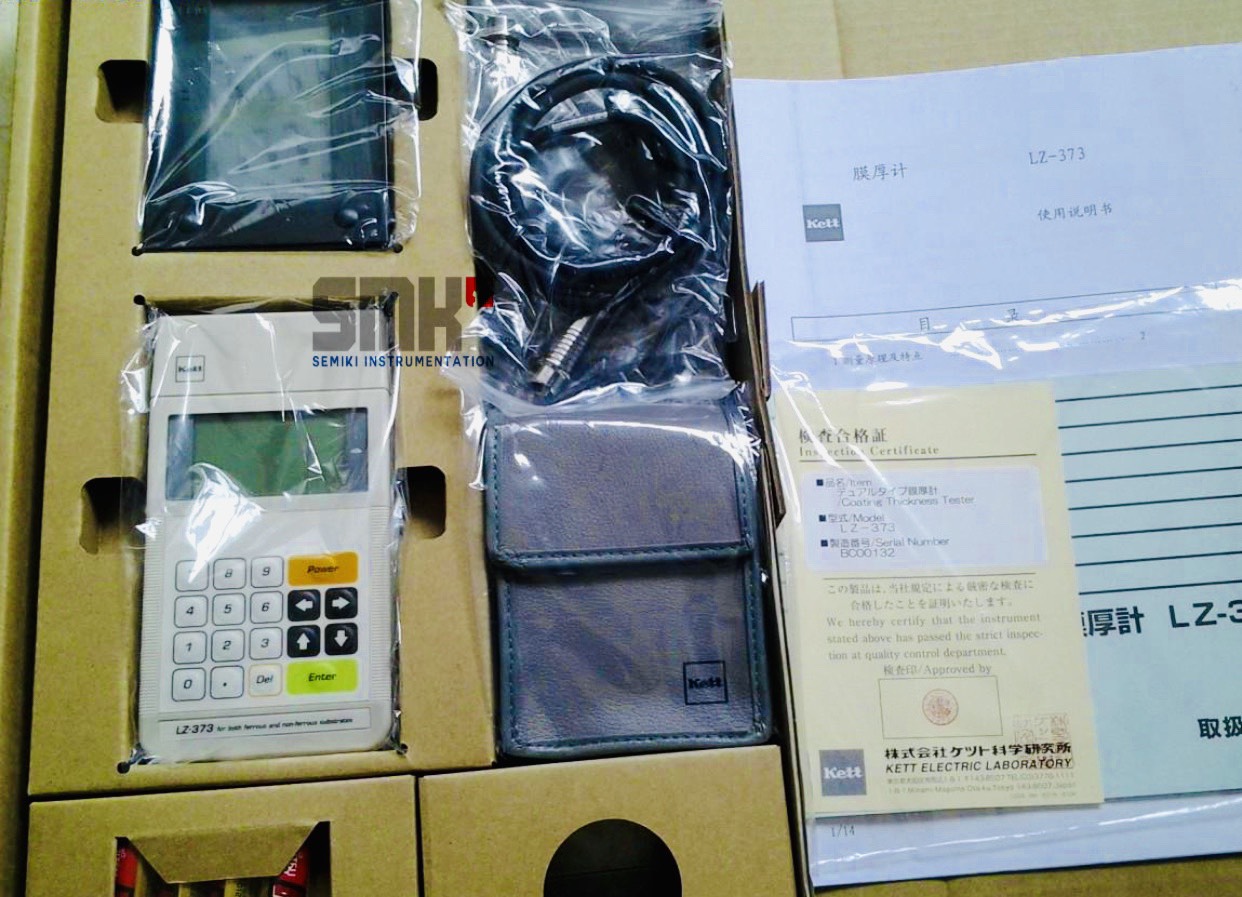

Picture: Kett LZ-373 Dual-Type Coating Thickness Tester At Semiki’s warehouse

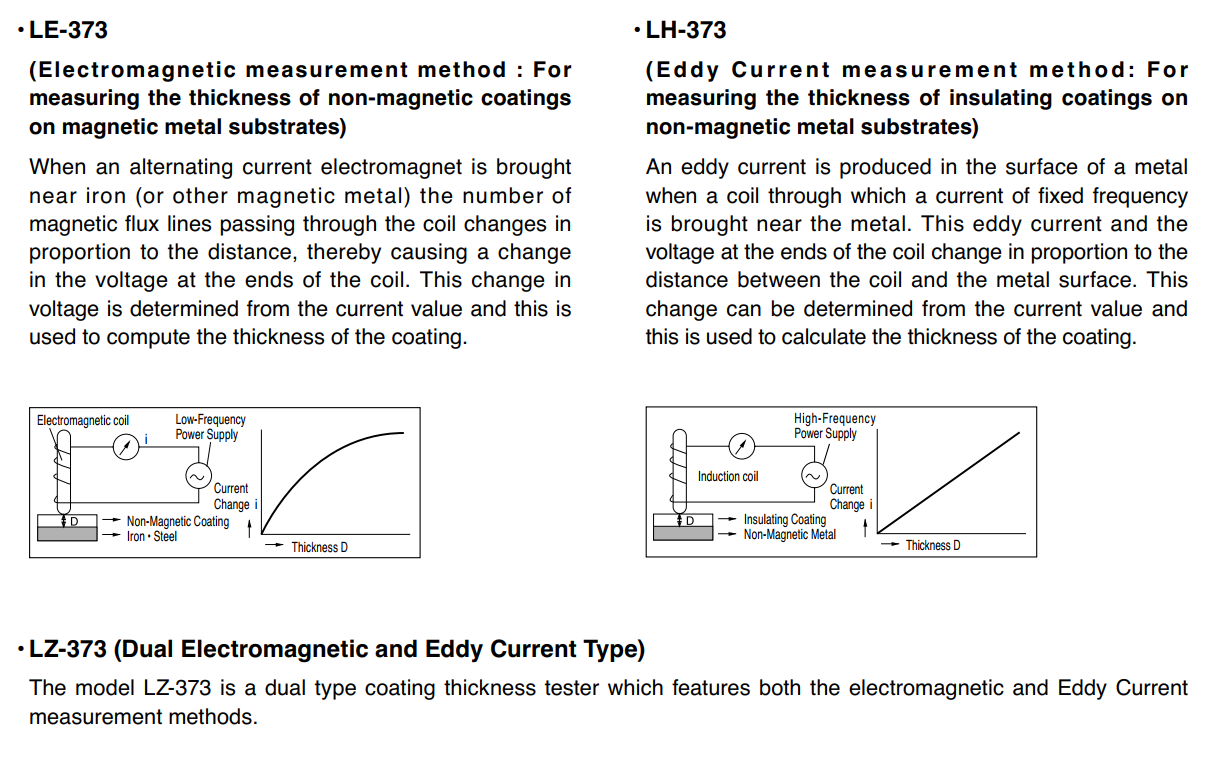

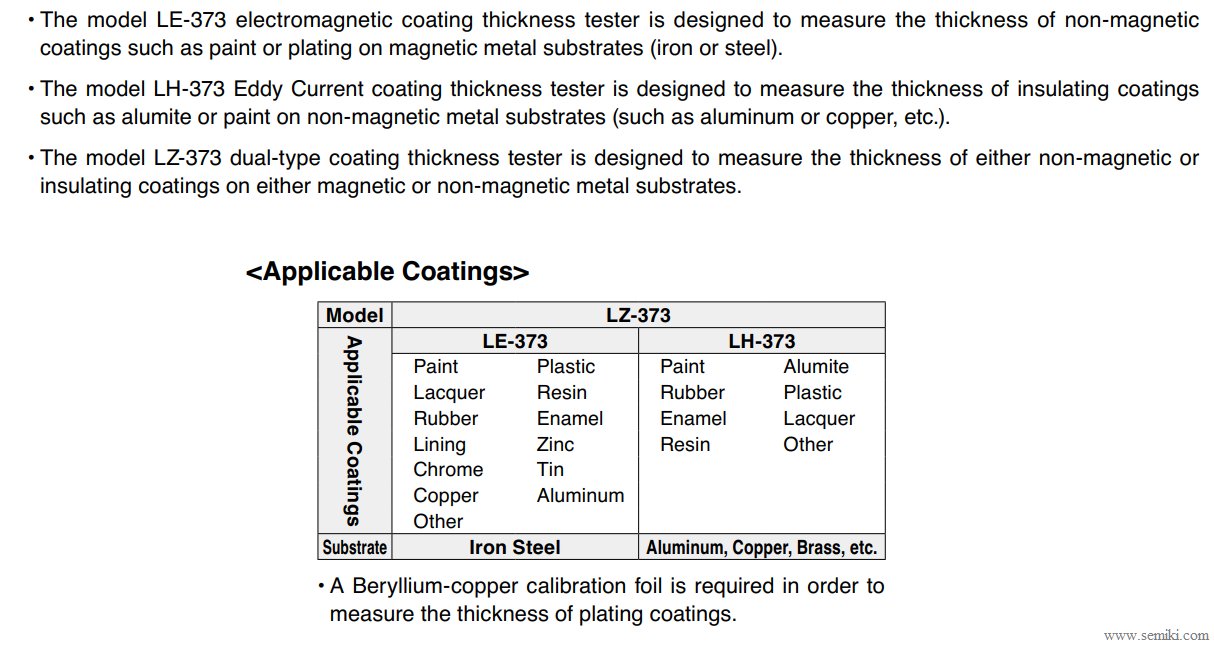

The LE-373 is an electromagnetic coating thickness tester for measuring the thickness of non-magnetic coatings such as paint or plating (except electro nickel coating) on magnetic metal substrates.
The LH-373 is a coating thickness tester for measuring the thickness of insulating coatings on non-magnetic metal substrates. It is capable of measuring relatively thin coatings such as alumite.
The LZ-373 is a dual type coating thickness tester capable of measuring the thickness of coatings on both magnetic metal substrates and non-magnetic metal substrates.The 373 series of coating thickness testers is ideal for workplaces handling a variety of materials and coatings.Each model can transmit data to a printer or computer, and includes 16 different functions such as application (calibration curve) memory, measurement data memory, upper and lower limit setting for coating thickness management, simple statistical processing, and data output.

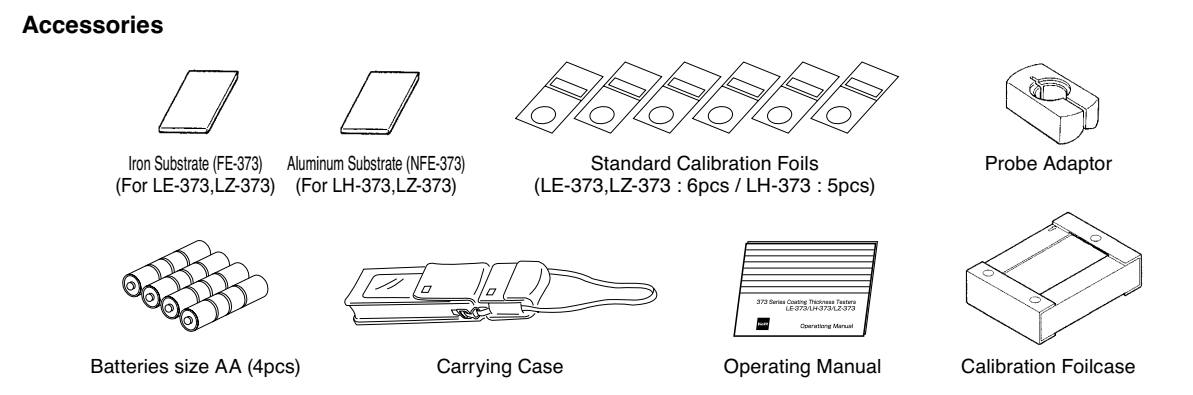

We also provide options such as a printer, measurement stand, external output cable, and data management software.
● A small sized, lightweight compact body. The size is 75 mm in width, 145 mm in length, and 31 mm in thickness, with a weight of 340 g.The size fi ts in one hand for easy use in the measurement workplace.
● Multiple functionality built in. We include all of the functions normally required for coating thickness management.It is possible to set 16 functions as required, such as Application, Substrate Calibration, Delete Data, Data Memory, Limits, Statistics (times measured, average, standard deviation, max value, min value), Display Property, Date/ Time, Auto Off Time, Brightness, Lighting Time, Unit, Data Output, Lot Splitting, Measurement Modes, and Maintenance.
Specifcations:

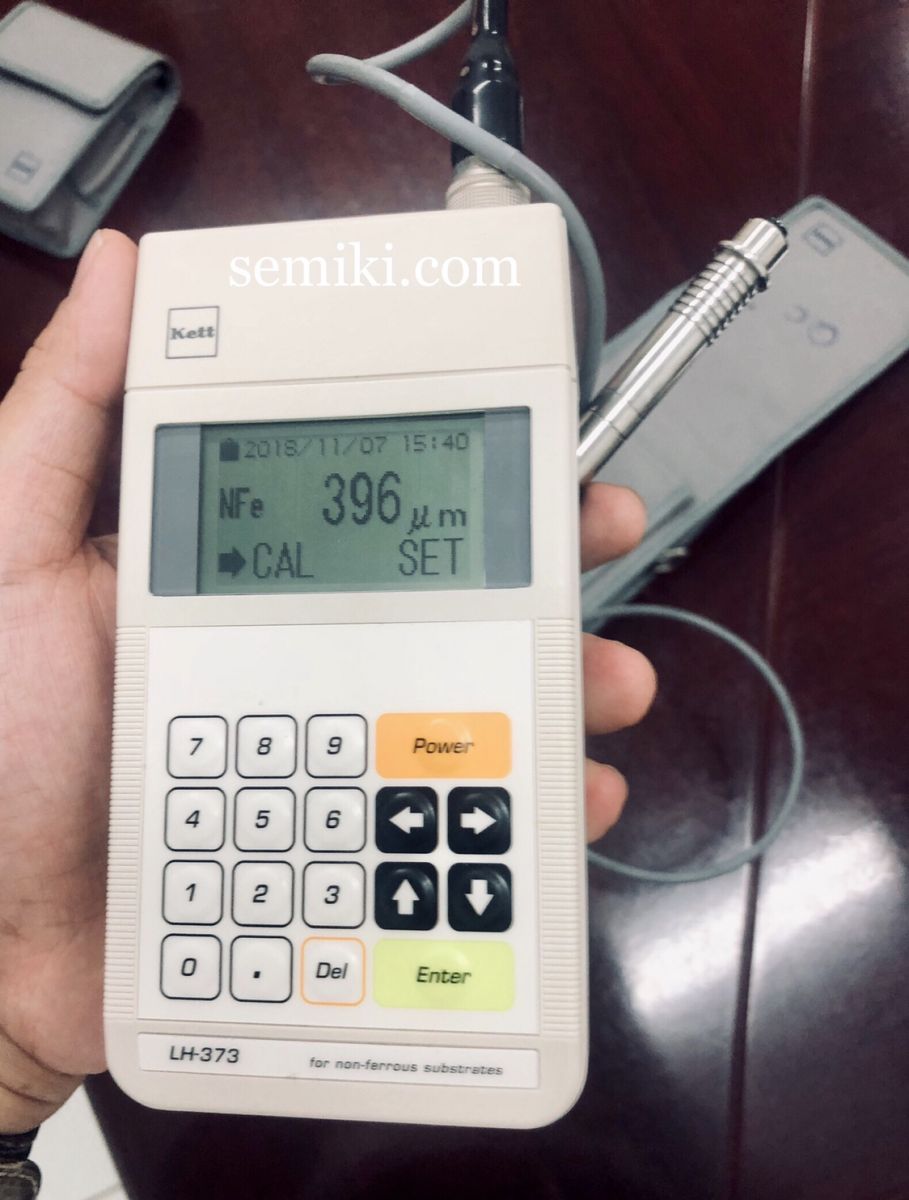

picture: Kett LH-373 (Insulating coatings on non-magnetic metal (non-iron)) at Semiki’s warehouse
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store.
