DENSO BTG-2 Belt Tension gauge can be correct, and simple determination.Using an extension rod (optional), can also be tested in a small place. The use of the method of measuring the needle, the most suitable for the determination of the area covered by the belt.
DENSO Corp

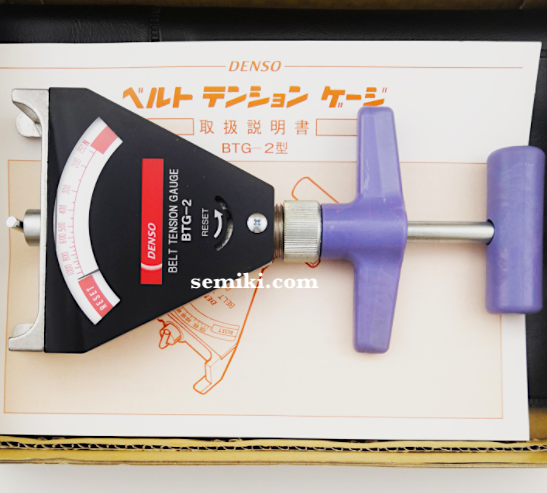

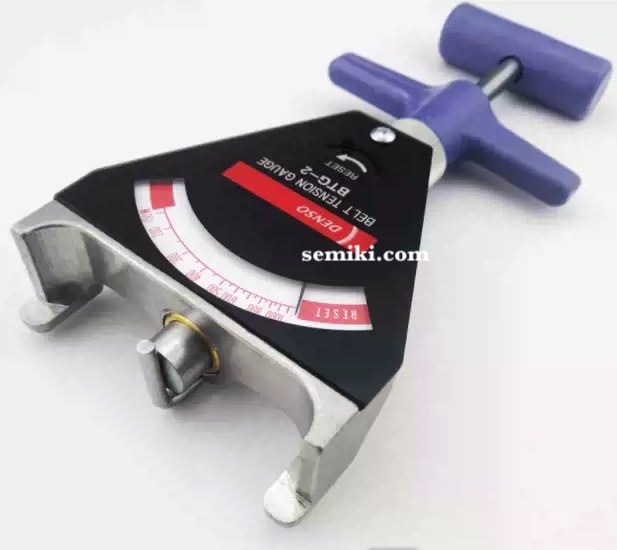

Belt Tension gauge
model: BTG-2
P/n: 95506-00100
Features:
• Belt Tension can be correct, and simple determination
• Using an extension rod (optional), can also be tested in a small place.
• The use of the method of measuring the needle, the most suitable for the determination of the area covered by the belt.
Operation Method:
Step 1. Return to the ”0” operation method.Central projection small button to the direction of the arrow, dial pointer to dial ”0” location (red part range).

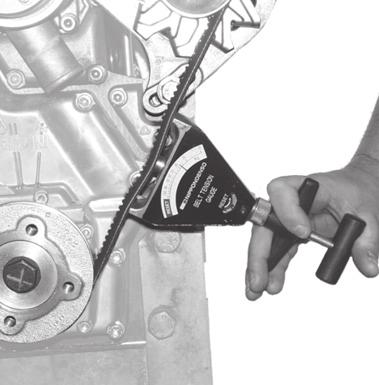

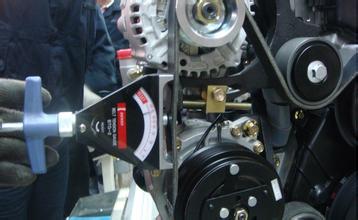

Step 2. Hold the tensiometer steering handle and disc is the dynamometer test essentials, as Figure shows, the hook on the belt to be measured.
Step 3. Slowly after burner. (At this point, the inner spring makes the belt band, and the pointer indicates the value of the belt’s tension)
Step 4. In order to make the pointer stable and accurate, repeat the operation of the abobe 2 items.
Step 5. Once again, hold tensiometer count is disengaged from the belt. The value of the pointer is the value of the tension of the belt (unit N)

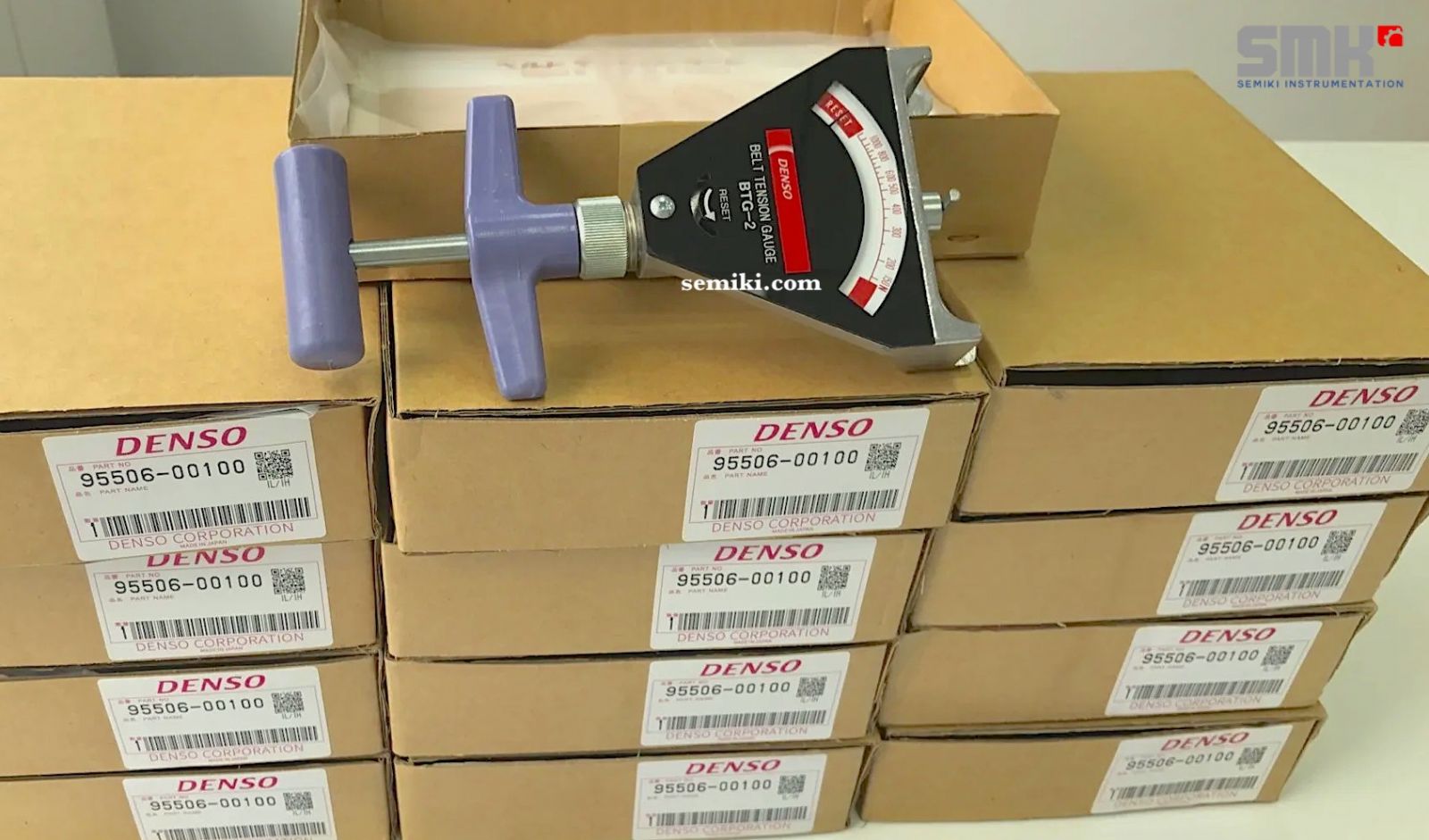

Pic.: DENSO belt tension gauge BTG-2 (150N to 1000N ) at Semiki’s warehouse
Specifications:
Maker: DENSO
Model: Belt tension gauge BTG-2
Country Of Origin: JAPAN
Measuring range: 150N -1000N (15kgf-100kg)
Accuracy: ±30N ( 3kgf )
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store. Local Vietnam : SEMIKI CORP
