MÁY ĐO LỰC ĐÓNG MỞ NẮP CHAI IMADA DTXS / DTXA SERIES

Nhà sản xuất: IMADA

Danh mục: Hệ thống máy đo lực, Thiết bị đo lực vặn mở nắp chai

Standard Type Screw Cap Torque Testers DTXS series, Standard type screw cap torque tester combines ease of use and functionality with the capacity of 50 N-cm to 1000 N-cm (10 N-m), and can measure opening and closing torque of container lids such as PET bottles or jars. High-speed sampling at 2000 Hz ensures high repeatability in both peak measurement and graphing.

IMADA Japan

Screw Cap Torque Testers

Model: DTXS series

Standard type screw cap torque tester DTXS Series combines ease of use and functionality with the capacity of 50 N-cm to 1000 N-cm (10 N-m), and can measure opening and closing torque of container lids such as PET bottles or jars.

High-speed sampling at 2000 Hz ensures high repeatability in both peak measurement and graphing.

Feature:

– This torque gauge enables to measure screw cap bottle Opening/Closure torque.
– Accurate torque measurement and easy data management are possible.
– The included software and various output signals support your data management.

Video: Screw Cap Torque Tester DTXA/DTXS series Torque Tests | intro

SPECIFICATION:

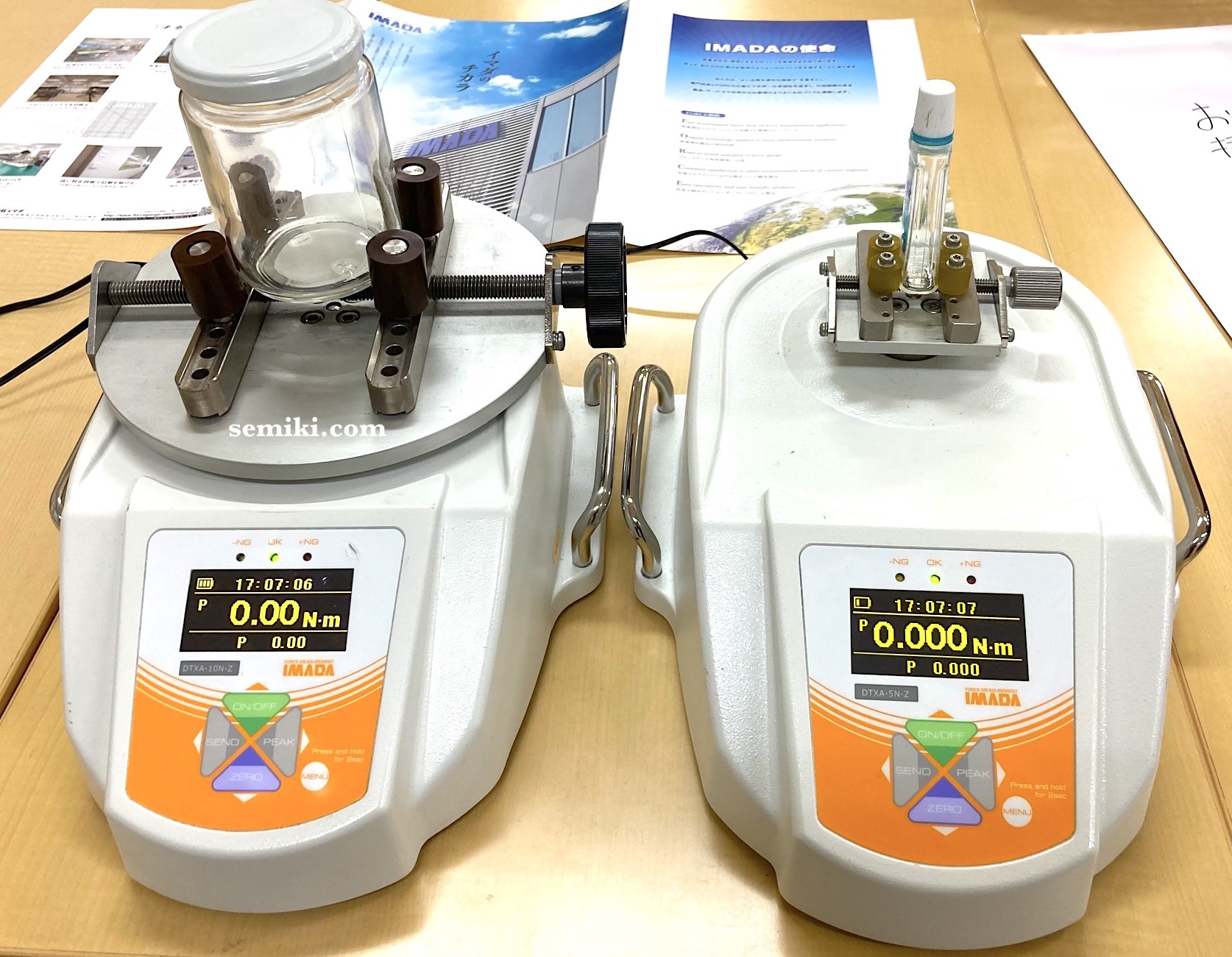

Pic.: IMADA Screw Cap Torque Tester DTXS-5N ( 5N.m/ 50kgf.cm) at Semiki’s warehouse

* For Accurate Torque Measurement
IMADA Screw Cap Torque Tester DTX series measure torque in CW/CCW.
The accuracy +/-0.5% F.S. and the 2000Hz high speed sampling rate capture accurate force values of testing.
The capacity is 2N-m(200N-cm) to 10N-m(1000N-cm).

* Useful Functions
DTX series equips a lot of useful functions for torque measurement.
Peak hold function, Data saving function (up to 1000 points to the internal memory), Pass/Fail decision and more.

* Ideal for Data Management
Many types of output signals are available such as USB, analog, RS232C and more.
Connecting with a processor, data output is possible at no PC environment.
The included software Force logger supports DTX data output from the internal memory to a PC.
Moreover, drawing a torque- time graph on PC is possible at 2000 data/sec
by the optional software Force Recorder (Light / Standard).

[DTXA series Original Function]

* Direct Data Output for a USB Flash Drive
Not only stored data but also continuous data can be output
for a USB flash drive at 100Hz, 50Hz or 1Hz. ( The sampling rate is selectable.)

* Capturing 1st peak/2nd peak
This torque gauge captures the highest peak torque and 2nd highest peak torque without PC.

Semiki Instrumentation Corp is authorized to promote, sell, store and distribute with the direct support and technical assistance of

force gauge IMADA : www.imada.com.vn

Maintenance and calibration :

► We also have calibration certificate attached ( optional )

► Please re-calibrate after use for a certain period through our purchase store. Local Vietnam : SEMIKI CORP
