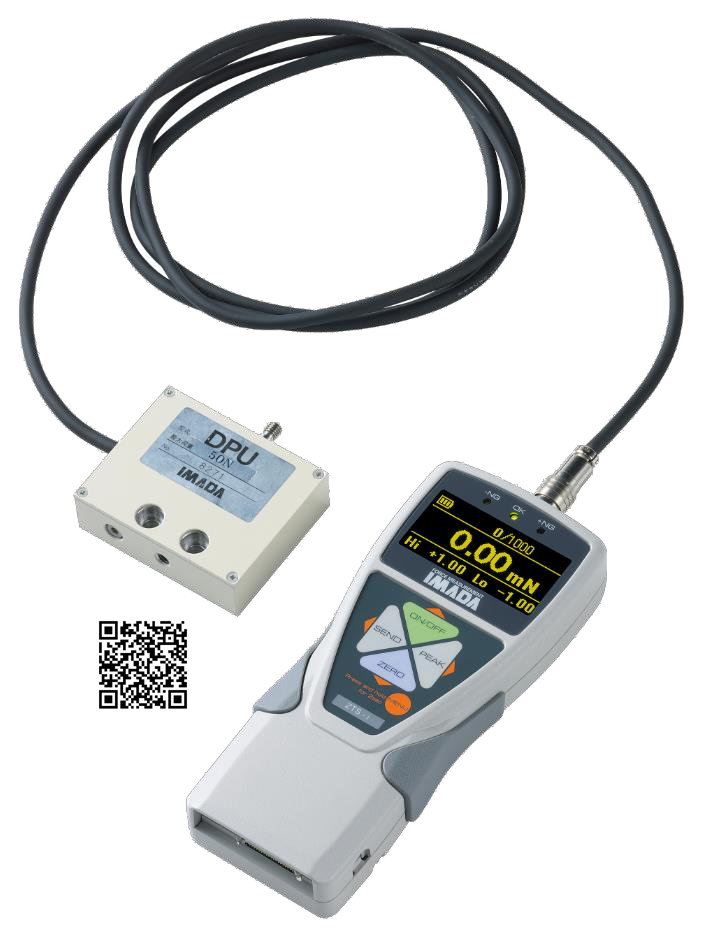

imada Separate Sensor Model Digital Force Gauge ZT series : This digital force gauge has an external sensor. Both ZTS/ZTA series are available.
For testing at a difficult place for reaching or mounting a regular-type force gauge.
The sensor is selectable.
IMADA Japan
Separate Sensor Model
Digital Force Gauge
Model:
ZTA-DPU series
ZTS-DPU series
High functionality/High performance Digital Force Gauge ZT Series Separate Sensor Model
Features
• OLED electro luminescent display with user friendly menus in eight languages
• 30,000/sec ultra-high sampling rate; processes and transmits 2,000 data/sec
• Export gauge memory or save continuous data to USB flash drives
• Color-Coded LED indicators and output signal for Go/No Go testing
• Both Push and Pull Capability
• Selectable lbf, kgf, and N units (ozf, gf measured in low capacity models)
• 1,000 data memory for recall or download
• USB (virtual COM port), RS-232C, Digimatic and analog outputs
• Ergonomic design with non-slip grips, heavy duty metal construction
• 200% Overload capacity (overload indicator flashes beyond 108% FS)
• Real time and peak mode (selectable)
Video: ZTS-DPU Digital Force Gauge with Remote Sensor| intro ( Vietnamese)
Specifications :
Pic.: imada ZTS-DPU-50N (50N/5kgf) Digital Force Gauge with Remote Sensor at Semiki’s warehouse
Pic.: imada DPU-50N (50N/5kgf) Separate Sensor at Semiki’s warehouse
[Calibration Certificate]
Semiki Corp offer calibration certificate at extra charge.
[Cautions]
– The contents may be changed without prior notice.
– All products are designed for measurement purpose only.
– Do not copy and use this content without authority.
– Please note that the capacity is dependent on the displayed unit. Please contact us for details.
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store. Local Vietnam : SEMIKI CORP
