HAIDA-Package Compression Test Machine. Carton compression tester is used for measuring the compression strength of cartons or other packaging containers, and may do holding pressure stacking test, test results can be used as plant stack finished packing a high degree of important reference, or an important basis for the design box.
HAIDA International Equipment
Package Compression Test Machine.
Carton compression tester is used for measuring the compression strength of cartons or other packaging containers, and may do holding pressure stacking test, test results can be used as plant stack finished packing a high degree of important reference, or an important basis for the design box.
DESIGN STANDATD : ISO 2872, ISO 2874, SO12048, ISTA (Vertical Compression), ASTM D642, ASTM D4169, TAPPI T804, JIS Z0212
FEATURES
• Touch Screen Control System. Simply operation and powerful function.
• Clear Soft Testing Interface. Test data will display on the screen directly in time, and the whole testing process can be observed in anytime.
• Multi-purpose.Customercanchoosethecompressiontestorstackingtestpertheirtestingrequirements.
• Double roller guide rod design. High transmission accuracy and effective transmission power; Smooth operation; Low noise.
• Equipped with Safety Device. Including upper and lower limitation device, overload protection device, automatic reset device, troubleshooting device and etc. To endure the user operation safety.
• Equippedwiththethermalprinter. Convenientforthedataoutputandprint.

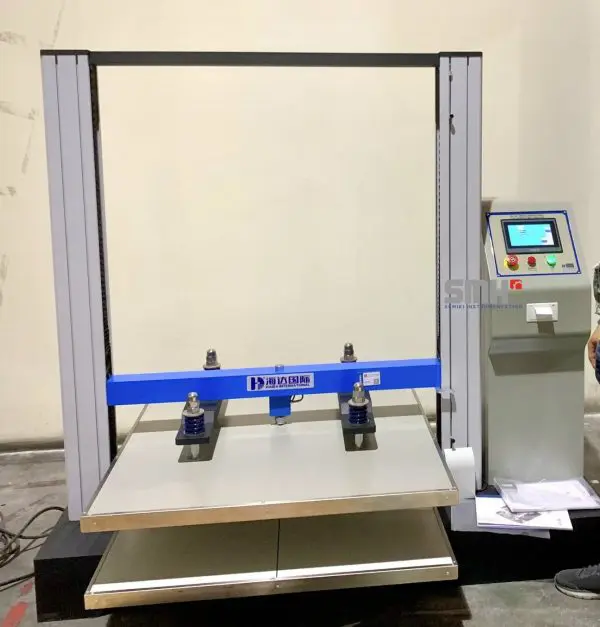

Fig.: HAIDA Package Compression Test Machine
model: HD-A501-1200 ( Capacity: 2.000kgf (20.000N/ Test Space(LxWxH) mm: 1000x1200x1000 ) at Semiki’s warehouse
Fig.: HAIDA HD-A501 force software
Fig.: HAIDA Package Compression Test Machine
model: HD-A501-900 ( Capacity: 1000kgf / Test Space(LxWxH) mm: 700x900x900 ) at Semiki’s warehouse
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store. Local Vietnam : SEMIKI CORP
