GESTER Toy Sharp Edge Tester GT-MB01. Determine that metal or glass edges on toys and other articles intended for use by children under 8 years of age, and such edges exposed in normal use or as a result of reasonably forseeable damage or abuse of such toys and articles, present a potential risk of injury by laceration or avulsion.
GESTER instruments

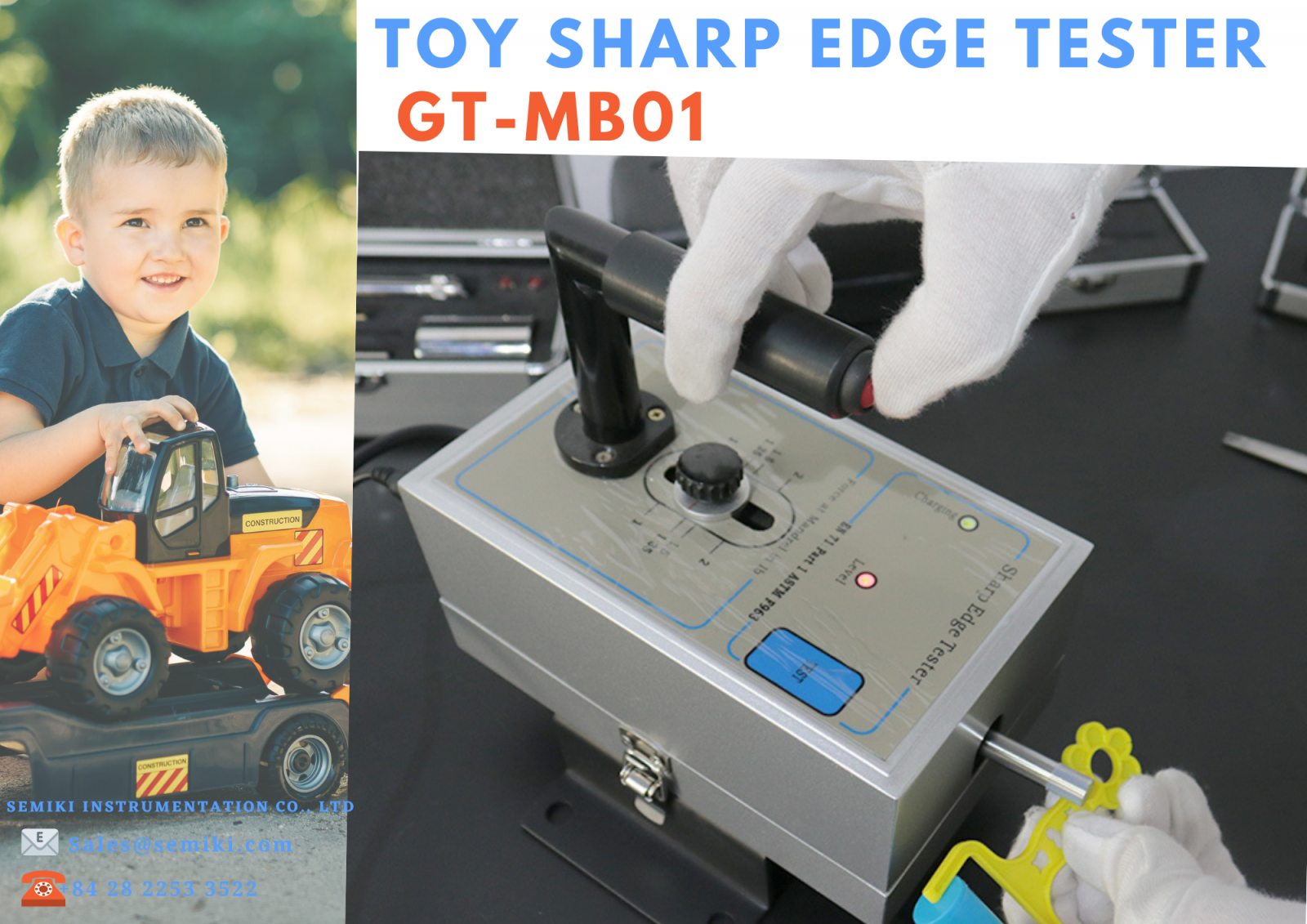

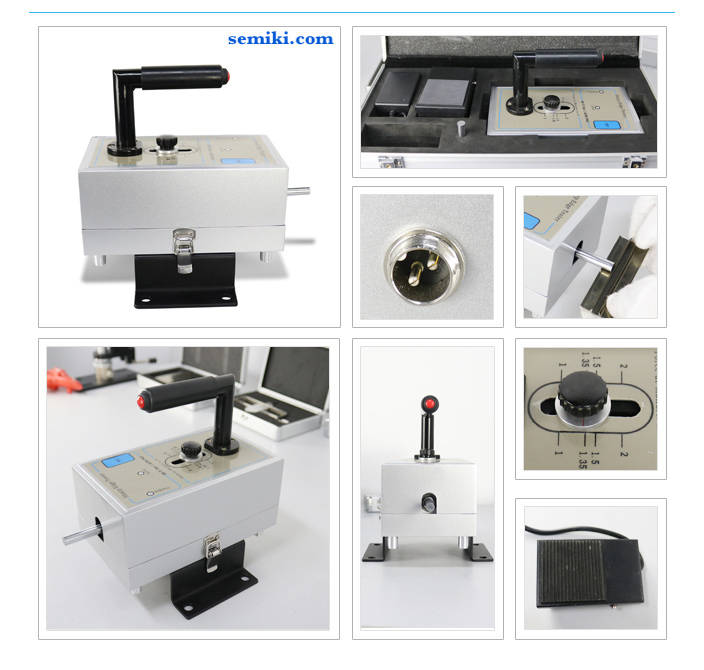

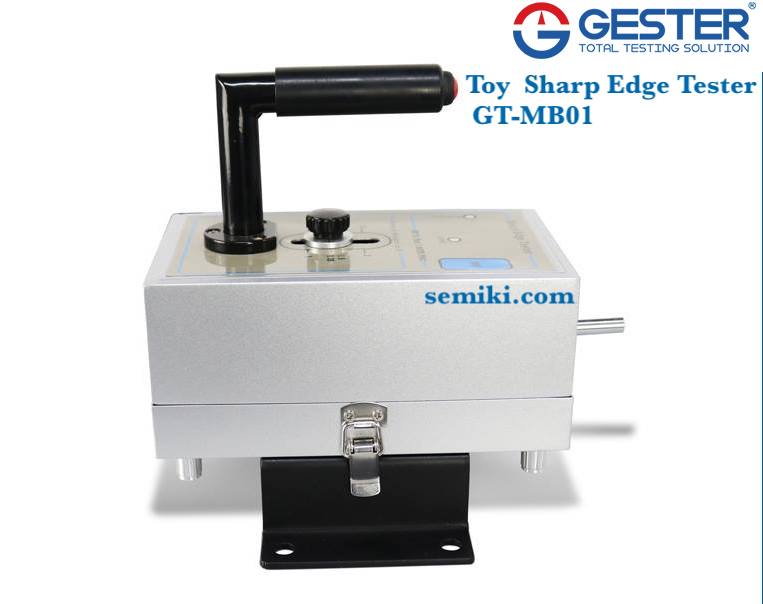

Toy Sharp Edge Tester
Model: GT-MB01
GESTER Toy Sharp Edge Tester GT-MB01 Determine that metal or glass edges on toys and other articles intended for use by children under 8 years of age, and such edges exposed in normal use or as a result of reasonably forseeable damage or abuse of such toys and articles, present a potential risk of injury by laceration or avulsion.
Sharp Edge Tester Feature
• The especially powerful value photoelectricity induction instruction function guarantees the test strength value fixed in 35 pounds all long, and avoid the errors caused by different angle observation.
• The especially powerful value external adjustment function, may extremely conveniently adjust the actual strength value to be consistent with the demonstration value, guarantee strength value calibration accuracy.
• Sharp Edge Test with 1.35 pounds calibration device, it can calibrate and adjust test force value at any time.
• Test shaft is made of steel to and hardened processing.The surface should be smooth.The max force vertically applied to the axis when testing shoud be 1.35 LB.
• Test shaft in its 75% turn routine, the tangent speed is 1.00±0.08 inches per second.
• The test tape is pressure-sensitive PTFE (TFE) high temperature electrical insulation tape.
Video:Toy Safety Testing, Sharp Edge Tester GT-MB01.intro
Standards of sharp edge test: EN 71-1, ASTM F963, 16CFR 1500, ISO 8124-1, GB 6675-1

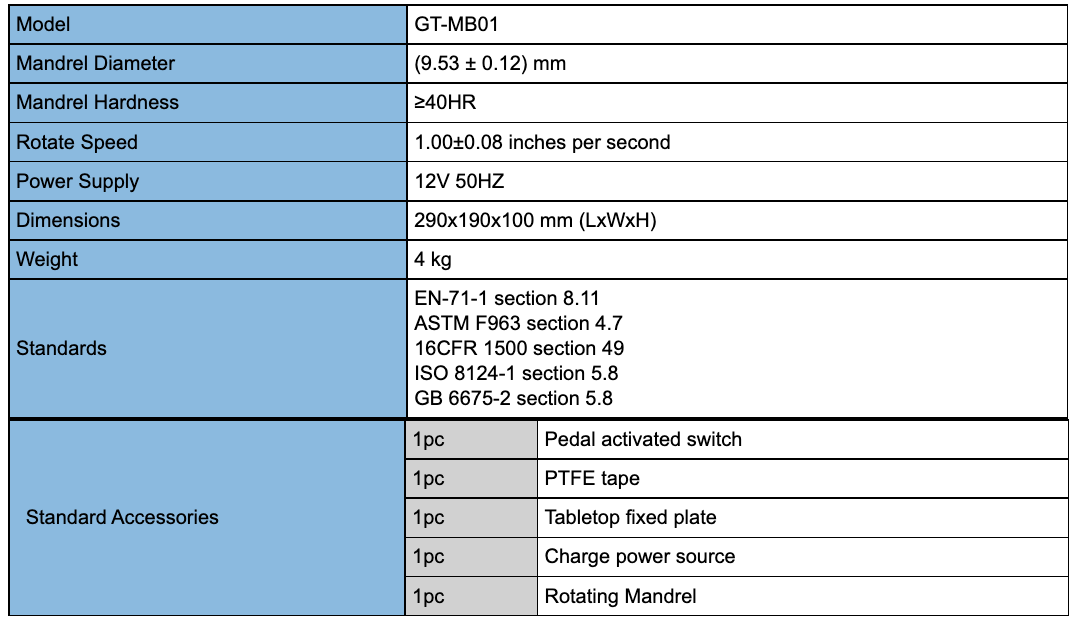

Specifications
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store. Local Vietnam : SEMIKI CORP
