MÁY QUANG PHỔ PHÂN TÍCH MÀU SẮC KONICA CM-2600D

Nhà sản xuất: KONICA MINOLTA

Danh mục: Máy đo màu

Là dạng máy xách tay, có độ tinh vi cao, độ chính xác cao.
Vận dụng nguyên lý CIE No15, kết cấu quang học d/8, đạt tiêu chuẩn quốc tế: JIS Z8722 DIN5033, ISO.7724/1/CIE/ASTM ASTME1164.
Không có tia UV (có thể chọn mua).
Ống kính đo: CM-2600d: Ø8mm/3mm (có thể chọn mua)/ CM-2500d: Ø8mm.
Lựa chọn chế độ SCI/ SCE.
Ứng dụng đa dạng trong các ngành phun sơn, ngành may mặc, công nghiệp thực phẩm, ngành nông ngư nghiệp, ngành in ấn, và trong ngành y dược.
Có thể kết nối với CCM (phần mểm phối màu) hoặc QC (phần mềm quản lí màu).

Hết hàng

KONICA-MINOLTA Spectrophotometer
Model: CM-2600D

The CM-2600d Spectrophotometer is compatible with SpectraMagic NX software to record measurements and provide a more comprehensive color analysis.

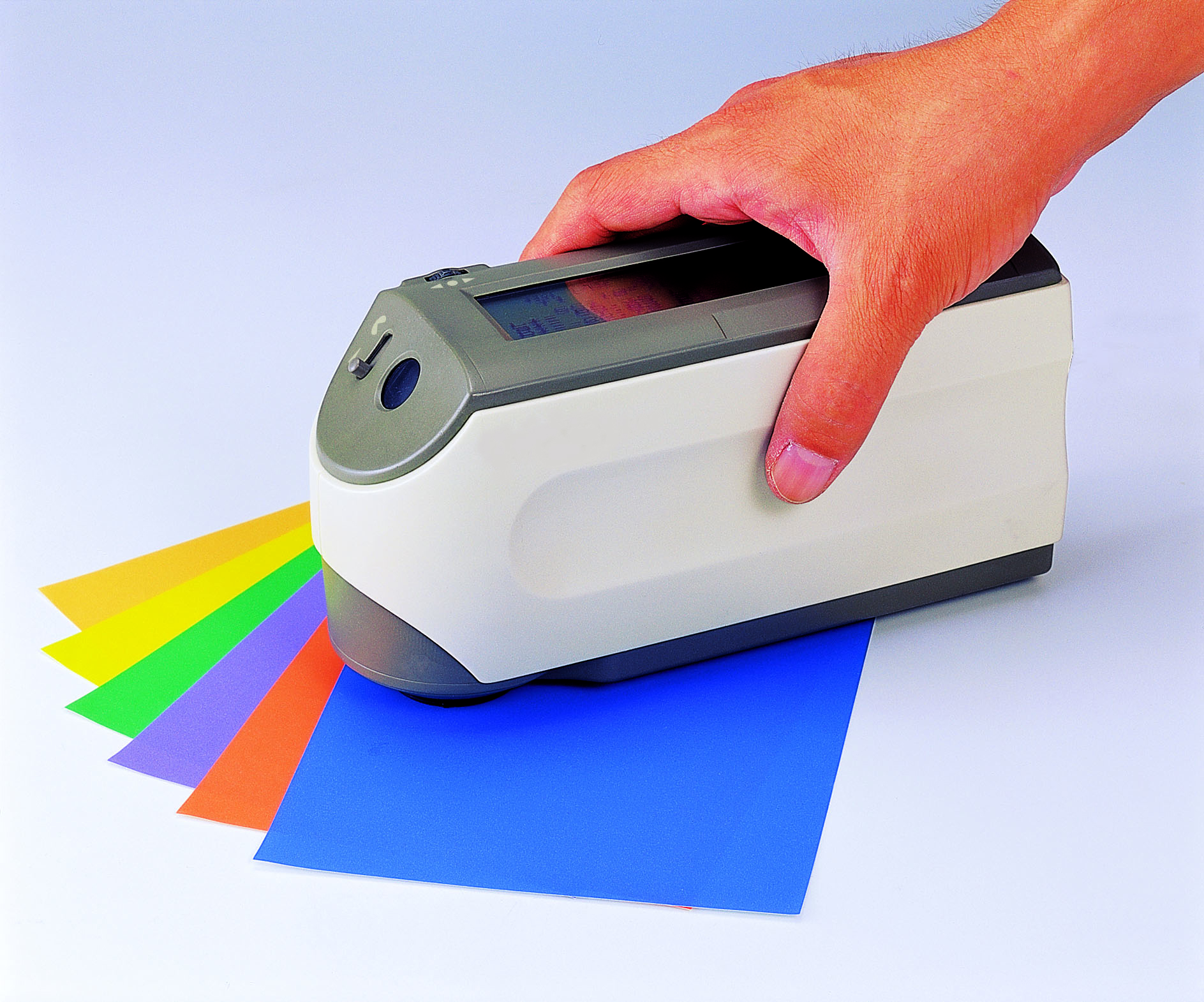

* The CM-2600d Spectrophotometer is a handheld, portable measurement instrument designed to evaluate the color, relative gloss, and UV characteristics of samples very small to large in size, particularly with flat surfaces.
* This high performance, precise spectrophotometer enables users to evaluate, reproduce, and control the color and appearance of objects in a more effective, streamlined process.
* Its advanced optical design and features help to establish and meet color quality standards more efficiently, maintain consistency in each batch of material, and communicate color seamlessly internally and throughout the supply chain.
* This makes the CM-2600d suited for each stage of the manufacturing process, including R&D analysis, quality control inspections, and process control procedures.

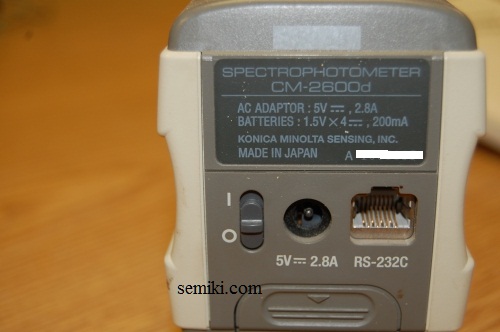

Picture: Konica-Minolta CM-2600D at Semiki’s warehouse

Features :
– Adjustable aperture switches between 3mm and 8mm
– Tight inter-instrument agreement measures consistently with other instruments of the same model, allowing color values and specifications to be communicated, shared, and coordinated seamlessly throughout the supply chain
– Pass/fail assessments immediately determines if the sample meets the defined standard or target color
– Numerical Gloss Control measures level of relative gloss for more control of a sample’s appearance
– Conveniently measures SCE and SCI simultaneously for more consistent readings and to accommodate the surface conditions of each sample
– Numerical UV Control performs measurements with and without UV simultaneously for more control of a sample’s appearance, particularly with optical brighteners
– Conveniently illuminates where the instrument is pointing
LCD displays measurement results clearly and reversing in direction according to how it’s held so that data is always facing upright to the user
– Portable, handheld, lightweight design powered by batteries or AC adapter
– Simple, straightforward navigation wheel with options easily understood by new users
– Six language options -English, Spanish, French, German, Italian, and Japanese
– Integrates with SpectraMagic NX software to record measurements and provide a more comprehensive color analysis for color quality control

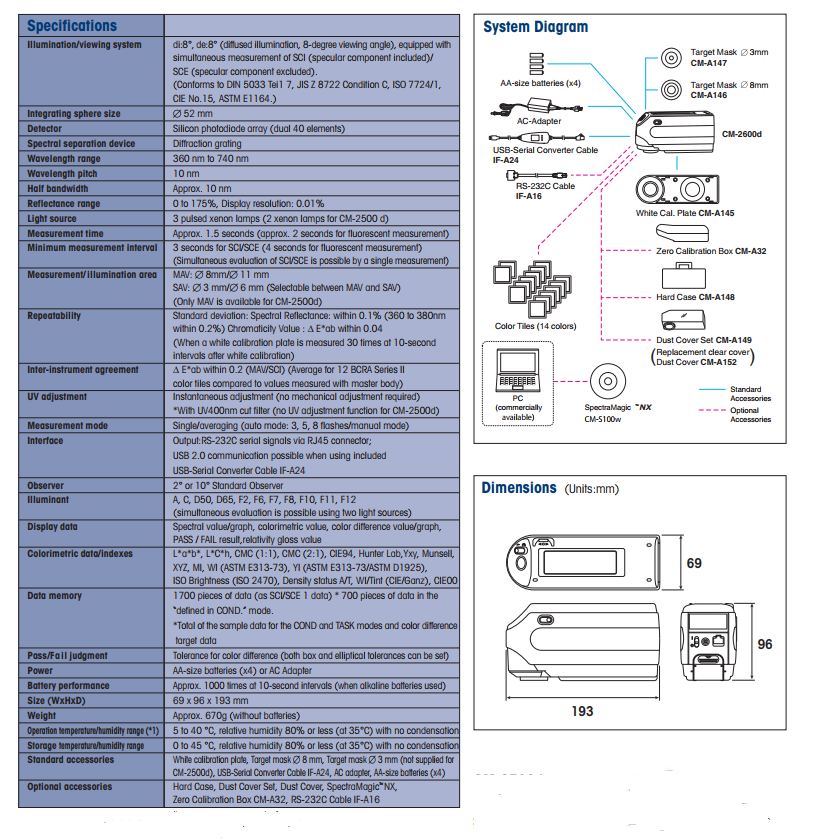

Specification :

Maintenance and calibration :

► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store. Local Vietnam : SEMIKI CORP
