Mitutoyo 293-180-30 Panme điện tử đo ngoài (0 – 25mm/1” x 0.001mm)

Nhà sản xuất: MITUTOYO

Danh mục: Dụng cụ đo chuẩn

MITUTOYO Nhật Bản
Micrometer kỹ thuật số QuantuMike IP65
Inch/Metric, với đầu ra hai chiều
Model: : 293-180-40 (0 – 25mm / 0 – 1”)
Thông số kỹ thuật
Model : 293-180-30
Xuất xứ : Nhật Bản
Phạm vi đo : 0 – 25mm / 0 – 1”
Độ chính xác : ±1μm / ±0.00005”
Khả năng hiển thị : 0.001mm / 0.00005”
Kết nối: cổng Có cổng đầu ra dữ liệu SPC

MITUTOYO Japan

Digital Micrometer QuantuMike IP65
Inch/Metric, with Bidirectional Output
Model: : 293-180-40 (0 – 25mm / 0 – 1”)

This is an IP65 micrometer offering movement four times as fast as a standard micrometer.

It presents you with the following benefits:

Faster measurement is achieved by using a coarser thread which feeds the spindle by 2 mm per thimble rotation.
Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
Ratched thimble mechanism and a small design ensures easy single-handed or stand operation.
Equipped with a calibration schedule warning function.
GO/±NG judgement is performed by setting the upper and lower tolerance limits.
Approach speed warning function for reliable measurements.
Extraordinary battery life of 2 years (4000 h).
Outstanding accuracy refer to EN ISO 3611 J_MPE ±1 µm (0-25, 25-50 mm model).
Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.
A function lock protects the display against unauthorized use.
Visibility is improved by enlarging the display unit.

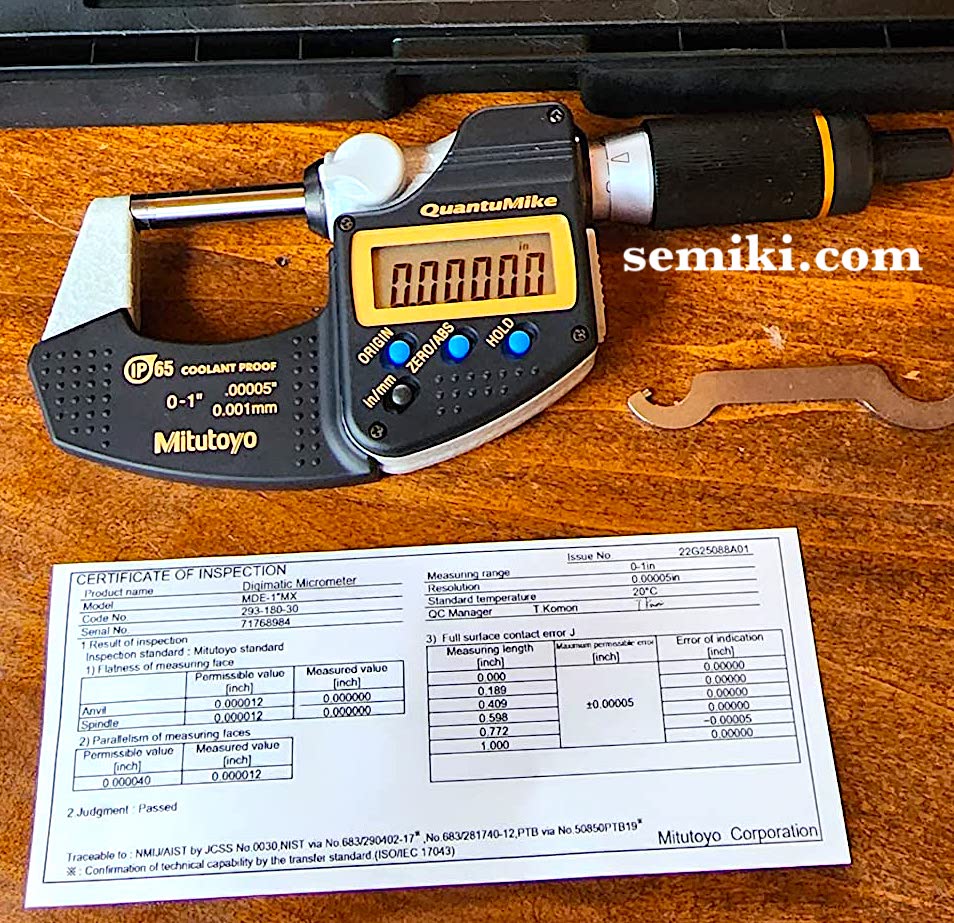

Mitutoyo Digital Micrometer QuantuMike IP65 293-180-40 (0 – 25mm / 0 – 1”) at semiki’s warehouse

Specifications

Model : 293-180-30
Origin : Japan
Measuring range : 0 – 25mm / 0 – 1”
Accuracy : ±1μm / ±0.00005”
Visibility : 0.001mm / 0.00005”
Connection: port Has SPC data output port

Digital outside micrometers are a length measuring instrument based on the principle of using screw threads to measure linear distances, originating from Gascoigne’s invention in 1638. Mitutoyo digital outside micrometers are manufactured using modern Japanese technology with IP65 water resistance and many options such as measuring range, accuracy, measuring speed, mm-inch display, data entry method after measurement… suitable for many different customer requirements.

Maintenance and calibration :

► We also have calibration certificate attached ( optional )

► Please re-calibrate after use for a certain period through our purchase store.

Local Vietnam : SEMIKI Ins
