Thiết bị kiểm tra và dây dẫn cho máy đo LCR ZM2371/ZM2372/ZM2376
Các thành phần mục đích chung
Dây dẫn kiểm tra cung cấp phép đo 4 đầu cuối. Có thể đo chính xác ở trở kháng thấp. Dây dẫn kẹp Kelvin cho phép sử dụng một kẹp cho hai điện cực đối diện được cách điện.

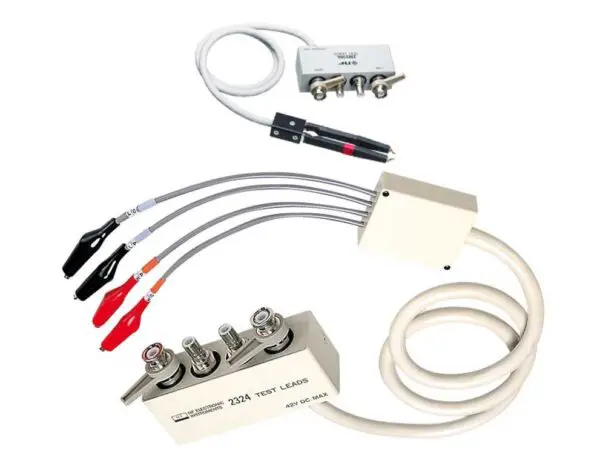

2324 Dây thử kẹp cá sấu bốn đầu
2325A (L/M) Dây thử kẹp Kelvin
ZM2392 Dây thử kẹp Kelvin
ZM2391 Dây thử kẹp cá sấu ba đầu
Các thành phần dây dẫn ZM2363 Thiết bị thử nghiệm
Các thành phần chip (Thiết bị thử nghiệm)
ZM2394H Thiết bị thử nghiệm chip
ZM2393 Thiết bị thử nghiệm chip
Các thành phần chip (Dây thử nghiệm)
ZM2366 Dây thử thành phần chip
2326A Dây thử thành phần chip
Bộ chuyển đổi điện áp phân cực DC
ZM2328 (Dành cho LCR meter ZM2371 và ZM2372)
ZM2329 (Dành cho LCR meter ZM2376)

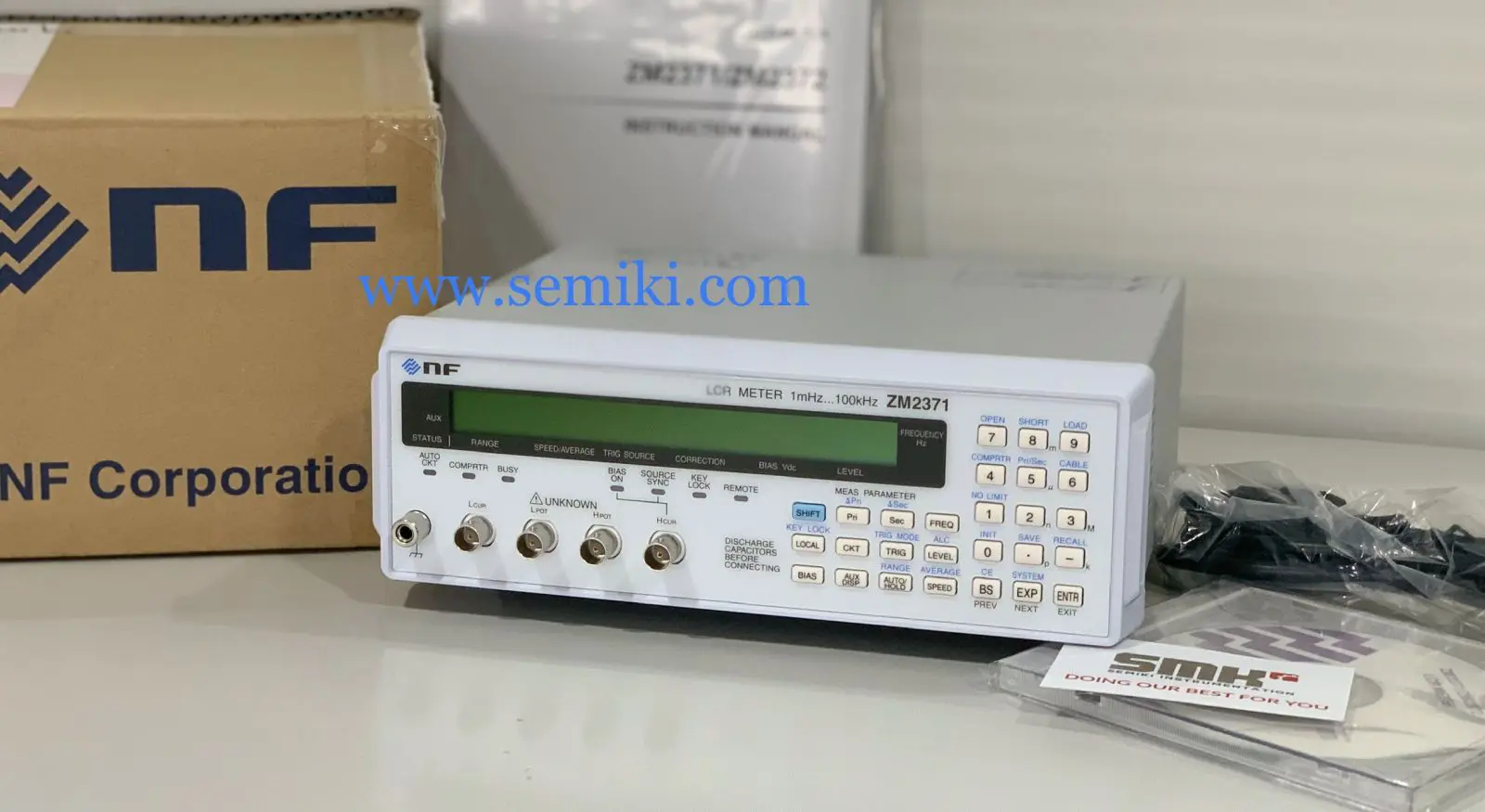

LCR Meter ZM2371/ZM2372/ZM2376
Benchtop LCR Meter Series that Achieves High-speed, High-precision
Stable Measurements
NF’s ZM series LCR meters cover a wide frequency range, from the low-frequency region of 1 mHz up to 5.5 MHz. Supports a wide range of applications, from materials research to component production lines, by means of high-speed, low measurement fluctuation.
|
2324 Four-terminal alligator-clip test leads | |
Use these test leads with low-impedance four-terminal components, including those which have separate current supply terminals and voltage test terminals. ZM2391 Three-terminal alligator-clip test leads A three-terminal type is also available for simpler measurements. |
||
|
2325AL
|
2325A (L/M) Kelvin clip test leads | ||
The two test lead clips enable four-terminal connections. The 2325A can be used to test large or unusually shaped components that cannot be easily inserted into the direct test fixture. Select between two types: the standard L type or the M type with smaller clips. | |||
|
|||
[M type] |
[L type] |
ZM2392 Kelvin clip test leads | ||
The ZM2392 provides test leads for simpler measurements. | ||
|
ZM2391 Three-terminal alligator-clip test leads | ||
A three-terminal type is also available for simpler measurements. | ||
|
Lead components
ZM2363 Test fixture | ||
Test fixture that makes 4-terminal measurements as easy as inserting the leads into the sample. To match the size of the components, the spacing of the measurement terminals can be adjusted. |
||
|
Chip components (Test Fixture)
Test fixture for measuring surface-mounted components with a 2-terminal connection. Since a cable is not used, stray capacitance and residual impedance are small, enabling accurate open and short correction.
ZM2394H Chip test fixture | ||||
|
ZM2393 Chip test fixture | ||||
|
Chip components (Test Leads)
Chip component test lead in a 3-terminal configuration with shielded measurement contacts.
Stray capacitance is small, enabling easy measurement of small-capacity capacitors.
ZM2366 Chip component test leads | ||||
|
2326A Chip component test leads | ||||
|
DC bias voltage adapter
Adapter for applying a DC bias voltage of ±40 V to the sample. This adapter provides easy connection to the LCR meter and test fixture. (4-terminal pair configuration)
ZM2328 (For ZM2371 and ZM2372)
ZM2329 (For ZM2376)
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store.
