NIHON KOUKI NSM-100 kính lúp đo lường 100X

Nhà sản xuất: NIHON DOKI

Danh mục: Kính lúp đo lường

NIHON KOUKI NSM-100
■ Độ phóng đại tổng thể: 100X
■ Thang đo tối thiểu: 1/100mm
■ Trường nhìn: 1.8mm
■ Phạm vi đo: 1.0mm
■ Khoảng cách làm việc: 5.5mm
■ Kích thước/trọng lượng: φ64x200mm/600g Kính hiển vi đo độ sâu lý tưởng để sử dụng trong các nhà máy, phòng kiểm tra và phòng thí nghiệm nghiên cứu.
• Một kính hiển vi giá rẻ và dễ sử dụng để quan sát bề mặt của vật thể.
• Được sử dụng rộng rãi trong ngành công nghiệp như một kính hiển vi đo lường cho các nhà máy.
• Nhỏ gọn và nhẹ, có thang đo tích hợp, do đó dễ dàng đo lường ngay cả ở những nơi tối với nguồn sáng đơn giản.

Maker: NIHON KOUKI – made in Japan

Model: NSM-100

■Total magnification: 100X
■ Minimum scale: 1/100mm
■ Field of view: 1.8mm
■ Measurement range: 1.0mm
■ Working distance: 5.5mm
■ Size/weight: φ64x200mm/600g

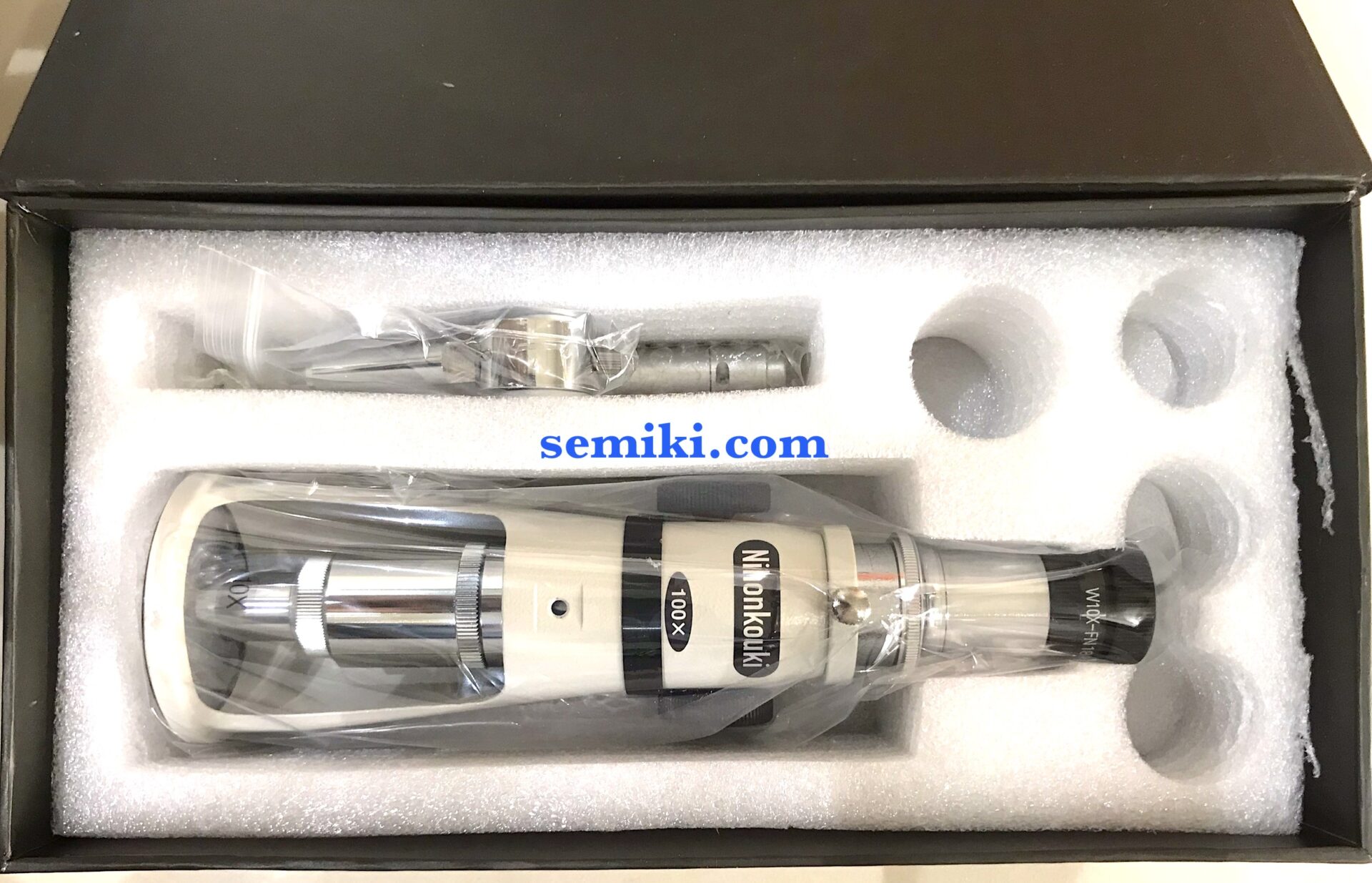

Pic.: NIHON KOUKI scale Loupe NSM-100 with Led pen ( zoom 100X) at Semiki’s warehouse

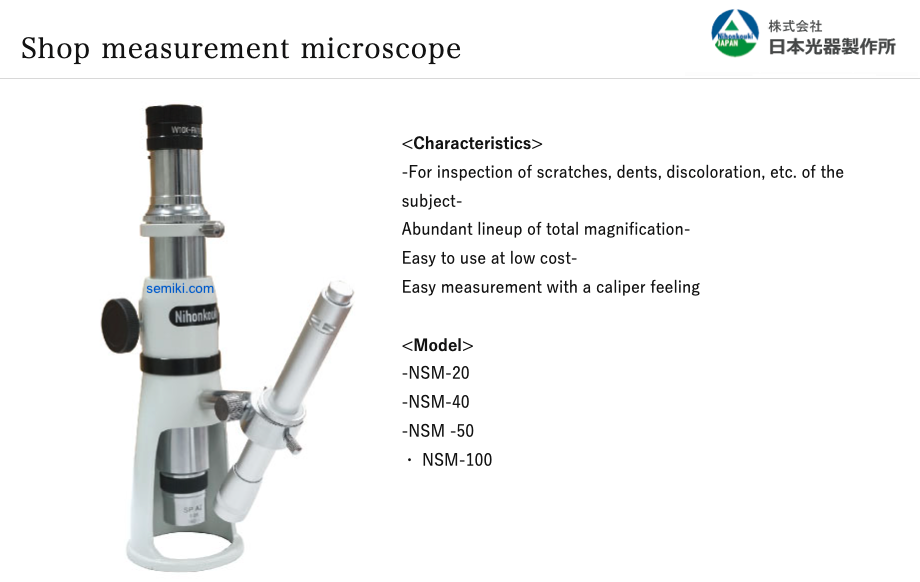

Depth Measuring Microscope is ideal for use in factories, inspection rooms and research laboratories.

• An inexpensive and easy-to-use microscope for observing the surface of the subject.

• It is widely used in the industry as a measuring microscope for factories.

• It is compact and lightweight, and has a built-in measuring scale, so it is easy to measure even in dark places with a simple light source.

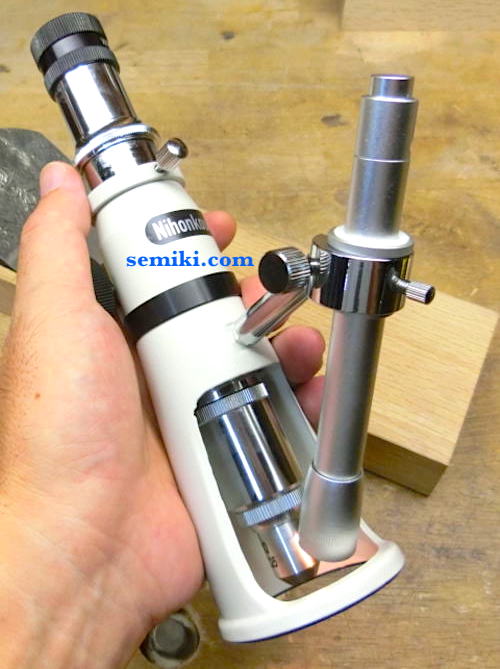

Measuring microscope parts names

① A ring used to align the scale (ruler) visible in the eyepiece with the direction of the object. The scale allows you to measure the length and width of a scratch.
② A stopper to prevent the case from hitting the edge of a carpenter’s tool if it is lowered too far.
③ The knob for adjusting the focus; turn it towards you to lower the focus.
④ The appearance will change depending on the angle and distance of the penlight.
⑤ Penlight fixing screw

Penlight

Generally, this type of microscope comes with a penlight, but you can also replace it with another light.
If you are using a model with a different diameter, you can use a thin one. Also, if you remove the plastic sleeve, you can use a thicker penlight.
When looking at the cutting edge of a carpentry tool, brighter is not necessarily better. If the reflection is too strong, the sharpening marks may appear wider than they actually are. Also, the reflection caused by wear on the cutting edge of a carpentry tool may appear larger.
The penlight in the image is a commercially available product and my measuring microscope attached to it; the penlight is a type that allows you to adjust the light output.

Measurement range and field of view

The built-in scale allows you to grasp the size of the target object. The minimum scale is 0.01mm (1 scale is 10 microns) and the measurement range of the scale is 1mm from end to end.
The inner diameter of the circle is approximately 1.8 mm from end to end.
The memory is not clear in the image, but it is clear when you see it in person. People with astigmatism may have difficulty seeing it.
The image shows the tip of the plane blade, taken through the lens of an iPhone.
