Đồng hồ đo độ lệch trục khuỷu có nam châm
Loại nhỏ có thể cố định vị trí đo bằng nam châm.

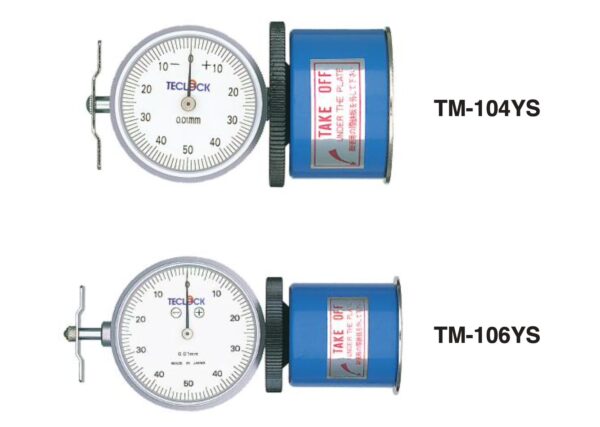

TM-104YS (65~82mm)
TM-106YS (99~113mm)
Đồng hồ đo độ lệch trục khuỷu Teclock TM-104YS (65~82mm), TM-106YS (99~113mm).Thiết bị độc quyền để đo độ lệch trục khuỷu động cơ ô tô
Crankshaft Deflection Gauge Model: TM-104YS (65~82mm), TM-106YS (99~113mm).Exclusive instrument to measure deflections of engine crank of automobiles
Crankshaft measurement – deflection gauge
Essentially, the deflection gauge shows us the distance between adjacent crank webs, which are read at different angular positions of the shaft. The strain applied to the stylus of the gauge shows the flexing motion between two crank webs, showing even minimal variations.
The deflection gauge is the main tool you will be using to conduct crankshaft deflection measurement. These gauges can be either mechanical or digital. While the digital type will directly show you the exact readings, it’s worth detailing how to interpret the readings on a dial deflection gauge.

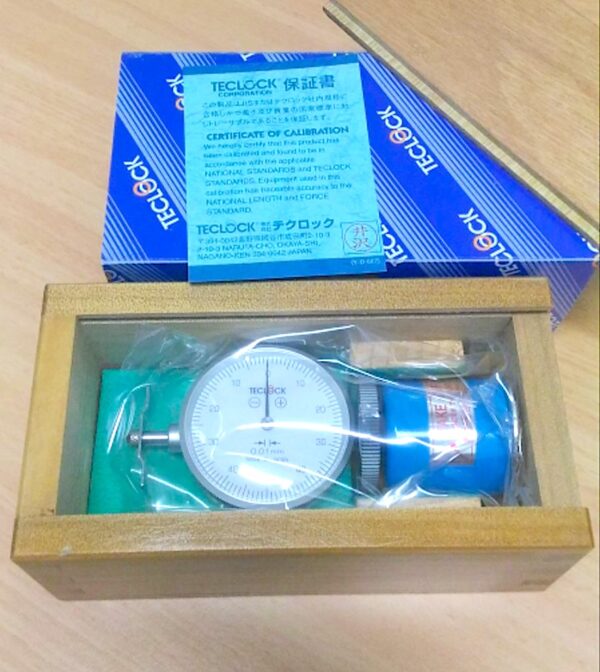

Pic.: Crankshaft Deflection Gauge Teclock TM-104YS (65~82mm) at Semiki’s warehouse
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store.
