thiết bị đo độ cứng ASKER DUROMETER TYPE A, B,C, D

Nhà sản xuất: ASKER KOBUNSHI

Danh mục: Đồng hồ đo độ cứng cao su

Asker Hardness testers feature portable design, ease of operation, non-destructive measurement and optional peak indicators. Supplied with 3 point NIST traceable calibration cert.
The Asker High Performance series has an accuracy of ±.75 point and is available in Type F for soft materials like sponge rubber and urethane foam.
Asker models are available in ASTM D 2240 durometer Types: Shore A Hardness, Shore D Hardness and Asker C Hardness durometer scales.

ASKER-A global brand born in Kyoto

[KOBUNSHI KEIKI CO., LTD.]

High Performance Durometer-Hardness tester

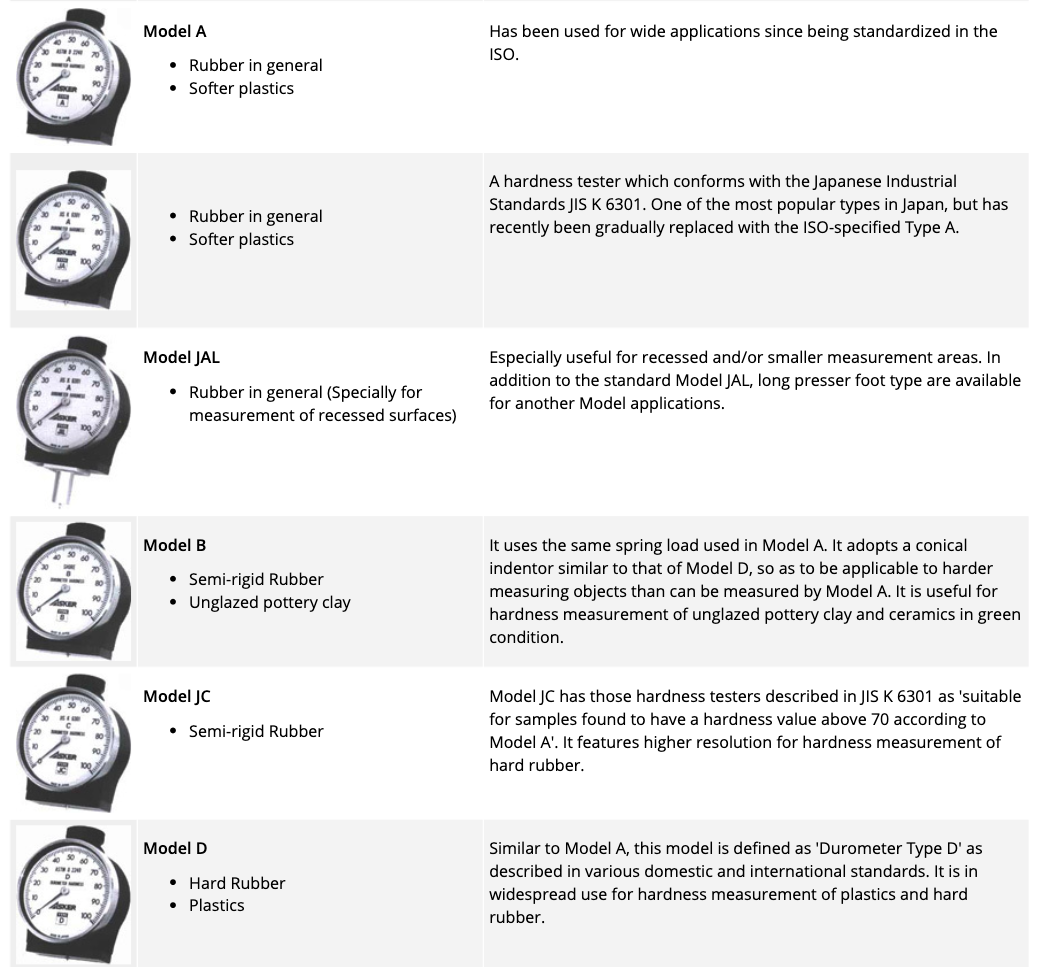

Common Hardness scales:

Shore A Normal rubber
Shore D Hard rubber & plastics
Asker C Soft rubber
Asker F Urethane foam, sponge and polystyrene foam

Special Hardness Scales

Asker JA Normal rubber & softer plastics
Asker B Semi rigid rubber & plastics
Asker C2 Soft rubber & sponge Asker
Asker CS Polystyrene foam
Asker E Soft & cellular rubber

• Asker Hardness testers feature portable design, ease of operation, non-destructive measurement and optional peak indicators.

• Supplied with 3 point NIST traceable calibration cert.

• The Asker High Performance series has an accuracy of ±.75 point and is available in Type F for soft materials like sponge rubber and urethane foam.

• Asker models are available in ASTM D 2240 durometer Types: Shore A Hardness, Shore D Hardness and Asker C Hardness durometer scales.

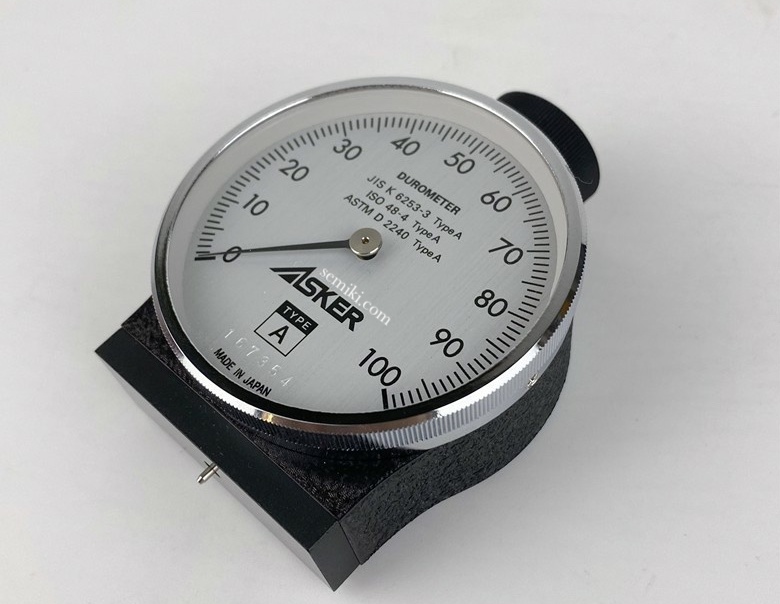

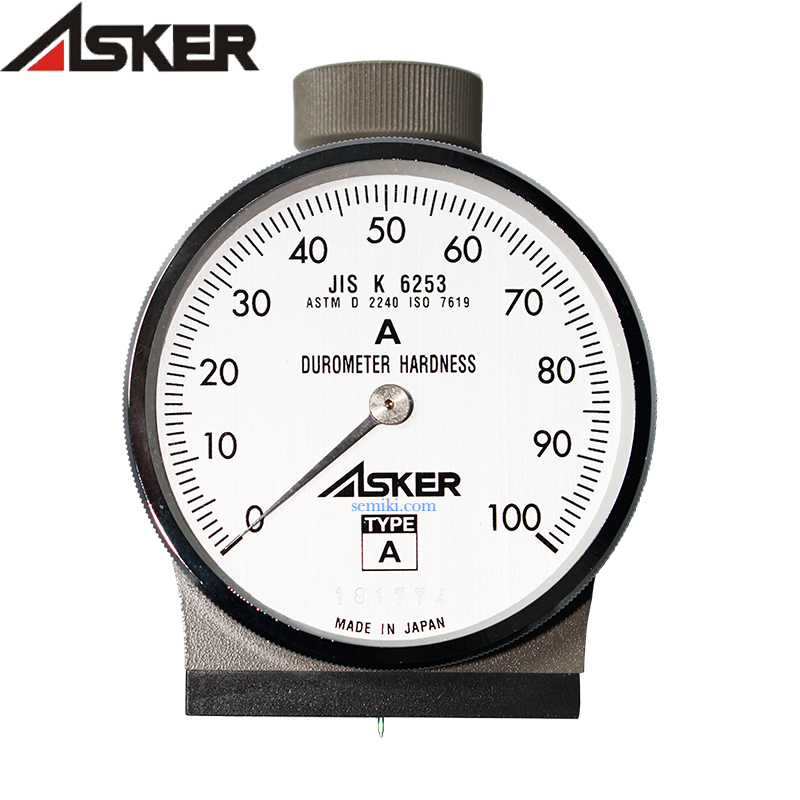

Pic.: ASKER Durometer Type A general rubber (Normal hardness ) JIS K 6253-3, ASTM D 2240, ISO 48-4 at Semiki’s warehouse

Hardness Tester Operation

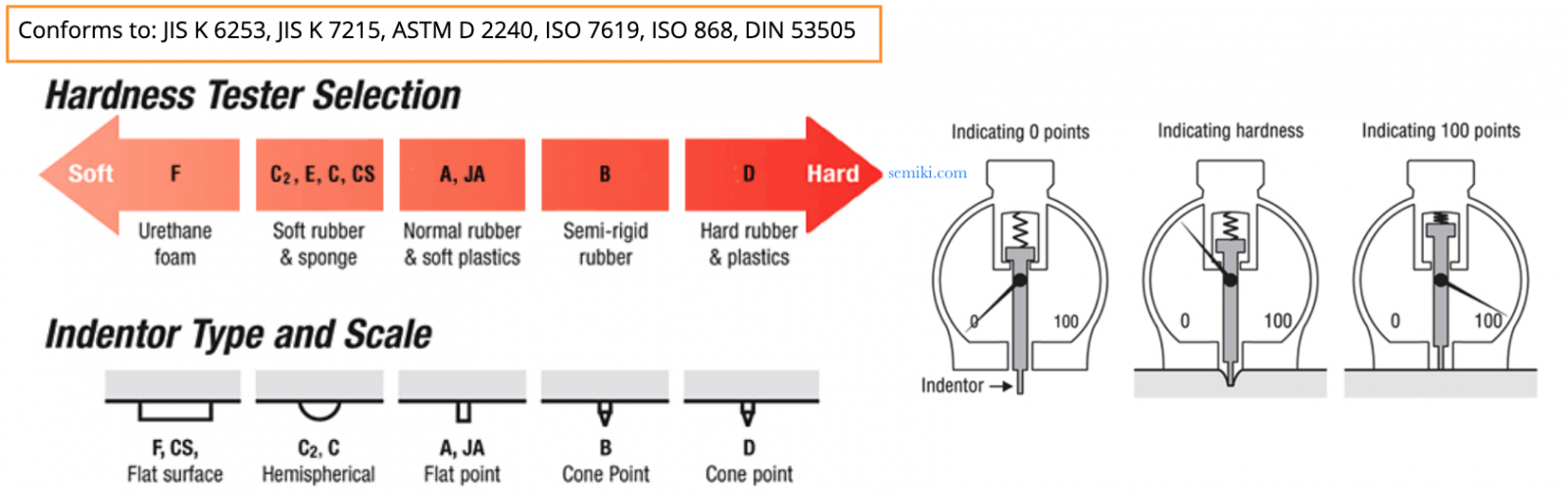

As the hardness tester is pressed against the sample, the material resistance force and indentor spring load balance. The depth of the indentor is measured, which provides a measure of the material’s hardness. Values are based upon a 100 point scale (accuracy ±.75 point). However, as time elapses the indicator will “creep” back so that a reading taken a few seconds after the tester makes contact with the sample will be less than the peak reading. The optional peak indicator helps to more closely monitor the difference between peak and “creep” in hardness tests.

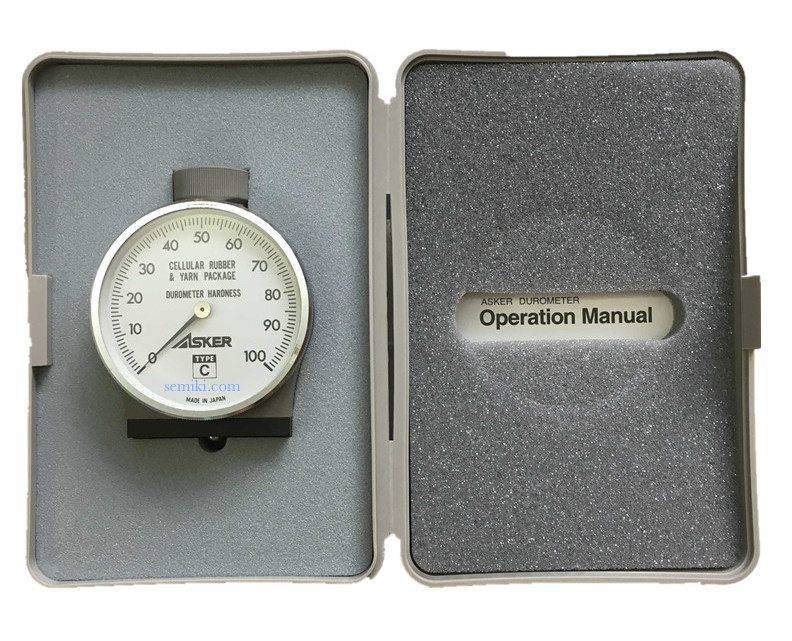

Pic.: ASKER Durometer Type C soft rubber, sponges, and other foam elastomers, as well as rolled-threads, -films and textile windings (yarn packages). at Semiki’s warehouse

Maintenance and calibration :

► We also have calibration certificate attached ( optional )

► Please re-calibrate after use for a certain period through our purchase store. Local Vietnam : SEMIKI CORP
