new SSD field meter STATIRON DZ4 updated as easy operation with more reasonable pricing.
shishido-SSD | Multi Function ESD meter

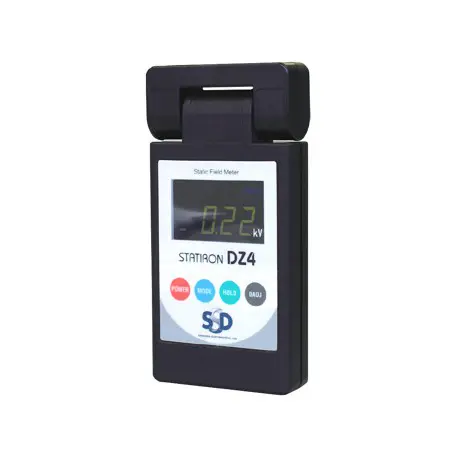

model: STATIRON DZ4
New SSD field meter STATIRON DZ4 updated as easy operation with more reasonable pricing.
Features:
– With Functional rotary sensor head, you can measure flexible angle
– Visible Bright LED indication
– Easy operation with simple button
– Mode Indication
– With optional balance plate and check the ion balance of ionizer
– Easy to hold the peak level for varying voltage with (MAX) mode
– Error indication for the damaged sensor

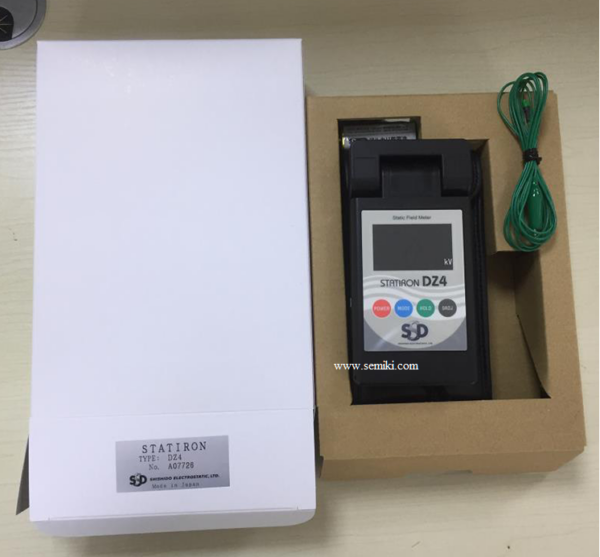

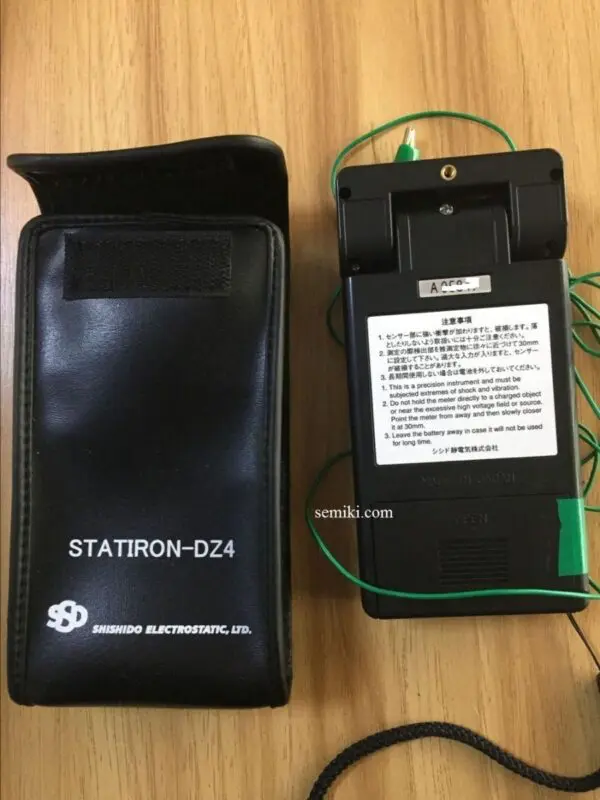

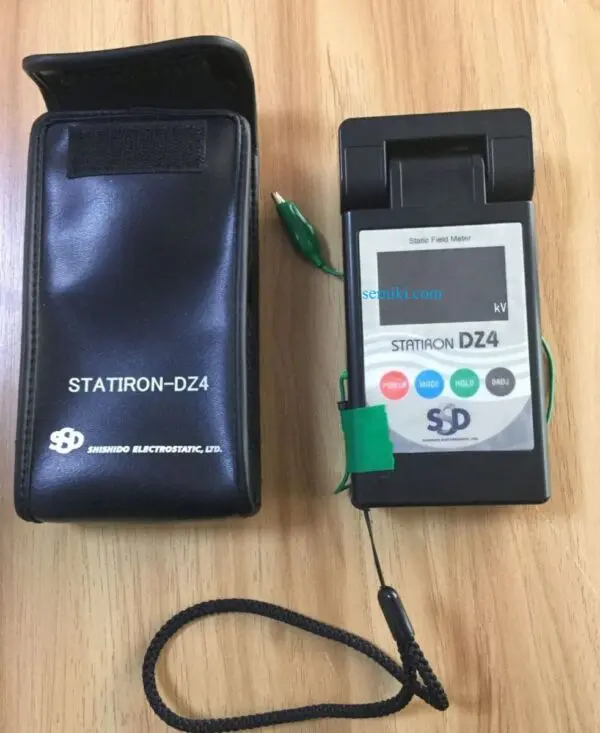

Picture: shishido static electricity-Statiron DZ4 at Semiki’s warehouse
Specification :
| Model | DZ4 |
| Signal detection method | Oscillating chopper *1 |
| Frequency of data indication | Each 0.5 second |
| Measurement range | Normal mode: 0.01~19.99 kV I.B mode: 0.001~1.999 kV |
| Measurement accuracy | ±10%rdg ± 2 digit |
| Measurement distance | 30 mm (between measurement object and sensor) |
| Measurement distance adjust | Red Light focusing system |
| Angle of the rotary sensor head | 180 degree (hold each 45 degree) |
| Indicator | LED indicator with back light |
| Polarity display | Both positive and negative polarity |
| Mode select | With MODE select button |
| Battery check | Indicate in LED indicator |
| Power supply | DC 9V alkaline battery 006P |
| Operating Environment | 0 to 40℃ From 70% or less with no condensation |
| Main unit dimensions | 66×22×138 mm (W×H×D) |
| Wight | 160 g |
| Accessories | 9V battery, soft storage case, Grounding Cable,Strap |
| *1: The oscillating chopper is very susceptible to shock such as being dropped. Take care not to subject when using it. | |
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store. Local Vietnam : SEMIKI CORP
