THIẾT BỊ ĐO LỰC MÔ MEN XOẮN TOHNICHI DB Series

Nhà sản xuất: TOHNICHI

Mã: DB1.5N4-S,DB3N4-S,DB6N5-S,DB12N5-S,DB25N5- 1/4-S,DB25N5-S, DB50N-S,DB100N- 3/8-S,DB100N-S, 15DB4-S,30DB4-S,DB60M5-S, DB120M5-S,DB250M5-1/4-S,DB250M5-S,DB500M-S,DB1000M-3/8-S, DB1000M-S Danh mục: Cờ lê lực kim đồng hồ

Wide range and high accuracy dial indicating torque wrench. Ideal for torque quality inspections
Easy to ready dial face has follower hand memory pointer that stays on peak torque for convenient reference
Use for tightening purposes by simply rotating the dial to the desired torque. Completed tightening is achieved when the pointer indicates “0”.
DB is not length dependent. Therefore, accuracy is consistent regardless of where the hand is placed during operation.
The dial indicator has a full-surround protective cover to prevent damage to external objects (except DB420N, DBE, and DBR series models).
DB25N to DB280N models have a resin grip. Lowest torque range models have index finger handles designed to guide you to use light hand force to avoid possible over-torque.
DBE has an extension handle.
For DBR models, applies load by lever block or winch.
Applicable for international use including the EU region. Compliant with calibration procedures of ISO 6789 Type I Class B.

TOHNICHI Torque Wrench

Model: DB / DBE / DBR

Dial Indicating Torque Wrench

Unit: Newton ( N) / Kgf.m

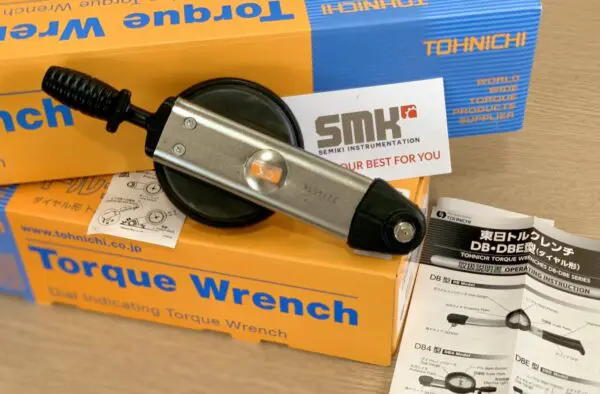

Picture: Tohnichi Dial Indicating Torque Wrench DB120M5-S ( 14~120 Kgf.cm / S.Q Driver 1/4 inch ) at Semiki’s warehouse

Features :

– Wide range and high accuracy dial indicating torque wrench. Ideal for torque quality inspections
– Easy to ready dial face has follower hand memory pointer that stays on peak torque for convenient reference
– Use for tightening purposes by simply rotating the dial to the desired torque. Completed tightening is achieved when the pointer indicates “0”.
– DB is not length dependent. Therefore, accuracy is consistent regardless of where the hand is placed during operation.
– The dial indicator has a full-surround protective cover to prevent damage to external objects (except DB420N, DBE, and DBR series models).
– DB25N to DB280N models have a resin grip. Lowest torque range models have index finger handles designed to guide you to use light hand force to avoid possible over-torque.
– DBE has an extension handle.
– For DBR models, applies load by lever block or winch.
Applicable for international use including the EU region. Compliant with calibration procedures of ISO 6789 Type I Class B.
