THIẾT BỊ ĐO LỰC XOẮN NẮP NIDEC SHIMPO TNP SERIES

Nhà sản xuất: NIDEC DRIVE

Danh mục: Thiết bị đo lực vặn mở nắp chai

The Series TNP Digital Torque Meter is a precision instrument for measuring OPEN and CLOSE
torque values for various applications. The TNP
Torque Meter is used in medical, pharmaceutical, industrial quality control, R&D and countless other torque applications.
As a cap torque analyzer, the TNP repeatedly determines bottle
closure and breakaway torque. Its wide memory capacity is capable of storing 1,000 data points, including Average, Maximum
and Minimum values. A HI-GO-LO LED comparator feature can be
utilized for large batch testing to ensure overall product quality.
The TNP is a portable device powered with internal rechargeable
batteries or through provided universal AC adapter/charger.
Designed with a small footprint, it can easily be transferred between the shop floor and laboratory taking up little space when
operating. The TNP Torque Meter comes standard with USB connection and cable for easy PC/Software interface. Combined with
the free “Digitorq” Software, statistical testing, graphing and analysis can be performed.

NIDEC

Screw Cap Torque Testers

Model: TNP Series

model:

TNP-0.5 : 0-50.00 N.cm / 0-500.0 mN.m / 0-5099 g.cm

TNP-2 : 0-2.000 N.m / 0-200.0 N.cm / 0-20.39 kg.cm

TNP-5 : 0-5.00 N.m / 0-500.0 N.cm / 0-50.99 kg.cm

TNP-10 : 0-10.00 N.m / 0-1000 N.cm / 0-102.0 kg.cm

Video: NIDEC Screw Cap Torque Testers TNP-10 ( 10N.m)| intro ( Vietnamese )

Features :

• Precise ± 0.5% F.S. accuracy ensures exact results
• Variety of applications met with ranges from 4.4 in·lb (50 N·cm) all the way to 88.5 in·lb (10 N·m)
• Quick & Easy set up with removable chuck pins that adjust test diameter size
• Memory function allows convenient storage of up to 1000 readings for later retrieval
• One touch operation enables quick reset for subsequent tests
• Large, easy to read LCD displays torque values in four selectable engineering units
• PC connectivity with USB interface and free Digitorq software enables data analysis and graphing on Microsoft® Excel
• Truly portable with compact, light-weight design and internal, rechargeable batteries
• Recharge batteries with included 120/240V AC adapter/charger or utilize adapter for continuous use
• Selectable measuring modes enables capture of Average, Peak Opening or Peak Closing values in either
clock-wise (CW) or counter clock-wise (CCW) directions
• Speed up large batch tests with the integral Red/Green LED comparator that responds in accordance
to pre-programmed tolerances
• Durable, cast-aluminum heavy-duty construction withstands demanding wear and tear
• Includes Factory Certificate, CE Approval and 2 Year Warranty!

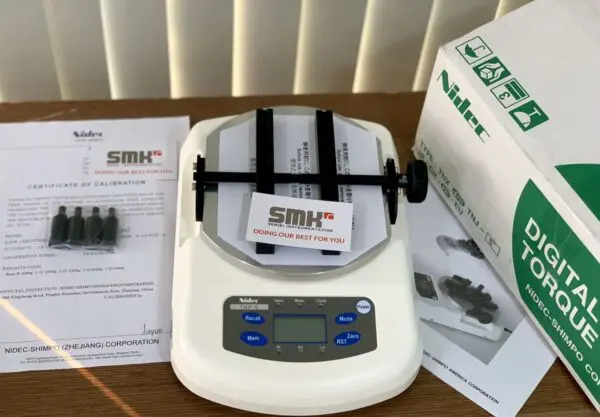

Pic.: Nidec-Shimpo TNP-5 ( 0~5 N.m ) at Semiki’s warehouse

TNP Series Specifications :

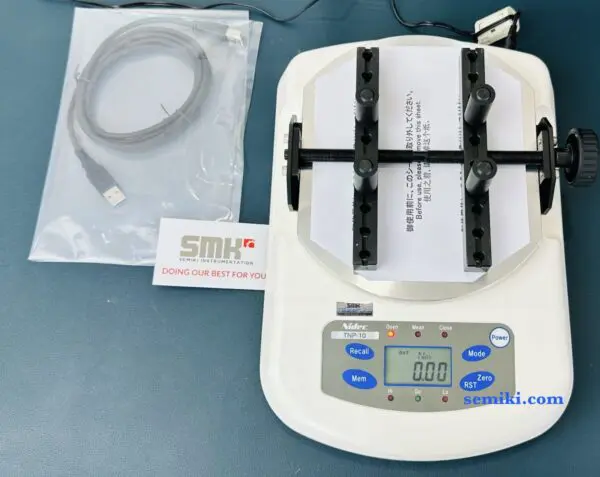

Pic.: NIDEC Screw Cap Torque Testers TNP-10 ( 10N.m) at Semiki’s warehouse

Maintenance and calibration :

► We also have calibration certificate attached ( optional )

► Please re-calibrate after use for a certain period through our purchase store. Local Vietnam : SEMIKI CORP
