Thiết bị đo mô men xoắn điện tử Tohnichi ATGE-G

Nhà sản xuất: TOHNICHI

Danh mục: Máy cân chỉnh tô vít điện, Thiết bị kiểm tra lực siết

Digital torque gauge series for small torque range 0.1～20cN • m (1～200mN • m) total 6 models.
Tohnichi ATGE series torque gauge for very small torque.
3-way configuration: Hand-held, Table top, or as a Torque meter with testing fixture.
Digital indicator prevents reading mistake for inspected data.
Ideal for torque measurement for rotating torque, click torque of precision machinery, electronic devices, and various assembly components.
Physical stopper prevents accidental over-loading.
Up to 999 readings can be saved with computing function to display max/min/meantime values.
Coin-type lithium battery (CR2450) allows 10-hour continuous operation.
USB cable can be used for data transfer to PC.
Global design.
With CE mark, and it is for international use including the EU region.
Excel Receiver software is a data input tool for Excel® data management. It can be downloaded for free.
*Note: Excel® is a registered trademark of the Microsoft Corporation.

TOHNICHI

Torque Measuring Equipment

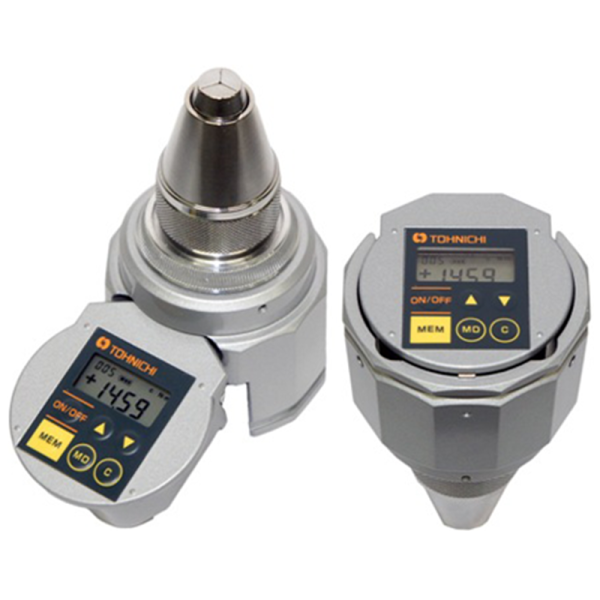

ATGE-G Torque Gauge

Features

Digital torque gauge series for small torque range 0.1～20cN • m (1～200mN • m) total 6 models.
Tohnichi ATGE series torque gauge for very small torque.
3-way configuration: Hand-held, Table top, or as a Torque meter with testing fixture.
Digital indicator prevents reading mistake for inspected data.
Ideal for torque measurement for rotating torque, click torque of precision machinery, electronic devices, and various assembly components.
Physical stopper prevents accidental over-loading.
Up to 999 readings can be saved with computing function to display max/min/meantime values.
Coin-type lithium battery (CR2450) allows 10-hour continuous operation.
USB cable can be used for data transfer to PC.
Global design.
With CE mark, and it is for international use including the EU region.

Video: Tohnichi ATGE-G Digital Torque Gauge I intro

Application

Measurement, inspection and tightening of very small torque.

ATGE can be used to check very small torque screwdrivers.

Specification

Picture: tohnichi-ATGE Torque Gauge-ATGE2CN-G (0.4～2［cN • m］/0.002 ) at Semiki’s warehouse

Pic.: tohnichi ATGE05CN-G (0.1～.5［cN • m］/0.001 ) at Semiki’s warehouse

Maintenance and calibration :

► We also have calibration certificate attached ( optional )

► Please re-calibrate after use for a certain period through our purchase store. Local Vietnam : SEMIKI CORP
