IMADA Automatic Crimp Tester ACT-1000N is ideal for crimp pull tests requiring high efficiency of testing and data management. The equipped functions support your measurement without additional options.You just press the button to perform the test and to store the result.
Automatically, the moving part backs to the home position after testing and the tester saves the result to the internal memory and PC.

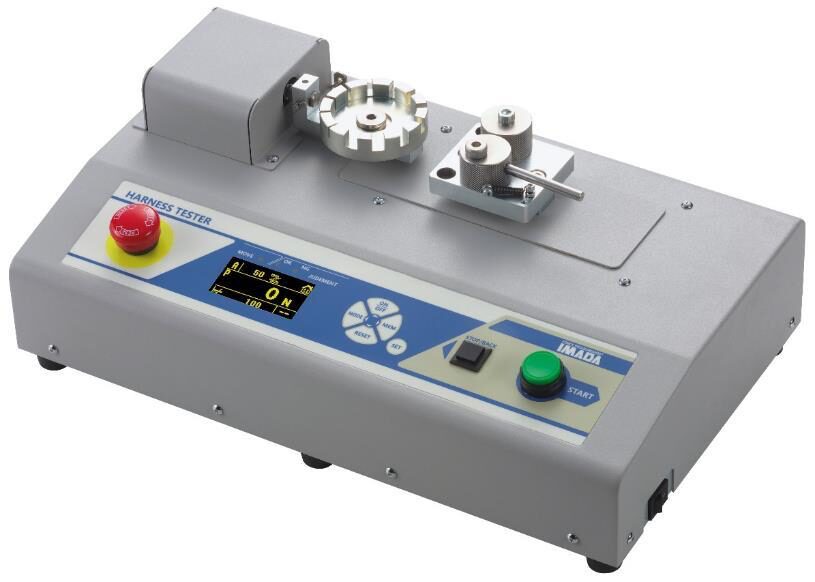

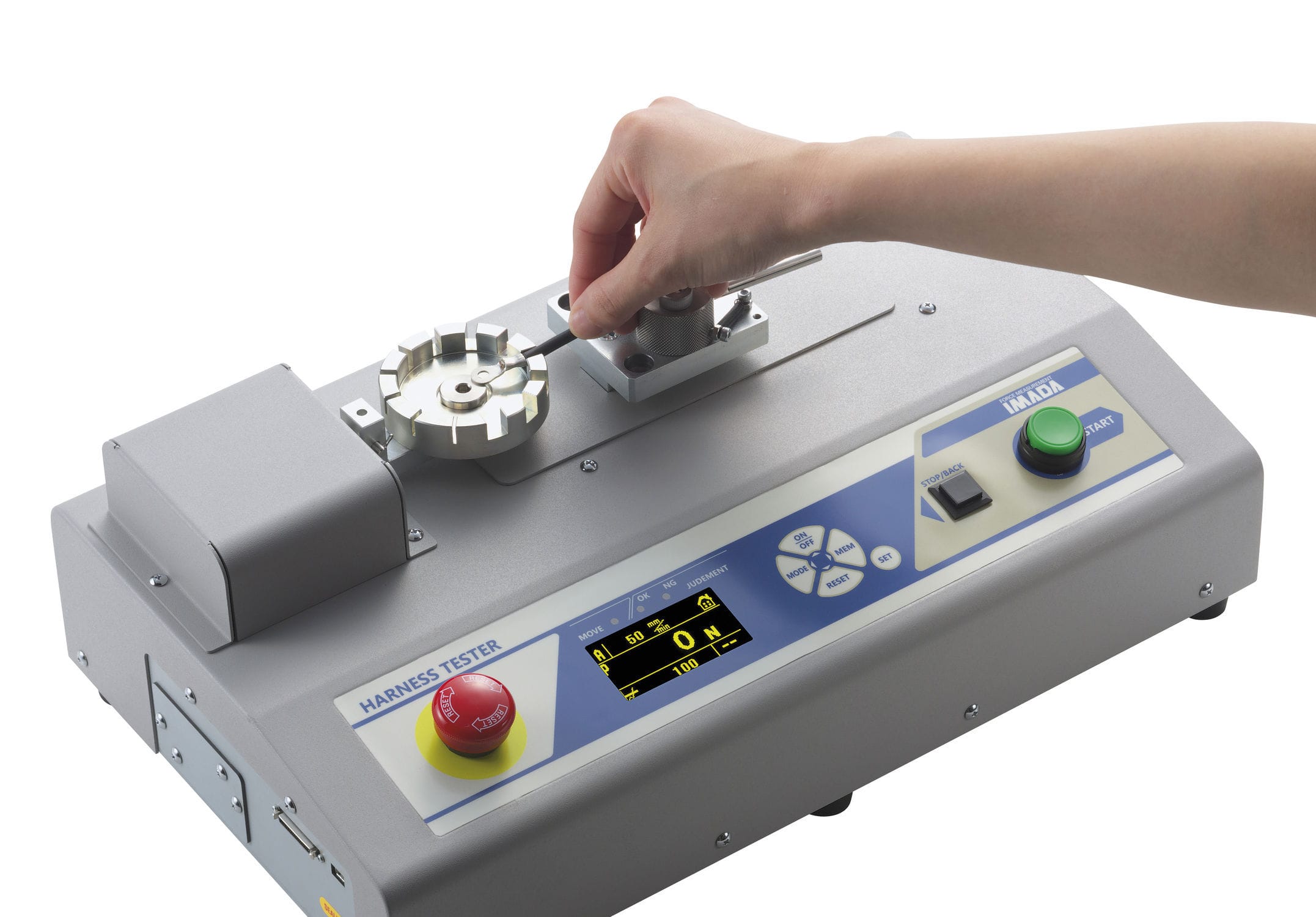

IMADA Automatic Crimp Tester
Model: ACT-1000N ( 1000N/100kgf)
Feature:
• Perfect solution for automatic crimp testing

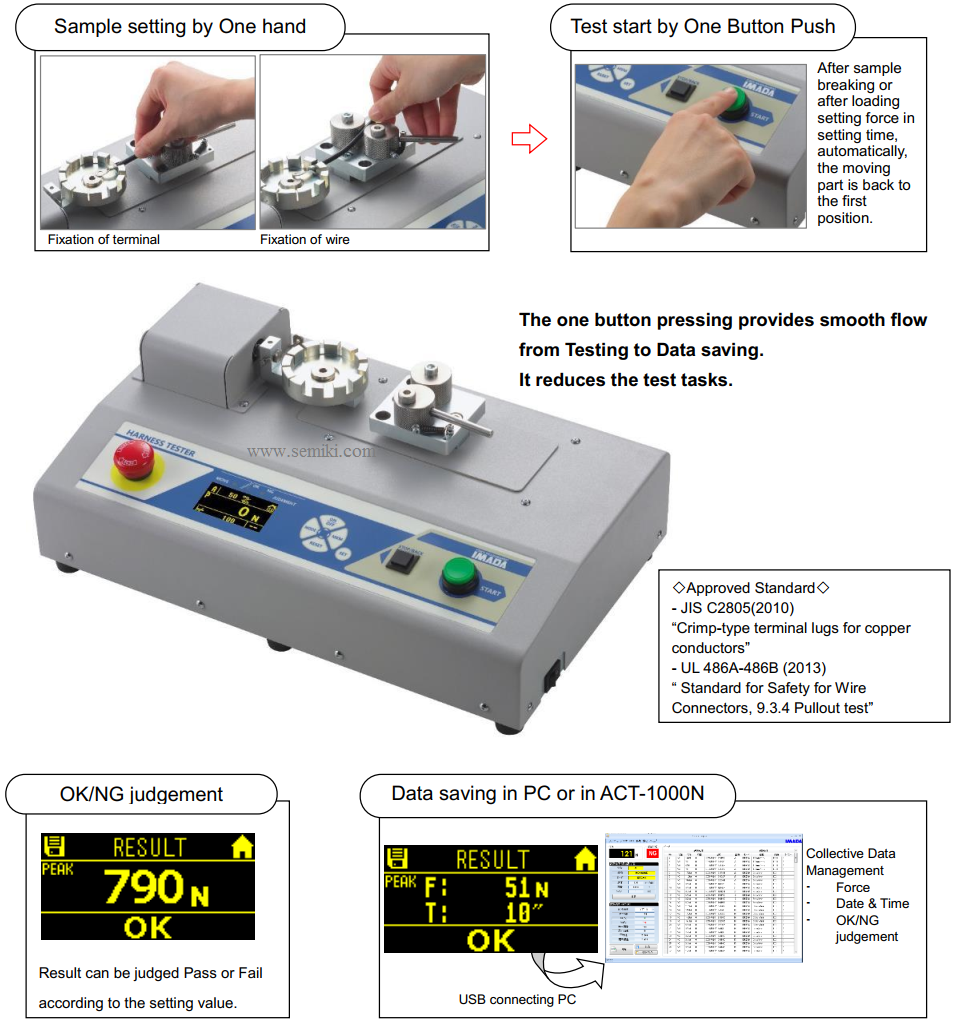

• Realizes efficient testing with one-button operation, providing smooth flow from testing to data saving including OK/NG (pass/fail) judgement

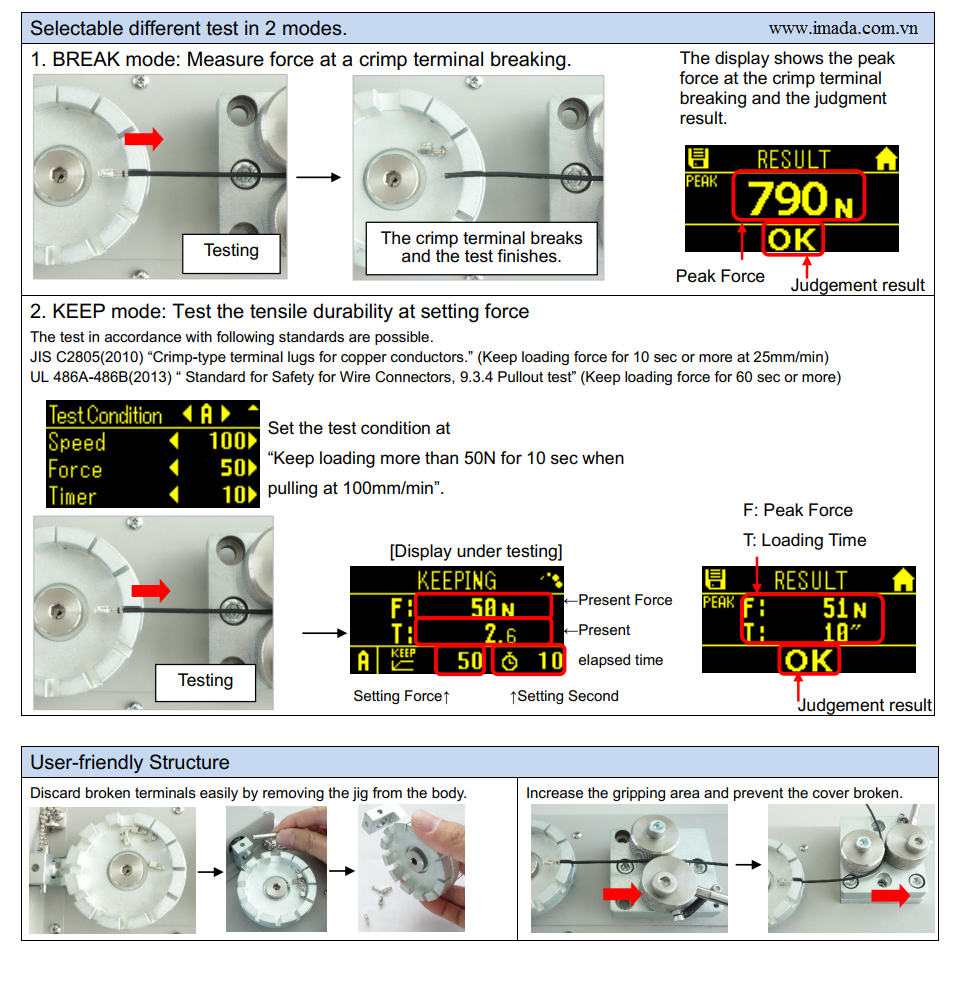

• 2 modes selectable : BREAK mode for destructive test and KEEP mode for nondestructive test to apply specific force in set time
• Capable of saving up to 26 test patterns, immediately recallable to suit various samples
• Complies with the corresponding part of UL and JIS standards
Video: how to using Automatic Crimp Tester ACT-1000N

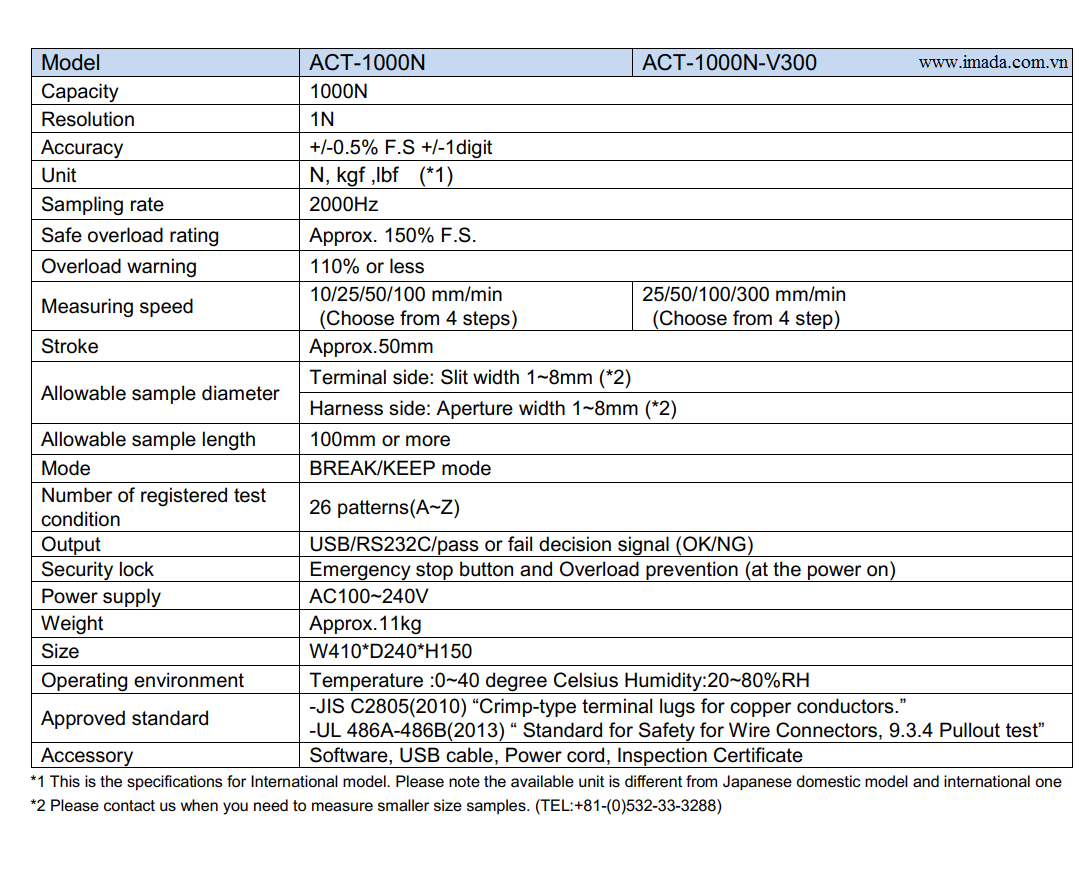

Specifications:
FUNCTION
[Caution]:
– The contents may be changed without previous notice.
– All of products are designed for measurement purpose only.
– Do not copy and use this content without authority.
– Please note that the capacity is dependent on the displayed unit. Please contact us for details.
Semiki Instrumentation Corp is authorized
to promote, sell, store and distribute with the direct support and technical assistance of
force gauge IMADA : www.imada.com.vn
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store. Local Vietnam : SEMIKI CORP
