Máy đo độ rung hãng ACO TYPE 3233 (dB) – Vibration Level Meter TYPE 3233 (dB)

Nhà sản xuất: ACO

Danh mục: Cảm biến đo độ rung, Hệ thống phân tích độ rung, Máy đo độ rung, Máy đo độ rung động cơ Từ khóa: ACO TYPE 3233 (dB), Thiết bị đo độ rung, Vibration Level Meter

Máy đo độ rung loại 3233 tuân thủ luật đo lường JIS C 1510-1995 và có tính cơ động vì kích thước nhỏ và trọng lượng nhẹ. Khi tích hợp với Bộ thu rung 7833 cho phép bạn đo mức rung sàn và mức gia tốc rung trên mặt đất, sàn nhà, móng và ghế, v.v., đồng thời theo ba hướng X, Y và Z

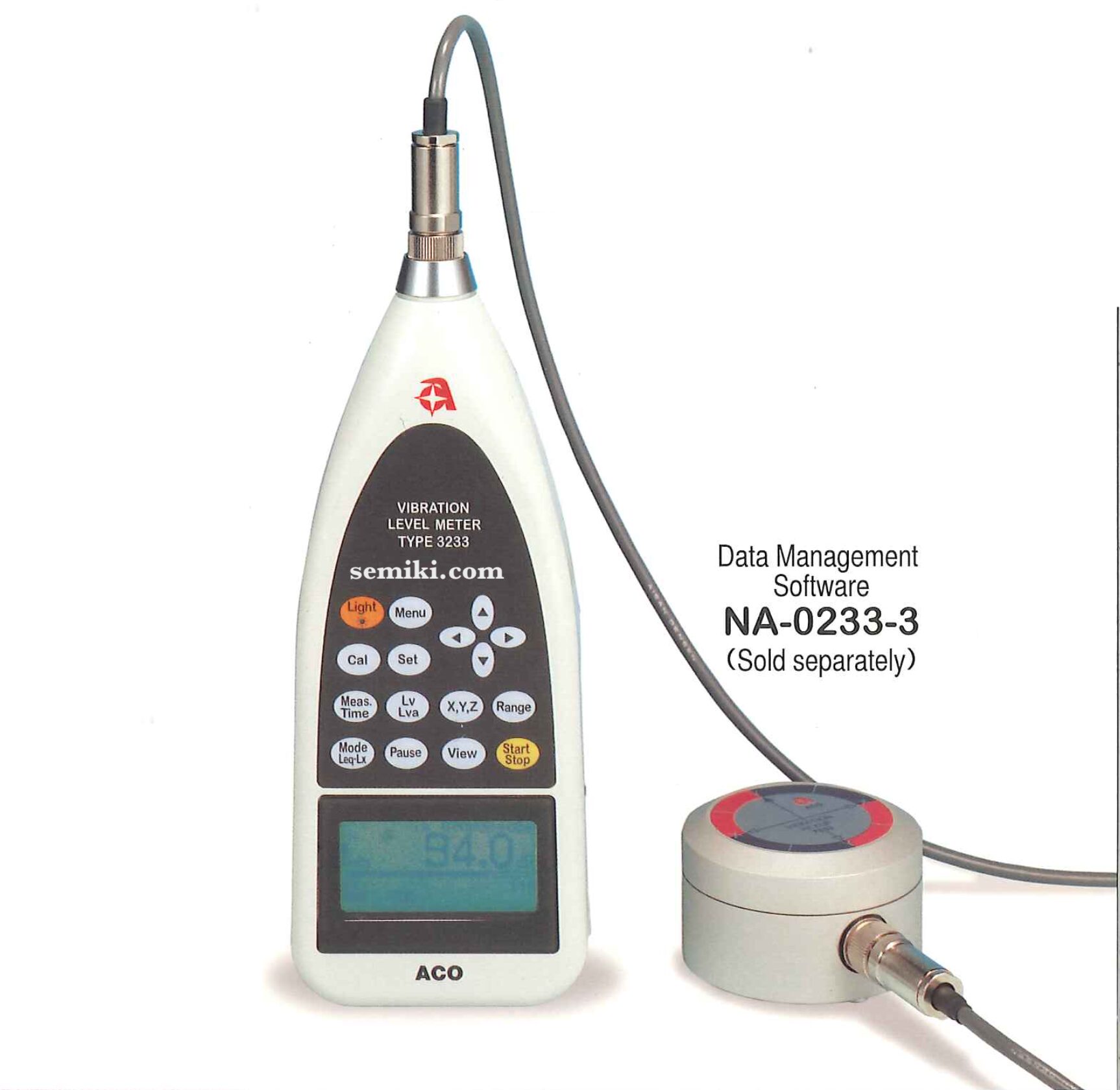

Vibration Level Meter TYPE 3233 (dB)

ABOUT

Type 3233 conforms to measurement law JIS C 1510-1995, and exerts mobility at every measuring site because of its smallness and light weight. Combination/Integration with Vibration Pickup Type 7833 allows you to measure vibration levels floor and vibration acceleration levels on the ground, floor, foundation and seat etc., simultaneously in three directions of X, Y and Z.

The measuring and computing items are vibration level Lv for which sensory characteristics are taken into account, vibration acceleration level Lva of physical quantity, power average Leq, maximum value Lmax, minimum value Lmin and Percentile level Lx, of which instantaneous values are digitally displayed on the liquid crystal screen.

These can be simultaneously recorded on an external level recorder with output terminals independent in three directions. In addition, data processing has been simplified by integrating with peripherals using I/O terminal (RS-232C interface).

ACO’s Sound Meters, Types 6224/6226, having the equivalent specifications, are also on sale as popular comparison meters. Please make use of these in combination with the measuring instruments for environment control.

FEATURES:

・Easy to handle as a result of its smallness and light weight, high mobility and easy operation. Measurer does not require any special skill. The pickup for measurement offers compatibility.

・Digital values and bar graphs are displayed on a large-scale liquid crystal screen equipped with backlight. Anyone can take a measurement without a reading error, and easily grasp vibration amounts with the bar graph.

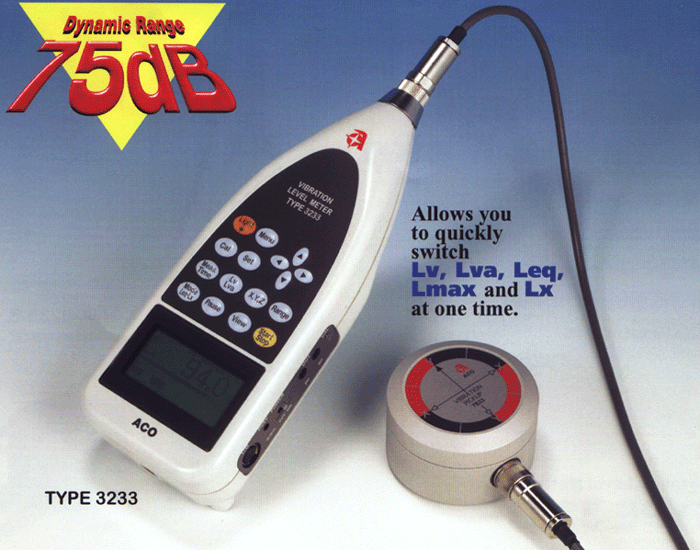

・Wide range of linearity 75dB eliminates switching.

・Maximum and minimum values(Lmax, Lmin), Percentile vibration level (Lx; five values) and power average are computed simultaneously in three directions, and selectively displayed.

・Rs-232C interface built-in, data management and processing can be easily carried out by data management software (separately sold).

・A wide range of vibration levels can be easily measured and operability is enhanced by using the tripod stand.

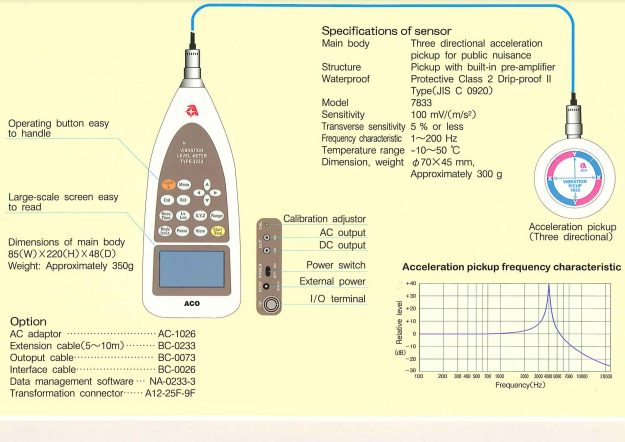

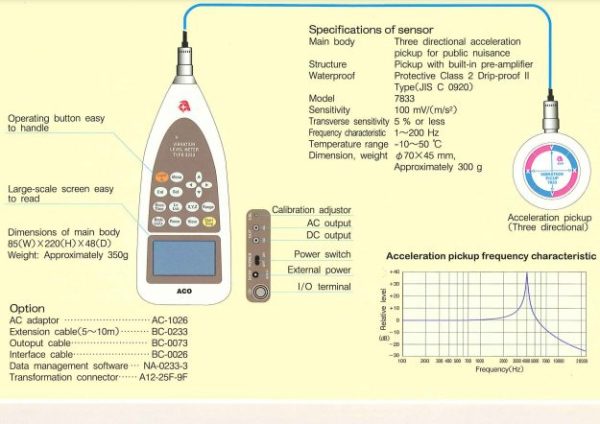

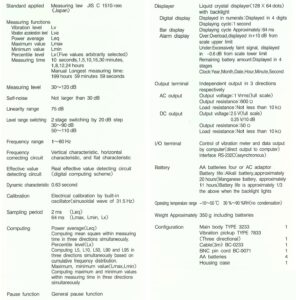

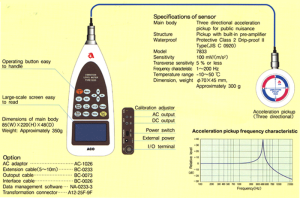

SPECIFICATION

Acceleration pickup	Type 7833
Measuring level	30dB to 119dB
Linearity range	75dB
Frequency range	1Hz to 80Hz
Dynamic characteristic	0.63 second
Calibration	Electrical calibration by built-inoscillator(sinusoidal wave of 31.5Hz)
Display	Liquid crystal display (128×64 dots)
Output terminal	Independent output in 3 directions respectibely
AC output	Output voltage : 316mVrms(full scale) Output resustance : 600 ohm Load resustance ; Not less than 10k ohm
DC output	Output voltage : 2.5V(full scale) 0.25V/10dB Out put resutance : 50 ohm Load resutance : Not less than 10k ohm
Battery	Four AA batteries or AC adaptor
Waterproof property	IPX7 (Vibration pickup)
Weight Approximately	380g including batteries
